Offgridtec© ABS connecting spoiler, white, connecting profiles, 180 mm
Shipped in 1-3 days
€19.41*
Our white 180 mm connecting profiles made of ABS plastic are used in conjunction with the corner profiles to mount two or more solar modules in a continuous block. The corners are inserted on the outside of the module field and these connecting profiles are inserted between the modules.
Furthermore, for particularly large modules, they can be used as supports on the long sides to prevent the frame from sagging. ABS plastic is very robust and also resistant to UV radiation. It can withstand the effects of the weather for many years.
We recommend the following adhesive
- Adhesive set Dekalin 6270034 DEKAsyl MS-5 black 290 ml strong adhesive / Dekavator / wool wiper / cleaning cloth
- Adhesive set Dekalin 6270134 DEKAsyl MS-5 white 290ml strong adhesive / Dekavator / wool swab / cleaning cloth
- (Not included in delivery)
Note: Spoilers may only be used with module frame heights of 35 mm or more. Otherwise, the sensitive module rear will be damaged by the mounting screws!
Features of the 150mm x 150mm solar corner profiles, white

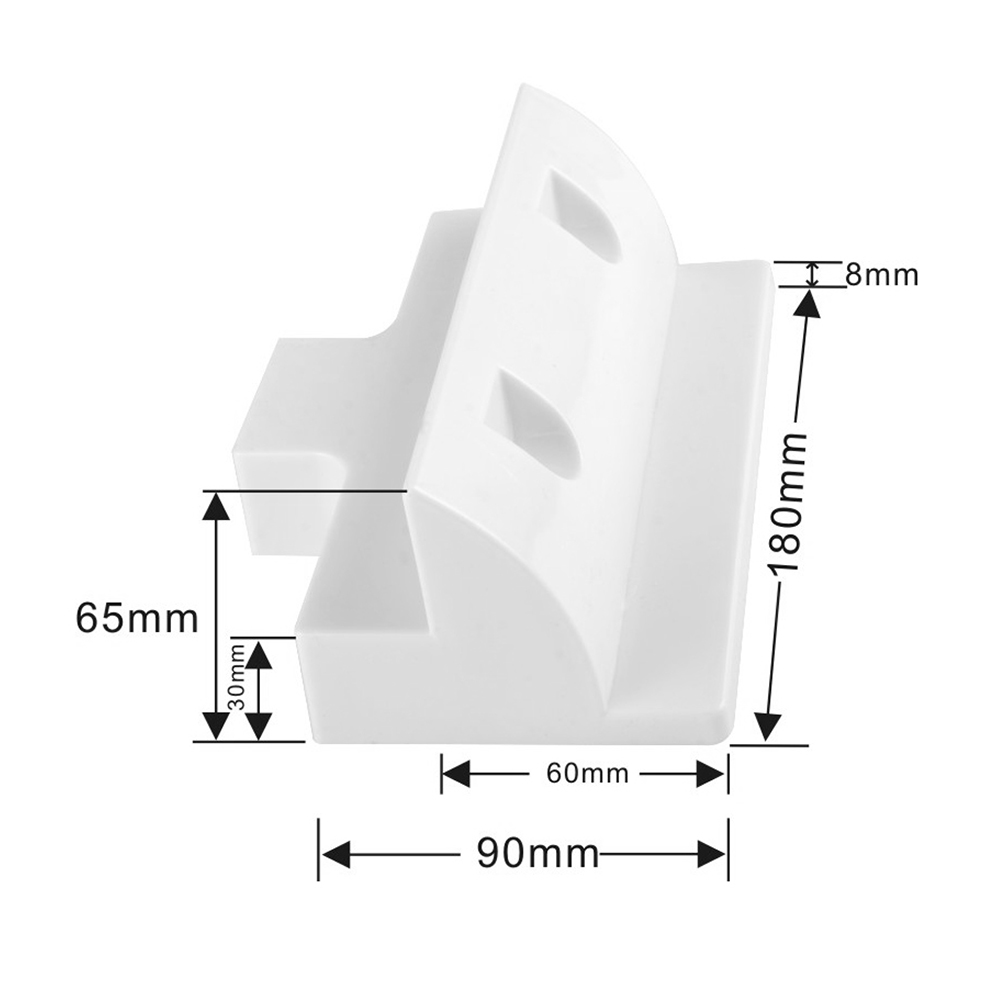

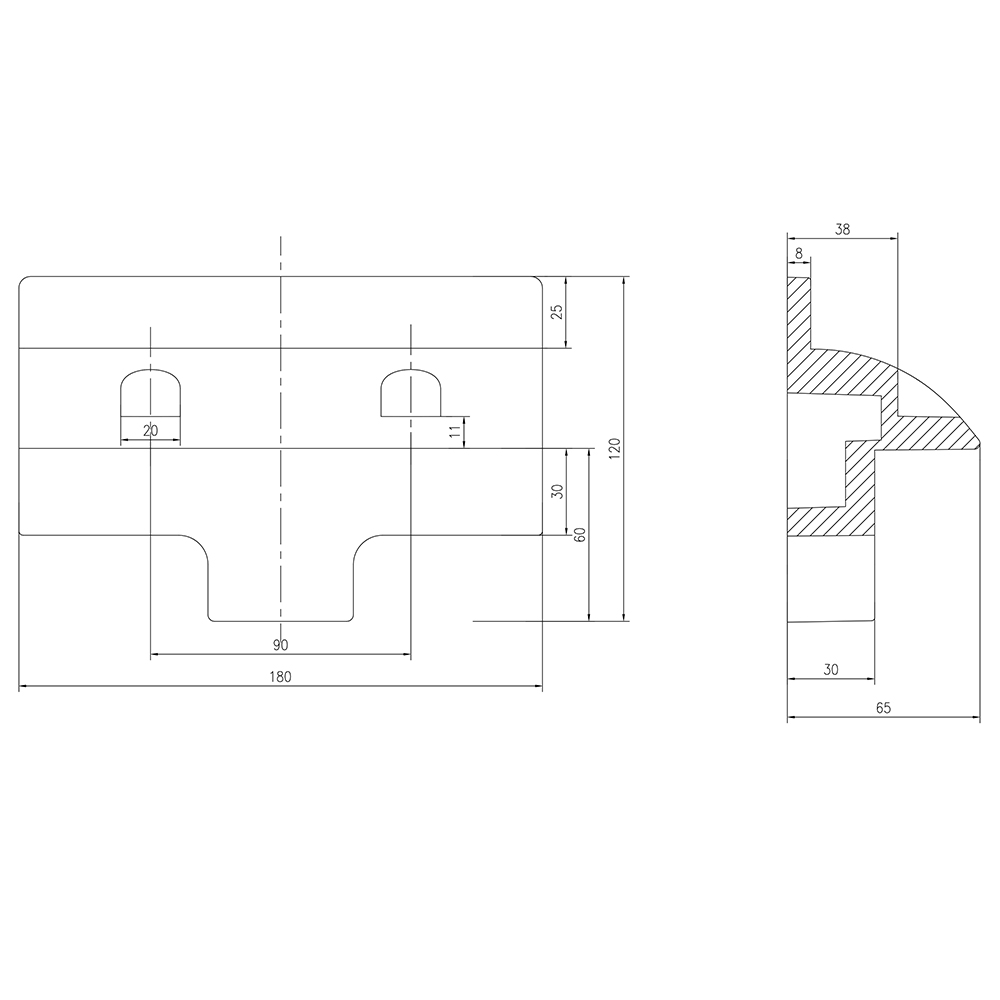

- Space requirement per connecting profile: 180 mm x 120 mm x 65 mm
- Manufacturer: Offgridtec
- Part number: 006535
- Material: ABS
- Finish: polished
- Color: white
- Weight (set): 0.65 kg

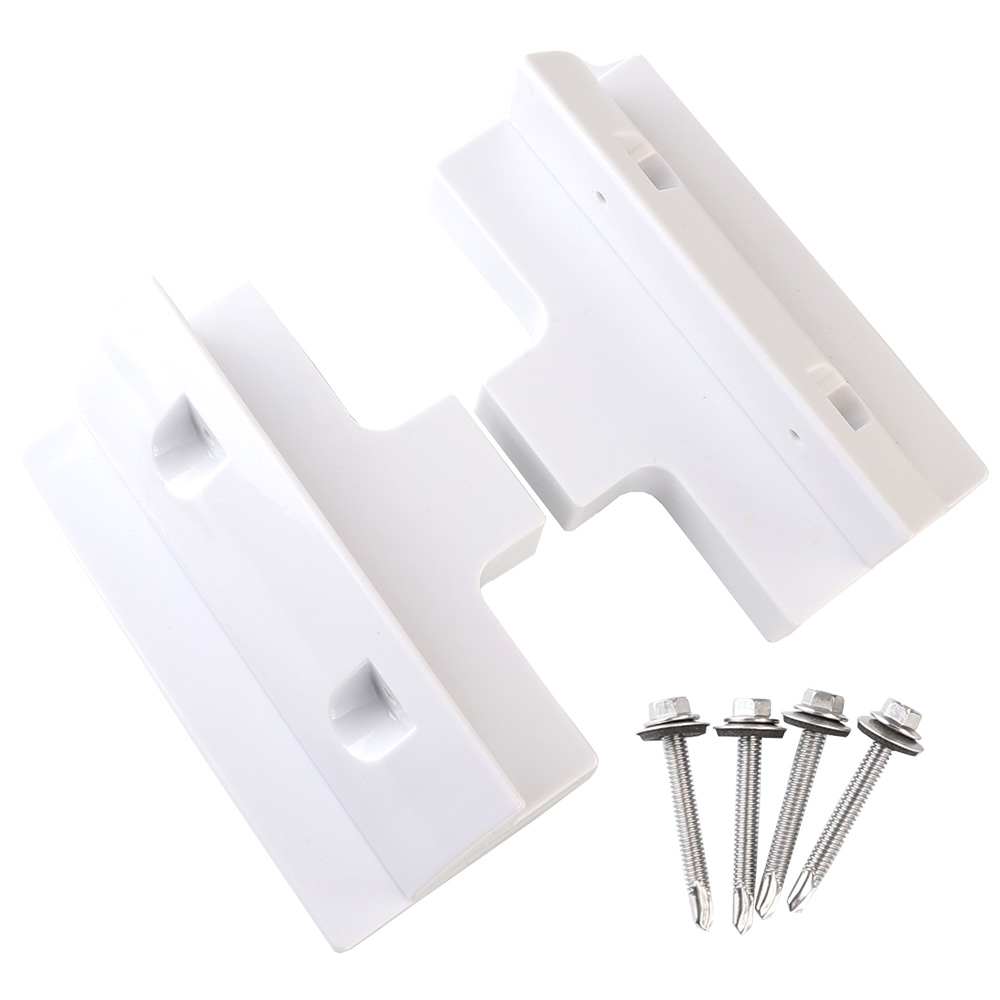

Scope of delivery:
2x Offgridtec connecting profiles 180 mm, white
4x stainless steel screws with washers and rubber seals
1x assembly instructions
