Offgridtec® Autark S-Master 130W solar system 101Ah AGM 500W AC power

Powerful all-in-one complete solar system - The Autark S-Master is the smallest complete system in the Autark family and delivers an average daily yield of 520 watt hours between March and October. The electricity generated is stored in the cycle-resistant 101Ah AGM battery - the high-quality charge controller with integrated display provides information about the battery's state of charge while your 230V consumers can be operated via the sine wave inverter. The whole system is delivered with a professional connection cable kit – just plug it in and get started

The system is suitable for a wide range of applications – from 12V lighting, charging laptop, cell phone, and camera batteries and other small consumers, to 230V household appliances with a maximum continuous power of 500W (15min)

Features of the Autark S-Master

• Can be expanded by 1 x 130W on the module side if required, with minimal installation effort
• Average daily yield between March and October: approx. 520Wh (approx. 45Ah)
• Plug & Play Ready-to-connect system – just plug it in and get started
• Enables the operation of 12V and 230V consumers, as well as 5V USB consumers
• USB charging option directly on the charge controller (max. 2.4A)
• Easy-to-read LCD display provides information on all operating parameters
• Flexible installation options thanks to 8 m connection cable from module to controller
• Extensive electronic protection functions, such as overload protection, overtemperature protection, undervoltage shutdown, short-circuit protection, reverse polarity protection, etc.
• Charge controller enables temperature-compensated charging – temperature sensor included in delivery
• Configurable 12V load output on the charge controller for consumers up to max. 20A – suitable for lighting control, for example

Areas of application

This complete system can be used in a variety of ways. Whether as a stationary system in a mountain hut or in an allotment garden, this system makes it easy to operate small coolers and charge cell phones and laptops on a continuous basis. Installation in a motorhome is also possible – we also stock the appropriate brackets and adhesive kits for mounting on such vehicles.

Extensive connection options

• 230V AC 50HZ 500W (15min – 500W / continuous – 400W) Schuko socket on the sine wave voltage converter
• 12V consumer output with 20A power directly on the charge controller
• 2 x USB charging ports on the charge controller with max. 2.4A (total)
• 1 x USB charging port on the voltage converter with max. 1A output

Parts list – what's included

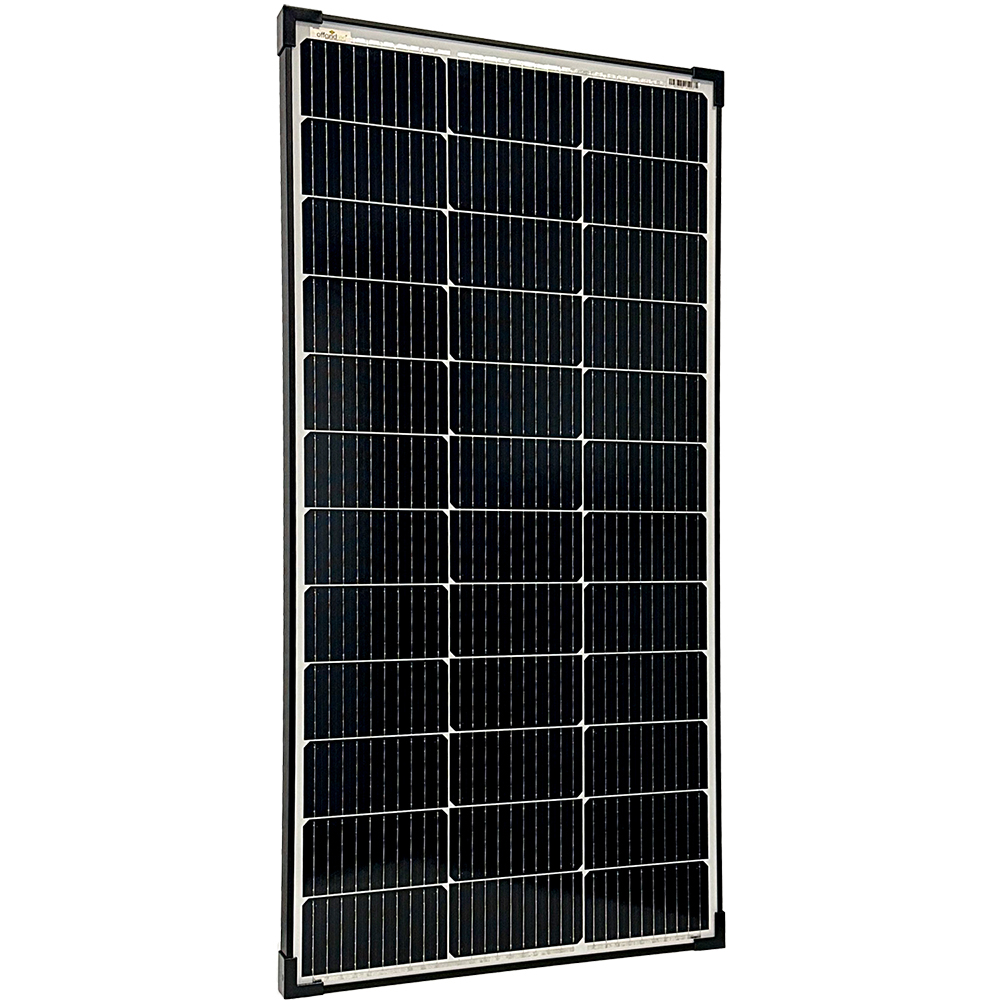

• 1 x 130W V2 monocrystalline solar module from Offgridtec - 018390

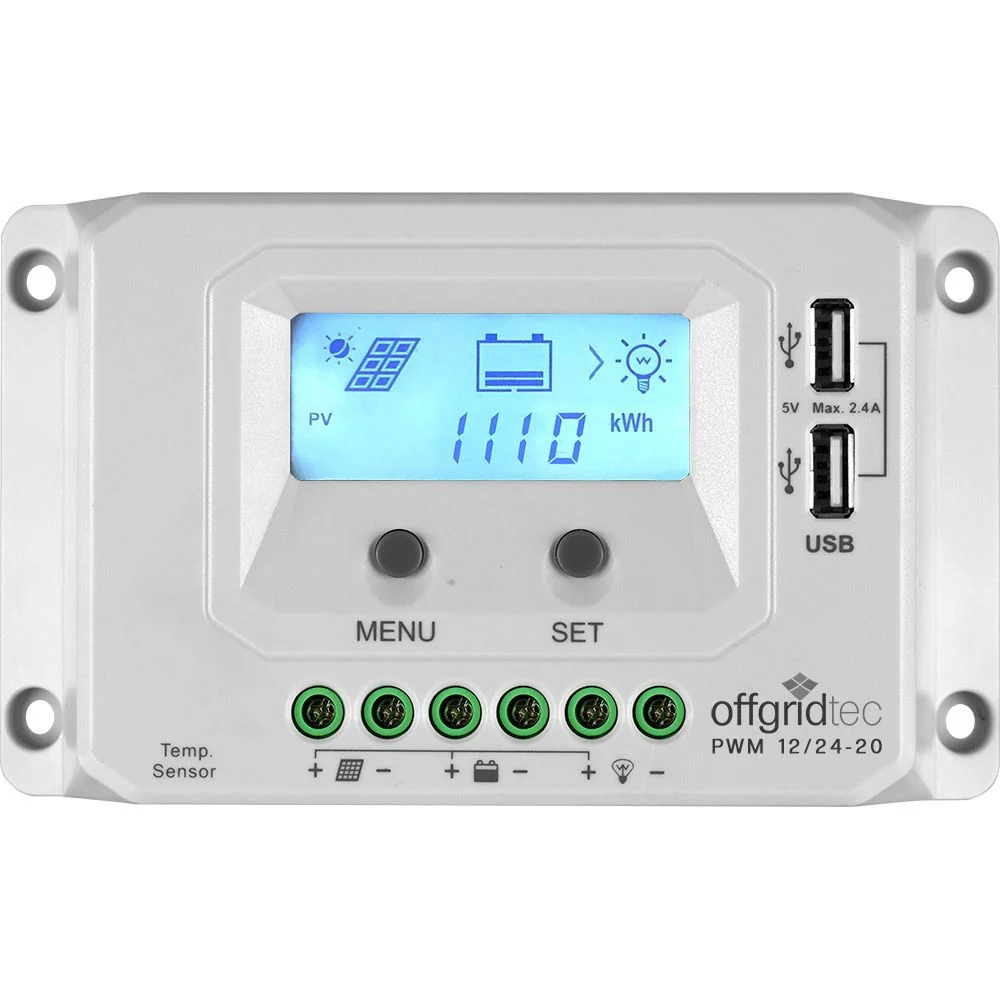

• 1 x 20A PWM charge controller with clear LCD display and USB charging option – the device also has a 20A load output and is easy to operate – all important parameters can be read on the display

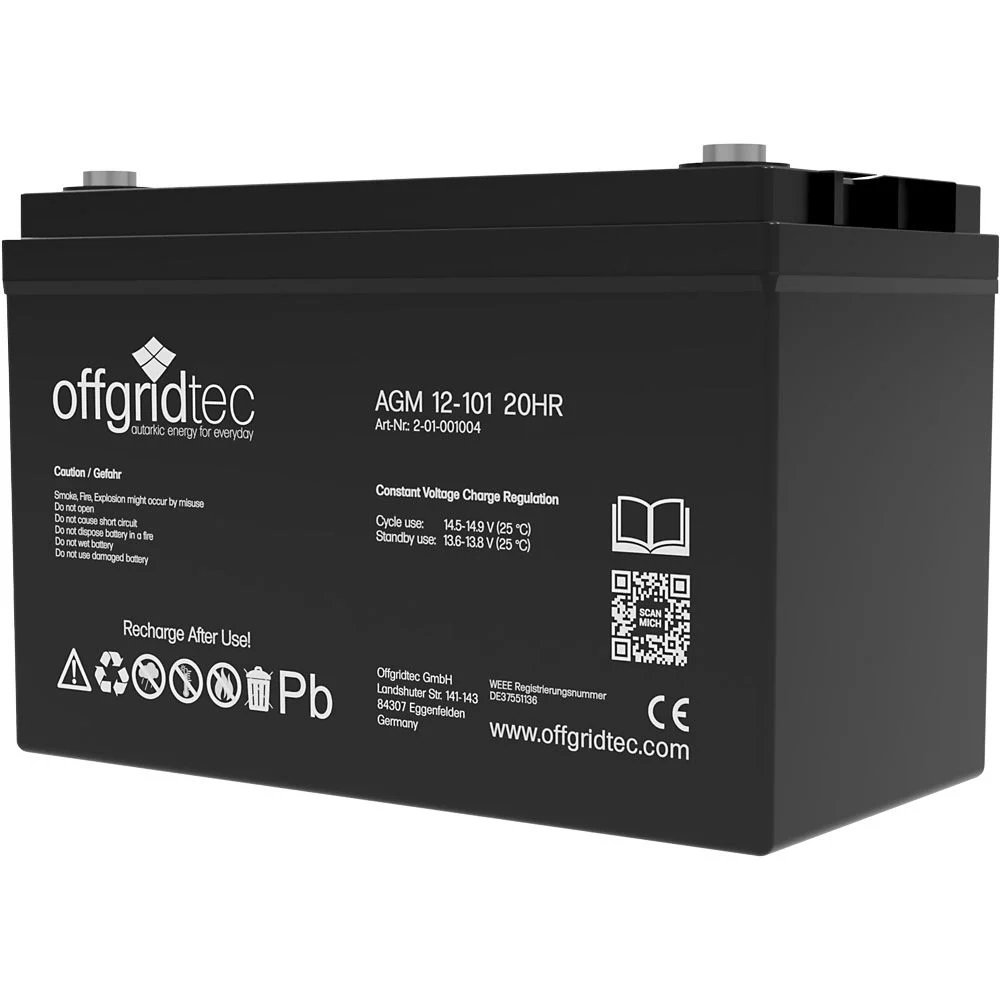

• 1 x 101Ah AGM battery with M8 screw terminal Dimensions: 330 x 172 x 215mm (+5mm terminal) – the battery is completely maintenance-free and leak-proof and lasts up to 10 years depending on use

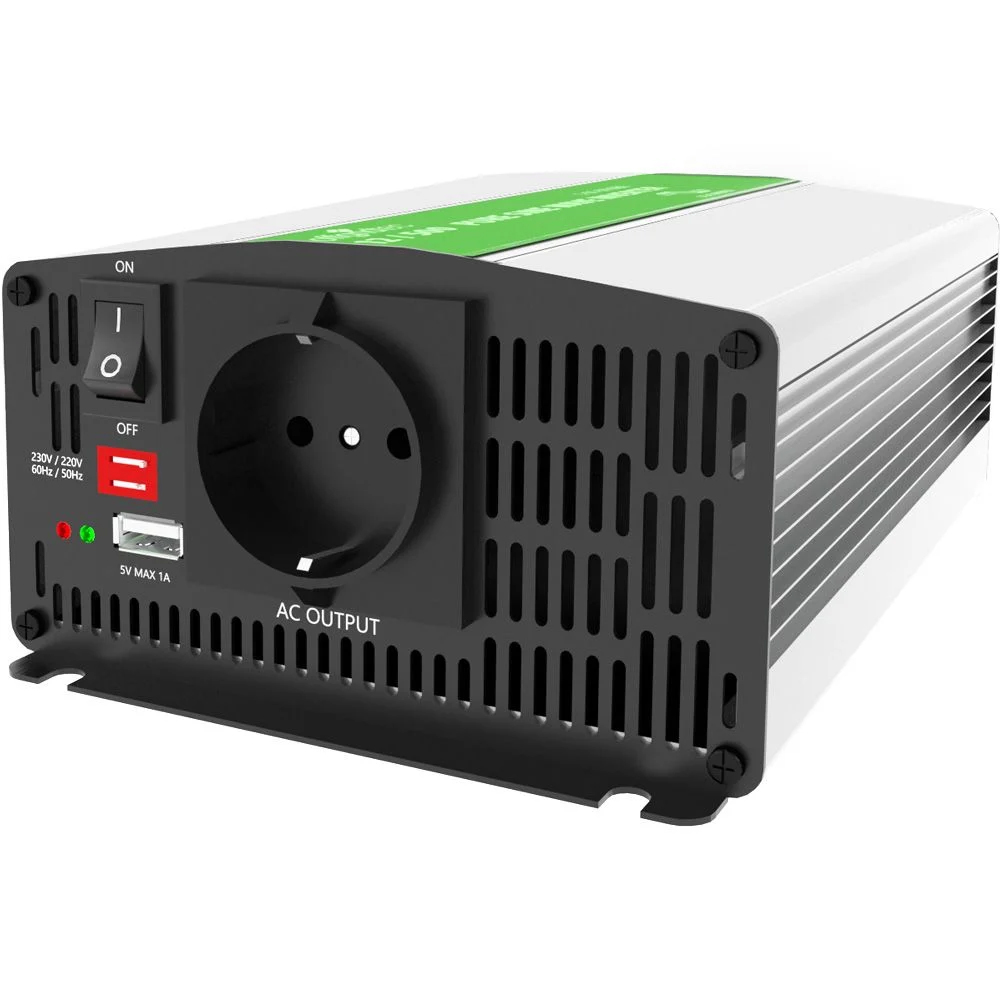

• 1 x 500W 12V to 230V sine wave inverter with a Schuko socket, including connection cable – the rated power of 500W can be output for 15 minutes – in addition, the inverter delivers 400W and can handle short-term starting currents of up to 1000W

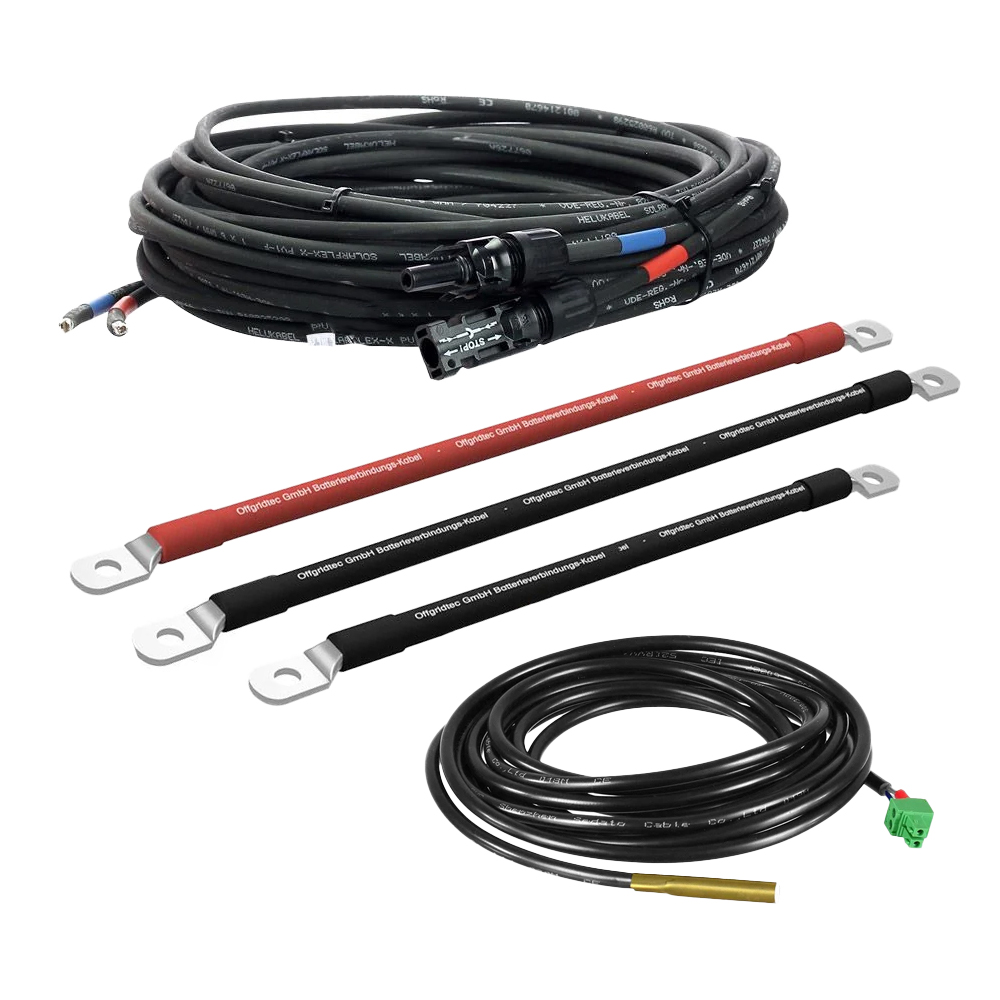

• 1 x 8m 6mm² professional connection cable from solar module to charge controller with original Stäubli MC4 plugs and high-quality Lapp Ölflex 2x6mm² solar cable
• 1 x 1.5 m Offgridtec battery cable M8 with flat fuse 25 A fuse and pole terminals
• 1x temperature sensor with 3m length for connecting the controller to the battery
• 1x battery connection cable 25mm² 40cm ozone, UV, and temperature resistant

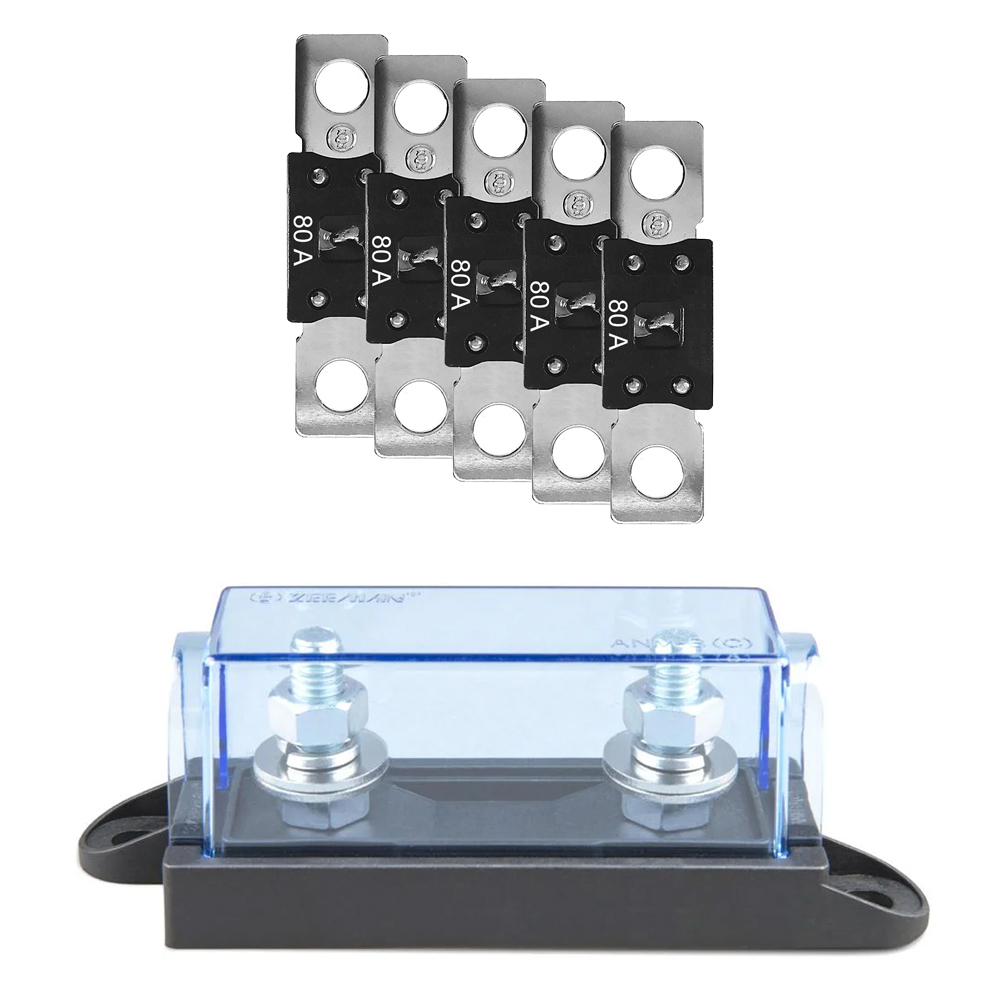

• 1x fuse holder
• 5x 80A mega fuse for installation between the voltage converter and the positive battery terminal to protect against short circuits

Roof mount for the solar module

Since there are different requirements for the bracket for a module and these vary greatly depending on the type of roof, the systems in the Autark series are not equipped with a roof bracket as standard. This can of course be purchased separately – you can find suitable suggestions here:

• Solar module mount for flat roof or wall mounting
• Mounting kit for pitched roof installation on roof tiles (Frankfurt pan tiles, etc.)
• Mounting kit for pitched roof installation on roofing felt, corrugated asbestos cement, and sheet metal roofs with wooden substructure
• Mounting kit for pitched roof installation on plain tiles

Scope of delivery:

1x Autark S-Master solar system with 130W solar module, 20A PWM charge controller with LCD display and USB ports, 400W sine wave inverter, 101Ah AGM battery, connection cable kit, operating instructions
