Offgridtec® basicPremium-L 300W solar system 12V/24V complete system

The basicPremium-L 300W 12V/24V solar system from Offgridtec (MPN: 4-01-002655) is based on three high-quality, monocrystalline 100W MONO V2 solar modules from Offgridtec and the user-friendly PWM-12/24-45A charge controller with an LCD display. The basicPremium series also comes with a matching 8-meter solar connection cable (from solar module to charge controller) and a 1.5-meter battery connection cable. The system’s solar output can easily be expanded later by adding several more modules should your needs increase. The system provides all the basic components needed to charge your battery with self-generated solar power. This configuration makes it the perfect foundation for a wide variety of possible solar applications

High-quality starter kit for a wide range of applications

Offgridtec solar kits from the basicPremium series consist of the essential components required for any self-sufficient solar power system, regardless of whether the system is to be installed on a garden shed, a garage, or in a mobile setting. We consistently prioritize high quality in all delivered components to ensure the system’s reliability and long service life. Our 100W solar module is equipped with top-quality monocrystalline cells and is manufactured and tested using the latest production technology. The rest of the set’s components also meet these quality standards: The “made in Germany” plug-and-play connection cables are designed to keep installation effort to a minimum without compromising connection quality. The PWM-12/24-45A Pro charge controller, with its user-friendly display and state-of-the-art charging algorithms, ensures easy system operation and perfect charging of your batteries. The basicPremium family is a well-established product that has proven itself thousands of times in practice and offers the ideal starting point for a wide variety of applications.

Applications: Solar Systems

• 12V or 24V DC power supply in garden sheds, allotment gardens, and similar locations
• Self-sufficient systems for outdoor lighting applications
• Self-sufficient monitoring and communication systems or weather stations
• Charging smartphones, tablets, or other devices with 12V / 5V DC power

Components of the basicPremium-L 300W 12V/24V Solar System

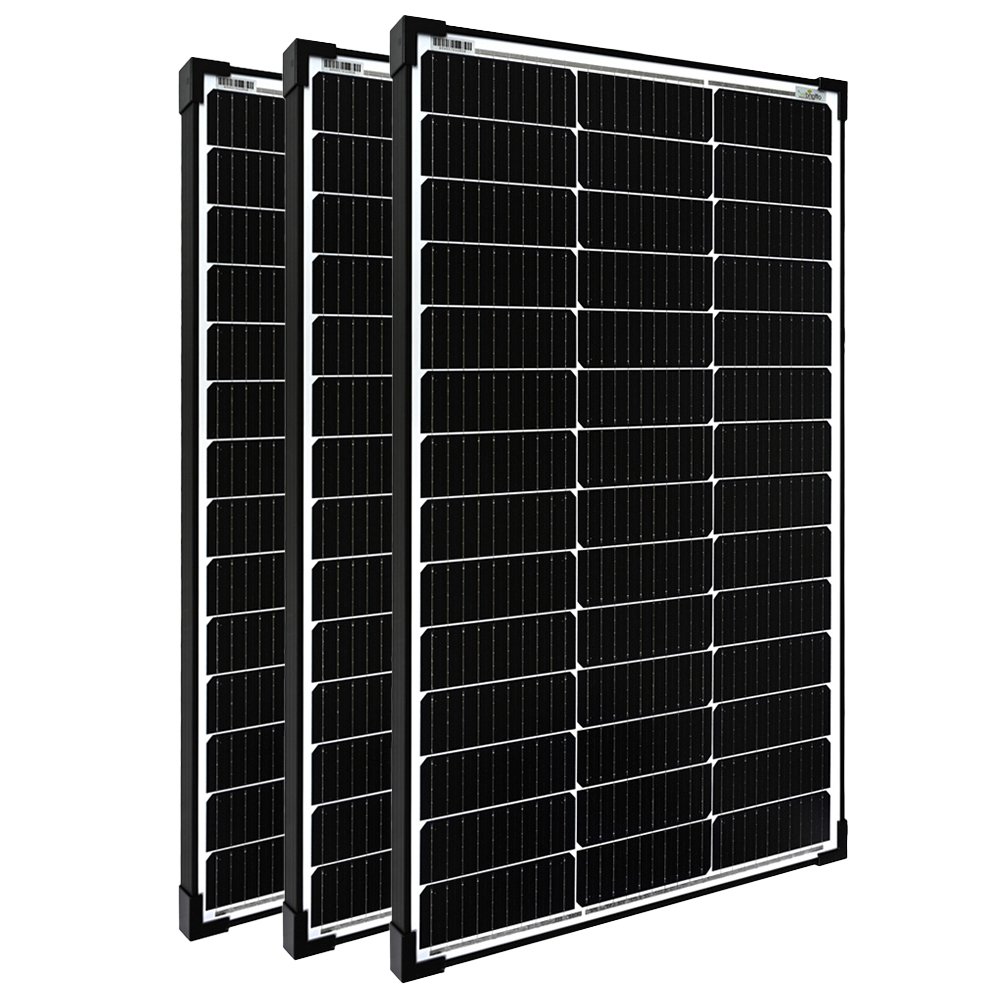

• 3 x Offgridtec MONO 100W V2 solar panel, 23V, black frame
  • Rated power: 100 Wp (per module), part number: 3-01-018385
  • Operating voltage (Vmp) 23.9 V, operating current (Imp) 4.2 A
  • Minimized power loss due to shading thanks to integrated bypass diode
  • Black Frame
  • Solar connector, dimensions (WxLxH): 925 x 560 x 35 mm, weight: 6.22 kg
• 1 x PWM-12/24-45 Pro solar controller 12V/24V
  • Max. charging current 45 A, max. PV power for 12V / 24V systems: 590 W / 1180 W
  • Modern, 3-stage PWM charge control for gentle and efficient charging of your battery(ies)
  • 3 battery types can be selected: AGM, GEL, and flooded lead-acid
  • Intuitive operation via 2 buttons directly on the unit
  • Large LCD display with numerous display options, including a kWh meter
  • 2 USB ports with a maximum output of 2.4A
  • Load output with numerous configuration options, e.g., for lighting control
  • Temperature-compensated battery charging (optional temperature sensor required)

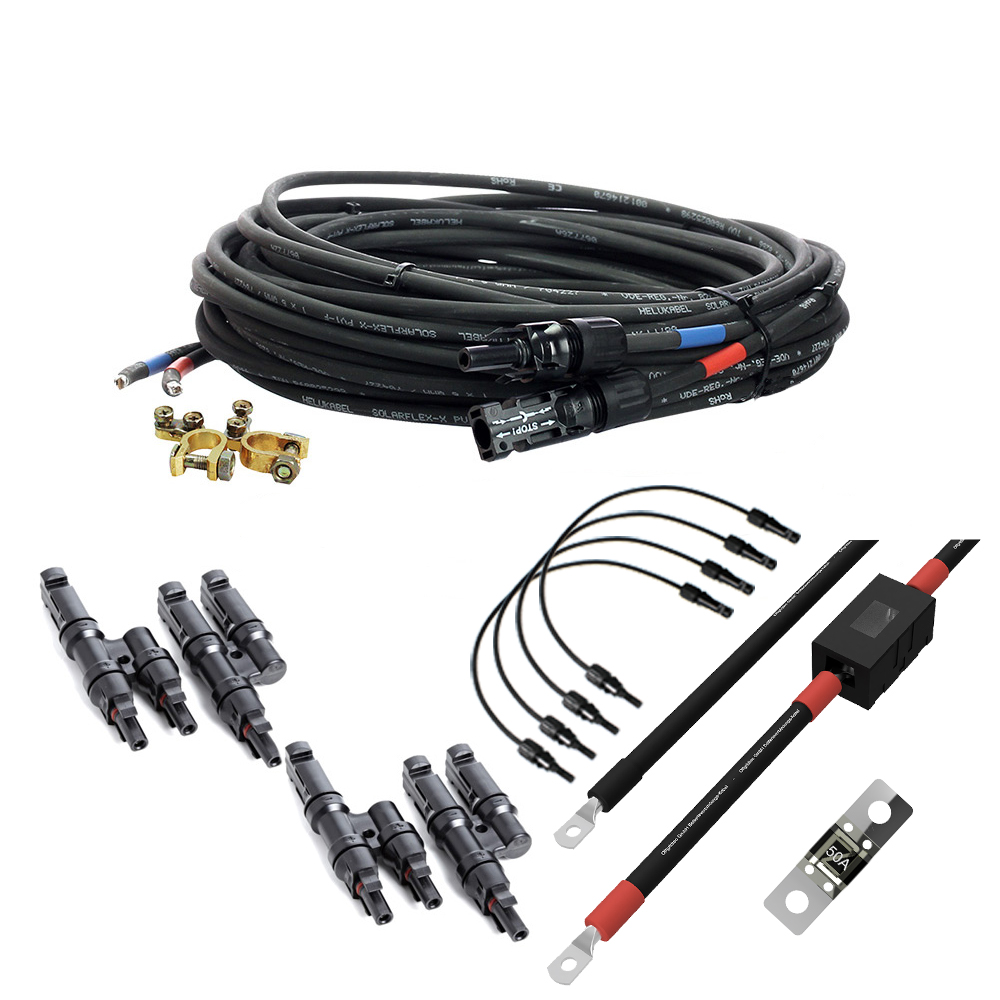

• 1x 8-meter 2x6mm² solar connection cable (controller to solar module)
  • TWIN cable, Plug & Play—ready for immediate use
  • Solar connector on the solar panel side, wire ferrules on the charge controller side
  • Highest-quality solar cable: TWIN cable
  • Conductor cross-section: 2x6mm², Length: 8m
• 1x 1.5 m, 10 mm², 50 A battery connection cable for controller/battery (Offgridtec)
  • Plug & Play—ready for immediate use
  • Conductor cross-section: 10 mm², length: 1.5 m
  • Includes MIDI fuse holder
  • Wire end ferrules on the charge controller side, M8 ring terminals on the battery side
• 4 x 50 cm solar connector cables, 6 mm²
• 2x Offgridtec Y-connector splitter sockets (pair)
• 1x battery terminal set
• 1x MIDI fuse, 50 A, 58 V

Flexible and very easy to install

The system is very easy to install, even for people with little prior experience with solar technology. All cables are delivered ready to plug in—simply connect the components, and power generation can begin right away.

Expandable, customizable

Like every Offgridtec system, the basicPremium-S can also be individually adapted and modified to meet your specific requirements. Our technical sales team looks forward to your inquiry. Please contact customer service to inquire about any applicable costs.

Package Contents:

1x Offgridtec 4-01-002655 basicPremium-L 300W 12V 24V solar system
1x User Manual
Includes all components listed above
