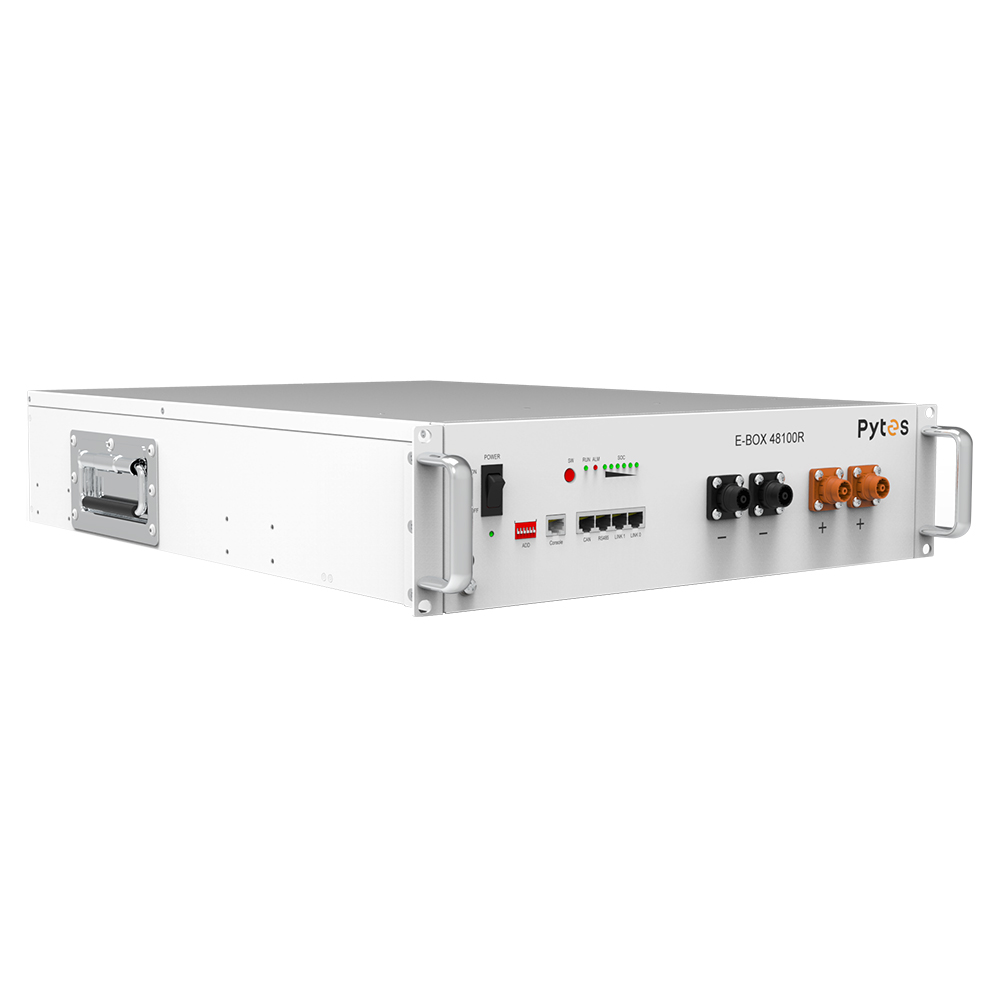

Pytes E-Box-48100R-C 100Ah LiFePO4 Modular Battery

The Pytes E-BOX-48100R-C (MPN 110402100007) is a state-of-the-art LFP battery with a capacity of 100 Ah, distinguished by its high level of safety, well-thought-out design, and impressive performance. The battery is compact, easy to install, maintenance-free, and can be used as a building block for an energy storage system by connecting multiple units in parallel. Its applications range from covering self-consumption in private homes to small commercial and industrial energy storage systems, as well as in telecommunications stations

The Pytes E-Box

• Latest-generation LFP battery
• Over 6,000 cycles at 90% DoD
• Intelligent energy management
• Ideal for emergency power supply
• Wide compatibility
• Modularly expandable
• CAN & RS485 communication
• 10-year manufacturer’s warranty—click here for warranty terms and conditions

Intelligent energy management

The intelligent Pytes battery offers a comprehensive energy management system. Through real-time measurements, monitoring, and management, it optimizes system lifespan using intelligent algorithms. This ensures that the battery makes efficient use of the available energy.

Reliable emergency power supply

The simple installation and user-friendly design make Pytes batteries a practical option for ensuring an uninterrupted power supply in your home. With their smart control features, Pytes batteries can optimize energy consumption and maximize battery life to ensure that your emergency power supply is efficient and reliable.

Long Service Life and Maximum Safety

Technical Specifications

• Battery chemistry: Lithium iron phosphate (LFP)
• Nominal voltage: 51.2 V
• Voltage range: 47.5–57.6 V
• Rated capacity: 100 Ah
• Rated energy: 5.12 kWh
• Max. Charging Current: 50 A
• Max. discharge current: 50 A
• Charging temperature: 0–50°C
• Discharge temperature: -10–50°C
• Efficiency: ≥95%
• Communication protocol: RS-232, RS-485, CAN
• Cycle life: >6,000 cycles at 90% DoD
• Dimensions: 440 x 620 x 117 mm
• Weight: 51 kg

Please note that this version is the latest generation, the Pytes E-Box 48100R-C16. To use it with previous models, it must be combined with a Pytes LV-Hub.
