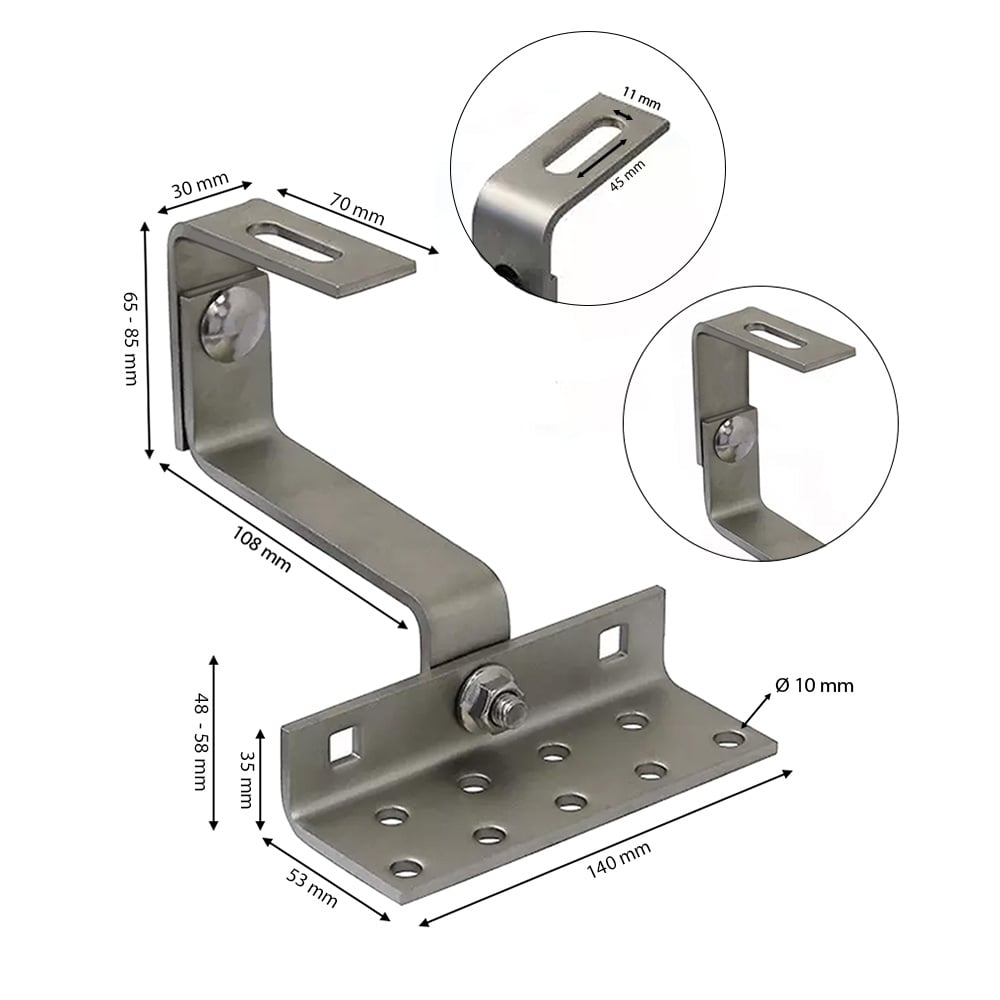

Roof hooks for on-roof mounting of solar-systems designed for shingels, pantiles, etc. It is 3 x adjustable and therefore compatible with most roof tiles.
Features: 3 x adjustable (height, angle and position) Material: Va stainless steel Thickness: 5mm Weight: 775g
Manufacturer:Offgridtec
Material:VA stainless steel
Product Type:Solar module mounting
Weight:775 g
8-01-001545
