Solar Cable 2x2.5 mm² PV1-F 2.5 mm² Two-Conductor Black

The PV1-F 2x2.5mm² solar cable from Offgridtec (MPN: 024649) is a high-quality, two-conductor solar cable designed for the reliable wiring of photovoltaic systems. The cable is designed for long-term outdoor use and offers excellent UV and ozone resistance, as well as being flame-retardant and halogen-free. The twin cable is flexible, robust, and can be easily separated into two individual cables if needed. Sold by the meter – each item ordered corresponds to one meter in a single piece.

Since this item is sold by the meter, each item corresponds to one meter. For example, if you purchase 10 of these items, you will receive a single continuous piece 10 meters long.

Key product features:

• Two-wire twin cable
• Outer jacket color: Black
• Standard: PV1-F
• Weather- and UV-resistant according to HD 605/A1
• Ozone-resistant according to EN 50396
• Halogen-free and flame-retardant
• Good notch and abrasion resistance
• Can be easily split into two separate cables

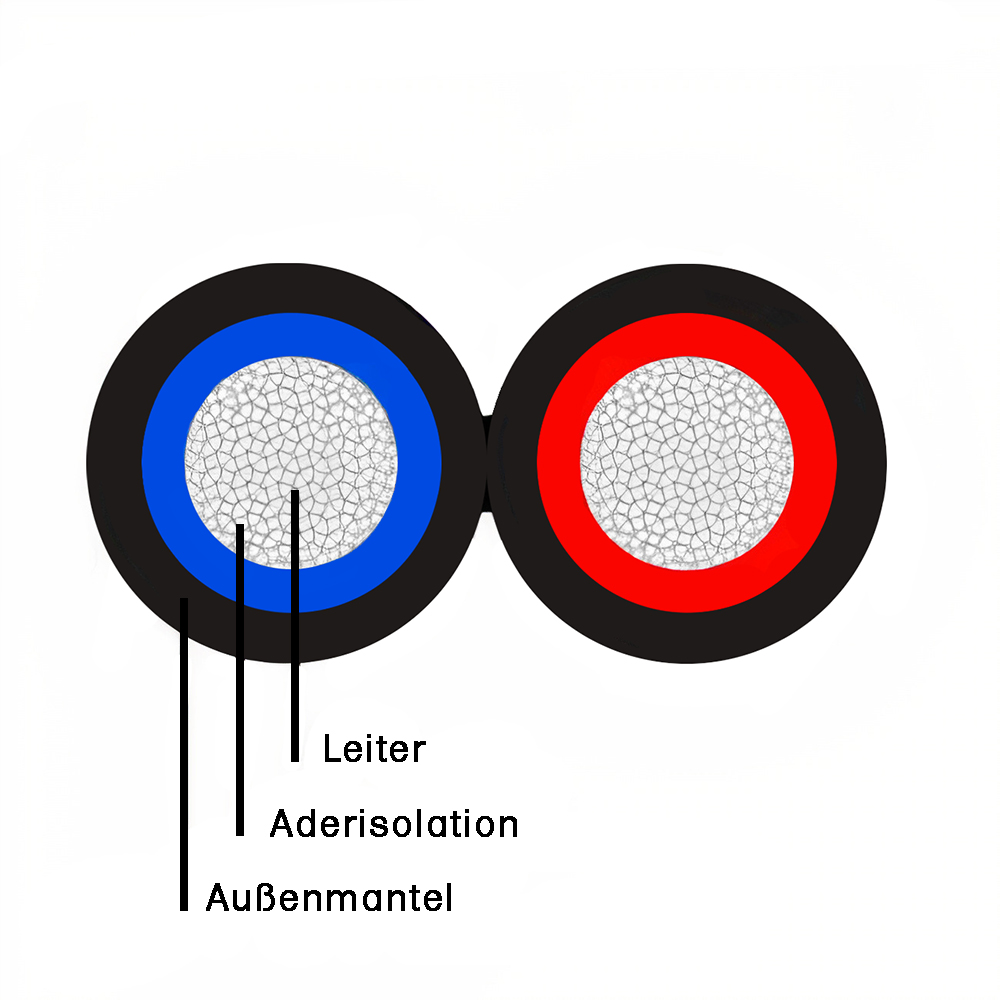

Conductor construction

1. Conductor: Fine-stranded tinned copper, in accordance with VDE 0295, Class 5 / IEC 60228 Cl.5
2. Conductor insulation: Radiation-cured copolymer
3. Outer jacket: Cross-linked copolymer, black
4. Conductors connected in parallel with a separator

Durability & Safety

• Weather- and UV-resistant
• Ozone-resistant
• Halogen-free
• Flame-retardant
• Good notch and abrasion resistance
• Reduction of toxic smoke gases in the event of a fire

Technical data

• Number of conductors: 2-conductor
• Conductor cross-section: 2.5 mm²
• Conductor material: Tinned copper
• Rated voltage: AC 600/1000 V, DC 900/1500 V
• Max. system voltage: DC 1.8 kV (conductor-to-conductor, ungrounded)
• Test voltage: AC 6500 V
• Operating temperature: -40°C to +100°C
• Minimum bending radius (fixed installation): 4x outer diameter
• Cable type: PV1-F / XLS-R T

Contents

1x 1m PV1-F solar cable 2x2.5mm², black
