SolaX 25.6 kWh T-BAT-SYS-HV-S2.5 LiFePO4 high-voltage battery system, including BMS and series box
Soon available again
€9,652.20*
€8,111.09**
Similar Products
Shipped in 2-5 days
Shipped in 2-5 days
Soon available again
Soon available again
Shipped in 10-14 Werktage
Shipped in 10-14 Werktage
Soon available again
Soon available again
Soon available again
Soon available again
The T-BAT battery system from Solax (MPN: 024825) is a flexible energy storage solution that adapts perfectly to your individual needs. Depending on your energy requirements, you can stack individual battery modules to gradually expand the total capacity. Thanks to the plug-and-play design, installation is particularly easy, and future expansion is hassle-free. The built-in LiFePO₄ cells ensure maximum safety and an exceptionally long service life. The integrated heating technology also enables reliable operation even at low temperatures. The intelligent battery management system (BMS) gives you full control over the state of charge, performance, and operating parameters of your storage system, including remote maintenance and automatic software updates.
The set includes:
- 2–13x SolaX T-BAT High-Voltage LiFePO4 Battery 2.5kWh TP-HS25
- 1x SolaX TBMS-MCS0800E BMS
- Depending on selection: SolaX T-BAT Series box - separation system for 2 towers

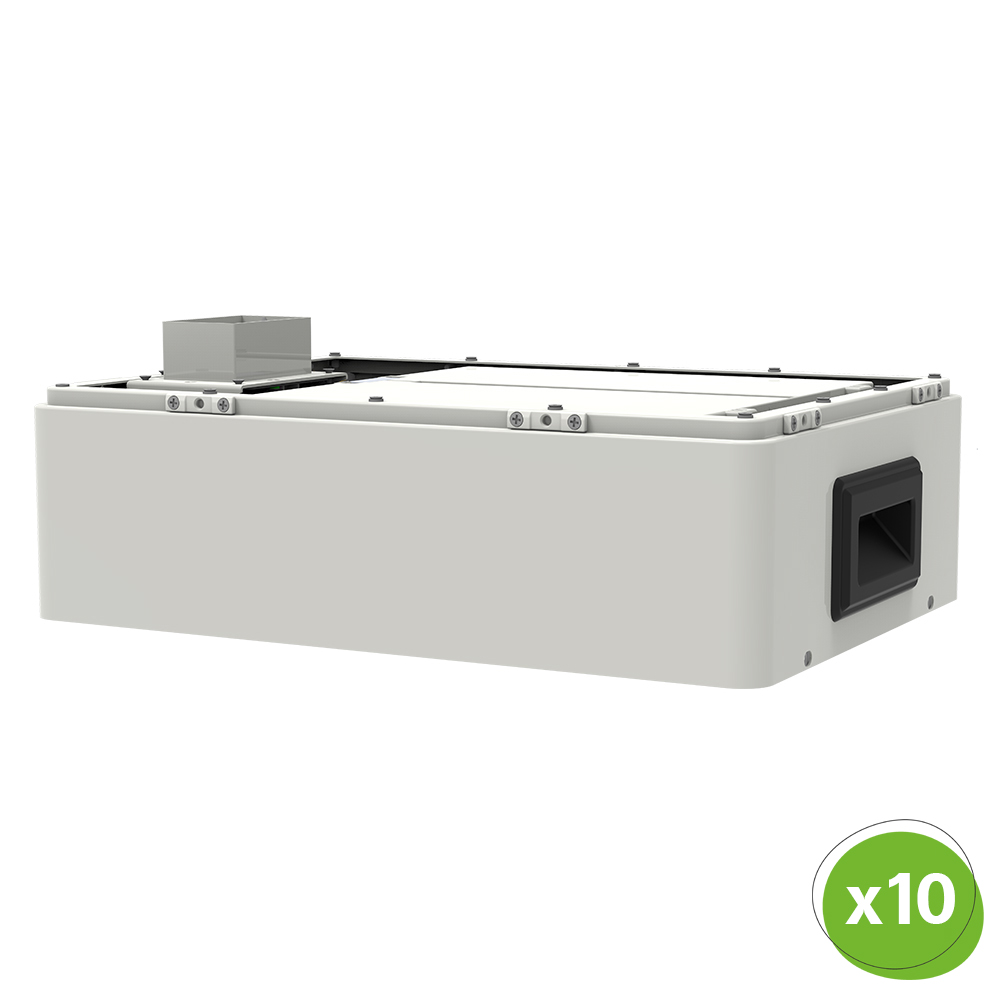

T-BAT high-voltage LiFePO4 battery 2.5kWh
The storage unit is a 2.5kWh LiFePO4 module with integrated battery heating. As part of the modular high-voltage storage system, it efficiently stores excess energy from your PV system and makes it available again when needed. Thanks to the stackable plug-and-play design, the battery system can be flexibly expanded from 5.12 kWh up to 33.28 kWh.
- Stackable with plug-and-play installation
- Intelligent battery management: remote diagnostics, remote maintenance & automatic updates
- IP65 protection & soft-start technology
Technical Specifications
- Battery type: LiFePO4 (LFP)
- Module capacity: 2.5 kWh
- Nominal voltage (per module): 102.4 V (system-dependent)
- Operating temperature (without heating): 0°C to +53°C (charging), -20°C to +53°C (discharging)
- Operating temperature (with heating): -30°C to +53°C
- Weight: 34 kg
- Dimensions (L × W × H): 510 × 365 × 152 mm
Battery Management System (BMS)
The TBMS-MCS0800E is the central battery management system. It was specifically developed for use with SolaX high-voltage batteries. The BMS reliably monitors and controls the battery modules, ensures maximum safety, and guarantees seamless communication with the hybrid inverter. The system offers high efficiency, ease of use, and a long service life for the storage solution.
- Maximum safety – protection against overcharging, deep discharge, and overheating
- Intelligent battery management – optimized charging and discharging cycles
- Reliable communication – stable data transmission between battery and inverter
Technical Specifications
- Installation location: Indoor / Outdoor
- Communication: RS485
- Weight: 9.3 kg
- Dimensions: 730 x 165 x 150 mm
Manufactuerer Information
SolaX
SolaX Power Europe GmbH
Eisenstraße 3
65428 Rüsselsheim
Germany
Mail: rudolf.schell@solaxpower.com
Tel.: +86 571 56260008
