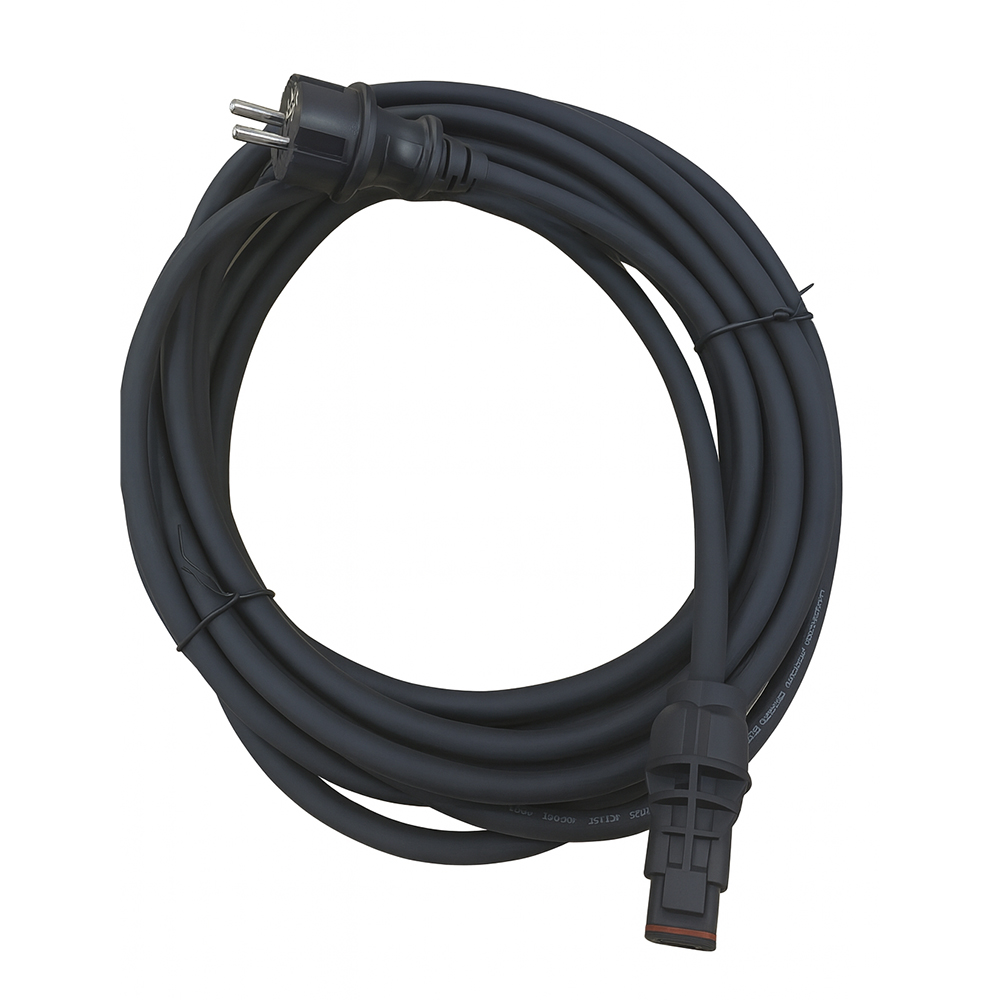

SolaX AC connection cable 5m - for A1-Micro 1in1, X1-Micro 2in1 & 4in1 micro inverters Schuko Plug and Play

The SolaX AC Plug and Play Cable 5m (MPN: AC Plug and Play Cable 5M) is part of the innovative SolaX microinverter cable system and has been developed for fast, safe, and standard-compliant connection of SolaX microinverters to the power grid. It connects the inverter directly to the Schuko household socket via a robust field connector and enables uncomplicated installation. The 5-meter cable length provides additional flexibility when positioning the microinverter—ideal for private PV systems and balcony power plants.

Highlights of the SolaX microinverter cable system

• Quick installation: Plug-and-play design saves up to 70% of installation time and reduces installation errors
• High flexibility: Connection cables in various sizes and lengths enable individual and cost-efficient cabling
• High performance: Supports currents up to 40 A and nominal voltages up to 600 V for connecting multiple microinverters
• Lower system costs: More microinverters per main cable reduce the overall cost of the PV system
• Reliable connection: Optimized internal design reduces connection resistance and increases operational reliability
• Seamless compatibility: Specially developed for SolaX microinverter series, ensuring optimal function and integration

SolaX microinverter cable system

The SolaX micro inverter cable system is a sophisticated and flexible solution for easy cabling of PV systems and balcony power plants with SolaX micro inverters. It was specially developed for the A1-Micro 1 in 1, X1-Micro 2 in 1, and X1-Micro 4 in 1 series and, thanks to its modular design, enables quick, safe, and standard-compliant installation. The system offers the option of combining connection cables in different lengths and designs to achieve the desired wiring in a cost-efficient manner. The plug-and-play principle eliminates the need for complex electrical work, which significantly reduces installation costs and speeds up commissioning.

Examples

For a system with a SolaX micro inverter:

• 1x Plug & Play Cable - connection cable
• 1x Field Connector

For a system with, for example, 3 SolaX micro inverters:

• 1x AC trunk end cap - connector end cap
• 2x AC trunk cables
• 3x AC connectors
• 1x AC Connector-M - Plug connector-M
• 1x AC End Cable-M - End cable-M
• Optional:
  - AC Connector-F - Connector-F
  - AC Trunk Port Disconnect Tool - Disconnect tool

Technical

• Nominal voltage: 250V
• Rated current: 12A
• Components: Field Connector + Cable + AC Plug
• Cable type: H07RN-F
• Cable length: 5m
• Conductor cross-section: 1.5mm²
• Cable end diameter: 10.1 ± 0.3 mm
• AC plug standard: EN 50525-2-21
• Operating temperature range: -40°C to +85°C
• Certification: RoHS compliant

Scope of delivery:

1x SolaX AC Plug and Play cable 5 m - for A1-Micro 1 in 1, X1-Micro 2 in 1, and X1-Micro 4 in 1 micro inverters
