SolaX X3-Matebox Advanced for X-ESS G4 energy storage system
Soon available again
€1,018.93*
€856.24**
Similar Products
Soon available again
Soon available again

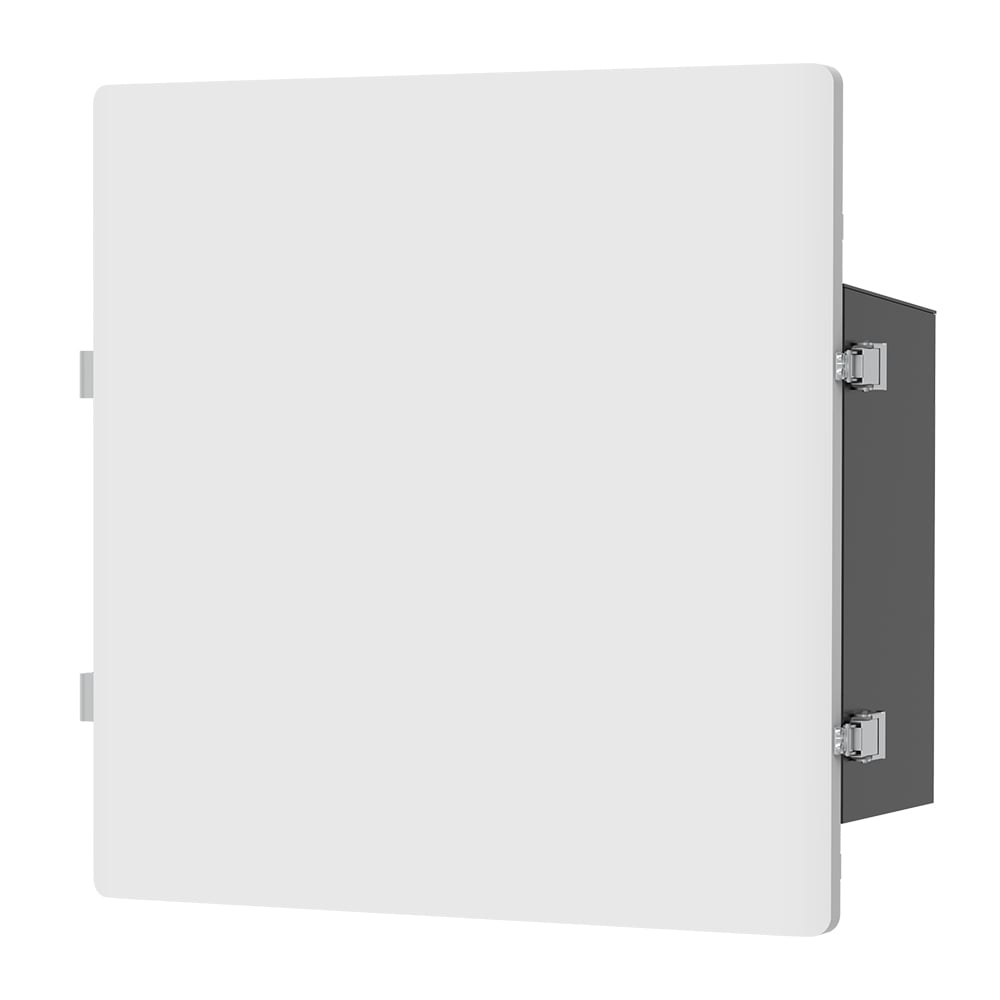

The X3 Matebox Advanced from SolaX (MPN: 1060020015) is a fully pre-wired connection and protection box that perfectly complements the X-ESS G4 energy storage system. All relevant interfaces and protection components are combined in a compact housing, which features clearly structured cable routing and plug-in connections. Installation is extremely simple and can be completed in just two steps: the modules are connected vertically to each other, and then the pre-assembled cables are plugged into the clearly marked ports. This distribution box enables quick, clean, and safe commissioning of your system—without any additional wiring, for maximum installation convenience and professional results.
The X3 Matebox at a glance
- For use with the X-ESS G4 system
- Fully pre-wired
- No complex cable connections
- No wiring errors
- Easy installation and setup
- Modular design
Technical
- Max. input voltage: 1000 VDC
- Max. short-circuit current (A/B): 30 / 20 A
- Battery voltage range: 180-500 V
- Max. charging/discharging current: 30 A
- Nominal voltage (grid-connected): 380/400/415 VAC, 50/60 Hz
- Max. INV mains input/output current (grid-connected): 24.1 A
- Nominal voltage (off-grid): 380/400/415 VAC
- Max. current (off-grid): 24.1 A
- Max. input/output current (supplier): 63 / 24.1 A
- Operating temperature range: -35°C to +60°C
- Storage temperature range: -40°C to +70°C
- Cooling: Natural cooling
- Protection class: IP54
- Weight: 14.5 kg
- Dimensions: 551 x 512 x 204 mm
Scope of delivery
1x SolaX X3-Matebox Advanced for X-ESS G4 energy storage system
1x Brackets
Includes installation accessories
