Steca PR 1515 - 12V/24V Charge Controller
Product number:
1-03-002170
1-03-002170
4.75
4
Shipped in 10-14 Werktage
€84.89*
€71.34**
Product number:
1-03-002170
VAT-exempt delivery possible*
VAT-exempt order for Germany according to § 12 para. 3 UstG and Austria (§ 28 Abs. 62 UStG 1994)
§ Section 12 (3) UstG only applies if you are a private individual and the product is installed in Germany. To benefit from the 0 percent rate, please confirm at the checkout that you are eligible for the zero tax rate according to § 12 para. 3 UstG. Subsequently, the tax rate will automatically be set to zero for eligible items.
The Steca PR 2020 was designed for photovoltaic systems to charge 12V and 24V batteries. In contrary to the Steca PRS series
the PR series is equipped with a LCD display which makes it easy to control the device's funtions and shows all current
working parameteres. Generally the controller is only usable with the following battery types:
- lead-accumulators with liquid electrolytes
- sealed lead-accumulators, AGM, gel

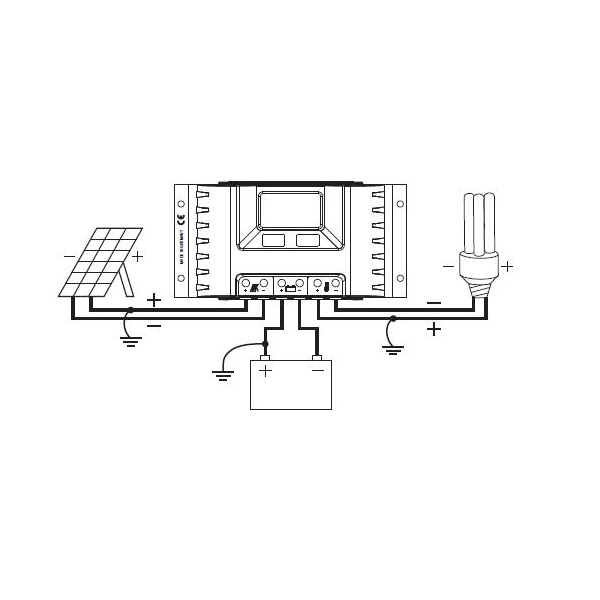

- 12V and 24V consumers, which can be directly connected to the controller (right connection pair)
the PR series is equipped with a LCD display which makes it easy to control the device's funtions and shows all current
working parameteres. Generally the controller is only usable with the following battery types:
- lead-accumulators with liquid electrolytes
- sealed lead-accumulators, AGM, gel
- 12V and 24V consumers, which can be directly connected to the controller (right connection pair)
Protection functions:
- protection from reverse polarized modules
- protection from reverse polarized consumers
- protection from reverse polarized batteries
- prevents from battery charge and discharge
- short-circuit protection on module input
- short-circuit protection on load output
- protection from a to high charging current
- no-load working test without battery or consumer
- current reflow protection
- over/undervoltage protection
- overheating protection
- deep discharge protection
- CE-compliant
Anleitung-Menu-Ladespannungen_PR1515.pdf
Download
Ambient temperature:
-10°C - +50°C
Charge controller type:
PWM
Charging current (A):
15A
Charging voltage:
liquid 13.9V (27.8 V); gel 14.1V (28.2 V)
Charging voltage in the boat:
14,4V (28,8V)
Connection terminal:
16mm² / 25mm² - AWG 6 / 4 (fine- / single wired)
Deep discharge protection:
< 30 %/11,1V (22,2V)
Equalisation charge:
14,7V (29,4V)
Idle clamping modules:
< 47 V
Manufacturer:
Steca
Own consumption under load:
12,5 mA
Product Type:
Charge controller
Protection type:
IP32
Reclosing voltage:
> 50% / 12,6V (25,2V)
Scope of application:
indoor area
Weight:
ca. 350 g
max. load current:
15A
