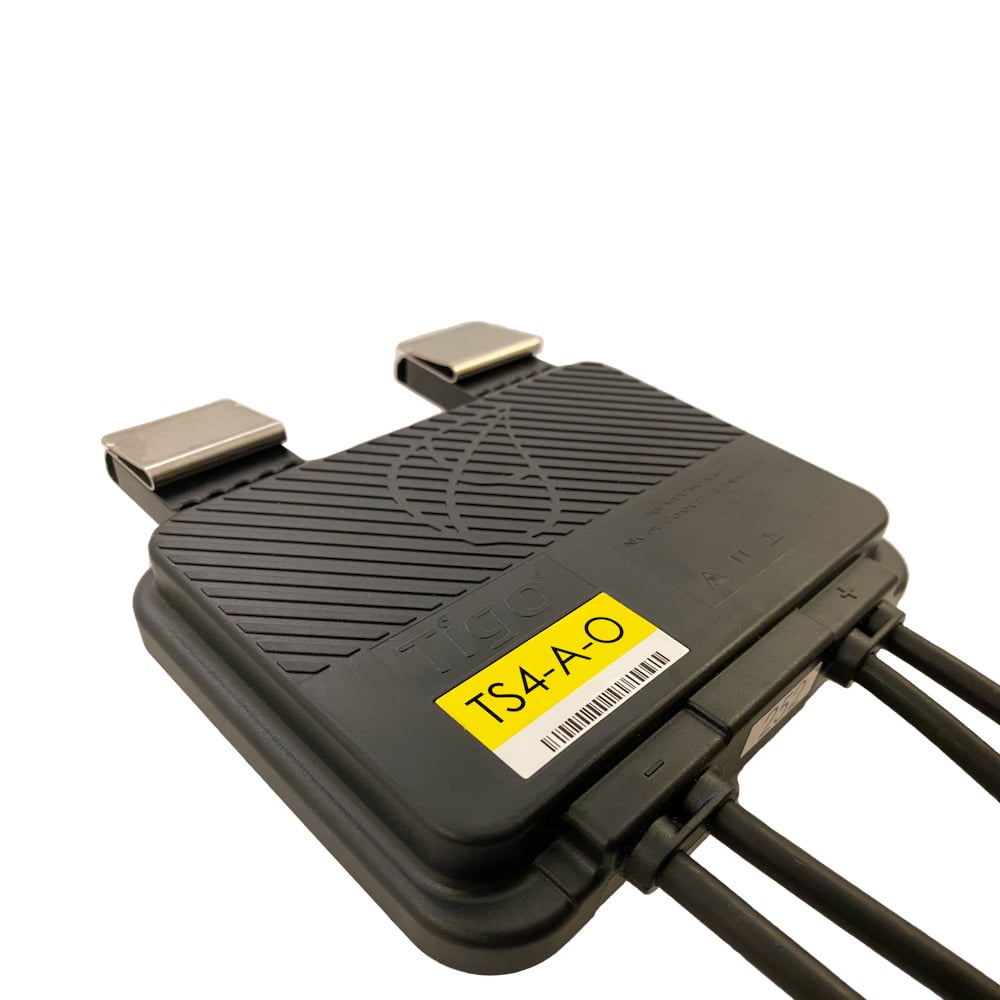

Tigo TS4-A-O PV power optimizer for 700W solar module
Soon available again
€45.37*
€38.13**
The Tigo TS4-A-O solar module optimizer (MPN: TS4-A-O) offers the opportunity to increase the energy efficiency of your solar system. The Tigo optimizes the energy production of low-performance modules caused by uneven string lengths, mixed orientation, mismatches, and string failures due to shading. Installation of the optimizer is quick and easy, simply on the back of the respective solar module.
The optimizer at a glance
- Suitable for solar modules up to 700W
- Installed in less than 10 seconds
- More powerful optimizer with Predictive IV Technology
- The only optimizer with selective use
- Shade and age tolerance to maximize module service life
- 1 optimizer per PV module
CCA and TAP (optionally available)
The Cloud Connect Advanced (CCA) can be combined wirelessly with the module optimizer. This small solar data logger provides exciting insights into performance data at the module level. The Tigo Access Point (TAP) communicates with the module, enables rapid shutdown, and significantly increases the level of safety. The combination of these two features forms the optimal package for seamless monitoring of your PV system. The CCA and TAP extensions must be purchased separately.
Technical data
- max. input voltage: 80 V
- Voltage range: 16 - 80 V
- Max. input power: 700W
- Max. current: 15A
- Protection class: IP68
- Operating temperature: -40°C to 70°C
- Weight: 520 g
- Dimensions: 138.4 x 139.7 x 22.9 mm
Scope of delivery
1x Tigo TS4-A-O module optimizer
