The us3000c (mpn us3000c) is a lithium storage system of the latest generation. The accumulator was specially developed to fully meet the high demands placed on a solar accumulator today. Maximum safety and a long service life are guaranteed even with regular deep discharge thanks to the latest technology. The latest battery of the market-leading manufacturer with now 3.5 kWh per module has again a battery management system (bms) built into each module and therefore offers a lot of security. Internally, the individual cells are thus monitored and balanced against overvoltage, overtemperature, deep discharge, etc. protected. The battery is compatible and certified with many available inverters. Features Extremely cycle resistant - over 6000 cycles at 95% DoD More usable energy content than the previous model US3000 Lifetime over 10 years Absolutely intrinsically safe lithium technology Compatible with many available inverters Automatic address setting when connected in multi-groups High charging and discharging power possible Integrated BMS Very high storage density - low weight and compact design Easy installation thanks to modular design Absolutely maintenance-free and durable Built-in soft-start function capable of reducing the current surge when the inverter is started from the battery Dual active protection at BMS level Supports WakeUp by 5-12V signal from rj45 port Pre-charge function to protect ESS system from overvoltage function Battery management system in each module The battery management system integrated in each module protects each installed battery cell from harmful influences over the entire life of the module and effectively prevents premature failure. Protection against: Deep discharge and overcharge overvoltage during charging excessive currents during charging and discharging over and under temperature Short circuit and reverse polarity Constant monitoring of the individual cell voltages (cell balance) Modular design The system has a modular design and can be configured precisely to the desired storage capacity by interconnecting several modules. Each storage module consists of a high-performance lithium iron phosphate (LiFePo4) accumulator and an integrated BMS. High cycle life The extremely high cycle life of the installed LiFePo4 cells make Pylontech us3000c modules the optimal storage solution for photovoltaic systems. Regardless of whether the solar system is grid-connected or stand-alone, the Pylontech storage system offers several advantages over typical lead-acid batteries and other lithium technologies. Technical data Battery Type: Lithium Iron Phosphate (LiFePo4) Rated voltage: 48V Rated capacity: 3552 Wh Usable capacity (95% DoD): 3374 Wh Discharge voltage range: 44.5 - 53.5V Charging voltage range: 52.5 - 53.5V Max. Peak (discharge) charging current: 90A Max. (Discharge) charging current: 74A Recommended charge/discharge current: 37A Communication: rs485, CAN Weight: 32 kg Dimensions: 442 x 420 x 132 mm Protection class: IP20 Temperature range charge: 0°C - +50°C Temperature range discharge: -10°C - +50°C Temperature range storage: -20°C - +60°C Service life: over 10 years Cycle life: over 6000 at 95% DoD BMS / monitoring: integrated in each module Warranty: 10 years manufacturer warranty Certification: TÜV, ce, UN38.8 Due to the classification as dangerous goods, this product will be shipped by freight forwarding! Scope of delivery: 1x Pylontech us3000c LiFePO4 3.5 kWh 1x cable set parallel connection incl. grounding 1x rj45 data cable 1x mounting screws 1x user manual
From
€1,013.31*
From €851.52**
The us3000c (mpn us3000c) is a lithium storage system of the latest generation. The accumulator was specially developed to fully meet the high demands...
The Pytes e-box 48100r-c (mpn 110402100007) is a state-of-the-art LFP battery with 100 Ah capacity and is characterized by its high level of safety, sophisticated design and impressive performance. The battery is compact, easy to install, maintenance-free and can be used as the basic building block of an energy storage system by connecting it in parallel. Applications range from self-consumption coverage in private homes to small commercial and industrial energy storage systems, as well as in telecommunication stations.The Pytes E-BoxLatest generation LFP storageOver 6000 cycles at 90% DoDIntelligent energy managementIdeal for emergency power supplyExtensive compatibilityModularly expandableCAN and rs485 communicationIntelligent energy managementThe intelligent Pytes battery offers a comprehensive energy management system. Through real-time measurements, monitoring and management, it optimizes the system service life using intelligent algorithms. The battery thus ensures efficient and sustainable use of the available energy.Reliable emergency power supplyThe simple installation and user-friendly design make Pytes batteries a practical option for ensuring an uninterrupted power supply in your home. With their intelligent control features, Pytes batteries can optimize energy consumption and maximize battery life to ensure your backup power supply is efficient and reliable.Long service life and maximum safetyPytes batteries are characterized by their impressive service life and high level of safety. With over 6000 cycles at 90% depth of discharge (dod), they offer an exceptionally long service life. Whether it is a grid-connected solar system or a self-sufficient stand-alone system, the Pytes storage system offers several clear advantages over conventional lead batteries and other lithium technologies.Technical dataBattery chemistry: Lithium iron phosphate (LFP)Nominal voltage: 51.2 VVoltage range: 47.5-57.6 VNominal power: 100 AhNominal energy: 5.12 kWhMax. Charging current: 50 AMax. Discharge: 50 ACharging temperature: 0~50°CDischarging temperature: -10~50°CEfficiency: =95%Communication protocol: rs-232, rs-485, CANCycle life: >6000 cycles at 90% DoDDimensions: 440 x 620 x 117 mmWeight: 51 kgScope of delivery:1x Pytes E-Box 48100r-c
€1,307.81*
€1,099.00**
The Pytes e-box 48100r-c (mpn 110402100007) is a state-of-the-art LFP battery with 100 Ah capacity and is characterized by its high level of safety, s...
The Offgridtec MPPT Pro-Duo (MPN 1-01-011200) is an innovative high-end solar controller that was essentially designed for mobile applications. A variety of different board battery types can be charged via the primary charging output (BATT-1). The battery spectrum ranges from AGM, GEL and liquid lead acid to state-of-the-art LiFePO4 and Li-NiCoMn battery systems. The secondary battery charge output (BATT-2) is designed for a starter battery that is at the same voltage level as BATT-1. The unit automatically detects the system voltage of the starter battery (BATT-2) and charging of the BATT-2 begins as soon as the preset conditions are met.
The controller uses the advanced MPPT control algorithm that minimises the maximum power point loss rate and loss time, quickly tracks the maximum power point (MPP) of the PV generator, and processes the maximum energy from the PV generator under all conditions. Energy utilisation in a PV system with MPPT controller is increased by 20 to 30% compared to the PWM charging method.
Features Highlights of the MPPT Pro DUO 30 A
Max Power-Point Tracking technology with ultra-fast tracking speed and a guaranteed tracking efficiency of at least 99.5%.
Advanced MPPT control algorithm to minimise MPP loss rate and minimise time loss.
Higher range of MPP operating voltage to improve PV module utilisation.
Possibility of limiting the charging power by user or automatic charging current (BATT-1).
Digital circuit control of adaptive three-stage charging mode to improve BATT-1 lifetime.
The product will enter power saving mode if no manual input has been made for a long time and charging conditions are not met (PV<5v).>
100% charge and discharge in the operating temperature range.
AES control signal for auto-refrigerator to avoid energy waste.
Standard Modbus protocol and RS485 communication port (5V/200mA).
Overview of the most important technical features
Maximum charging current: 30A at a battery voltage of 12V or 24V.
Optional remote display with mounting frame available.
Supports all major battery types.
Active temperature equalisation for optimal charging and ensuring long battery life.
Max. Solar power 390W at 12V system voltage and 780W at 24V system voltage.
100V max. PV input voltage
Grounding: Negative
Dimensions: 24.7cm x 16.5cm x 6.9cm (LxWxH)
Connection terminals Battery 1: 16mm² (AWG6) / Battery 2: 4mm² (AWG12)
Weight: 1,4KG
Diameter of mounting holes: 5mm
Energy consumption: 26mA at 12V / 15mA at 24V
Max. Efficiency: 98
Intelligent energy saver
If there is no manual operation for an extended period of time and charging conditions are not present, the MPPT-Pro Duo will switch to energy saving mode, reducing the unit's energy consumption to a minimum. This behaviour also reduces wear and tear on the unit, which is reflected in a significantly longer service life. The system parameters are displayed and set directly via the intuitive control panel on the controller or via the MT11 remote control (accessory).
System communication and protection functions
The refrigerator's AES control signal is built into the controller, which delivers excess solar power to the refrigerator to prevent energy waste. The protection class of the MPPT Duo is IP33. It resists splashing water and is dust-tight. Our MPPT Pro DUO has multiple protection functions, including battery overcharge protection, discharge protection and reverse polarity protection of PV and battery, which effectively ensure the safety, stability and service life of the solar system.
Scope of delivery:
1x Offgridtec 1-01-011200 MPPT DUO charge controller.
1x instruction manual
€111.84*
€93.98**
The Offgridtec MPPT Pro-Duo (MPN 1-01-011200) is an innovative high-end solar controller that was essentially designed for mobile applications. A vari...
The Multiplus-II 48/3000/35-32 gx is a high-end device combination from victron Energy (mpn pmp482306000) that combines classic Multiplus components with an external current sensor and integrated anti-islanding function. This extends the PowerControl and Powerassist functions to 50 a and the potential range of use to ess applications. The inverter module delivers a whopping 3000 w at non-linear load, or 2400 w at linear continuous load. the 48 v battery charger is also very well proportioned, with 35 a charging power, and is complemented by a 32 a transfer switch that allows lightning-fast switching between aC connections. Compared to the rest of the series, the gx variants have an integrated gx display with numerous other connection options. important features of the Multiplus-II 48/3000/35-32 gx integrated gx control unit with various communication ports PowerControl and Powerassist -increase of mains or generator performance built-in anti-islanding function and connection for external current sensor (optional) can be used as a backup device in grid-connected systems for power supply in case of grid failures can be used in various ess (Energy Storage System) applications best suited for professional seafaring, yachts, vehicles and land-based, off-grid applications vE.Bus interface for parallel and three-phase operation, remote monitoring and system integration virtually unlimited power through parallel and three-phase operation can be configured on-site or remotely using vEConfigure software* technical features 3000w power at non-linear load 2400 w continuous load and 6000 w peak power for 48 v battery voltage, 32 a transfer switch and 35 a battery charger output voltage: 230 vaC, frequency: 50 Hz max. efficiency is 95%, protection class IP22 always enough power thanks to PowerControl and Powerassist a maximum mains or generator current can be set on the Multiplus-II 48/3000/35-32 gx. The MultiPlus-II then takes into account other connected AC consumers and only uses the current that is "left over" to charge the battery. This prevents the generator or mains connection from being overloaded (PowerControl function). The Powerassist function adds a new dimension to the PowerControl principle. Load peaks often only occur for a limited period of time. In such a case, the MultiPlus-II immediately compensates for insufficient generator, shore power or mains power with energy from the battery. if the load is reduced, i.e. if consumers are switched off, the energy that is then available again in sufficient quantities can be used to charge the batteries Solar power: alternating current even in the event of a power failure The device can be used with both non-grid-connected and grid-connected pv systems, as well as with other alternative energy systems. It can be used with both solar charge controllers and grid-connected inverters. maximum flexibility thanks to two AC outputs The main output ensures uninterrupted operation. In the event of a grid failure or interruption of the shore/generator power, the MultiPlus-II takes over the supply of the connected consumers. Switching occurs so quickly (in less than 20 milliseconds) that uninterrupted operation of computers and other electronic equipment is guaranteed. The second output supplies power only when AC power is available at the input of the MultiPlus-II. consumers that must not discharge the battery, such as a water heater, can be connected to this output. Scope of the integrated gx device A vE.Can interface This can be used to connect vE.Can devices from victron (e.g. vE.Can mppt). The port can also be reconfigured via the remote console for use with a compatible CaN bus Li-Ion battery. 1xUSB connection 1x Ethernet port 1x vE.Direct connection many possibilities for system expansion Settings can be changed within minutes using the vEConfigure software (requires a computer or laptop and MK3 USB interface).multiple monitoring and control options are available: Color Control gx, venus gx, Octo gx, CaNvu gx, laptop, computer, Bluetooth (with the optional vE.Bus Smart Dongle), battery monitor, Digital Multi control panel Remote configuration and monitoring Install a Color Control gx or other gx products to connect to the Internet. Operating data can be stored and viewed free of charge on our vRM (victron Remote Management) website. If systems are connected to the Internet, they can be accessed remotely and settings can be changed. Scope of delivery: 1x victron pmp482306000 Multiplus-II 48/3000/35-32 gx 230 v 1x instruction manual
€800.10*
€672.35**
The Multiplus-II 48/3000/35-32 gx is a high-end device combination from victron Energy (mpn pmp482306000) that combines classic Multiplus components w...
The solar module 150w mono from Offgridtec (mpn 3-01-001255) works with monocrystalline solar cells with a high efficiency of >22,3% and is ideal for 12v systems thanks to its 20v operating voltage. In Offgridtec mono solar modules only cells of the highest quality grade are installed and guarantee a constant high quality and performance with maximum service life thanks to state-of-the-art manufacturing. Features of Offgridtec 150w 12v mono solar panel proven quality directly from Offgridtec manufactured according to the latest standards monocrystalline solar cells extremely resistant ESG glass makes the module usable even in the most adverse environmental conditions ideal for 12v systems on land or in mobile solar systems 2 bypass diodes - minimized power loss in shaded conditions The mono 150w 12v is one of over 40 proven solar panels from the Offgridtec portfolio and participates in Offgridtecs experience in manufacturing high quality 12v and 24v solar cells. The module can be used in very adverse operating conditions thanks to the extremely resistant solar glass. It can withstand heavy hail and storms or extreme cold and heat without any problems and thanks to the integrated bypass diodes, the module can continue to produce power even in shaded or low light conditions. The most important technical data at a glance Power (Pmax): 150w Working voltage (Vmp): 20 V Open circuit voltage (Voc): 24 V max. current (Imp): 7.5 A Short circuit current (Isc): 8.1 A max. system voltage: 1000 V permissible ambient temperature: -40°C - +85°C Dimensions: 1140 x 680 x 35 mm Weight: 12 kg Universally applicable Offgridtecs 150w 12v Mono is universally applicable for example in 12 Volt Solaranlagen on garden houses, allotments or for the power supply of lighting applications, self-sufficient systems of signal and surveillance technology and many more. But also in mobile systems such as in mobile home solar systems this panel makes a good figure. The connection cables are 80 cm long and equipped with MC4 connectors. Scope of delivery: Offgridtec 3-01-001255 150w mono 12v solar panel
€130.78*
€109.90**
The solar module 150w mono from Offgridtec (mpn 3-01-001255) works with monocrystalline solar cells with a high efficiency of >22,3% and is ideal f...
The fsp-2 195w 12v is the second largest and newest member of the Offgridtec fsp family and is also one of the most powerful foldable solar modules in the range. It has a 3-sided design and comes with a matching connection kit that allows you to quickly and easily connect to the charge controller of your choice and the battery to be charged.
Performance that sets standards
The fsp-2 195w Ultra is equipped with American SPR back-contact cells from SunPower. The look of the cells is completely black, which also gives the fsp-2 195w a very modern, high-quality look. The SPR cells ensure a very high efficiency of the panel and set new standards in this power class in combination with the low weight and compact dimensions of the fsp-2 panel.
extensive application possibilities:
excellent usable in the camping area
or for expeditions, climbing tours and much more...
for vehicles and boats without fixed solar installation ...
and numerous other applications in different areas...
technical highlights fsp-2 195w ultra foldable solar panel
Rated power: 195wp
Number of sides: 3 x 65 Wp
Module voltage (Vmp): 33,5 V
Max. Charge current (Imp): 5,82 A
Open circuit voltage (Voc): 39,4 V
Short circuit current (Isc): 6,17 A
Dimensions closed: 820 x 440 x 40 mm
Dimensions open designed: 820 x 1545 x 60 mm
Weight: 7,12 Kg
ETFE coating
SunPower high performance cells
6.0m 5mm² connection cable from fsp-2 to solar charge controller with Anderson connector on solar side
0.5m 5mm² connection cable Anderson connector to wire end sleeve (for fixed screw connection to charge controller)
1m battery connection cable solar charge controller to battery with pre-mounted tapping terminals on the battery side
Short-circuit-proof connection to the battery thanks to integrated flat fuse holder with 15a ato fuse
the included Profi-Connection Kit
The connection kit included in the scope of delivery offers everything needed for a quick start-up of the mobile solar set. Each fsp-2 has a 6.0m connection cable, which is equipped with a high-quality Anderson connector at the end. Matching to this, a second 0.5m connection cable is included, which is screwed directly to the solar input of the charge controller, and is also equipped with an Anderson connector on the other side. So you can quickly connect or disconnect the controller at any time via the Anderson connectors without having to unscrew the cables from the charge controller.
For the connection of the charge controller to your battery, a 1 meter long plug & play connection cable is also included. This is screwed to the battery input of the controller and is equipped with universal crocodile clips on the battery side, which can be conveniently connected to all common battery terminals. In addition, the battery cable has a flat fuse holder with corresponding ato fuse.
customizable on request
All FSP-2 Ultra panels can be modified and delivered according to your specifications within a very short time. We can also flexibly adjust and adapt the cables to your needs. Just ask us! We look forward to hearing from you. Please contact customer service for any costs that may be incurred.
about the fsp-2 series
As with all Offgridtec solar module series, high quality has been emphasized in the fsp-2 series. The fsp-2 195w works with highly effective solar cells. These cells generate efficiencies of over 22% and are the best currently available on the market. In addition, the complete fsp-2 series is coated with ETFE coating, which provides better protection and at the same time ensures very high light transmittance. Furthermore, we produce our solar modules according to current norms and standards which, together with the high-quality materials, makes our modules high-end products that deliver maximum technical performance even under the most adverse conditions.
Scope of delivery
1x Offgridtec fsp-2 195w 12v, 3-01-012680
1x Offgridtec fsp-2 Connection-Kit
€403.23*
€338.85**
The fsp-2 195w 12v is the second largest and newest member of the Offgridtec fsp family and is also one of the most powerful foldable solar modules in...
Besides a 290ml cartridge this handy Dekalin adhesive-set also includes the Dekalin Dekavator, DEKACLEAN cloths and a sheet of very fine sandpaper for an ideal preparation of the surface.
Dekasyl MS-5 is a polymer-based adhesive with a high degree of adhesion and initial strength which is ideal for elastic connections of various components.Thanks to it's adhesive power the use of clamps is mostly unnecassary. The Dekasyl MS-5 also serves as sealent between similar materials or when mechanical connections are used.
Application:
Elastic connections and sealing for trains, caravans, trucks, cars,...
Glueing windows of buses, trains, caravans,...
Glueing of edge profiles (aluminium or polyester) of trailers
Glueing of polyester components with metal frame
Characteristics:
Free of solvents, isocyanate and PVC
Very UV- and age-resistant
Very high initial strength. Very high adhesion in general even without priming on various surfaces.
Constantly elastic within a temperature range of -40°C to +120°
Neutral, odorless and quick-setting
After skim-development paintable - normally this does not influence the setting-process
Compatible with most industrial painting systems, alkyd resin paint as well as dispersion paint (because of the many different types of industrial paints a material compatibility test is recommended)
We recommend to mount our spoilers and cable entries only with Dekasyl adhesive together with DEKAvator as this connection had the best outcome in a laboratory test.
Why Dekasyl?
Manufacturers of caravans like Fendt, Dethleffs, Burstner, Carthago, Pilote and Hymer use Dekalin-products in many different areas, for example as sealent for roofs, side panels, undercoating, glueing of PMMA-windows, sound-proofing, engine-covering, and many more.As a global partner of the caravan and camping industry Dekalin provides you with a wide range of latest technology and supports sellers in realizing their demands. They offer special solutions for sealing, glueing, damming and repairing.
Details:Glue color: blackDelivery scope: 1x cartridge 290ml Dekalin 6252412 Dekasyl MS-5 adhesive black, 1x sheet of sandpaper, 1x Dekalin Dekavator 6257812 bottle 30ml, DEKACLEAN cleaning cloths
Besides a 290ml cartridge this handy Dekalin adhesive-set also includes the Dekalin Dekavator, DEKACLEAN cloths and a sheet of very fine sandpaper for...
Dieses Set enthält alles was Sie brauchen um Module mit je max. 1m Breite auf einem Ziegeldach zu befestigen. Die enthaltenen Dach-Haken sind spezielle für Ziegeldächer konstruiert. Durch hochwertigste korrosionsfreie Materialien aus Edelstahl und Aluminium ist eine sichere und langlebige Montage gewährleistet.
Die Stücklisten der Befestigungskits sind für eine Montage der Module direkt nebeneinander konzipiert. Sollten Sie z.B. zwei Reihen untereinander mit je drei Solarmodulen planen benötigen Sie zwei Kits für je drei Module.
Beinhaltet:
Dachhaken 3-fach verstellbar (Edelstahl)
Solar-Profilschienen (Aluminium)
Endklemmen (Aluminium)
Nutensteine (Aluminium)
Endkappen
Alle notwendigen Schrauben und Muttern
Hinweis:
Nur für gerahmte Module mit 30mm/35mm Rahmenstärke
Module sind nicht im Lieferumfang enthalten
Variants from €106.95*
€255.45*
€214.66**
Dieses Set enthält alles was Sie brauchen um Module mit je max. 1m Breite auf einem Ziegeldach zu befestigen. Die enthaltenen Dach-Haken sind spe...
The Autark M-Master is the medium sized complete system of the Autark family and delivers an average daily yield of 800 watt hours between March and October. The generated power is stored in the cycle-proof 122Ah agm battery - the high-quality charge controller with integrated display gives you information about the charge status of the battery while your 230v consumers can be operated at the sine wave voltage converter. Of course, the whole thing is delivered including a professional connection cable kit - plug it together and get started. The system is suitable for a wide range of applications - from 12v lighting, charging laptop, cell phone and camera batteries and other small consumers, to 230v household appliances with a maximum continuous power of 1000w (15min)
Features of the Autark M-Master
If required, module side expandable by 2 x 100w with low installation effort
Average daily yield between March and October: approx. 800wh (approx. 66Ah)
Plug & Play ready-to-connect system - plug together and go
Allows operation of 12v and 230v loads, as well as 5v usb consumers
usb charging possibility directly at the charge controller (max. 2,4A)
Easy to read lcd display informs about all operating parameters
Flexible mounting possibility thanks to 8m connection cable from module to controller
Extensive electronic protection functions, such as overload protection, overtemperature protection, undervoltage shutdown, short-circuit protection, reverse polarity protection, etc.
rs485 communication port on the voltage transformer offers extensive configuration possibilities via pc (interface cable rs485 to usb included)
Charge controller enables temperature compensated charging - temperature sensor included in delivery
Configurable 12v load output at the charge controller for loads up to max. 30a - suitable e.g. for lighting control
Application areas
This complete system can be used in many ways. Whether as a stationary system on the mountain hut or in the allotment garden - the permanent operation of small coolers and refrigerators, as well as the charging of cell phones and laptops succeeds easily with this system. The installation on the motor home is also conceivable - we also have the corresponding brackets and adhesive sets for the attachment.
Extensive connection options
230v ac 50hz 1000w (15min - 1000w / permanent - 800w / short time (starting currents) - 1600w) Schuko socket on the sine wave voltage converter
12v consumer output with 30a power directly at the charge controller
2 x usb charging port at the charge controller with max. 2.4a (total)
1 x usb charging port at the voltage converter with max. 1a power
Parts list - what's inside
2 x Offgridtec 100w V2 Solarpanel 23V black frame
1 x Pair of solar connector compatible junction boxes for parallel connection of the two solar modules
1 x 30a pwm charge controller with clear lcd display and usb charging possibility - the device also has a 30a load output and is easy to operate - all important parameters can be read on the display
1 x 122Ah agm battery with m8 screw terminal Dimensions: 406 x 174 x 233 mm(+5mm terminal) - the battery is absolutely maintenance free and leak proof and lasts up to 10 years depending on use
1 x 1000w 12v to 230v sine wave voltage converter with a shockproof socket incl. connection cable - the rated power of 1000w can be output by the device for 15 minutes - beyond that the inverter outputs 800w and can handle short time starting currents up to 1600w
1 x 8m 6mm² professional connection cable solar module to charge controller with original Stäubli solar-connectors and high quality Lapp Ölflex 2x6mm² solar cable
1 x 1.5m 10mm² professional battery connection cable with MIDI fuse holder, 40a MIDI fuse and m8 ring terminals for connection between charge controller and battery
1 x Temperature sensor with 3m length for connection of the controller to the batrie
1 x 1m 25mm² connection cable from inverter to battery (included with the voltage converter)
1 x Fuse holder + 125A Mega fuse for installation between voltage transformer and battery positive pole for protection against short circuit
Roof mount for the solar module
Since there are different requirements for the mounting of a module and this varies greatly depending on the type of roof, the systems of the Autark series are not equipped with a roof mount as standard. This can of course be purchased additionally - find suitable suggestions here:
Solar module holder for flat roof or wall mounting
Mounting kit for pitched roof mounting on roof tiles (Frankfurter Pfanne etc.)
Mounting kit for pitched roof mounting on roofing felt, corrugated hernite and sheet metal roofs with wooden substructure
Fastening kit for pitched roof installation on Bieberschwanz tiles
Scope of delivery:
1x Solaranlage Autark M-Master with 2x100w solar panel, 30a pwm charge controller with lcd display and usb ports, 1000w sine wave voltage converter, 122Ah agm battery, user manuals
€741.44*
€623.06**
The Autark M-Master is the medium sized complete system of the Autark family and delivers an average daily yield of 800 watt hours between March and O...
Extremely versatile complete package The Offgridtec® HomePremium series is a true all-rounder at an unbeatable price-performance ratio. As well as being used as a usv backup solution with a choice between mains and battery priority, this PV system can also be used as a self-consumption system. There are virtually no limits to the performance of this Solarasystem - depending on personal requirements and on request, extensions are possible, both on the module and battery side. if a higher output power is required on the inverter, additional identical devices can also be connected here to increase performance. In addition to the power electronics, the storage system and the solar modules, all components required for the connection are also included in the scope of delivery, with the exception of the solar module holder, which must be ordered separately. all other components are plug and play - this means no annoying plug installation or the like - connect and you're done. Depending on your choice, the system is supplied with or without an electricity meter. Parts list - what's inside 30x Luxen Solar 430w Full Black Solar panel Luxneri Series 5 4 x 4.8kwh Pylontech us5000 LiFePo4 storage batteries 1x victron Energy mppt SmartSolar charge controller 450/200 48v 3x victron pmp482505010 Multiplus-II 48/5000/70-50a 1x Cerbo gx + 1x gx Touch 50 from victron Energy - the communication center of your system 1x victron Energy Lynx Distributor for dc distribution and protection 1x victron Energy Lynx Power In 3x 10m Offgridtec® Professional connection cable 6mm² solar module to charge controller for the connection between solar modules and charge controller 2 x Pylontechbattery connection cable set Pylontech to inverter 2 x 2.0m 25mm² amphenol to m8 1x 1m battery cable 50mm² m8 eyelets on both sides 3x 1m battery cable 35mm² m8 eyelets on both sides 3x 10m 6mm² mc-4 connection cable 1x vE.Can to CaN-Bus bms Type a cable 1.8m aSS030710018 for connecting the Cerbo gx to the memory 2x 3m victron rj45 utp cable for connecting the MultiPlus to the Cerbo gx 3x Mega fuse 125a / 70v 1x Mega fuse 250a / 70a 2x 0.9m victron rj45 utp cable 1x Pylontech Battery cabinet for us5000 When selecting electricity meter: 1x victron vm-3p75ct Energy Meter 1x victron 5m rj45 utp cable Extended use of your HomePremium system The HomePremium system is supplied either with or without victron electricity meter and cable, whereby an energy meter with connection cable is mandatory for the installation of an Energy Storage System. With this electricity meter, you can carry out a grid-parallel installation and then monitor your energy consumption and control your energy costs. thanks to phase compensation, you can even use the 3-phase meter for 1-phase systems. This means that seamless integration of decentralized energy sources and consumers into the existing power grid is no problem. Luxen Solar 430w Full Black solar module The monocrystalline and bifacial 430w Full Black Series n5 solar module fromLuxen Solarsolar module impresses with a combination of different technologies, such as N-TOPCon cell technology and a 108 half-cell layout. The smbb half-cut cell technology was also used during production to increase performance. The state-of-the-art solar module represents the pinnacle of solar technology, offering impressive power output and low LCOE. Features Glass-glass module N-TOPCon cell technology smbb Half-Cut cell technology Low bos & LCOE Bifacial cell module technology excellent anti-PID and low lid performance 3 bypass diodes 30-year performance guarantee and 15-year product guarantee high cell efficiency of over 22% Half-cell technology In half-cell technology ("half-cut"), conventional silicon cells are cut in half using a laser. The resulting halves are then centrally connected in parallel, which leads to an increased output of the solar module by reducing resistance losses. Bifacial cells Bifacial means two-faced. And the name says it all: the Luxen Solar 430w n5 module is also equipped with solar cells on the back, which means that sunlight can be absorbed even better and the efficiency of the overall module is increased. Technical data maximum output: 430w Module voltage (vmp): 32.04v max. current (imp): 13.42a Open circuit voltage (voc): 38.96v Short-circuit current (Isc): 14.13a Module efficiency: 22.02% dimensions: 1722 x 1134 x 30 mm Operating temperature range: -40°C to +85°C Cells: 108 (6x18) max. operating voltage: 1500v dc Weight: 23,5kg LiFePo4 storage technology from Pylontech - proven, reliable, safe The us3000c storage battery from Pylontech is a latest-generation lithium iron phosphate battery that offers maximum safety and service life. Each module has a battery management system (bms) for comprehensive protection against deep discharge, overcharging and damage caused by high currents or extreme temperatures. Short circuits and reverse polarity are also excluded. Features of the Pylontech us3000c memory modules Extremely cycle-proof - over 6000 cycles at 95% DoD (discharge per cycle) absolutely intrinsically safe due to integrated protective shutdown (bms) High charging and discharging capacity of up to 5kw per module High storage density Low weight and compact design absolutely maintenance-free and easy to install 10-year guarantee The heart of the system - the victron MultiPlus-II 48/5000 The Multiplus-II 48/5000/70-50 from victron Energy combines classic Multiplus components with an external current sensor and integrated anti-islanding function. This extends the PowerControl and Powerassist functions to 100a and enables use in ESS applications. The setting options on the MultiPlus-II are extremely varied, as are its possible applications. We have already made the most important settings for you so that the system, as it is supplied, lives up to the description "Plug and Play" - the system can therefore be used immediately without any further configuration. Performance features and characteristics of the MultiPlus-II 48/5000 PowerControl and Powerassist - increasing mains or generator output Built-in anti-islanding function and connection option for external current sensor (optional) Can be used as a backup device in grid-connected systems vE.Bus interface for parallel and three-phase operation Remote monitoring and system integration Parallel and three-phase operation Approved according to vde-ar-n 4105 Technical data 5000 w power with non-linear load - 4000 w continuous load - 9000 w peak power For 48 v battery voltage, 50 a transfer switch and 70a battery charger output voltage: 230 vaC, frequency: 50 Hz Max. efficiency: 95% Protection class IP22 Maximum flexibility thanks to two AC outputs The MultiPlus-II offers uninterrupted operation by automatically taking over the supply to consumers in the event of mains failures or interruptions to the shore/generator power. The switchover takes place in less than 20 milliseconds to ensure continuous operation of electronic devices. A second output supplies power only when alternating current is present at the input of the MultiPlus-II. This makes it possible to connect consumers such as a water heater that should not be discharged from the battery. Configuration The MultiPlus-II is supplied unconfigured as standard. You can find the configuration instructions for the system here in the download area. If you would like us to pre-configure the system, we can do this for you for an additional charge. To do this, place the article linked above "Offgridtec pre-configuration" in the shopping cart during the ordering process. In this case, shipping may take 3-5 working days longer until the configuration has been completed. victron Energy Cerbo gx and gx Touch 50 - the communication center of your system The latest development in system monitoring from the company allows you to control and configure your system with ease. rounded off by the gxC Touch 50 - a waterproof 5 inch touchscreen - you always have an overview of your system parameters. The Cerbo's functions allow you to control and monitor your system perfectly and maximize system performance in an unprecedentedly simple way. victron Energy has developed a new system monitor that allows you to easily control and configure your system. The gx Touch 50, a waterproof 5-inch touchscreen, provides a clear overview of your system parameters. The Cerbo module allows you to precisely monitor your system and maximize performance. It is compatible with both solar charge controllers and grid-connected inverters. Mounting material and connection cable are included in the scope of delivery. The Bluetooth function of the gx Touch 50 makes accessing your system even quicker and easier. An optional wall bracket is available. victron Remote portal The victron Remote Portal (vRM) is a free victron Energy service that allows you to read out your system data remotely and configure the devices accordingly. This means that you always have full control and an overview of all relevant system parameters, even when you are away. The functionality is available online as a demo version and is ideal for getting a first impression - https://vrm.victronenergy.com/landingpage Safety note: Only have this complete system installed and commissioned by a qualified electrician.
Variants from €16,173.02*
€0.00*
€0.00**
Extremely versatile complete package The Offgridtec® HomePremium series is a true all-rounder at an unbeatable price-performance ratio. As well a...
VAT-exempt order for Germany according to § 12 para. 3 UstG and Austria (§ 28 Abs. 62 UStG 1994)
§ Section 12 (3) UstG only applies if you are a private individual and the product is installed in Germany. To benefit from the 0 percent rate, please confirm at the checkout that you are eligible for the zero tax rate according to § 12 para. 3 UstG. Subsequently, the tax rate will automatically be set to zero for eligible items.

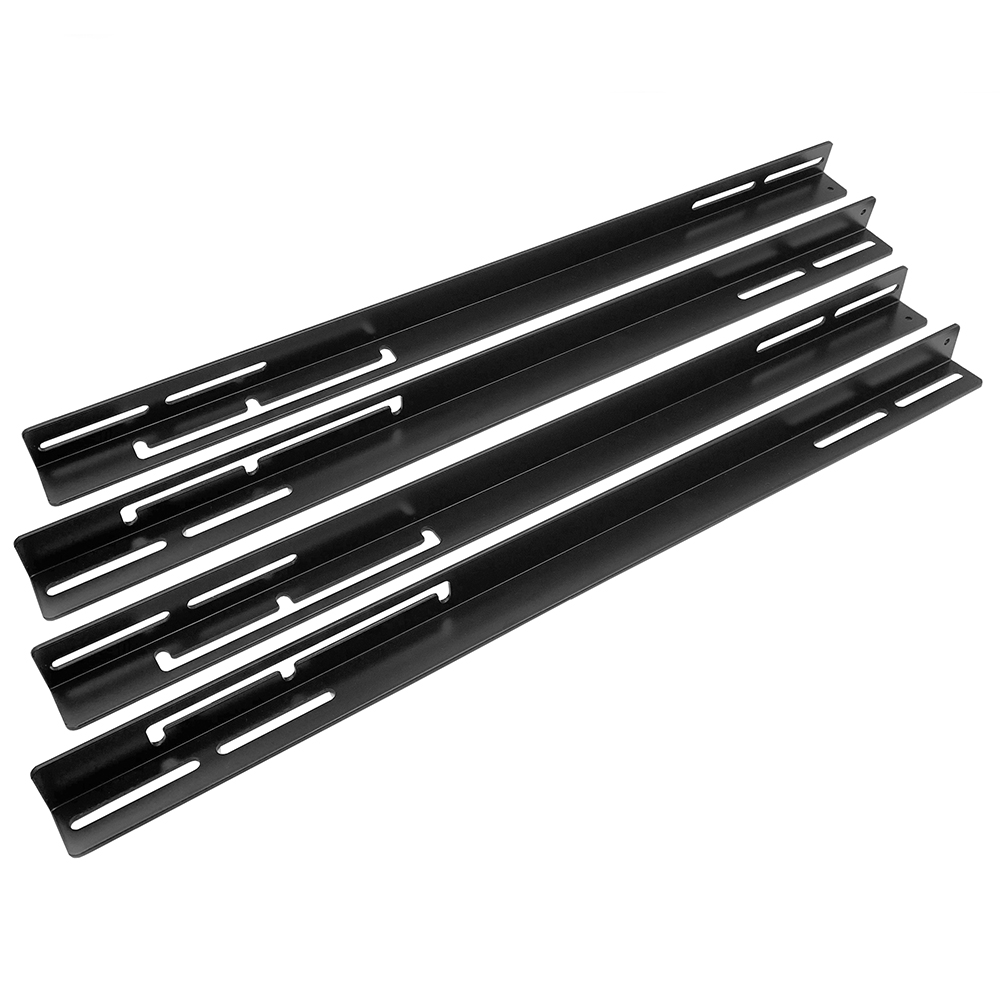

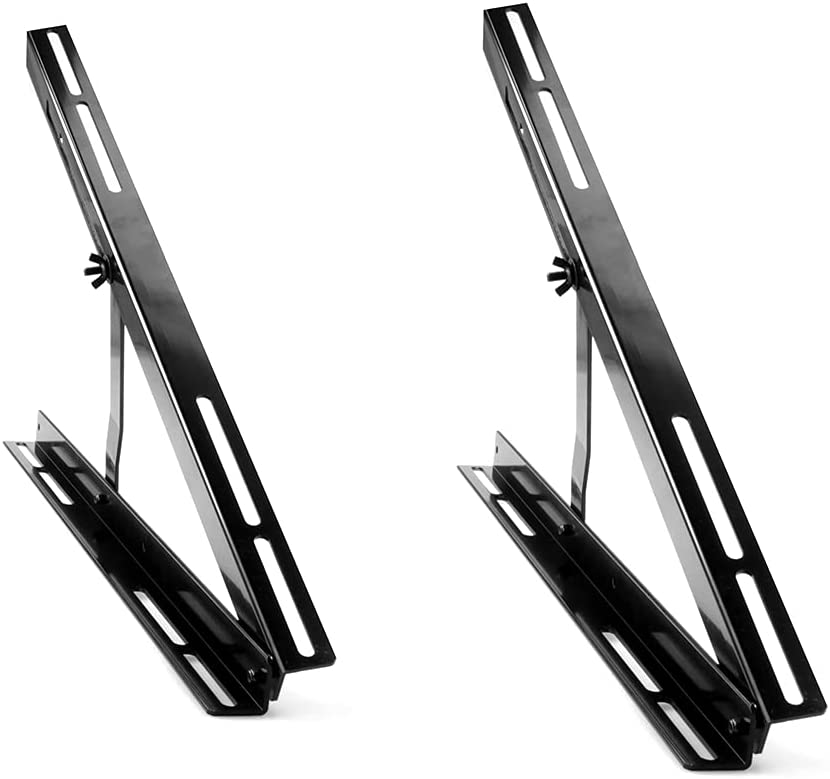

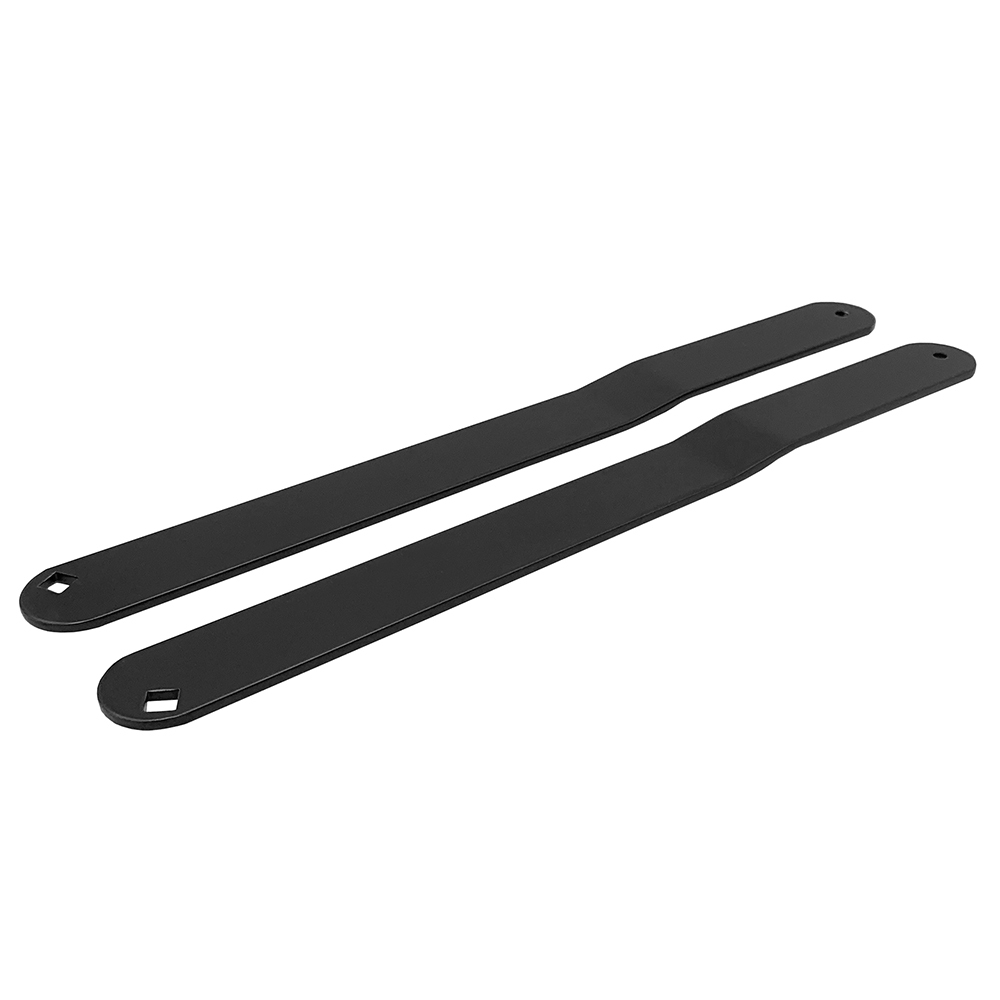

Universal module mounting for 12V solar modules up to 80W. The modules can be set up on the ground or installed on a wall.
The module's angel can be adjusted within a range of 10° to 45°if the module is set up on the ground and within a
range of 45° - 80° when it's wall-mounted.
The bracket is 450mm long and the support surfaces have a width of 28mm.
The Mono Axial One is made of aluminium which makes it very light and corrosion-resistant.

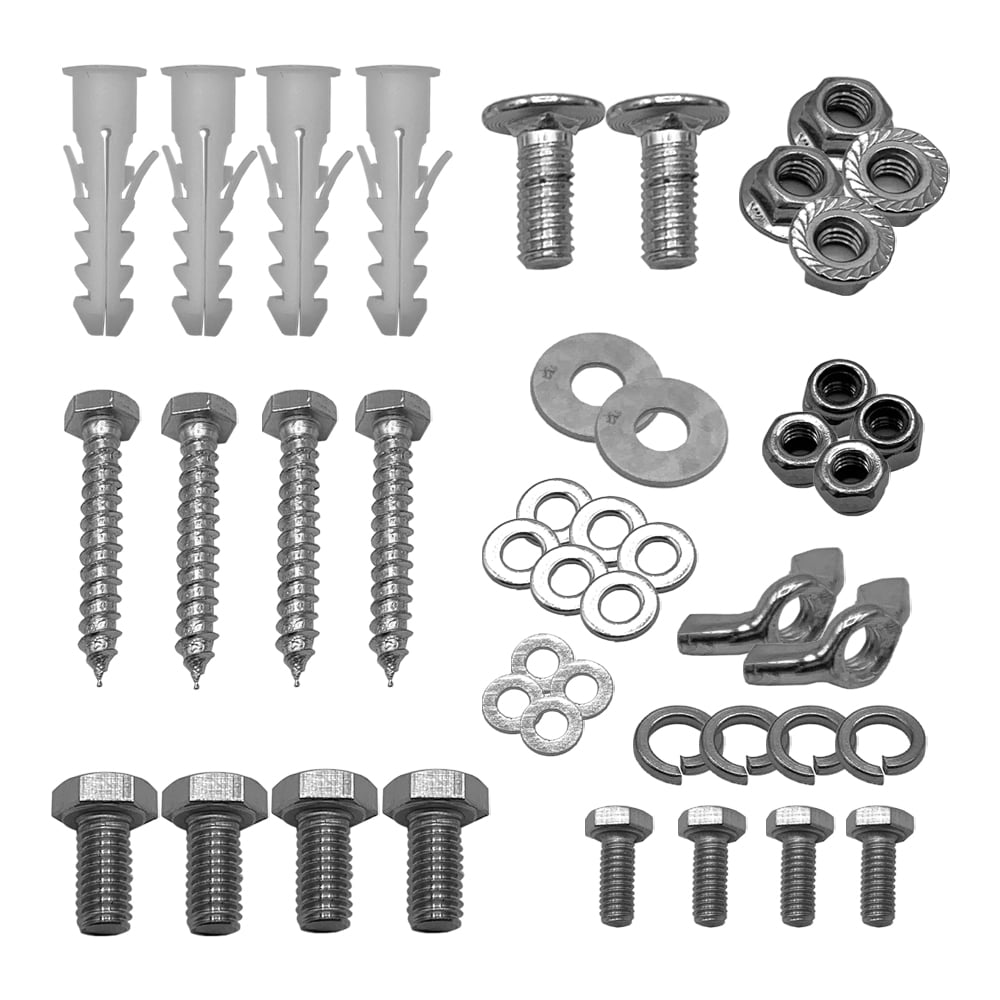

All necessary assembly components (screws, etc.) are included.
