Victron Blue Smart IP65 Charger 12/15 (1) 12V 230V Battery Charger CEE 7/17

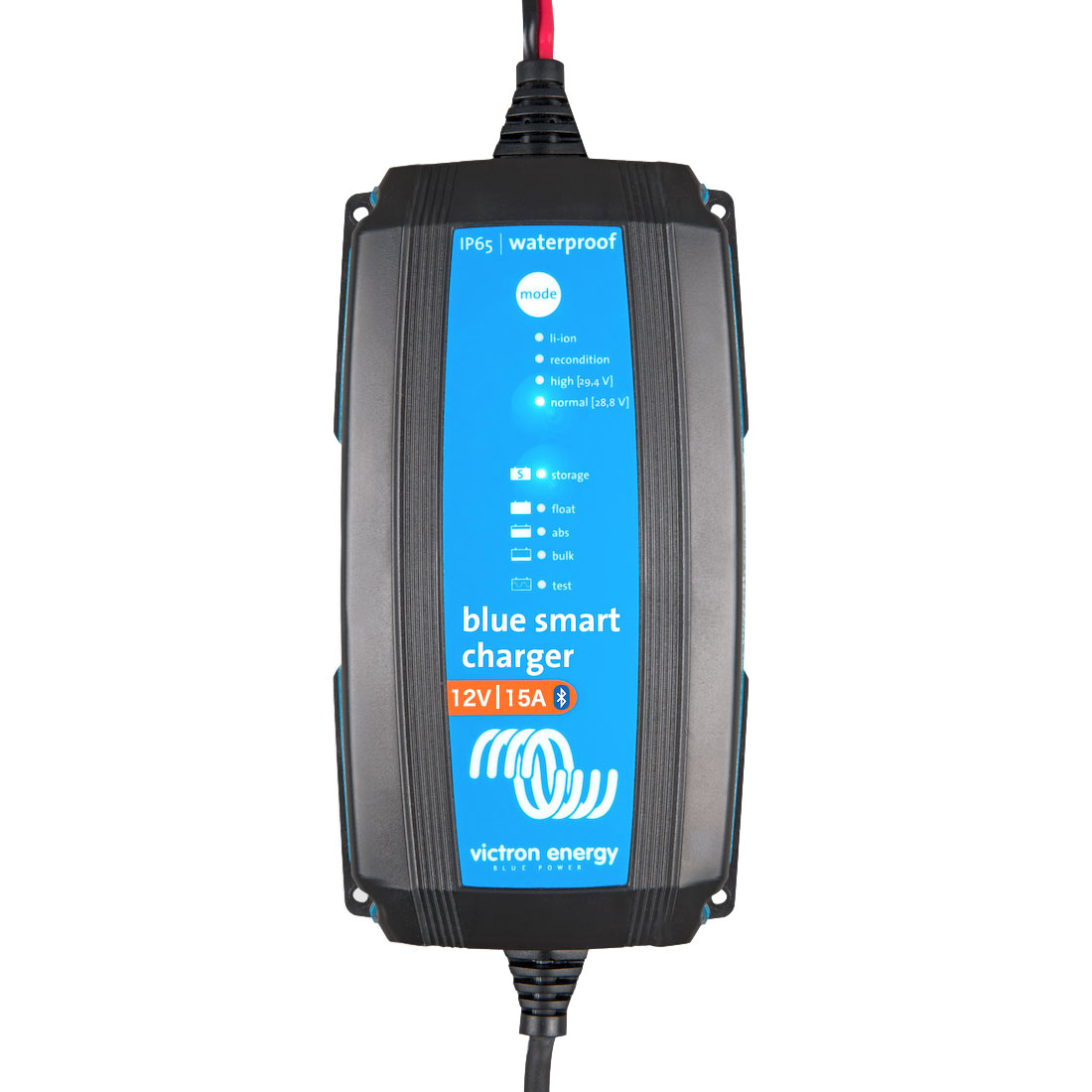

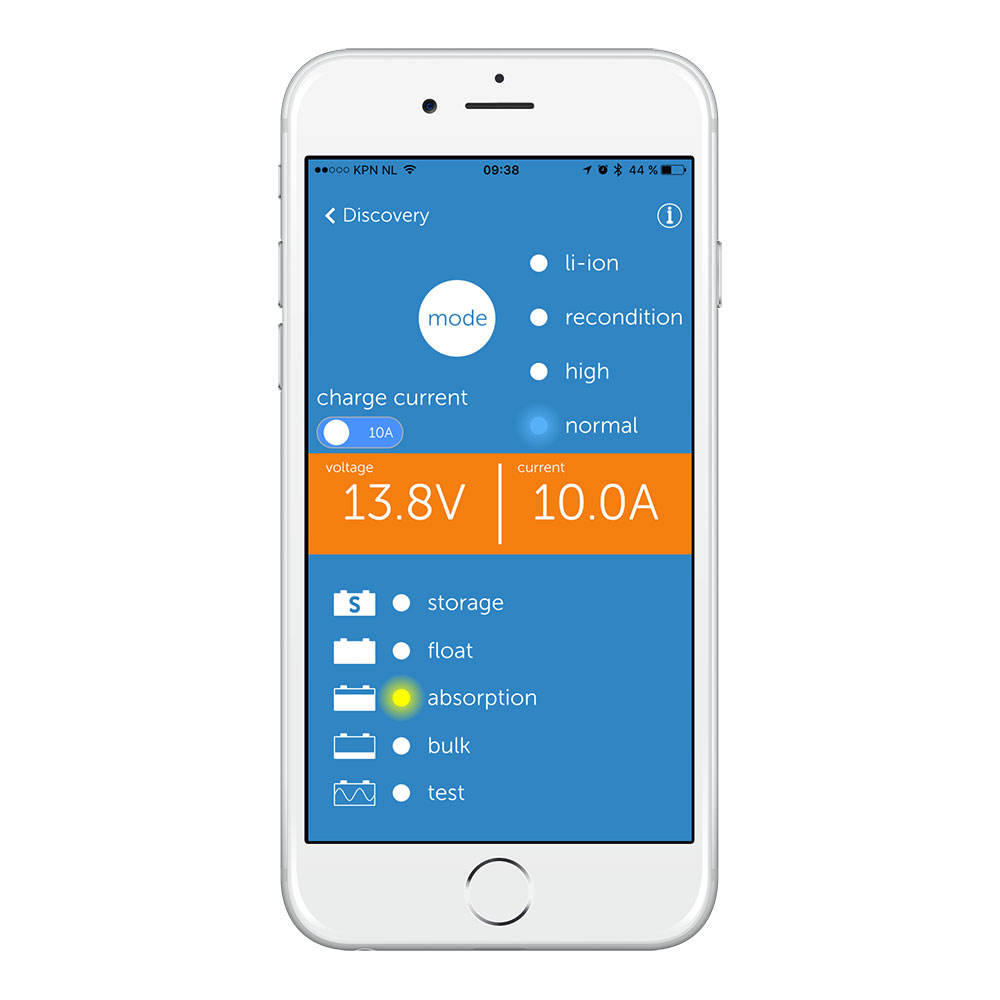

The Blue Smart IP65 12/15 12V 230V battery charger (BPC121532064R) is the latest professional battery charger from Victron Energy with built-in Bluetooth. It is designed to charge a wide variety of 12V batteries and delivers a maximum charging current of 15A. Together with the free VictronConnect app, you can easily and intelligently monitor your battery charger’s activity via your smartphone, tablet, or computer—and even configure it to a certain extent.

Technical highlights of the Blue Smart IP65 12/15 battery charger

• Easy configuration and setup of the Blue Smart IP65 12/15 via Bluetooth interface
• Suitable for all 12V battery types
• Max. 15A charging current
• Reliable protection against splashing water, dust, and chemicals thanks to IP65 rating
• Features several functions to extend battery life
• Automatic temperature compensation at low or high temperatures
• Automatic power supply function
• 7-stage intelligent charging algorithm
• Can restore fully discharged batteries (“dead batteries”)
• Features a low-power mode for charging small batteries
• Victron part number: BPC121531064R
• Lithium-ion battery mode

Ultra-high-efficiency “green” battery charger

With an efficiency of up to 95%, these chargers generate three to four times less heat than the industry standard. And, once the battery is fully charged, power consumption drops to 0.5 watts—five to ten times better than the industry standard.

Durable, safe, and quiet

• Low heat load on electronic components
• Protected against the ingress of dust, water, and chemicals.
• Overheating protection: The output current is linearly reduced when the temperature rises to up to 60 °C, so the charger does not fail even at extreme temperatures
• The chargers are completely silent thanks to passive cooling: no fan or other moving parts

Reconditioning

A lead-acid battery that has not been sufficiently charged or has been left in a discharged state for days or weeks will see its performance degrade due to sulfation. Provided the process is stopped in time, sulfation can be partially reversed by charging the battery with a low current until a higher voltage is reached.

Function for restoring fully discharged batteries

Most chargers with reverse polarity protection do not recognize a battery that has been discharged to zero volts or nearly zero volts and therefore do not recharge it. The Blue Power charger, however, attempts to recharge a fully discharged battery with a low current and resumes the normal charging process once sufficient voltage has been built up across the battery terminals.

Optional accessory Blue Smart IP 65 12/15 BPC121531064R

• 12 V cigarette lighter plug with fuse
• 2-meter extension cable
• Terminal clamps with fuses
• M6 cable lug connector with fuse

Package contents:

1x Victron BPC121532064R Blue Smart IP65 12/15 12V 230V battery charger
1x User manual
1x Terminal blocks
1x M8 cable lug connector
