Victron Busbar 150A 4P + Cover 70V DC Busbar

The Victron Energy Busbar 150A 4P + cover (MPN: VBB115040020) is a compact DC busbar for the central distribution of high DC currents. Four high-current connections allow for the electrical interconnection of batteries, loads, and other DC components. The busbar is rated for currents up to 150 A and voltages up to 70 V DC and comes with a transparent, removable protective cover.

150-A busbar with four high-current connectors

• 4 high-current connections for batteries and DC components
• Maximum current capacity of 150 A
• For voltages up to 70 V DC
• 6.35-mm connection bolts for compatible ring terminals
• Busbar made of tinned copper
• Stainless steel terminal bolts
• Hex nuts made of tinned copper
• Transparent and removable protective cover
• Compact dimensions of 45 × 152.4 × 31.8 mm
• Recommended tightening torque of 7 Nm

Central distribution in the DC system

A busbar serves as a common electrical connection point for multiple DC lines. Instead of connecting various high-current lines directly to a single battery or device terminal, they can be connected centrally via the busbar. The Victron Busbar provides four high-current connections for this purpose.

The design is rated for a maximum current of 150 A and a maximum voltage of 70 V DC. This makes it suitable for appropriately sized battery and DC systems that require four common connection points.

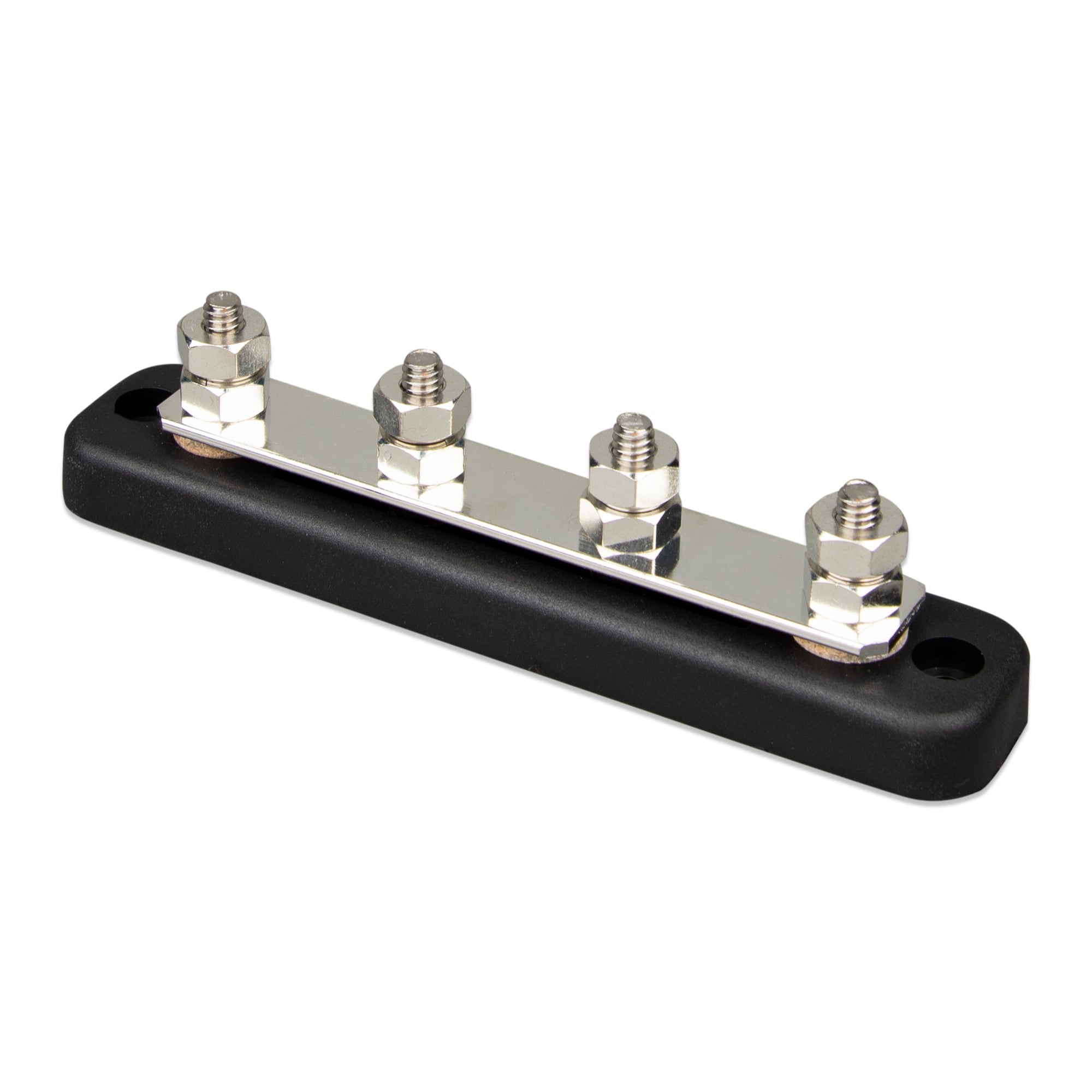

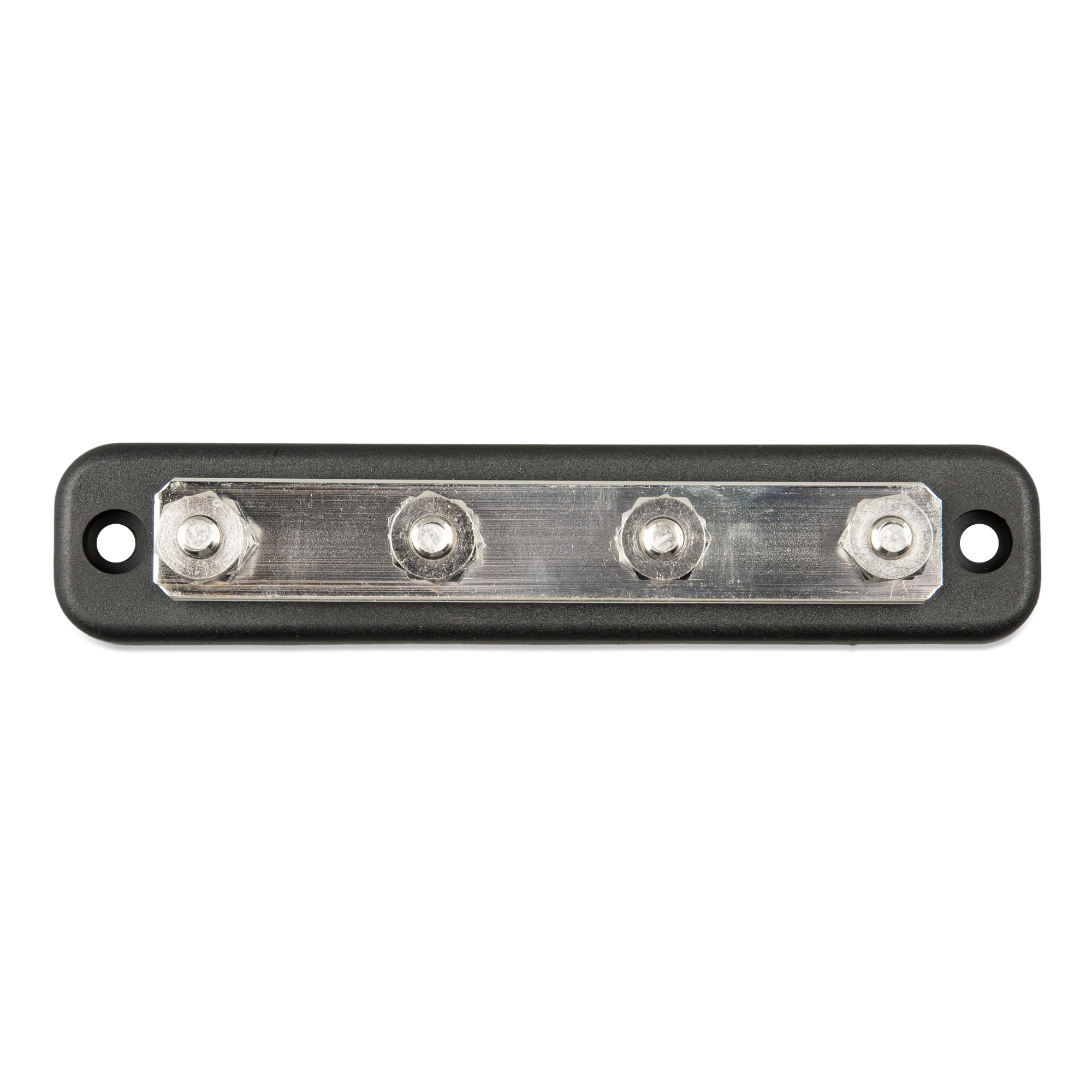

Tinned copper busbar with four connection bolts

The current-carrying busbar is made of tinned copper and has dimensions of 1.4 × 18 mm. The four connection bolts are made of stainless steel and have a diameter of 1/4 inch or 6.35 mm. Victron uses tinned copper for the hex nuts.

The manufacturer specifies a recommended tightening torque of 7 Nm or 60 lbf·inch for the connections. The wires are connected using appropriately sized ring terminals.

Removable Transparent Protective Cover

A transparent polycarbonate cover is located over the connection points. This cover can be removed for installation or maintenance and then used to cover the high-current connections again. The black base of the busbar is made of ABS.

With the cover installed, the busbar measures 45 × 152.4 × 31.8 mm and weighs approximately 0.2 kg. Thanks to its compact design, it can be used as a central distribution point in appropriately designed DC installations.

Technical Specifications

• Manufacturer: Victron Energy
• Product: Busbar 150A 4P + cover
• Manufacturer Part Number / MPN: VBB115040020
• Product Type: DC Busbar
• Number of high-current connections: 4
• Maximum current: 150 A
• Maximum voltage: 70 V DC

• Connection bolt diameter: 1/4 inch / 6.35 mm
• Connection bolt height: 17 mm
• Connection bolt material: Stainless steel
• Hex nut material: Tinned copper
• Recommended tightening torque: 7 Nm / 60 lbf·inch
• Busbar material: Tinned copper
• Busbar dimensions: 1.4 × 18 mm

• Base material: Black ABS, UL 94 V-0
• Cover material: Transparent polycarbonate, UL 94 HB
• Dimensions with cover (H × W × D): 45 × 152.4 × 31.8 mm
• Weight: 0.2 kg
• CE Compliance: as per the manufacturer’s declaration

Package Contents

1 × Victron Energy Busbar 150A 4P busbar
1 × transparent protective cover
