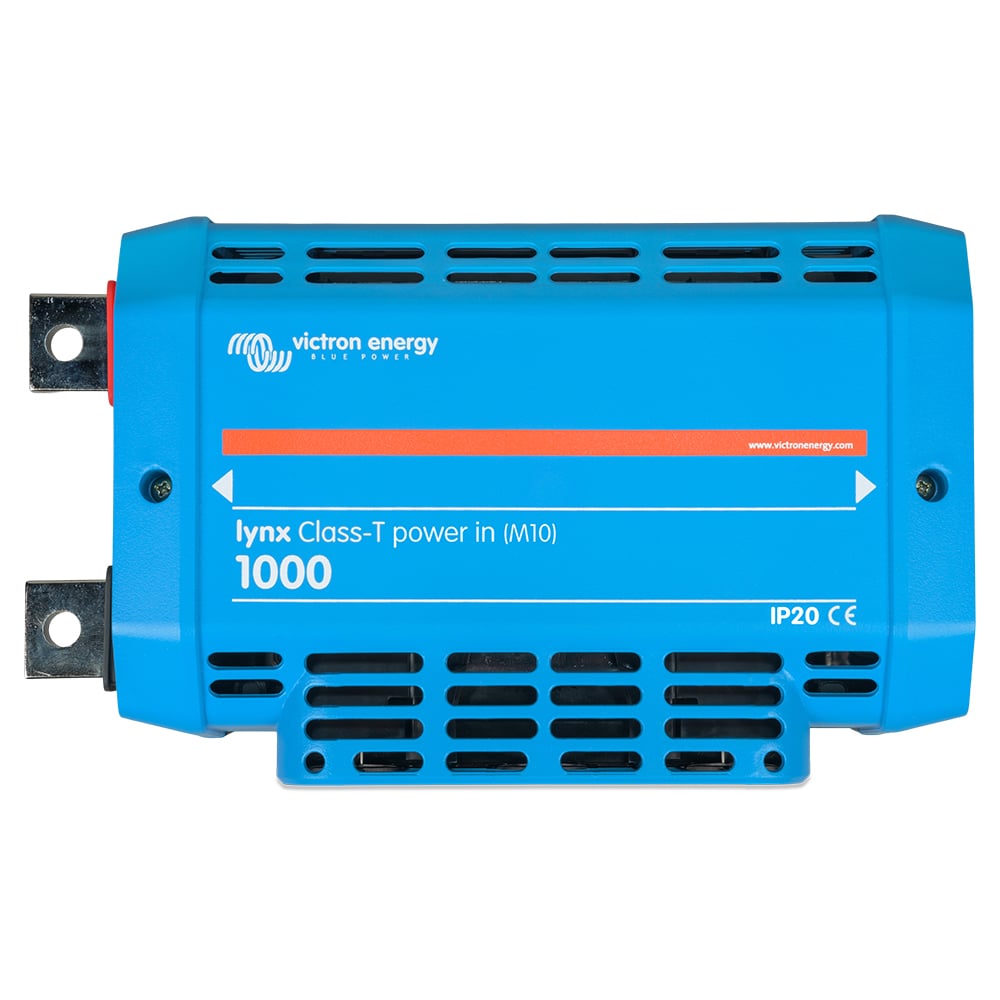

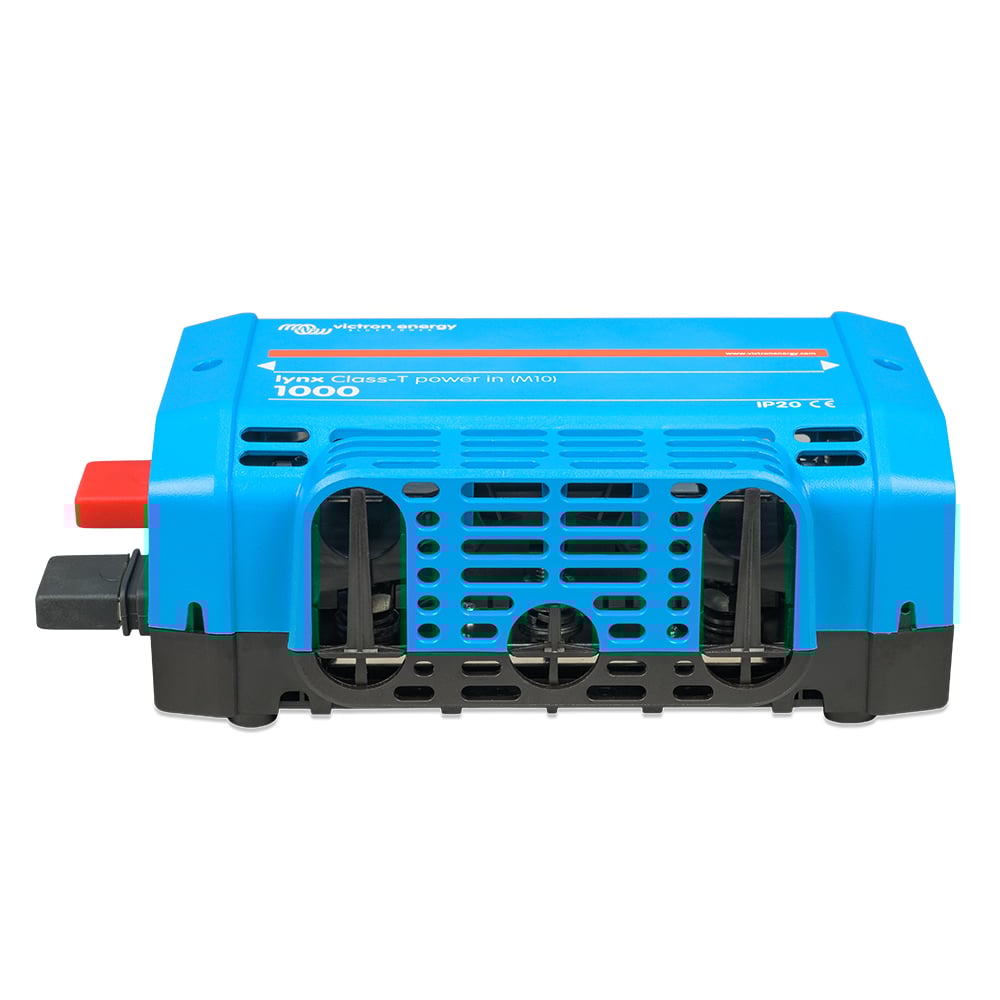

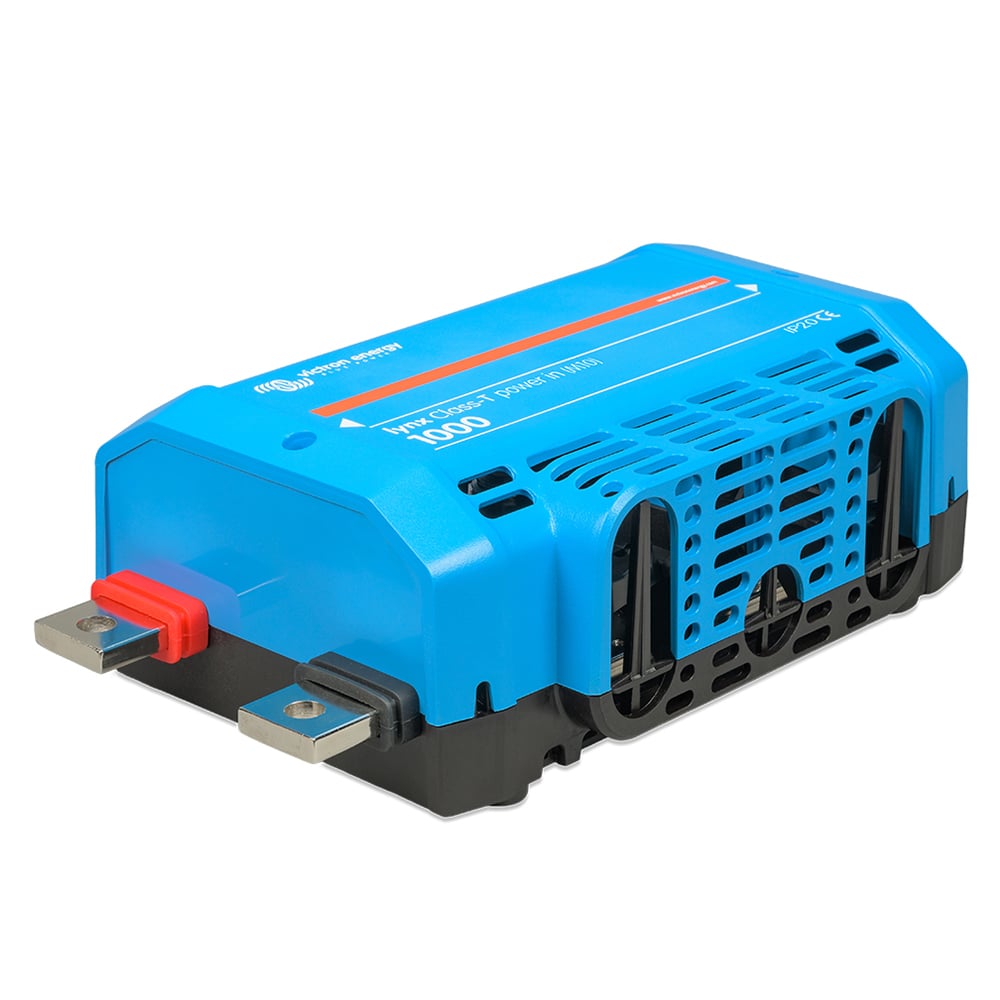

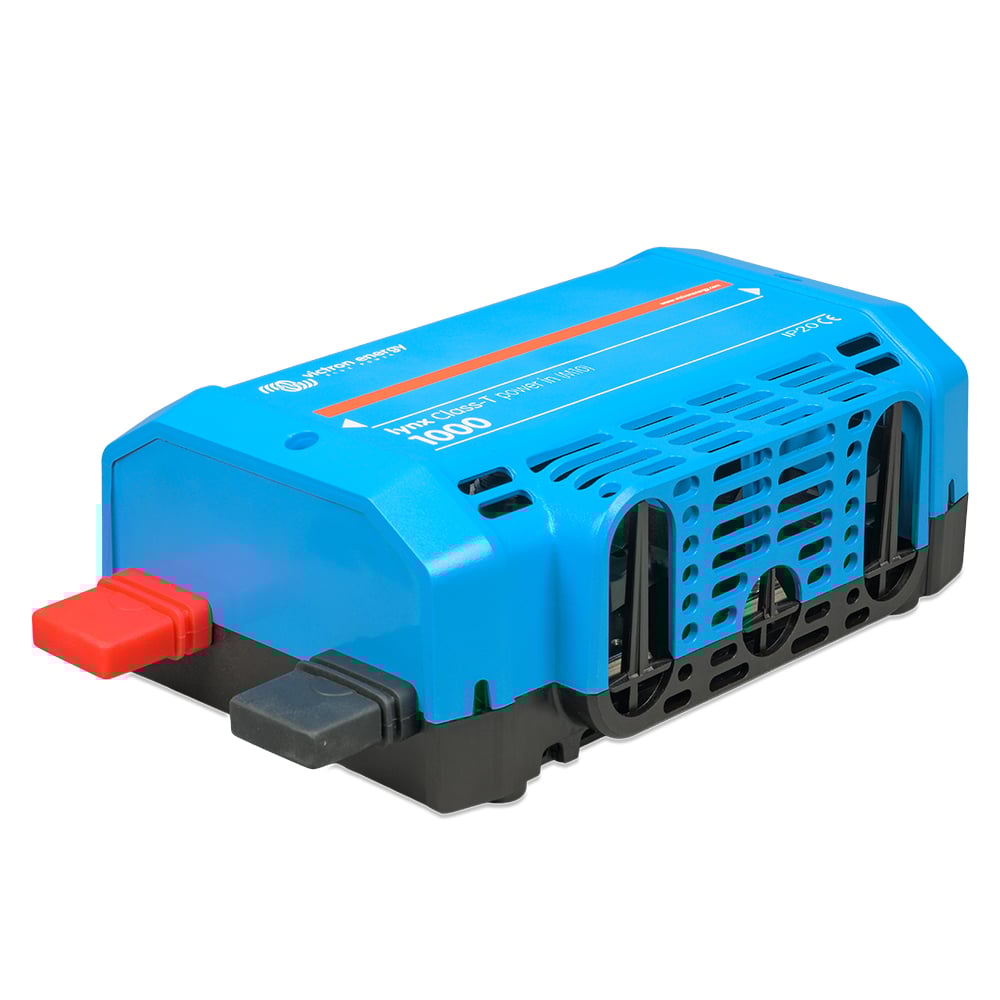

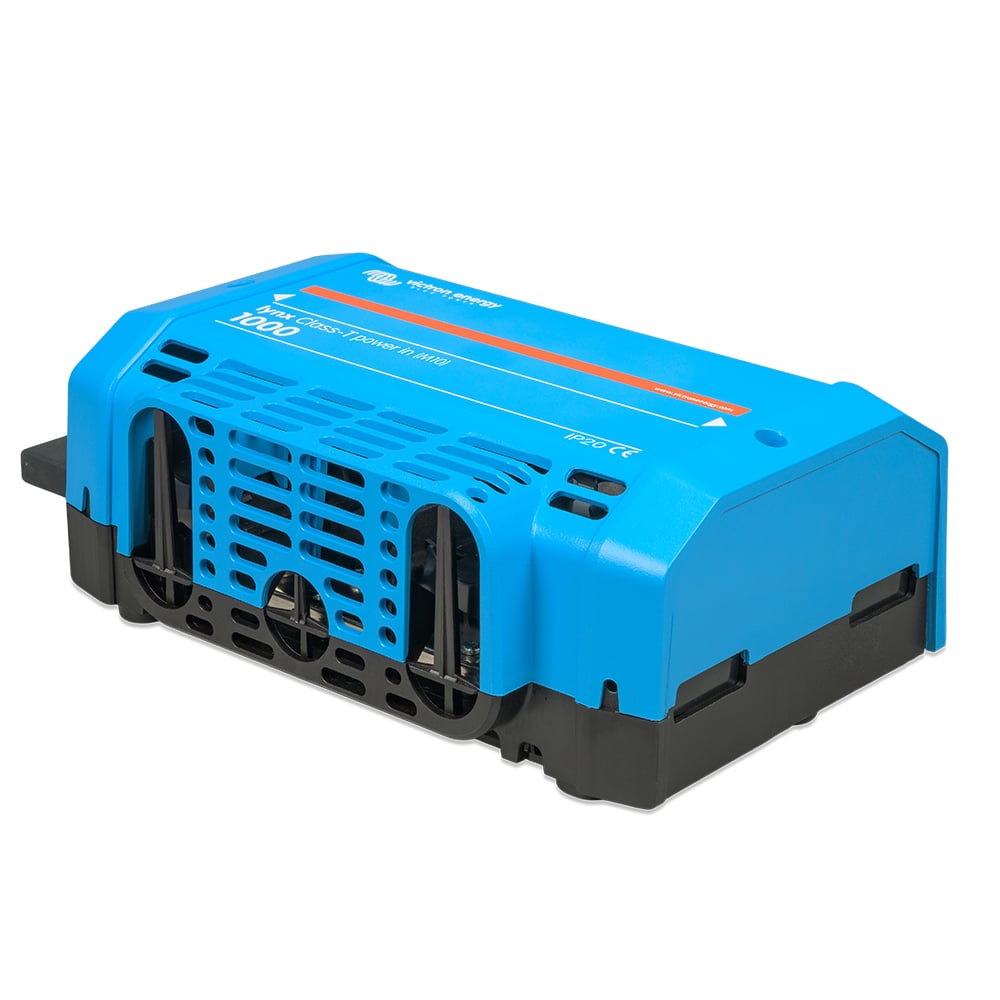

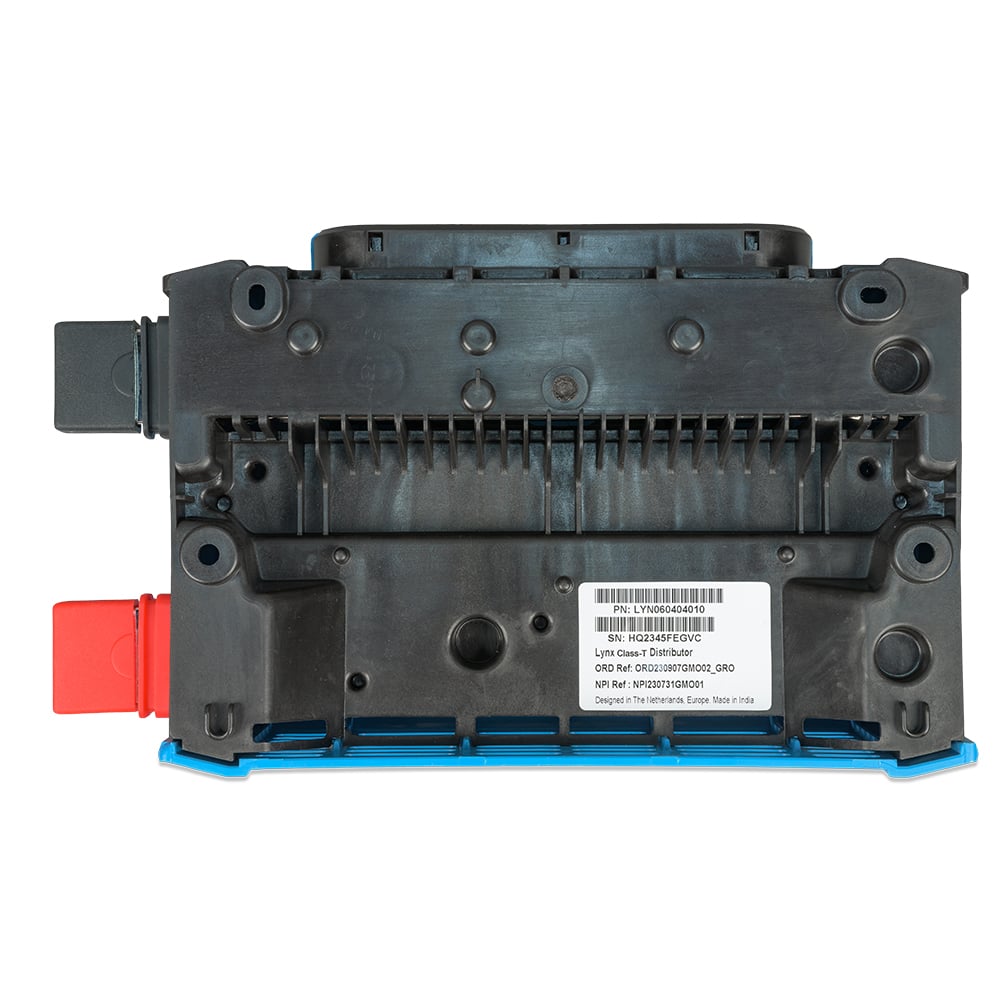

Victron Lynx Class-T Power In (m10)
The Lynx Class-T Power In from Victron Energy enables safe connection and protection of up to two strings of lithium batteries. With integrated positive and negative busbars as well as connections for two Class-T fuses and an earth connection, it offers a reliable solution. For installations with three or more strings, you can combine multiple Lynx Class-T modules. As the central component of the Lynx distribution system, the module fits seamlessly into the m10 Lynx product range and optimizes the power distribution in your system. With the Lynx Class-T Power In, you maximize the efficiency of your lithium battery systems.
Maximum efficiency for your energy solution
- 1000a rated current for high performance
- Secure connection for two lithium strands
- Integrated busbars for easy connection
- connections for 2 Class T fuses
- Modularly expandable in the Lynx M10 system
structure
The Lynx Class-T Power In contains a negative and a positive dc busbar fitted with m10 screws. Cables with a maximum diameter of 22 mm can be conveniently routed through the bottom entries and side connections, ensuring a secure and reliable connection.
The Lynx distribution system

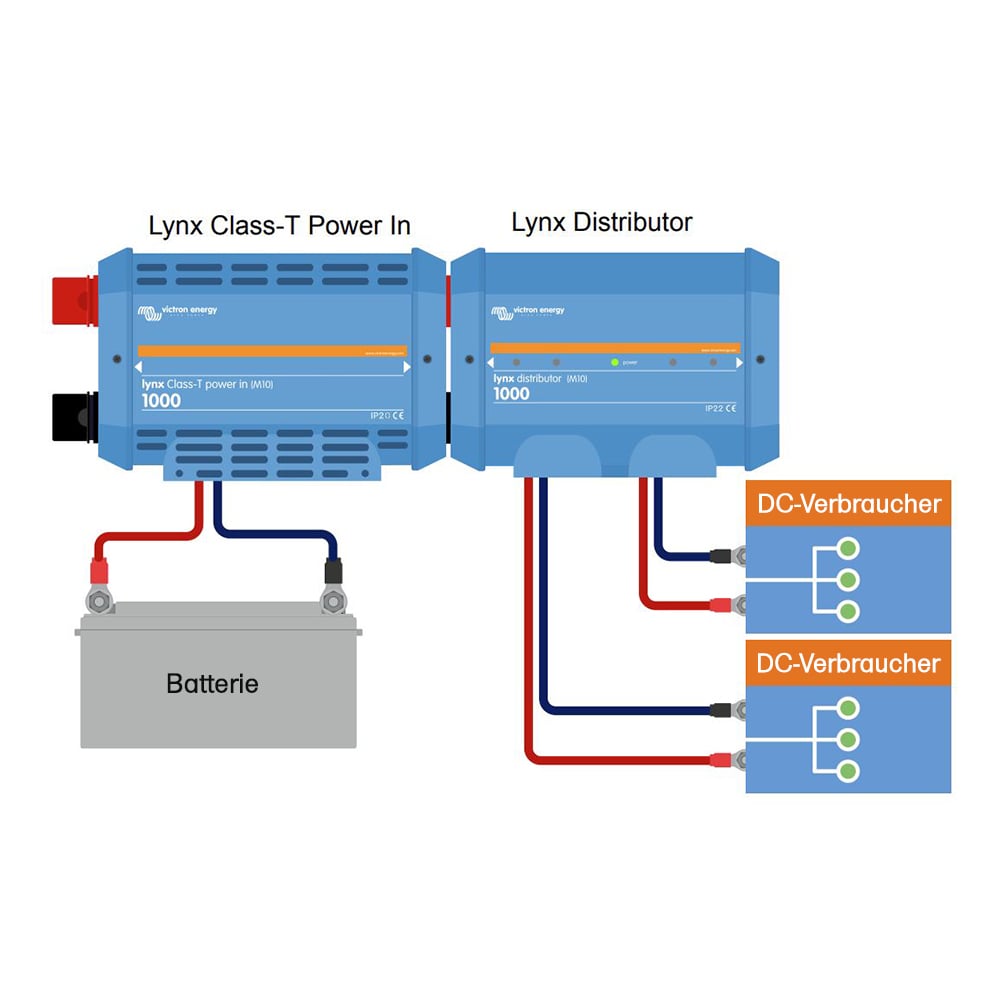

The Lynx distribution system is a modular busbar system that includes DC connections, distribution boards, fuses, battery monitoring and/or lithium battery management functions.
It consists of the following components:
- Lynx Power In: Plus and minus busbar with four connections for batteries or DC devices
- Lynx Class-T Power In: Positive and negative busbar with two Class-T fuses and two connections
- Lynx Distributor: Positive and negative busbar with four fused connections and fuse monitoring
- Lynx Shunt VE.Can: Plus busbar with space for a main fuse and minus busbar with shunt for monitoring, with VE.Can communication.
- Lynx Smart bms: For use with Victron Energy lithium batteries, including Bluetooth communication for monitoring via the VictronConnect app, available in 500 a or 1000 a.
Technical data
- Voltage range: 9-60v dc
- Rated current: 1000a dc uninterruptible
- Fuses: 3/8"
- Housing material: aBS
- Operating temperature: -40 to +60°C
- Humidity: max. 95% (non-condensing)
- Protection class: IP20
- Housing dimensions: 279 x 169 x 97 mm
- Weight: 2.1 kg
Busbar
- Busbar: m10
- dimensions: 8 x 30 mm
- Material: Tinned copper
Scope of delivery
1x Victron Energy Lynx Class-T Power In
Manufactuerer Information
Victron Energy
Victron Energy B.V.
De Paal 35
1351 JG Almere
Netherlands
Mail: sales@victronenergy.com
Tel.: +31 365359700
