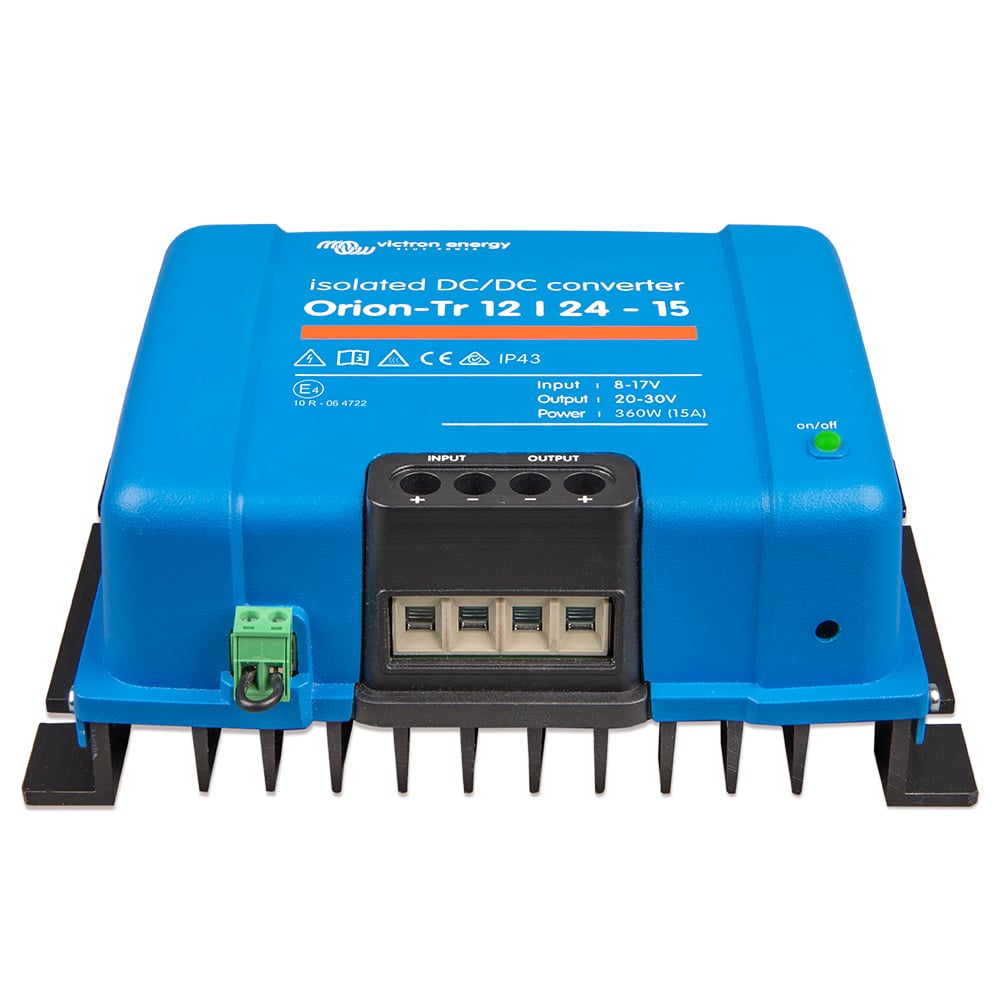

The Orion-Tr 12/24-15 from Victron Energy (mpn ori241224110) is an electrically isolated dc-dc voltage converter and provides regulated dc voltage for trouble-free operation of your dc loads. The compact Orion-TR dc-dc voltage converter converts dc input voltage (10-17v) to a regulated 24v output voltage (20-30v) and delivers a constant continuous current of 15a, which is equivalent to 360w of power.

Thanks to the Orion-Tr 12/24-15, you can supply any 24v load with exactly the right voltage. The correct voltage is guaranteed even with longer lines, because the Orion can adjust the voltage to any line losses that occur. For many sensitive electronic devices, maintaining the exact operating voltage is essential for smooth operation. Furthermore, the Orion-Tr 12/24-15 can be connected in parallel with identical devices and has a remote-controlled on/off switch.

important features of the Orion-Tr 12/24-15 360w (with galvanic isolation)

  • Victron Energy part number: ori241224110
  • for 12v battery voltage, adjustable output voltage 20-30V
  • max. 360w output power at a maximum current of 15a
  • wide input voltage range: 10-17V
  • Protection class ip43, galvanic isolation 200v dc between input, output and housing
  • can be connected in parallel with similar devices for increased performance
  • remote on/off switch
  • high efficiency of 87
  • Not suitable for charging batteries. Please consider using an Orion-Tr Smart to charge the batteries.

remote on/off switch

The remote on/off connector eliminates the need for a high-current switch in the input wiring. The remote on/off connection can be controlled by a power save switch or by the motor's run/stop switch (see manual).

Scope of delivery:

1x Victron Energy ori241224110 Orion-Tr 12/24-15 15a 360w dc-dc voltage converter

Victron_ORI122441110_Anleitung.pdf Download
Victron_Orion-TR-DC-DC-Isoliert_Broschuere.pdf Download
Ambient temperature: -20°C - +55°C
Manufacturer: Victron Energy
Protection type: IP43
Warranty: 2 years
Weight: 1,8 kg
ean: 8719076038832
mpn: ORI122441110 Reviews with
