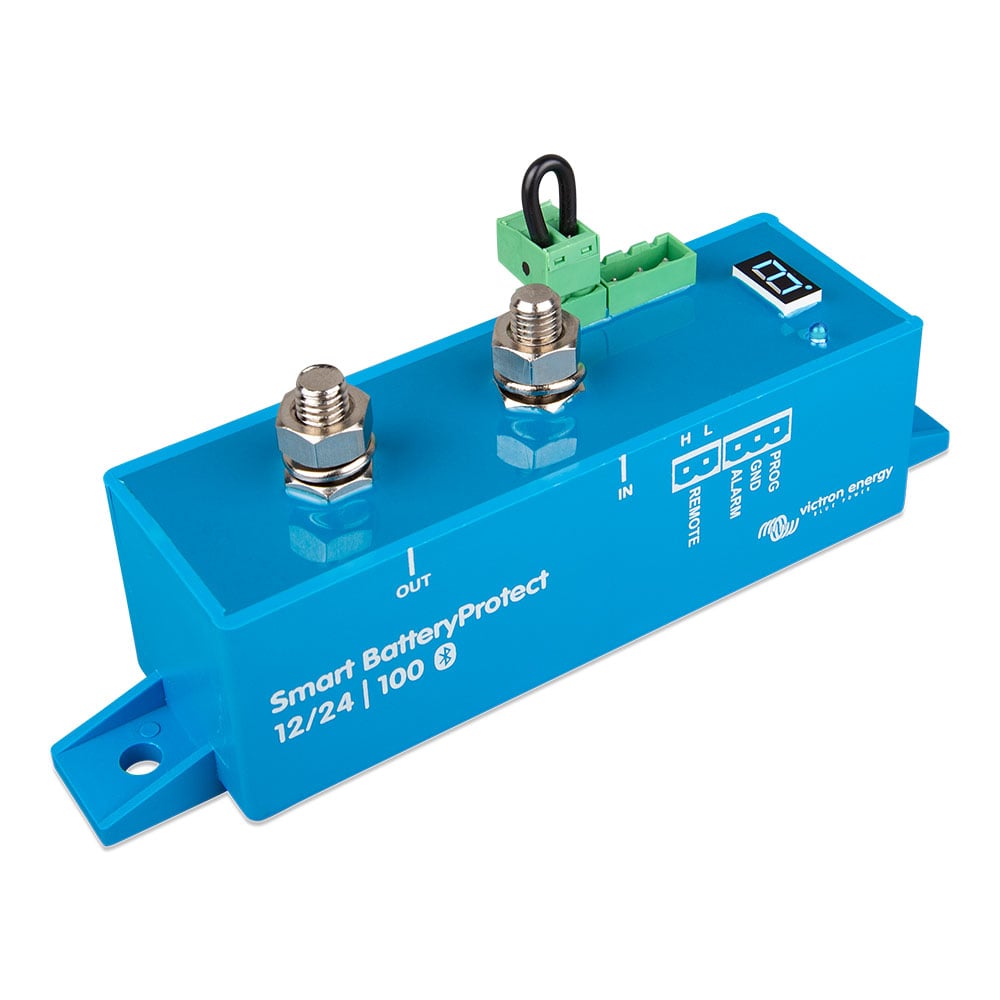

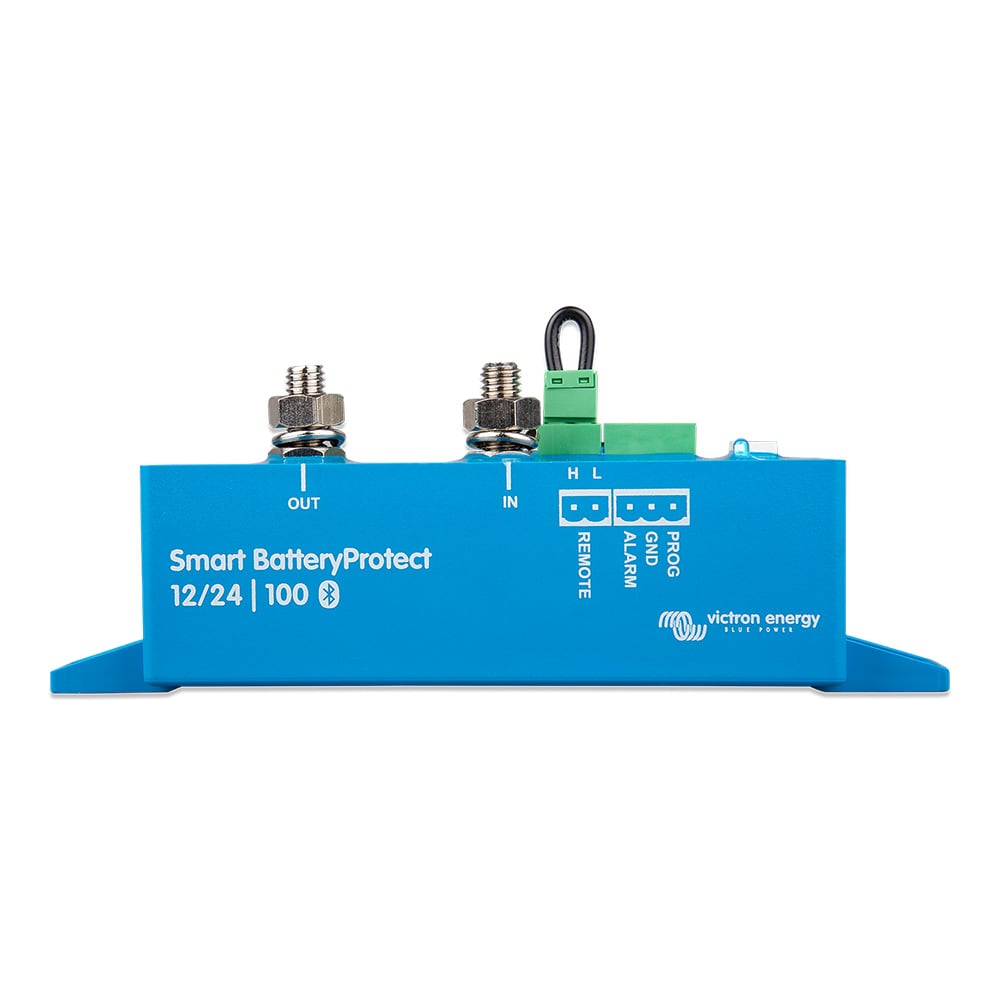

Victron Smart BatteryProtect 12V/24V-100A

The Smart BatteryProtect 12V/24V-100A from Victron Energy (MPN BPR110022000) offers solid battery protection for 12V and 24V batteries of various types. Compared to the previous series, the Smart version has an integrated Bluetooth module that connects the Smart BatteryProtect (BP-100) to a smartphone or tablet. This allows you to program all the necessary switch-on/switch-off thresholds or set the appropriate value from 9 predefined thresholds.

The BatteryProtect 12/24V can also be used as a charge disconnect between a battery charger and a lithium battery. A wide operating voltage range of 6-35 V makes the device universally applicable. The option of connecting an external switch or alarm to the BatteryProtect makes the BP-100 Smart the perfect battery monitor.

Performance features of the Smart BatteryProtect 12/24V-100A

• 100A maximum switching capacity
• For 12V and 24V batteries with automatic detection of the voltage range of the battery bank
• Explosion protection through integrated MOSFET switches that replace the relays and thus reduce the risk of sparking to zero
• integrated Bluetooth module, which can be switched off if desired
• freely programmable switch-on and switch-off thresholds, easily and wirelessly via the VictronConnect app
• alternative programming and status display of settings possible via seven-segment display
• integrated alarm output, 9 predefined thresholds selectable
• an external alarm, LED, or relay can be connected to the alarm output
• the BP's load shedding can be controlled via relay by external events that cannot be programmed

Output for delayed alarm

The alarm output is activated when the battery voltage falls below the preset shutdown value for more than 12 seconds. Starting the motor therefore does not activate the alarm. The alarm output is a short-circuit-protected open collector output connected to the negative (minus) rail. Max. current 50 mA. The alarm output is normally used to activate an acoustic signal, an LED, or a relay.

solid battery protection for every battery type

With its wide range of configuration options, the Smart BP-100 is the perfect protection device for your battery, ensuring maximum service life because although most voltage converters or charge controllers have undervoltage protection, this only kicks in at fairly low values, usually in the range of 10.5V / 21V. The higher this shutdown threshold, the longer you will enjoy your batteries, which are usually quite expensive.

Selecting the cut-off threshold

Depending on the battery type, different minimum battery voltages apply that must be maintained in order not to damage the battery. For AGM/gel batteries, we recommend setting the Batteryprotect to a 11.5V shutdown threshold. For lithium batteries (LifePo4), a 12.0V shutdown threshold is recommended. Depending on the intended use of the battery, it may be necessary to change these limits. Manufacturers also provide different information about their batteries. Therefore, always check with the battery manufacturer to find out which cut-off threshold is right for your battery!

Scope of delivery:

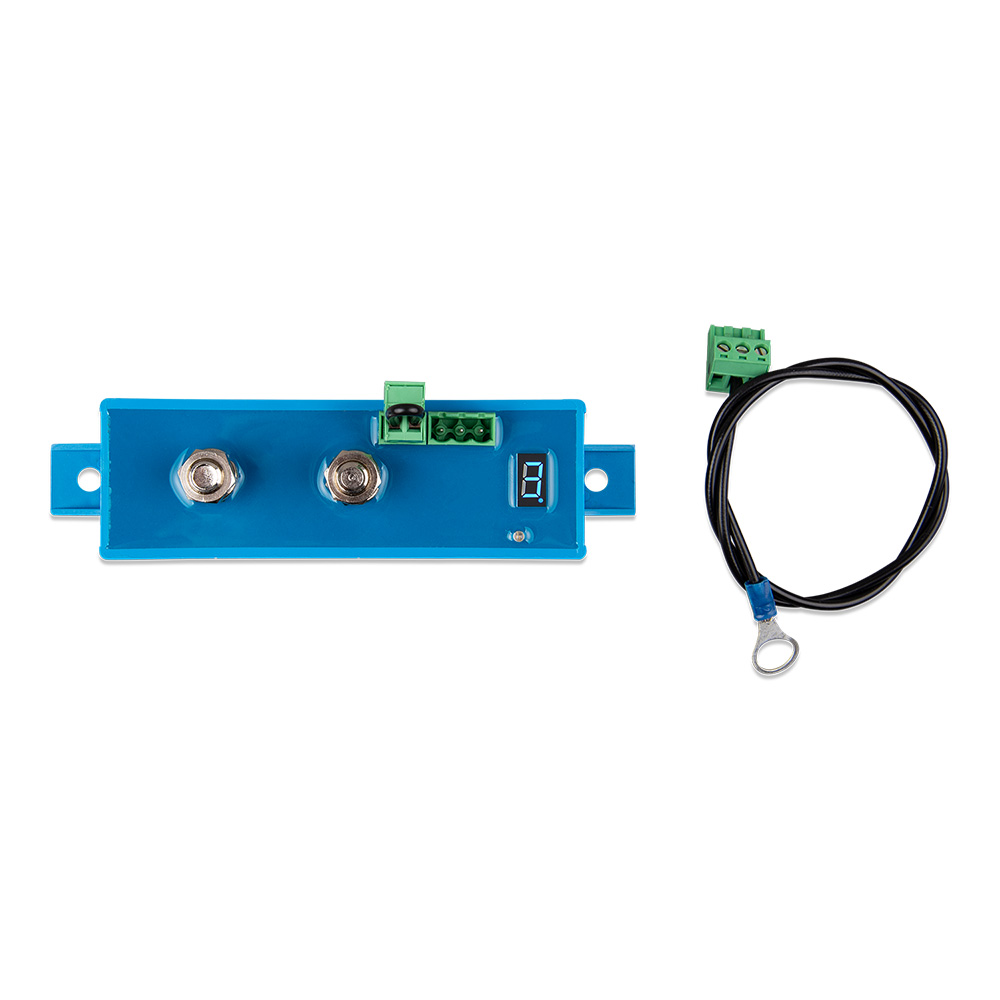

1x Victron Energy BPR110022000 Smart BatteryProtect 12/24V 100A
1x operating instructions
