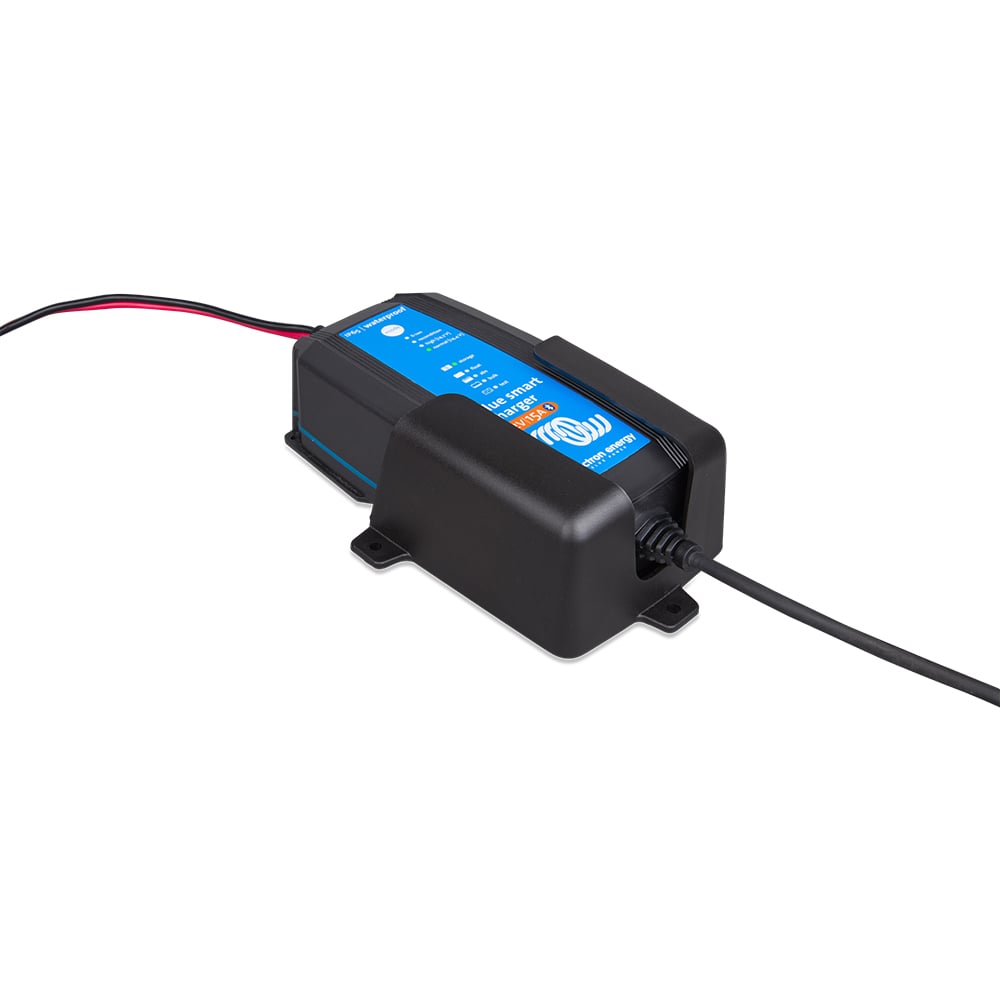

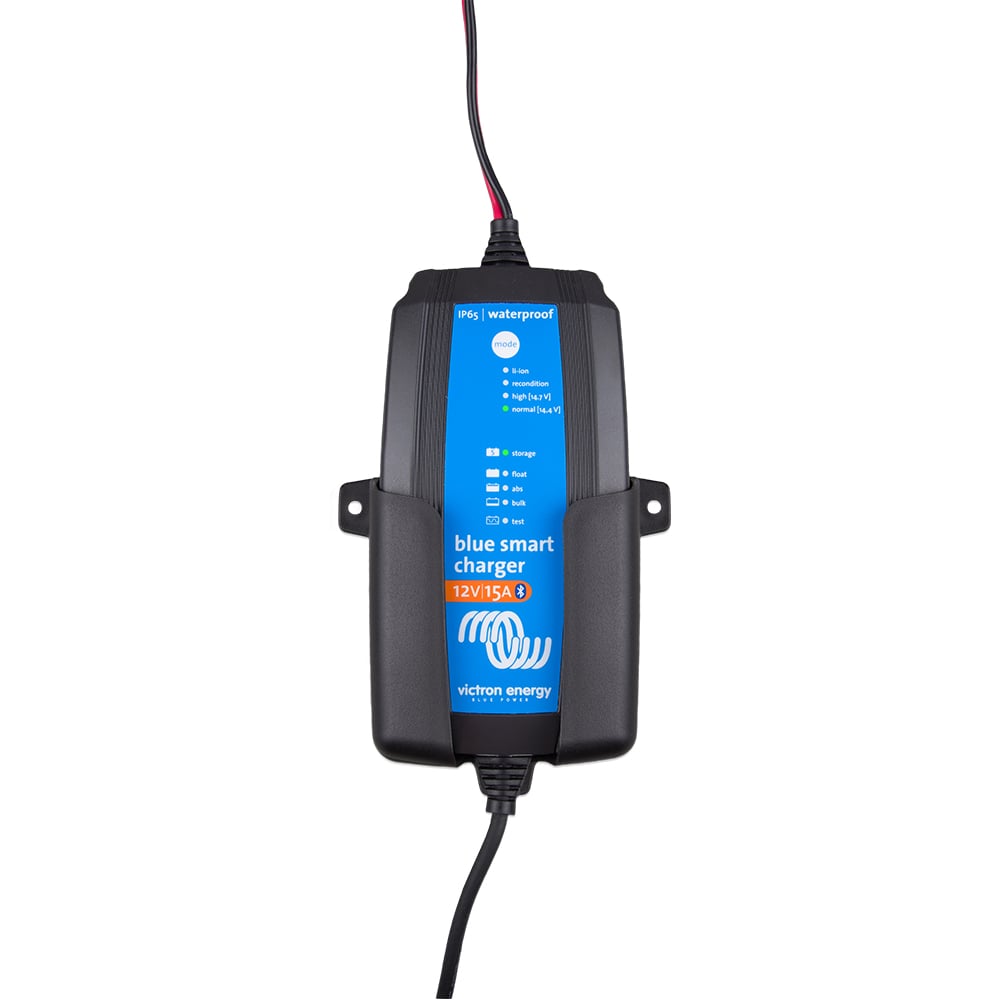

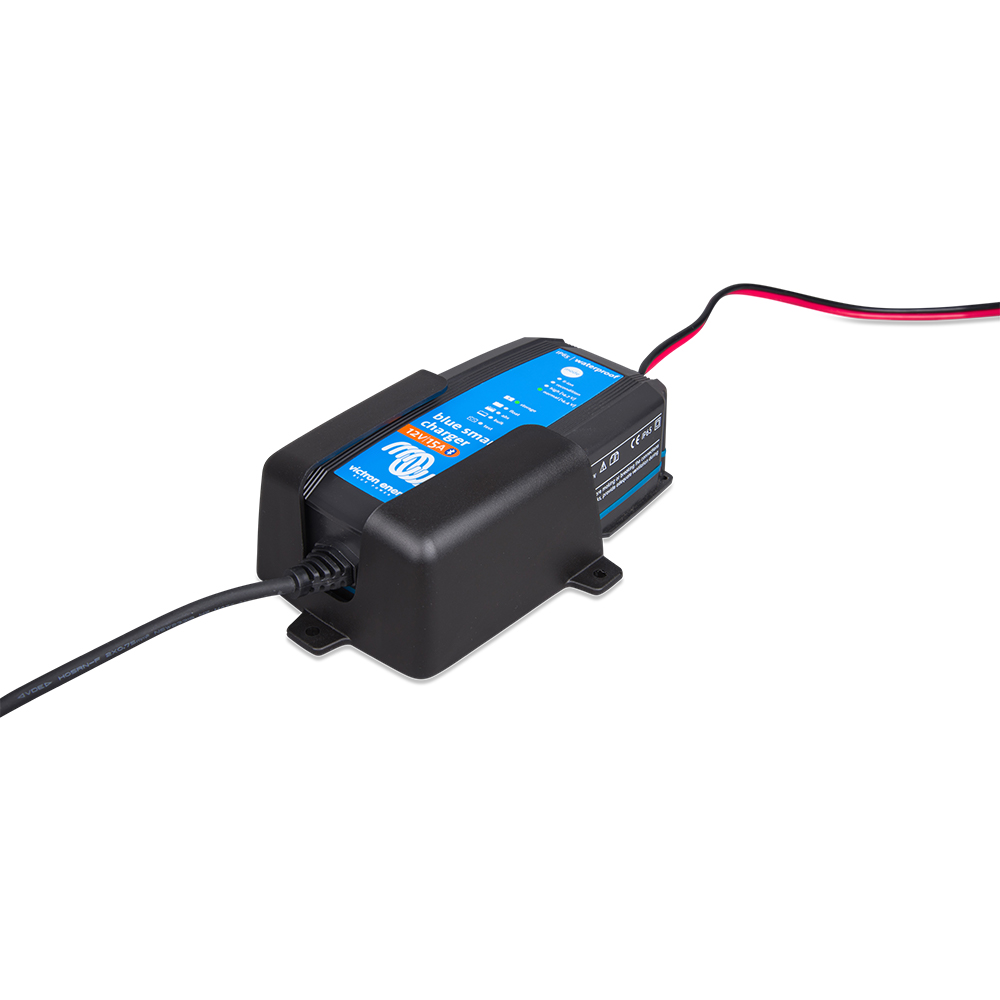

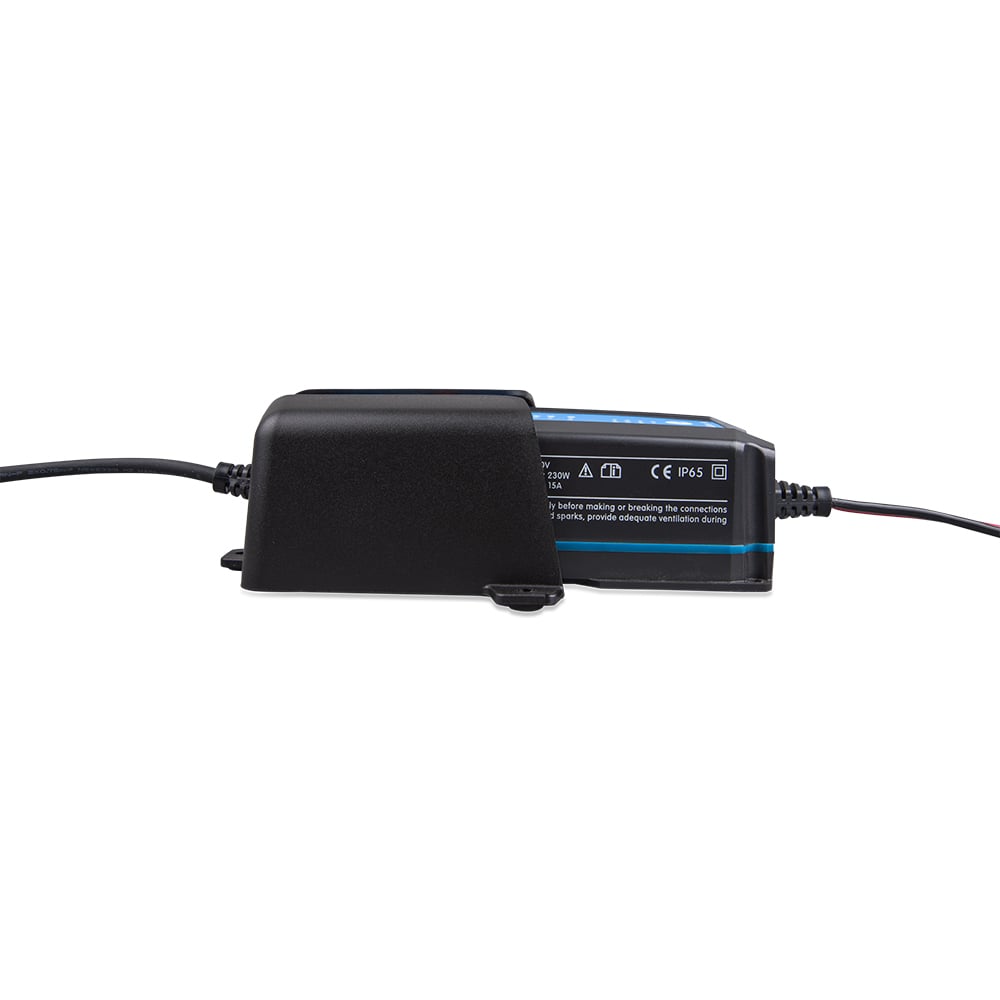

The wall mount bracket for Blue Smart and Blue Power ip65 chargers from Victron Energy (mpn bpc920100200) is suitable for wall mounting models 12/10, 12/15 and 24/8 of the two product families.
Features Victron Wall Mount Blue ip65 Charger
for professional wall mounting of your battery charger
compatible with Blue Smart ip65 12/10, 12/15, 24/8
compatible with Blue Power ip65 12/10, 12/15, 24/8
Scope of delivery:
Victron Energy bpc920100200 wall mount for blue power and blue smart ip65 chargers 12/10, 12/15, 24/8 1x instruction manual
Ambient temperature:-20°C - +60°C
Manufacturer:Victron Energy
Protection type:IP68
Warranty:2 years
Weight:0,2 kg
ean:8719076045540
mpn:BPC920100200
8-67-011370
