Votronic 1253 LCD thermometer / clock s display

This interesting combination of devices consisting of 3-fold thermometer and accurate quartz clock and is powered from the vehicle electrical system. The low power consumption of the unit should be emphasized, as well as the large LCD display, which is very easy to read even from a further distance. In unfavorable lighting conditions, the built-in white backlighting of the display ensures good readability.

The thermometer part measures the room temperature through the sensor built into the device. In addition, external remote measurement is provided by the supplied outdoor sensor. It is mounted outside, e.g. under the front bumper of the vehicle, and can measure the outside temperature here.

Another external measurement input 3 is ideally suited, for example, for monitoring medication storage, cool boxes or heat boxes, etc. With a measuring resolution of 0.1°c, the measuring ranges of all sensors are -30°c to +70°C.

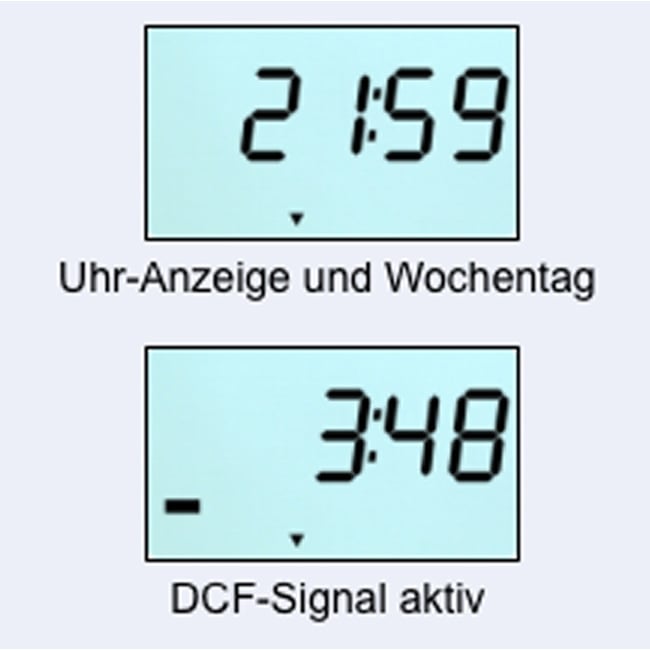

The clock part includes the minutes and hours display in 24 hour display format and the flashing colon for function check. The day of the week is displayed on the bottom line. The clock works with high accuracy and has a power reserve against power failure. In DCF operation of the clock (DCF module required), the display informs by a separate segment.


Scope of delivery:
- 1 pc. LCD thermometer
- 1 pc. Ext. temperature sensor
- 4 pcs. Fixing screws
- 1 pc. Drilling template
- 1 pc. Mounting and operating instructions
