Wattstone Fence PV Flexx mounting kit, angled for 2 PV modules, black, 10-20 degrees

The Wattstone Fence PV Mounting Kit (MPN 7116) is the smart solution for turning your double-wire mesh fence into an efficient source of energy. The kit includes stainless steel hardware such as screws and nuts, as well as steel brackets for mounting two solar panels at a 10–20° angle.

The mounting kit allows for the seamless integration of two PV modules and an inverter into your fence, regardless of whether you choose vertical or horizontal installation. By placing the PV modules on the bar fence, significantly more electricity is generated—especially during the morning and evening hours when energy demand is high—than would be the case with a conventional rooftop solar system.

Even under adverse weather conditions, such as wind and vibrations, the robust construction ensures reliable performance and guarantees continuous energy generation.

About the ZaunPV Mounting Kit

• Mounting kit for 2 solar modules

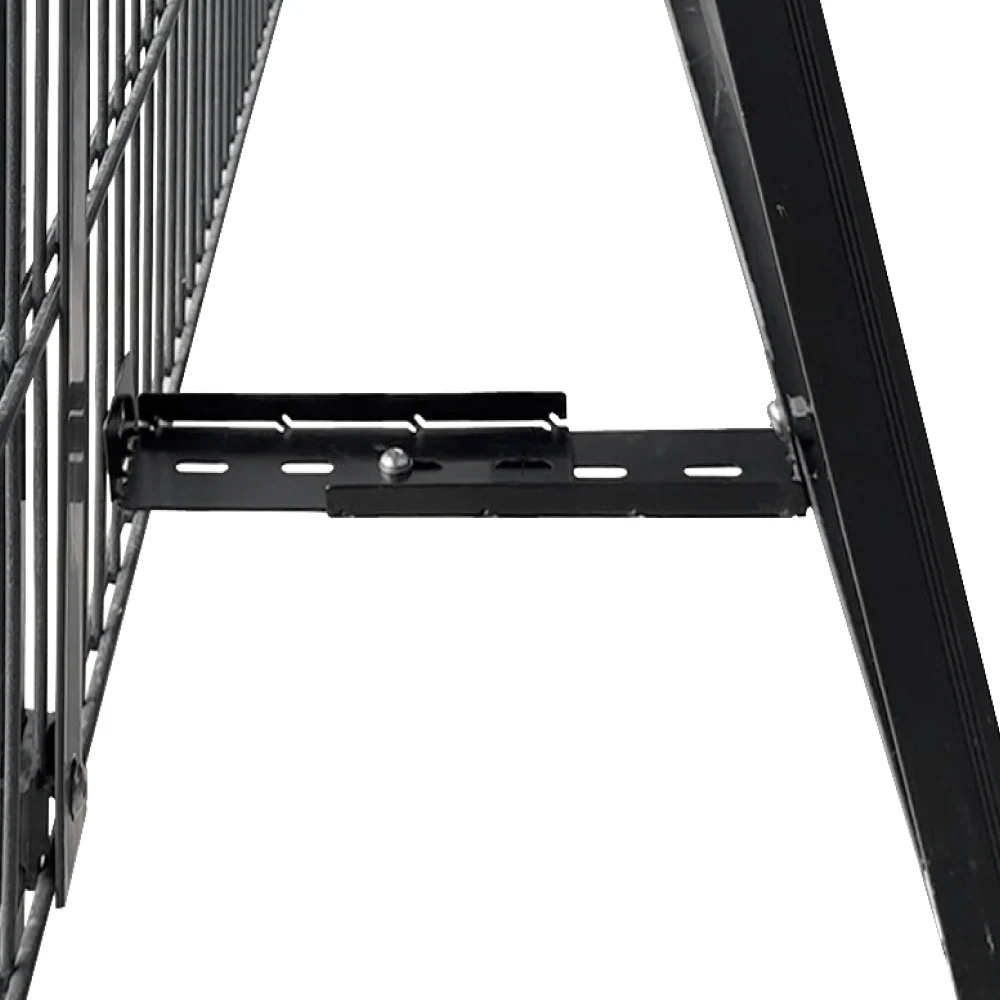

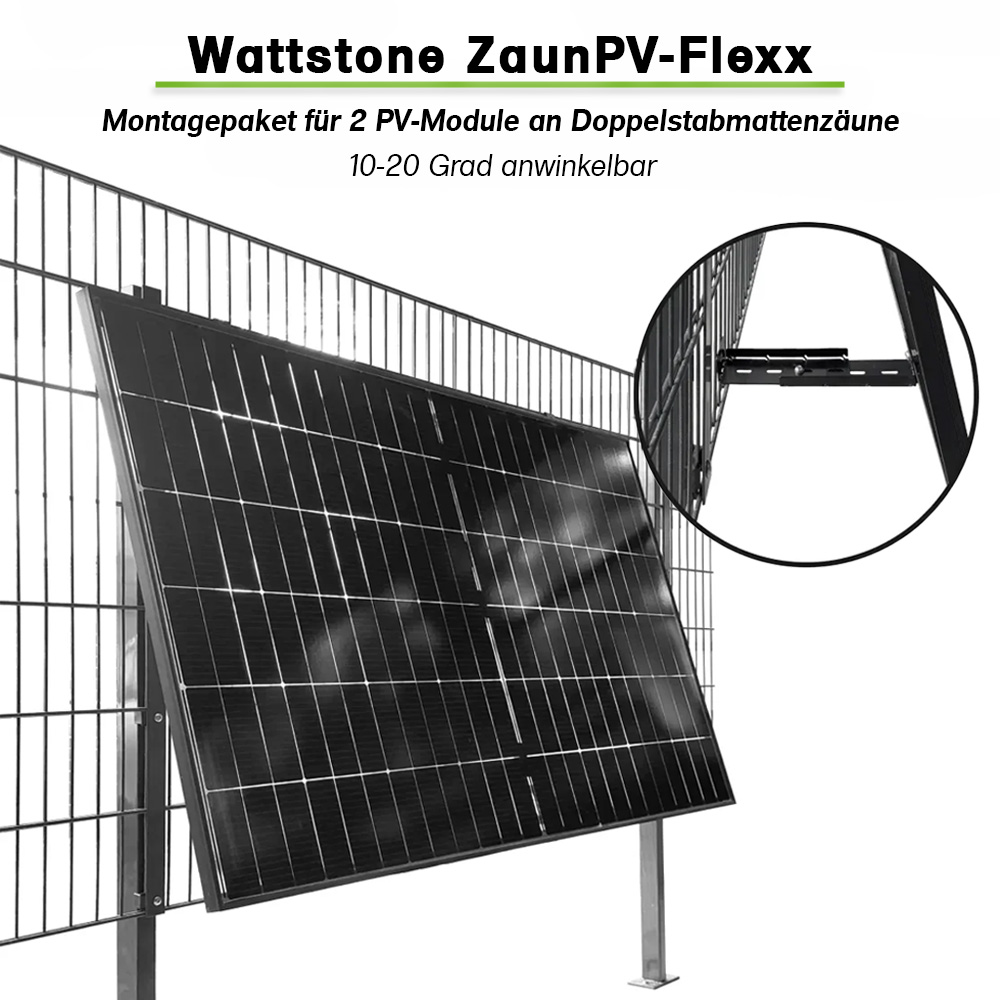

• Installation with a 10–20-degree tilt
• Easy installation without prior technical knowledge
• Patented, theft-proof mounting
• Powder-coated black steel
• Also suitable for bifacial solar modules

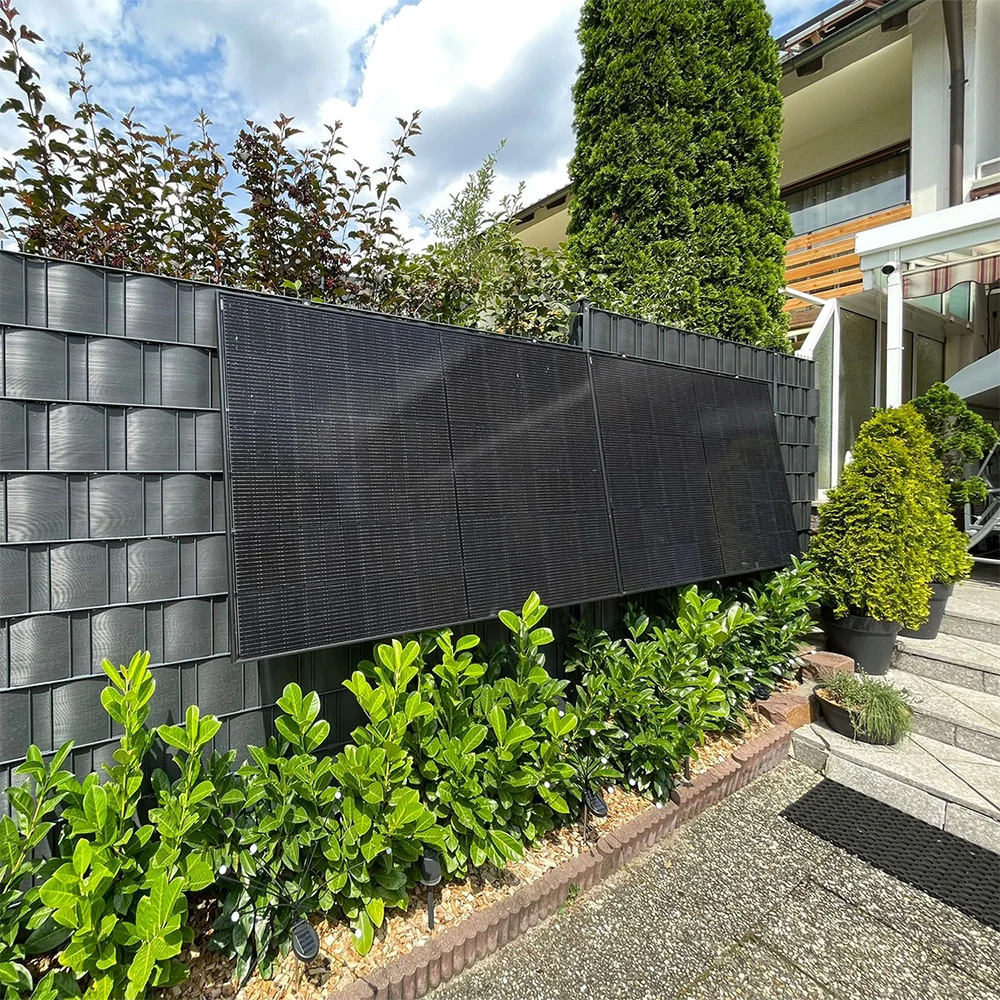

• Compatible with privacy strips
• No additional space required
• Privacy screening and power generation in one

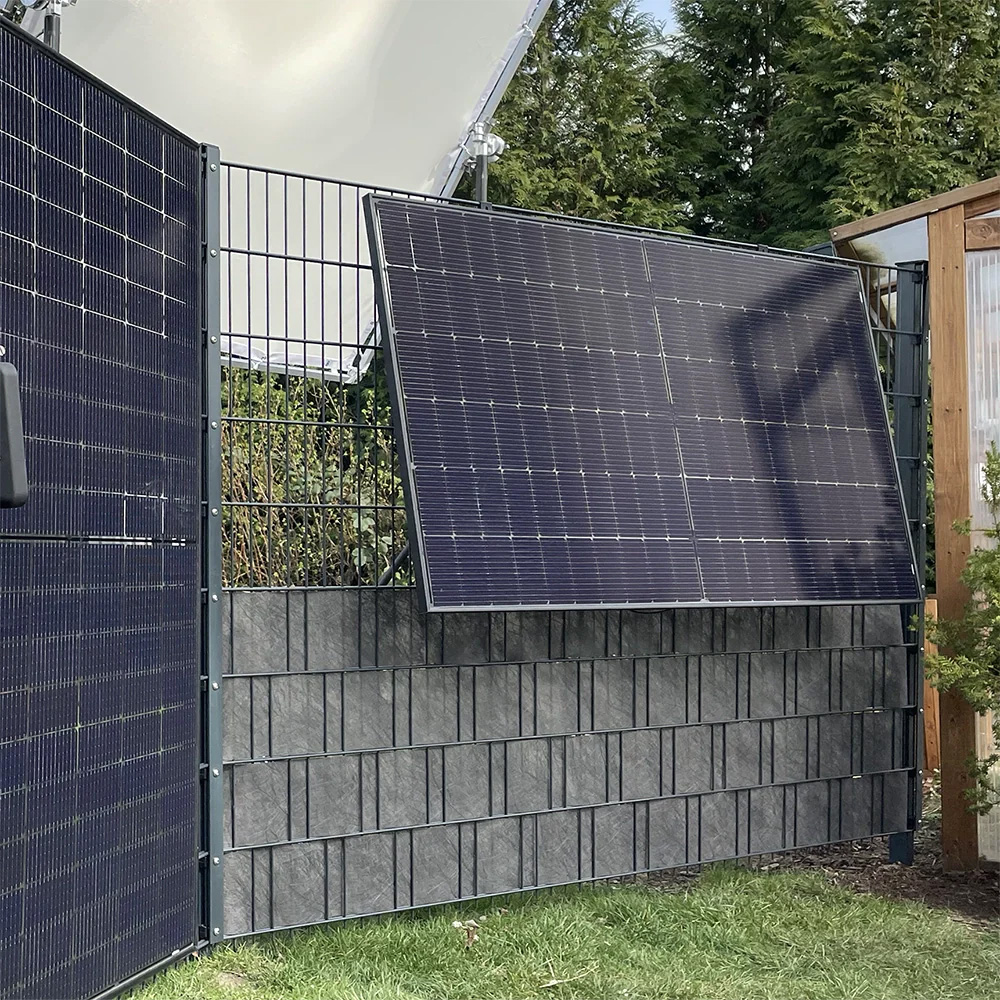

Mounting of the modules on the fence

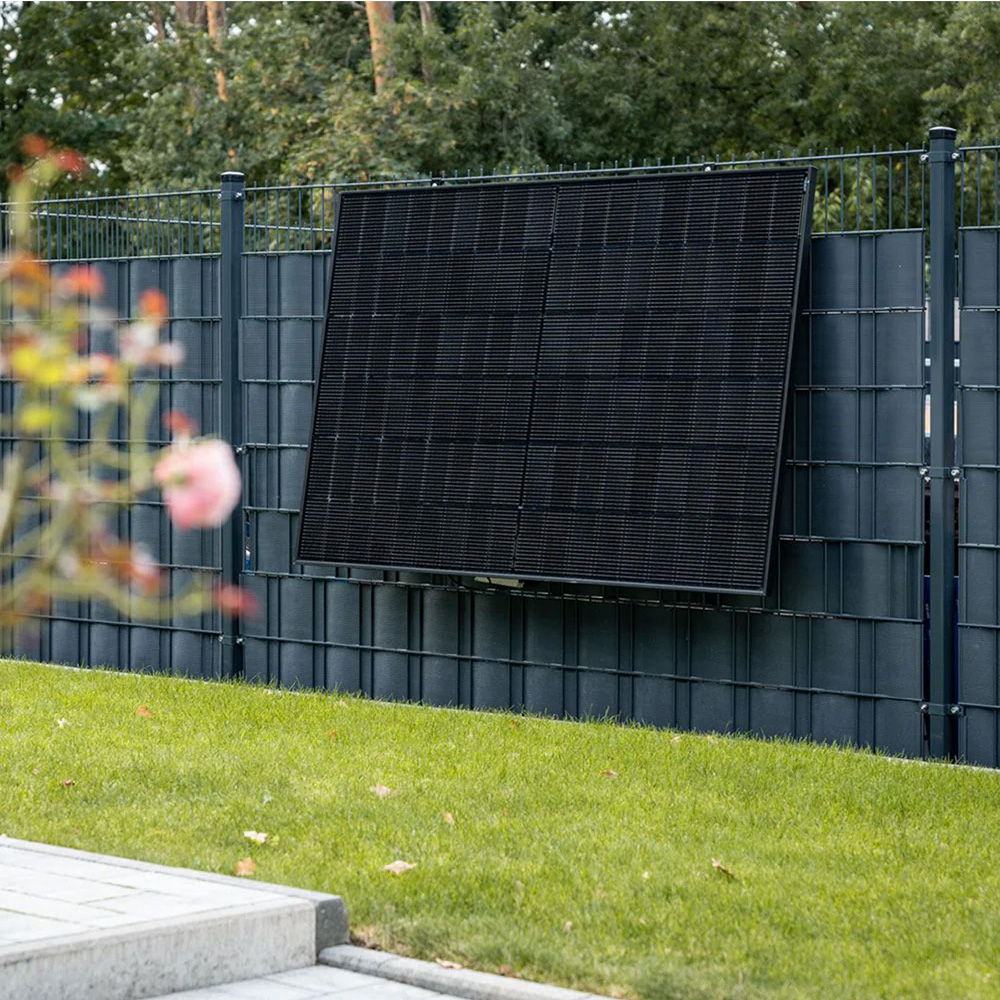

• Vertical installation - Recommended minimum fence height: 200 cm

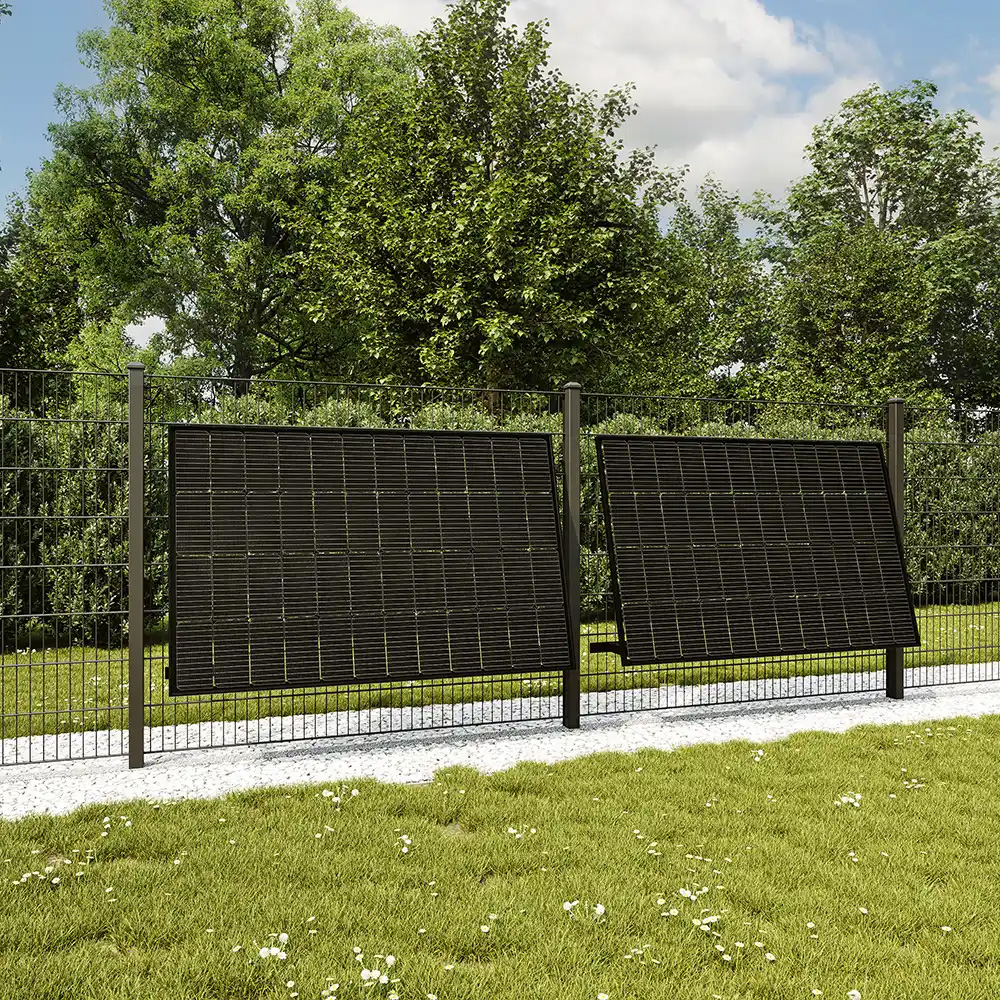

• Horizontal installation – Recommended minimum fence height: 150 cm

During the morning and evening hours, when energy demand is highest, the PV modules on the chain-link fence generate significantly more electricity than conventional rooftop solar systems due to their orientation.

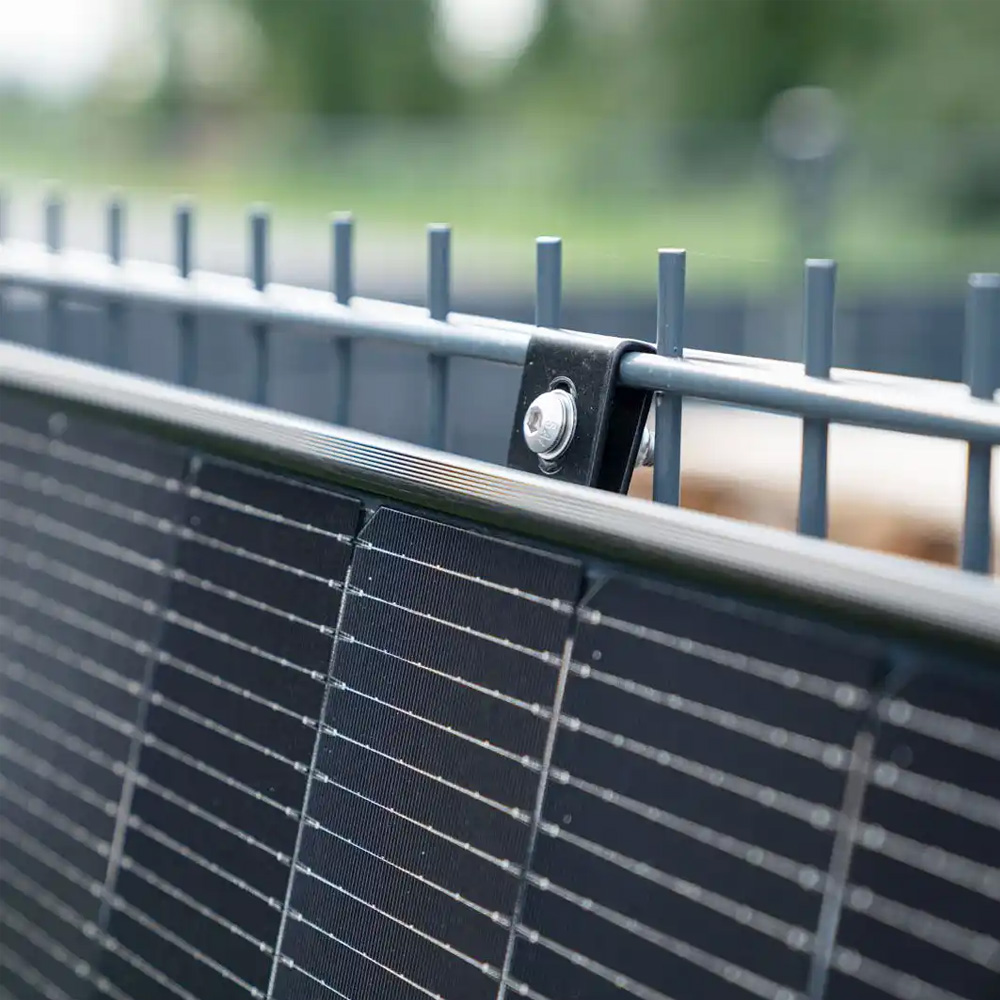

Theft-proof installation

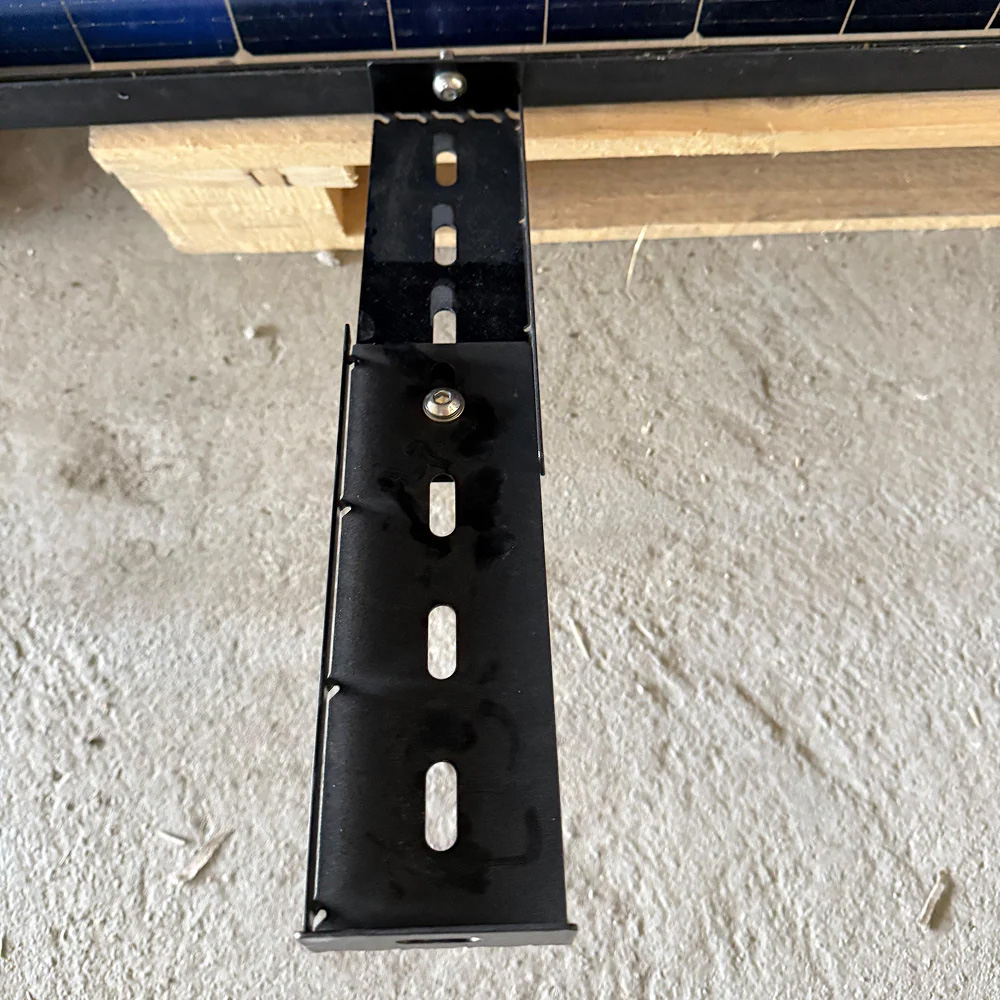

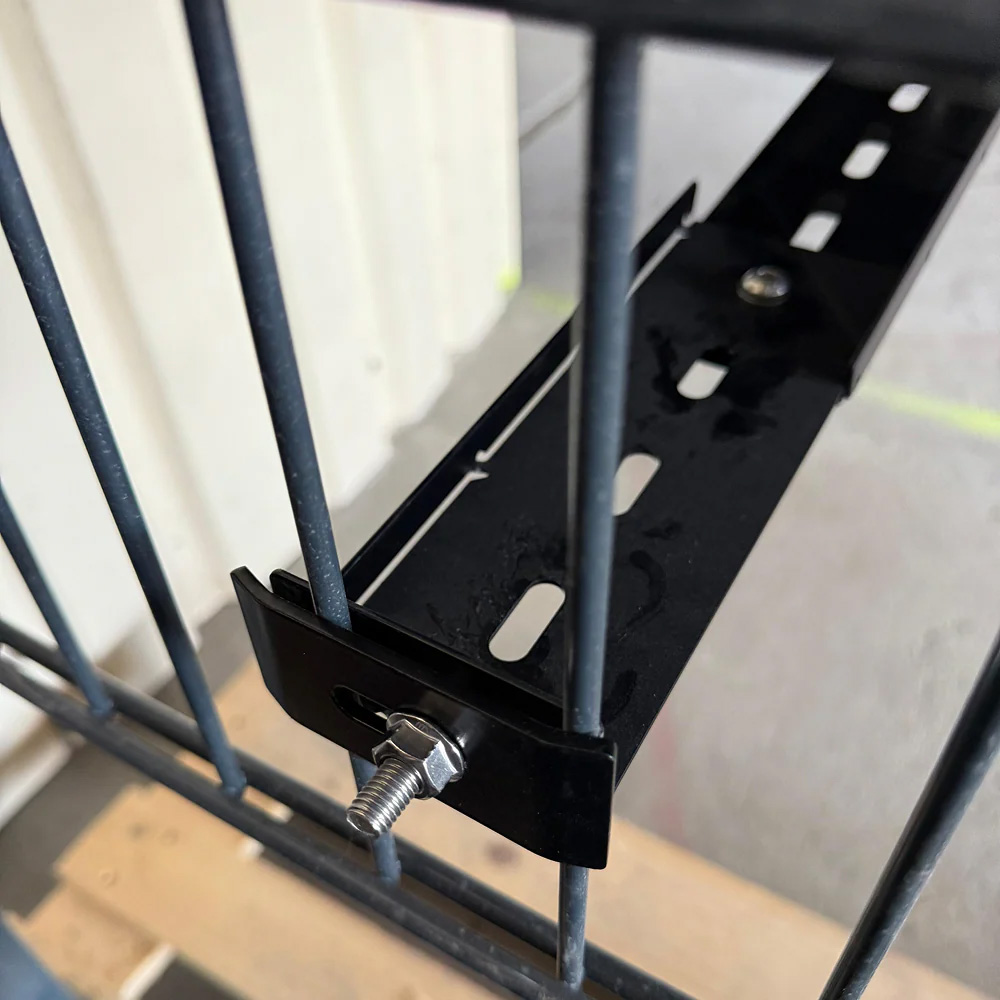

The mounting kit not only offers straightforward installation but also maximum security and theft protection for your PV modules. Thanks to the specially developed brackets and counter plates, you can be sure that your module is securely and reliably attached to the fence. These components were designed with stable mounting in mind, while remaining invisible from the front to deter potential thieves. Your PV system thus remains protected and your investment secure.

Scope of delivery

8x Spacer 1 Flexx, 10–20°, galvanized steel, powder-coated

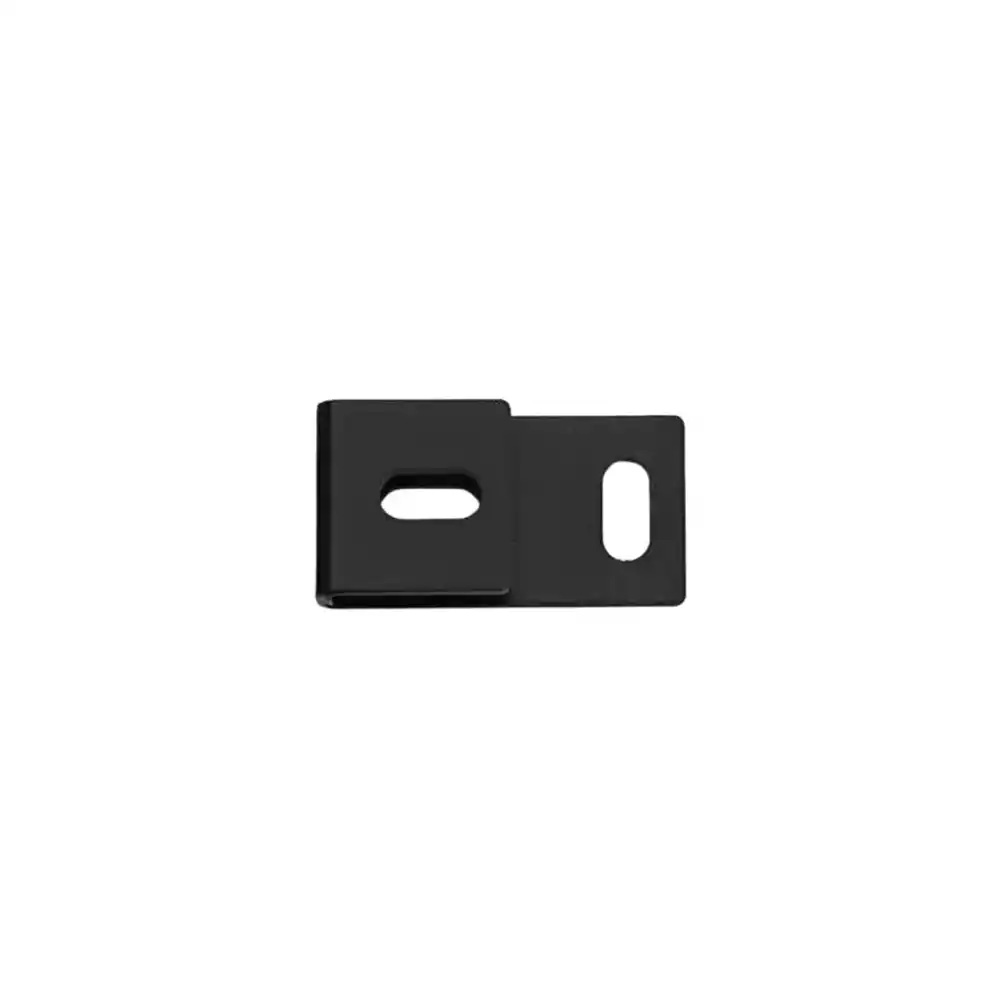

4x U-brackets, 6x KB brackets, galvanized steel, black powder-coated
22x M8 flange nuts, DIN 6926, V2A
18x M8 pan head screws (8x 20 mm, 10x 30 mm), ISO 7380, ISK, fully threaded, V2A
4x M8 x 12 hex head screws
20x washers 8.4 mm, DIN 125, Form A, V2A
2x body washers 8.4 x 20 mm, V2A
10x M8 half-round safety screws (4x 20 mm, 6x 30 mm), one-way drive, V2A
1x angle wrench ISK, DIN 911, CV steel
1x 13 mm combination wrench, DIN 3113, 170 mm, CV steel PROMAT
2x cable ties 98 x 2.5 mm, black (10 each)
8x cable clips
