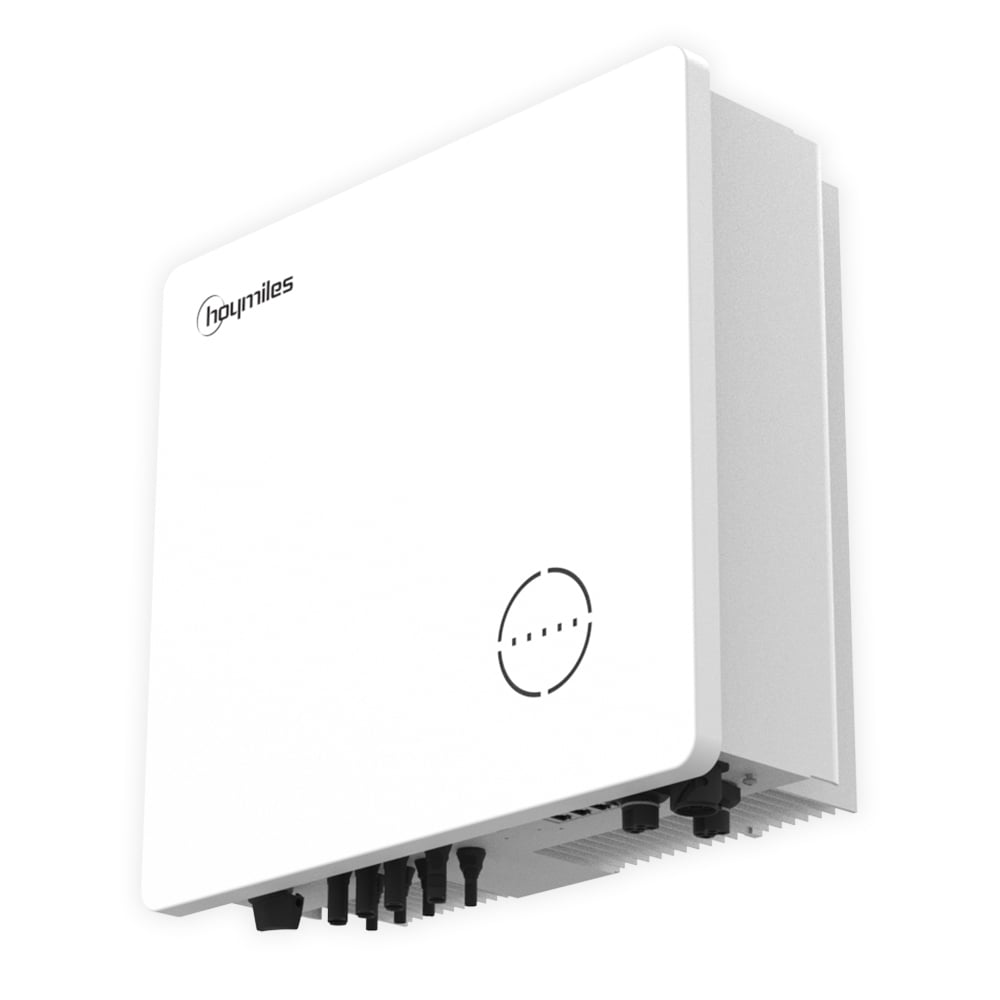

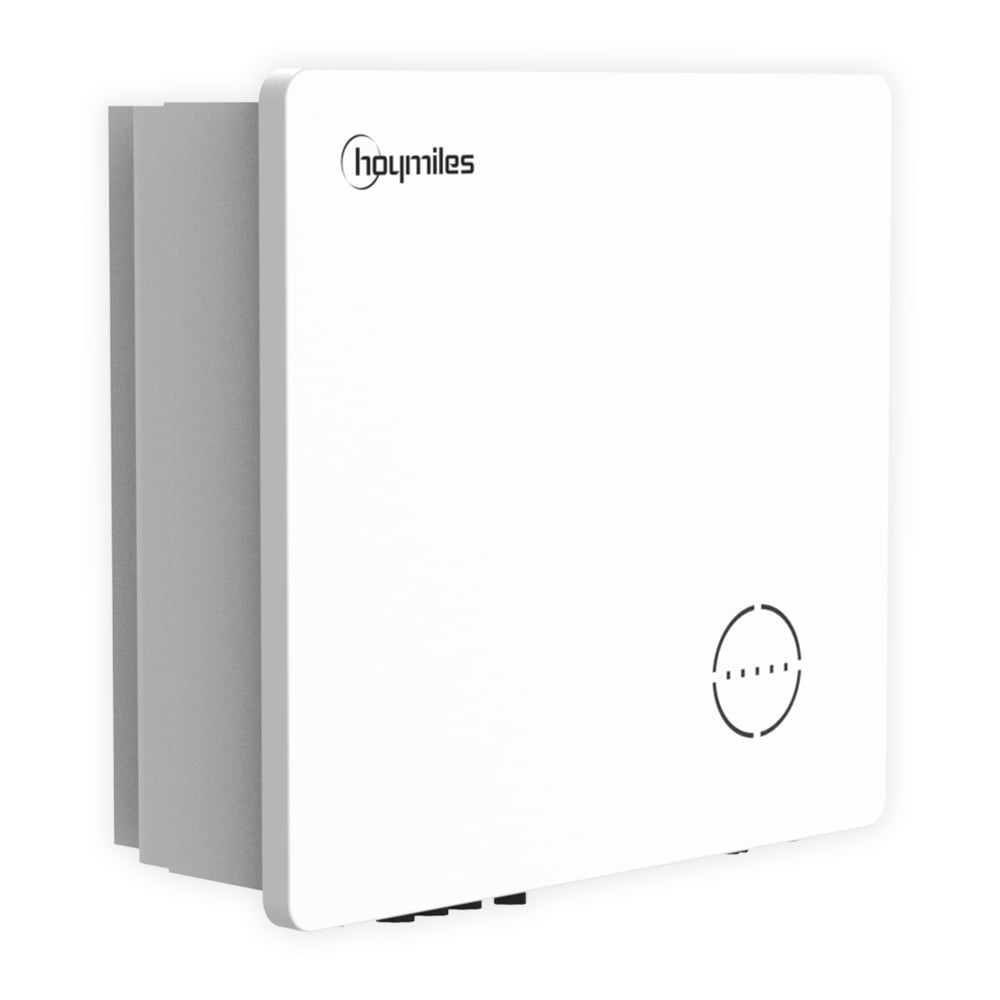

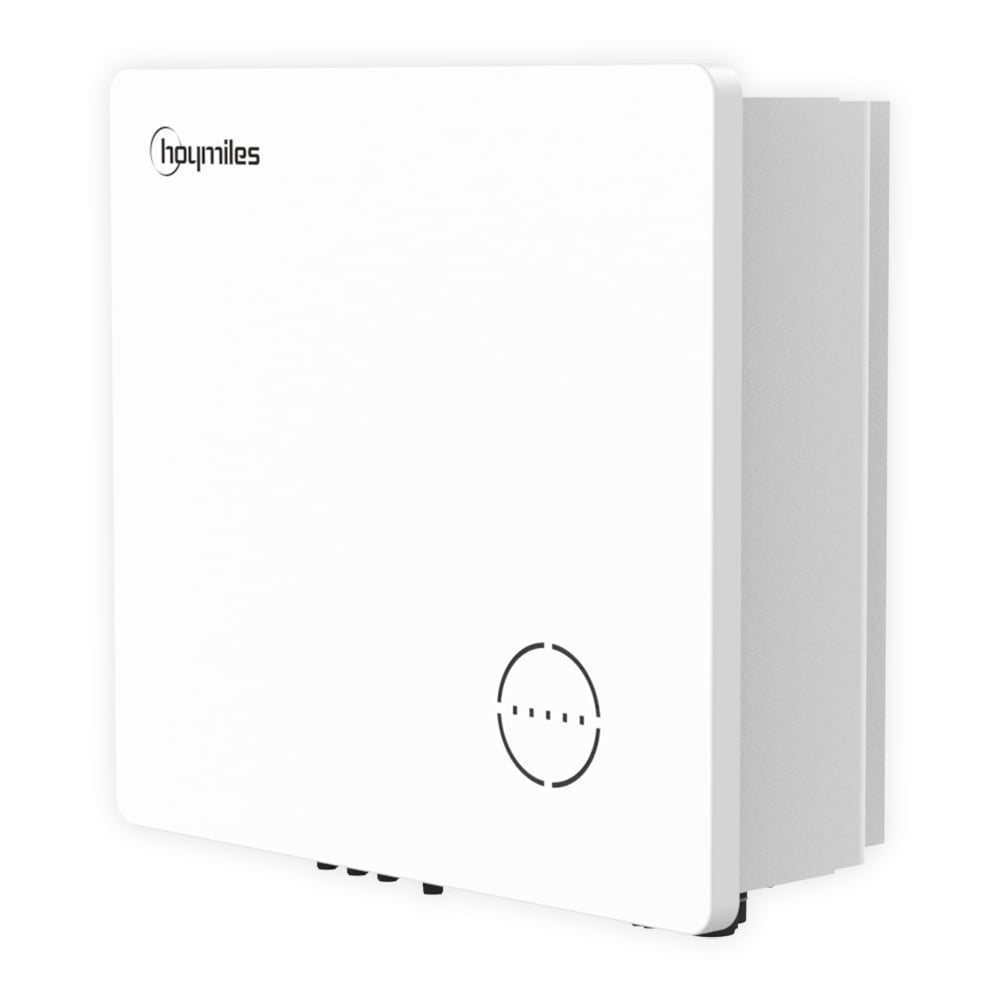

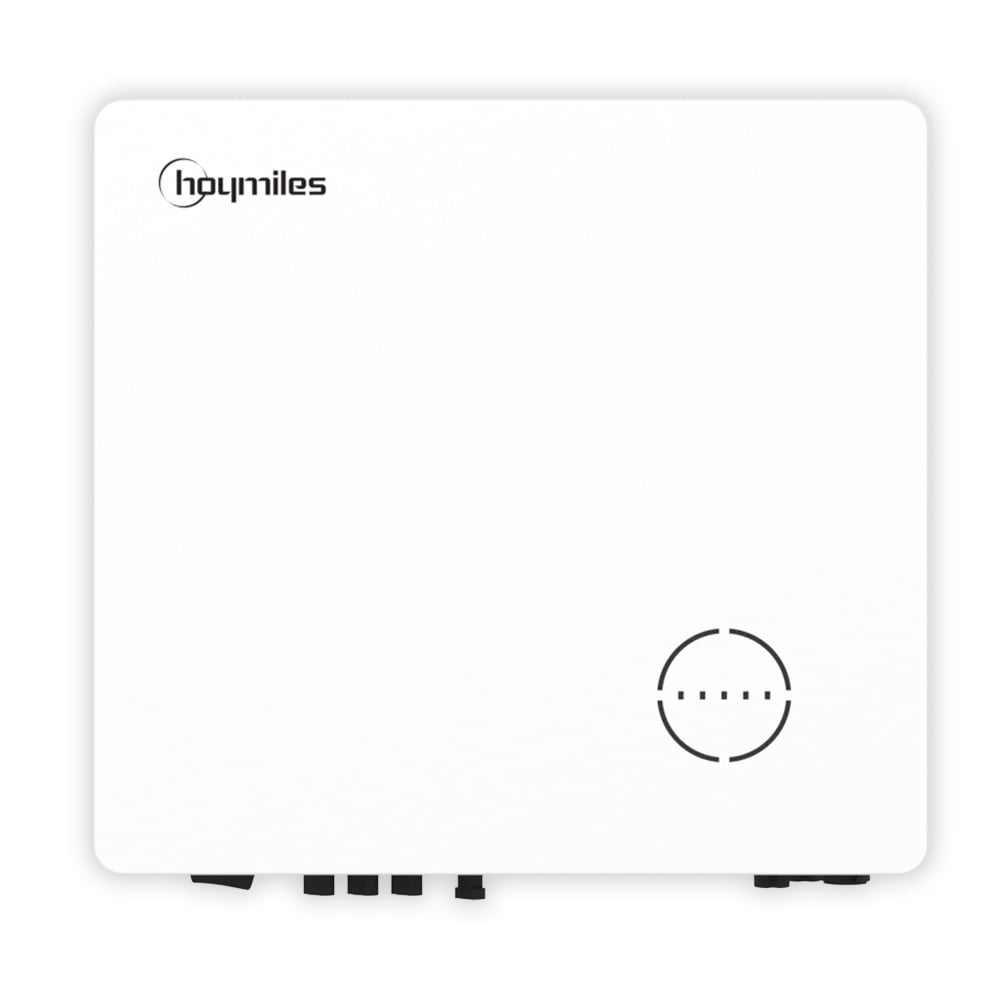

Hoymiles HYT-5000 HV 5kW hybrid inverter, 3-phase

The HYT-5000HV from Hoymiles (MPN: HYT-5.0HV-EUG1) is a 5 kW hybrid inverter that lets you meet your energy needs and effectively reduce your electricity costs. With the intelligent energy management system (EMS), you can optimize your self-consumption and select from 3 different operating modes. In addition to this smart support, the S-Miles Cloud is also at your disposal. There, you can remotely diagnose your system’s performance and track it over an extended period. Thanks to its high compatibility with a wide range of battery models and its two MPP trackers, it integrates seamlessly into existing systems.

You can find a battery compatibility list in the download section.

Special Features of the HYT-5000HV

• Dual MPP Trackers
• Compatible with many batteries
• UPS-level switchover time < 10 ms
• DC/AC ratio up to 150%
• Monitoring and management via S-Miles Cloud
• Installation: Wall-mounted
• Easy installation
• Space-saving
• 10-year manufacturer’s warranty—you can find information on the warranty terms here

Operating Modes

Energy Consumption Mode- During the day, the solar system uses excess energy to charge the battery. When the battery is full, excess energy is fed back into the grid. At night, the battery powers the devices, and the grid takes over when the battery is empty. The battery is not charged from the grid at night.
Economy Mode– In this mode, you can set the battery’s charging time and have it charged from the grid at specific times. This can help you charge or discharge the battery at more cost-effective times, depending on electricity rates.
Backup Mode – To ensure reliable operational safety even during recurring power outages, you can set a reserve charge level for the battery. This ensures that there is always sufficient capacity to supply essential loads with power.

Protective Measures

• Off-Grid Operation Protection
• DC reverse polarity protection
• Insulation resistance detection
• Residual Current Monitoring Unit
• AC Overcurrent Protection
• AC short-circuit current protection
• AC overvoltage and undervoltage protection
• Overvoltage protection

S-Miles Account Creation

Through the monitoring management system via the S-Miles Cloud, you can remotely monitor your system’s performance, run diagnostics, and track power production to ensure you’re always achieving optimal performance. This gives you the assurance that your energy production system is operating reliably and efficiently. End users can create an S-Miles account directly. The instructions from Hoymiles can be found in the download section of this article.

Technical Specifications

• Battery
  • Battery type: Li-ion
  • Nominal battery voltage: 500 V
  • Voltage range: 170–600 V
  • Max. Charge/Discharge Current: 20 A
  • Rated power: 5,000 W
• PV input
  • Max. PV input power: 7,500 W
  • Max. PV input voltage: 1,000 V
  • Rated input voltage: 720 V
  • MPPT voltage range: 200–950 V
  • Start-up voltage: 250 V
  • Number of MPPT trackers: 2
  • Number of PV strings per MPPT: 1/1
  • Max. PV input current: 14/14 A
  • PV input short-circuit current: 17/17 A
• AC Input and Output (Grid-Connected)
  • Rated output power: 5000 VA
  • Max. output power: 5500VA
  • Max. input power: 10,000 VA
  • Rated AC voltage: 400/380 V, 3L/N/PE
  • Rated frequency: 50/60 Hz
  • Max. output current: 8.3 A
  • Max. input current: 15.2 A
• AC output (off-grid)
  • Max. apparent output power: 5,000 VA
  • Peak apparent output power: 10,000 VA, 10 s
  • Rated AC voltage: 400/380 V, 3L/N/PE
  • Rated AC frequency: 50/60 Hz
  • Max. output current: 8.3 A
• General
  • Max. efficiency: 97.6%
  • Operating temperature range: -25 to +65°C
  • Protection rating: IP65
  • Noise level: <40 dB
  • Communication: RS485, CAN
  • Communication with the electricity meter: RS485
  • Communication interfaces: RS485, Wi-Fi/Ethernet/4G (optional)
  • Weight: 26 kg
  • Dimensions: 502 x 486 x 202 mm

Package Contents:

1x Hoymiles HYT-5000HV 5 kW 3-phase hybrid inverter
including included accessories
