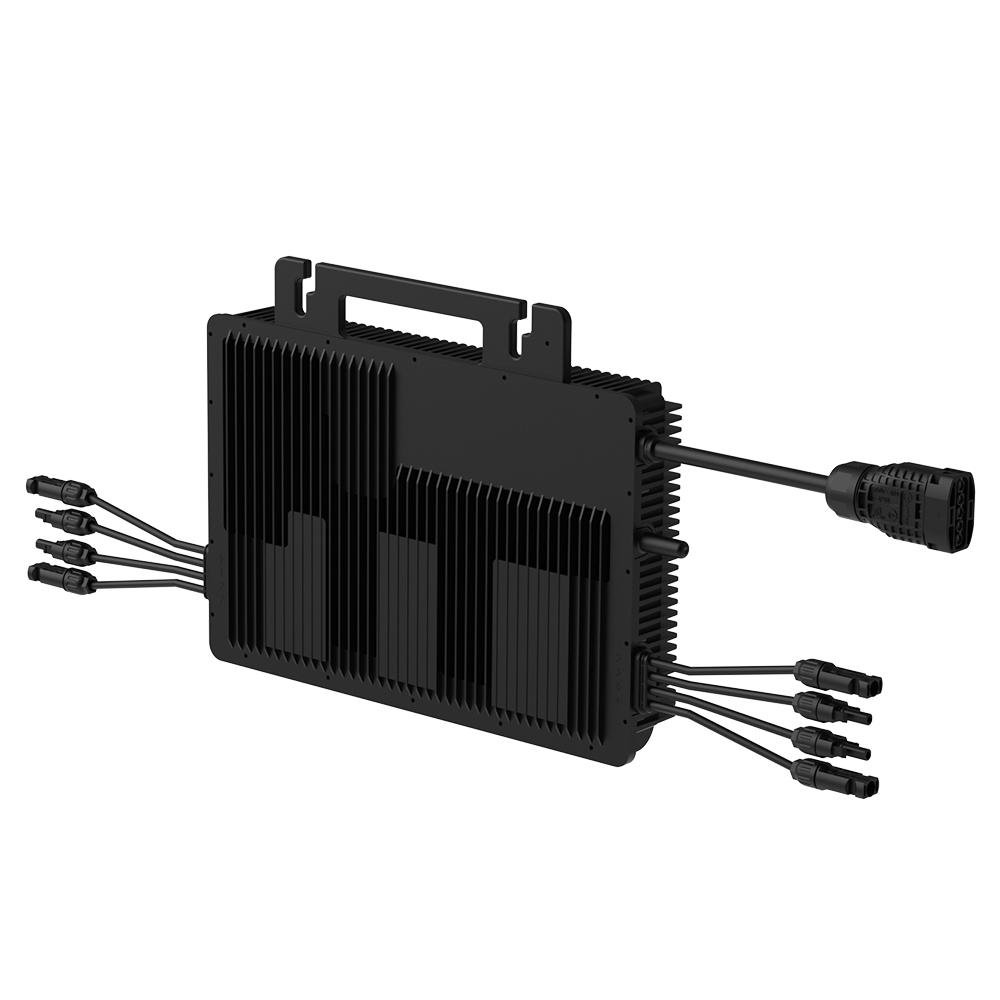

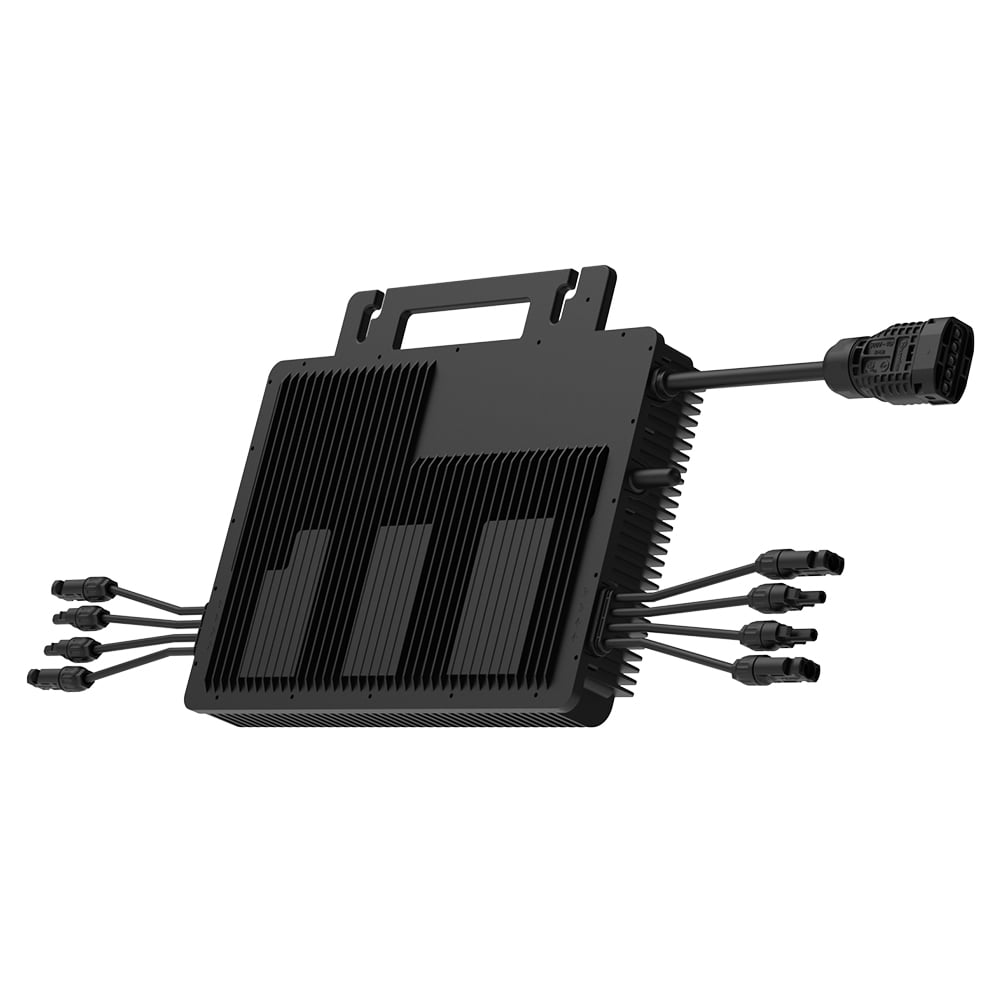

Hoymiles MIT-5000-8T Micro inverter 5000W with 4 MPPTs 3-phase

The Hoymiles MIT-5000-8T 3-phase microinverter (MPN MIT-5000-8T) is designed to operate up to eight high-performance PV modules and offers an output power of 5000W. The four integrated MPPTs optimize energy yield and ensure maximum performance. The innovative 8-in-1 design significantly reduces system costs, making the MIT-5000-8T microinverter a cost-effective choice. In addition, Sub-1G wireless technology ensures reliable communication with the Hoymiles Gateway DTU and enables module-level monitoring as well as remote operation and maintenance via the Hoymiles S-Miles Cloud monitoring platform.

Highlights of the Hoymiles MIT-5000-8T

• Three-phase output
• 4 MPPTs
• 8-in-1 design – quick installation with HMT cable system
• Sub-1G wireless solution
• Peak efficiency of 97.7%
• Compatible with 182 mm/210 mm PV modules
• Low input voltage for safe roof installation
• 12-year manufacturer's warranty - information on the warranty conditions can be found here

Four MPP trackers for optimal solar yields

The four integrated maximum power point trackers (MPPTs) in the Hoymiles MIT-5000-8T ensure that your solar system always delivers maximum efficiency. Each MPPT independently checks the performance of the PV modules and dynamically adjusts the conversion settings to ensure the best energy yield. This feature is particularly advantageous in changing light conditions or partial shading, as each tracker maximizes the optimal performance of its connected modules. With this advanced technology, you can rely on consistently high yields, regardless of environmental conditions.

Optimal reliability

Microinverter systems offer superior reliability compared to conventional inverter solutions. This reliability is due to their decentralized architecture, which helps to ensure that the entire photovoltaic system does not fail in the event of a malfunction. Hoymiles microinverters are designed to deliver full power even at ambient temperatures of up to +65°C (150°FF). In addition, the microinverters' robust housing has been specially developed for outdoor use and meets the requirements of protection class IP67, which guarantees reliable protection against the effects of weather.

S-Miles account creation

The S-Miles account can be created directly by the end user. The instructions from Hoymiles can be found in the download area of this article.

Compatible DTU

• Hoymiles DTU-Pro-S data transmission unit

Hoymiles Flex-T5 cable system

The Flex-T5 cable system is a revolutionary cabling solution for the MiT series micro inverters. The user-friendly plug-and-play design makes installation easier, faster, and more reliable. The Flex-T5 cable system is also highly flexible, allowing you to combine Flex-T5 connection cables of different sizes or lengths to achieve the desired length.allows you to combine Flex-T5 connection cables of different sizes or lengths to achieve the desired cabling configuration at the lowest cost.

Examples

For a system with a MiT inverter:

• 1x Flex-T5 connection cable

or

• 1x Flex-T5 cable lug for assembling your own cable

For a system with, for example, 2 MiT invertersnbsp;

• 1x Flex-T5 trunk cable connector
• 1x Flex-T5 connection cable
• 1x Flex-T5 cable lug
• 1x Flex-T5 cutting tool
• Optional:
  - Flex-T5 extension plug for extending the Flex-T5 connection cable

Technical data

Input current (DC):

• Max. input voltage: 140V
• Number of MPP trackers: 4
• MPPT voltage range: 12V - 136V
• Max. input current: 4 x 20A
• Max. input short-circuit current: 4 x 25A
• Number of inputs per MPPT: 1
• typically used module power: 600W to 750W+

Output current (AC):

• Grid type: Three-phase
• Nominal output power: 5000VA
• Peak output power: 5500VA
• Rated output current: 3 x 7.25A
• Rated frequency: 50/60Hz

Efficiency:

• Peak efficiency: 97.70%
• MPPT rated efficiency: 99.80%
• Power consumption at night: < 50mW

General:

• Communication: Sub-1G
• Ambient temperature range: -40 to +65°C
• Storage temperature range: -40 to +85°C
• Dimensions: 395 x 308 x 60 mm
• Weight: 8.6 kg
• Protection class: Exterior IP67

Scope of delivery:

1x Hoymiles MIT-5000-8T micro inverter
