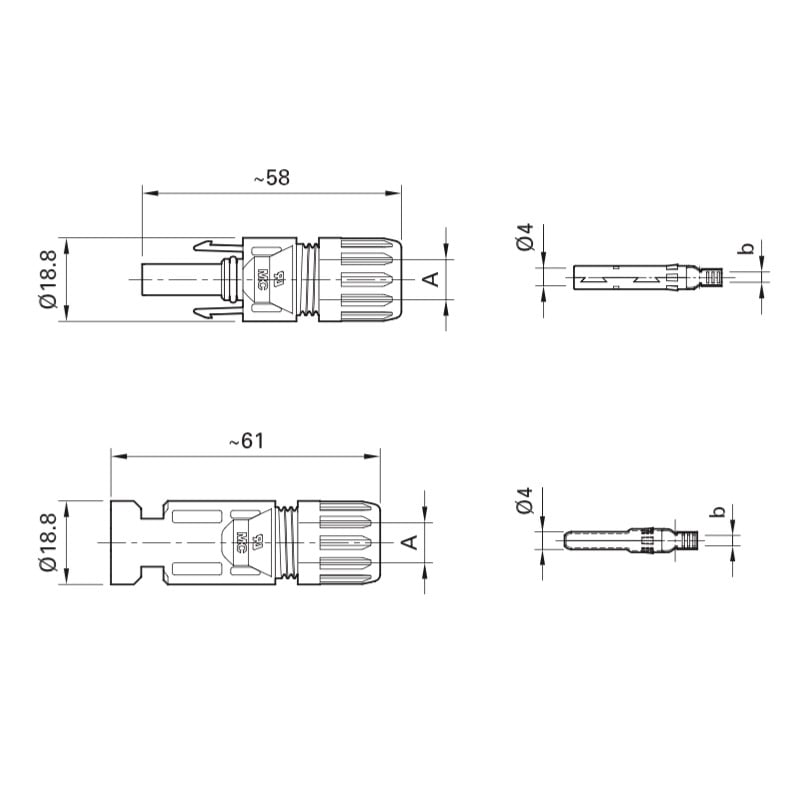

MC4 Connector Pair - plug and socket 4-6mm²

With this wrench strain reliefs and cable connections on MC4-plugs can be screwed shut and unscrewed with the appropriate torque. Features: set consists of two assembly tools suitable for connection and separation of all common MC4-plugs flexible application: screw-connection and snap-in connections material: plastic, glass-fiber reinforced ambient temperature of -30°C ~ 85°C Delivery scope: 2 x MC4 wrenches

Lapp solar xlr-r cables are weather-, abrasion- and uv-resistant photovoltaic cables. These halogen-free, double-insulated and cross-linked solar cables are suitable for permanent outdoor use to connect grounded and ungrounded photovoltaic systems. They are used both for wiring solar modules to each other and for connecting the individual module rows and the inverter. The cable has been tested by TÜv Rheinland according to 2 PfG 1169/08.2007 (pv1-f) design. Important product features: Cable cross-section: 1x4mm Manufacturer: Lapp Kabel Color outer insulation: Black Color inner insulation: White xlr-r solar cables from Lapp can generally be laid in protective tubes suitable for buried installation in the ground if it is ensured that there is no permanent contact with water and that waterlogging is safely drained away. The laying of the cables in the ground as well as the correct design of the cable trench must comply with vde 0100 part 520 or comparable standards in order to prevent damage to the protective conduit and permanent exposure of the cables and conduits to penetrating water. Long-term, permanent storage as well as permanent operation of the cables in or under water is not permitted. Conductor construction 1. Conductor: Fine stranded wire of tinned cu-wires, according to iec 60228, class 5 2. Core insulation: electron beam crosslinked polyolefin co-polymer 3. Outer sheath Electron beam crosslinked polyolefin co-polymer Outer sheath color: black or black with red or blue stripe Electrical properties Rated voltage: u0 /u according to iec ac 600/1000 v dc 900/1500 v Max. permissible system voltage: 1.8 kv dc (conductor/conductor, not grounded system) according to TÜv 2 PfG 1169/08.2007 Test voltage ac 6.5 kv Thermal characteristics Temperature range fixed: -40° c to +120° c max. conductor temperature (according to en 60216-2) Temperature range according to fixed installation: -40 °c to +90 °c ambient temperature TÜv 2 PfG 1169/08.2007 installation temperature flexible: max. -25 °c Thermal pressure resistance according to en 60811-3-1 Humidity-heat test according to en 60068-2-78 at 85% humidity mechanical properties Minimum bending radius occasionally moved: 15 x cable diameter permanently installed: 5 x cable diameter Dynamic penetration according to dke requirement profile Pv1-F ak 411.2.3 appendix F Tear resistance according to dke requirement profile Pv1-F ak 411.2.3 Annex G Testing of tensile strength and elongation according to en 60811 chemical properties Weathering / Uv resistance according to hd 605/A1 Ozone resistance according to en 50396 Halogen free according to en 50267 Fire resistance flame retardant according to iec 60332-1-2 Acid and alkali resistance according to en 60811-2-1 (oxalic acid and caustic soda)

Lapp SOLAR H1Z2Z2-K cables are weather, abrasion and UV-resistant photovoltaic cables. These halogen-free, double-insulated and cross-linked solar cables are suitable for permanent outdoor use to connect earthed and unearthed photovoltaic systems. They are used both for wiring solar modules to each other and for connecting the individual module rows and the inverter. The cable has been tested by TÜV Rheinland according to 2 PfG 1169/08.2007 (PV1-F) design. This article is sold by the metre. Each item corresponds to one metre. If you buy e.g. 10x this article, you will receive a coherent piece with 10m length. Important product features: Cable cross-section: 6mm²Manufacturer: Lapp KabelColour outer insulation: Black H1Z2Z2 Solar cables from Lapp can generally be laid in protective pipes suitable for buried installation in the ground if it is ensured that there is no permanent contact with water and that waterlogging is safely drained away. The laying of the cables in the ground as well as the correct design of the cable trench must comply with VDE 0100 Part 520 or comparable standards in order to prevent damage to the protective conduit and permanent exposure of the cables and conduits to penetrating water. Long-term, permanent storage as well as permanent operation of the cables in or under water is not permitted. Conductor structure 1. conductor: fine stranded tinned copper wire, according to IEC 60228, class 52. core insulation: electron beam cross-linked polyolefin co-polymer3. outer sheath electron beam cross-linked polyolefin co-polymer Electrical properties Rated voltage: U0 /U according to IEC AC 1000/1000 V - DC 1500/1500 VMax. permissible system voltage: 1.8 kV DC (conductor/conductor, not earthed system) according to TÜV 2 PfG 1169/08.2007 Test voltage AC 6.5 kV - DC 15 kV Thermal properties Temperature range fixed: -40° C to +120° C max. conductor temperature (according to EN 60216-2)Temperature range fixed installation: -40 °C to +90 °C ambient temperature (according to TÜV 2 PfG 1169/08.2007)Installation temperature flexible: max. -25 °CThermal pressure resistance according to EN 60811-3-1Humidity-heat test according to EN 60068-2-78 at 85% air humidity Mechanical properties Minimum bending radius when occasionally moved: 4x outer diameterMinimum bending radius if permanently installed: 5 x cable diameterDynamic penetration according to DKE requirements profile PV1-F AK 411.2.3 Annex FTear resistance according to DKE requirements profile PV1-F AK 411.2.3 Annex GTest of tear resistance and elongation according to EN 60811 Chemical properties Weathering / UV resistance according to EN 50618Ozone resistance according to EN 50396, method BHalogen-free according to EN 50267, EN 50525-1Flame retardant according to IEC 60332-1-2Acid and alkali resistance according to EN 60811-404 (oxalic acid and caustic soda) Scope of delivery 1x 1m Lapp solar cable H1Z2Z2-K 1X6 WH/BK
