Offgridtec® Solar-Direct 1480W HM-1500 solar system Schuko connection - 5m connection cable - mounting kit tiled roof
Shipped in 2-5 days
€1,936.75*
€1,627.52*
TheSolaranlagen complete systems from Offgridtec (mpn 014535) are an ideal way to produce a portion of your required household electricity yourself and significantly reduce your overall expenditure on electricity. In addition to a solar module and matching micro-inverter, the systems include everything needed for connection to the household power grid and, if required, for mounting on the balcony railing or roof. The set is designed for mounting the modules side by side. For individual mounting options of the modules, our support is available with advice and assistance.
How does a Solarasystem work?
The compact Offgridtec Solara nlage consists of a solar module and the matching Hoymiles micro inverter for feeding into the in-house power grid. The inverter is ideally attached directly to the substructure of the solar module and connected to the solar module with the solar connector. the ac cable is connected via the Betteri connector of the inverter and led directly to the appropriate socket. Here, there is a choice between connection to the usual Schuko socket or to a Wieland feed-in socket, which is included in the scope of delivery if selected.
In order to use the generated solar power in the house power grid, no special setting is required. If electricity is already available from local sources, the devices in the household use this first and then supplement with mains power if required.
The Solaracomplete system includes:
- 4x Jinko Tiger 370w solar panel monocrystalline - N-type cells or Canadian Solar HiKu cs3l (depending on availability)
- Hoymiles HM-1500 Microinverter
- 1xConnection cable Betteri bc01 socket to shockproof socket(length selectable 5m - 10m - 15m)
- 4x 3m 6mm² MC-4 connection cable male/female extension
- Or 1x Connection cable Betterie b01 female to Wieland RST20I3S connector(Length selectable 5m - 10m - 15m)
- Optional selectable: Mounting package for Balcony railing - Flat roof - Plain tile roof - Tiled roof - Corrugated hernite and sheet metal roof (The sets in question contain 1.25m long profile rails suitable for the Solaranlage)
Solar module depending on availability Jinko or Canadian Solar
Depending on availability you will receive the Jinko or Canadian Solar module. Both modules are perfectly matched to the set, as well as fully compatible with all supplied components. The Jinko Tiger N-type 60tr (mpn jkm370n-6tl3) with 370w and the Canadian Solar HiKu cs3l (mpn 014555) with 375w are equipped with monocrystalline cells and N-type technology. The solar cells use multi-busbar technology, which efficiently reduces the loss due to microcracks, reduces the current transmission path by 50%, and improves the cell efficiency. The modules are manufactured with the Tiling Ribbon process and Hot 2.0 technology.
The Jinko Solarmodule is certified for use in wind and snow loads up to 2400 Pa and 5400 Pa, respectively, and for its high salt and ammonia resistance. For the Canadian Solar, the values are 3600 Pa and 5400 Pa, respectively. The tempered front glass with high light transmission and low iron content has a thickness of 3.2mm and has an anti-reflective coating. The frame has an anodized aluminum alloy.
Data sheets of the respective modules are available via the following links:
Jinko Tiger N-Type 60tr 370w Solar Module Mono mbb Perc Half Cell Module Tiling Ribbon
Canadian Solar 375w mono solar panel perc HiKu cs3l-375MS
| Technical data | Jinko Tiger N Type 60tr | Canadian Solar HiKu cs3l-375MS |
|---|---|---|
| Power (Pmax) | 370wp | 375wp |
| Voltage (Vmp) | 34,49V | 34,50V |
| Max. Current (Imp) | 10,73A | 11,02A |
| Open circuit voltage (Voc) | 41,46V | 41,2V |
| Short circuit current (Isc) | 11,43A | 11,68A |
| Cell efficiency | 21,25% | 20,5% |
| Operating temperature | -40°C - +85°C | -40°C - +85°C |
| Max. System voltage | 1000V/DC | 1000V/DC |
| Cell type | N type monocrystalline | N type monocrystalline |
| Number of cells | 120 (6 x 20) | 120 [2x (10x6)] |
| Weight | 19 kg | 21,1 kg |
| Dimensions | 1692 x 1029 x 30 mm | 1765 x 1048 x 35mm |
| Protection class junction box | IP68 | IP68 |
Hoymiles HM-1500 Microinverter Module Inverter
The HM-1500 from Hoymiles is the perfect microinverter for your Solarasystem and is suitable for solar power production with a solar panel up to 470 watts peak. Just like all other Hoymiles microinverters, it is suitable for long hours of operation and wide PV module application, because its commissioning is very low (only 22v) and the DC input range of the operating voltage (16-60V) is extremely wide. The Hoymiles microinverter converts the solar power generated from your photovoltaic system, ac grid compliant and feeds it directly into the utility grid. Each Hoymiles microinverter is individually connected to a PV module of your system for this purpose. This unique configuration means that each PV module is controlled by an individual maximum peak power point tracker (mppt). This ensures that the maximum available power from each individual module is fed into the utility grid, regardless of the output of the other PV modules in the system. Therefore, if individual PV modules in the system are affected by shading, soiling, orientation or mismatch, the HM-1500 still ensures peak power for its associated PV module. The result is the maximum possible energy production from your PV system.
- Recommended module power: up to 470W
- Maximum input voltage: 60V
- Maximum input current: 4*11.5A
- Rated output power: 1500VA
- Battery voltage range: 16~60V
- Dimensions (WxHxD): 280 x 176 x 33 mm
- Weight: 3.75kg (including 2.06m ac cable)

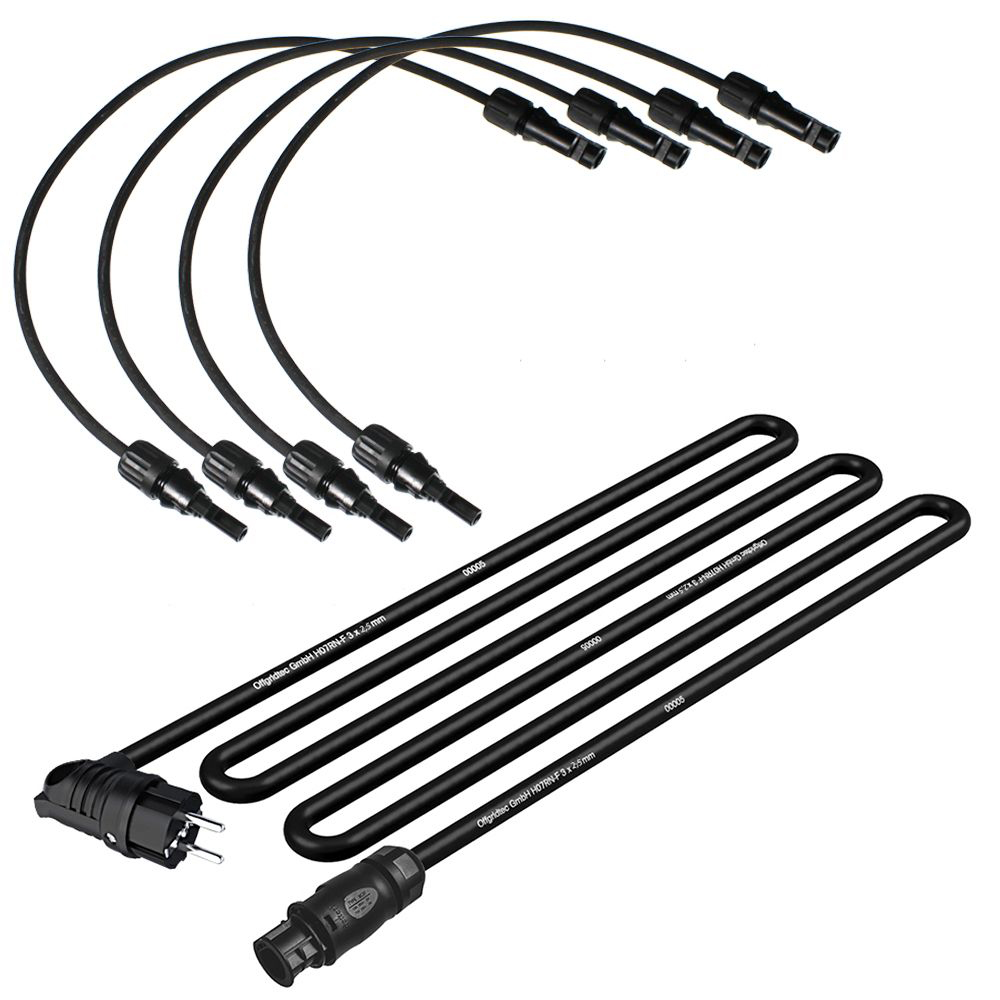

Connection set
For the connection cable you have the possibility to choose between the connection for a normal Schuko socket or a Wieland power socket.if you choose this option, the complete system includes an ac extension cable (length selectable) with Betteri bc01 plug, suitable for the HM-1500 inverter, at one end and an angled Schuko plug at the other end of the cable. This allows a quick and uncomplicated connection to the Schuko sockets (plug type f) commonly used in Germany.
If the Wieland variant is selected, the ac cable has an angled Wieland RST20I3S plug at the end of the cable for installation in accordance with currently applicable technical regulations (e.g. vde standard ar-n-4105). The appropriate power supply socket is then included in the scope of delivery. With the Wieland plug, the pins are not completely exposed, as with the Schuko plug, which minimizes the risk of arcing between pin and socket and thus overheating and fire hazard.
Optional mounting systems
The OffgridtecSolara nlagen are available with or without optional mounting sets. Mounting sets are available for:
- Balcony railings: with matching C-hooks
- Flat roof: angle of inclination 10° - 60°.
- Plain tile roof: with plain tile roof hooks
- Tiled roof: with 3 adjustable roof hooks
- Corrugated hernite and sheet metal roof: with stainless steel hanger bolts
Solaranstallations in Germany
Currently, there is no law or regulation in Germany that regulates the generation of solar power for personal use only. The limit of maximum 600w ac PV power is a reserve value that can be fed into an existing outlet circuit of a house without overloading it, according to the current vde standard. Nothing is described for stand-alone circuits with no additional load.
Any electrical installation should be vde compliant. However, the operation of such a Solaranstallation via the usual Schuko socket is not prohibited in principle. Notification to the Federal Network Agency is mandatory. However, there are no known cases of administrative fines for non-notification of such Solaranlagen, as well as insurmountable problems with network operators. The compliance and implementation of standards and obligations is the responsibility of the plant operator. A great deal of technical and legal information is already available on relevant websites.
