Pylontech US2000C 2.4kWh LiFePO4 48V storage unit incl. BMS

The Pylontech US2000C (MPN US2000NB02V00201) is a latest-generation lithium storage unit. The storage unit has been specially developed to fully meet the high demands placed on solar storage units today. Maximum safety and a long service life are guaranteed even with regular deep discharges thanks to the latest technology.

The latest battery from the market-leading manufacturer, now with 2.4kWh per module, has a battery management system (BMS) built into each module, offering a high level of safety. Internally, the individual cells are monitored and balanced to protect them from overvoltage, overtemperature, etc. The battery is compatible with many available inverters and is certified

Features

• Extremely cycle-stable – over 6000 cycles at 95% DoD
• More usable energy content than the previous US2000 model
• Service life of over 10 years
• Absolutely intrinsically safe lithium technology
• Compatible with many available inverters
• Automatic address setting when connected in multi-groups
• High charging and discharging power possible.
• Integrated BMS
• Very high storage density – low weight and compact design
• Easy installation thanks to modular design
• Absolutely maintenance-free and durable
• Built-in soft start function capable of reducing the current surge when the inverter is started from the battery
• Dual active protection at BMS level
• Supports WakeUp via 5-12V signal from the RJ45 port
• Pre-charge function to protect the ESS system from overvoltage

Battery management system in each module

The battery management system integrated in each module protects every battery cell installed from harmful influences throughout the entire service life of the module and effectively prevents premature failure.

Protection against:

• overcharging
• overvoltage during charging
• excessive currents during charging and discharging
• over- and under-temperature
• Short circuit and reverse polarity

Continuous monitoring of individual cell voltages (cell balance)

Modular design

The system has a modular design and can be tailored precisely to the desired storage capacity by connecting several modules together. Each storage module consists of a high-performance lithium iron phosphate (LiFePo4) battery and an integrated BMS.

High cycle life

The extremely high cycle life of the built-in LiFePo4 cells makes Pylontech US2000C modules the optimal storage solution for photovoltaic systems. Regardless of whether the solar system is grid-connected or stand-alone, Pylontech storage offers several advantages over typical lead-acid batteries and other lithium technologies.

Technical data

• Battery type: Lithium iron phosphate (LiFePo4)
• Nominal voltage: 48V
• Nominal capacity: 50 Ah / 2.4 kWh
• Usable capacity (95% DoD): 47.5 Ah / 2.28 kWh
• Discharge voltage range: 44.5–53.5V
• Charge voltage range: 52.5–53.5V
• Max. (discharging) charging current: 90A
• Communication: RS485, CAN
• Weight: 24 kg

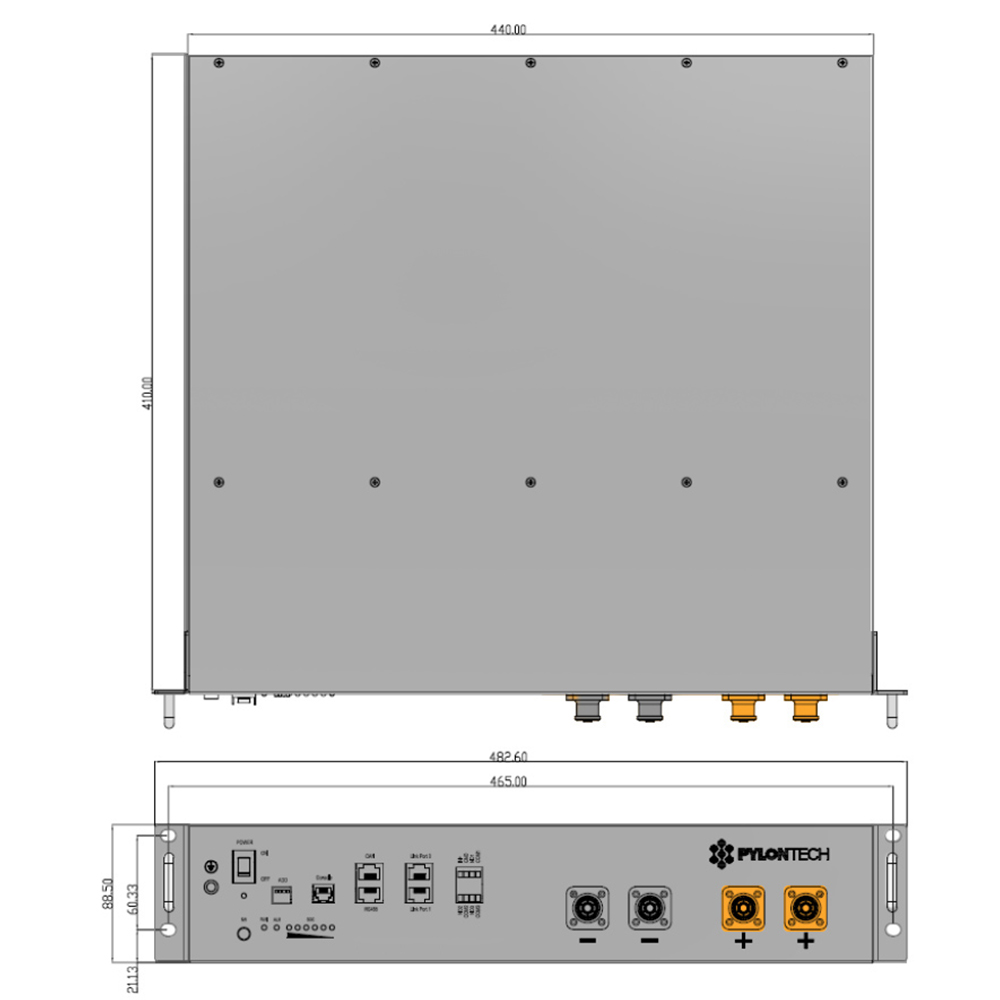

• Dimensions: 442 x 410 x 89 mm
• Protection class: IP20
• Operating temperature range: 0°C - +50°C
• Storage temperature range: -20°C to +60°C
• Service life: over 10 years
• Cycle life: over 6000 at 95% DoD
• BMS / monitoring: integrated in each module
• Certification: IEC62619, CE, UN38.3

Due to its classification as dangerous goods, this product is shipped by freight forwarder!

Scope of delivery:

1x Pylontech US2000C LiFePO4 2.4 kWh
1x cable set for parallel connection, including grounding
1x RJ45 data cable
1x Mounting screws
1x operating instructions

Compatibility list:

• SolarEdge StoreEdge SE10 SE8 SE7 SE5 RWS
• SolarEdge Home Hub SE10 SE8 SE5 RWB
• Victron Energy - Cerbo Multiplus Quattro GX I+II, etc.
• SMA Solar - Sunny Island SI 4.4M/6.0H/8.0H Series
• Schneider Electric - Conext XW Pro Series
• SolaX Power - SK-SU SK-TL DLX HV Series
• Goodwe - GW-BP SBP GW-ES EM
• Imeon Energy - IMEON 3.6 9.12
• Studer Innotec - Xtender 48V, VarioString, VarioTrack 48V Series
• Selectronic SPMC 480 481 482
• Voltronic - Infinisolar & Axpert series 48V**
• Sofar - ME3000SP & HYD HYD3000/6000-EP 48V series
• Sermatec - SMT-5K-TL-LV
• Zucchetti - Centro Sistemi Azzurro 3000SP HYD3000/6000-ES
• Solis - RHI & RAI series
• Redback - DLX HV Series
• Deye(Sunsynk) - SUN-SG01LP1 & SUN-SG03LP1 Series
• Alpha & Outback Energy - SPCIII-5000-7200-48 SPCIIIS-5000-48
• Lux Power - LXP Hybrid & ACS Series
• Sungrow - SH5K Series
• Morningstar TriStar MPPT in 48V, 600V in 48V, PWM TS-45 in 48V
• Delios s.r.l. DLS/C & DLS AC Series
• Ingeteam Power Technology - ISS 1Play TL M Series
• MLT - Oasis 448, Oasis 648
• Steca - Solarix PLI 5000-48
• SAJ - Sunfree series & H1 Series
• SolarMax - ES & AC Series
• Growatt - SPH3000-6000, SPF2000-5000 HVM-48/LVM-48P*** M2000H/3000H/5000H - 48***
• AXIOMA energy - DLX HV Series, ISMPPT BF 3000-5000, ISGRID (BF) 3000-5000
• Phocos - Any-grid PSW-H-5kW-230/48V AlexDataManual
• Western CO. - LEONARDO PRO 3000/48 Li (via Western LK3)
• EFFEKTA - AX-M1 M2 3000/4000/5000-48(1) AX-K1 4000/5000-48(2)
• Kehua - SPH5000-BL INVT BD Series
• INVT - BD Series
• TBB - Kinergier Pro Series: CK-II 2.0S-3.0S & CK4.0S-8.0S Series
• MUST - PV1800 VHM 3KW - 5.5KW
• Moixa - Smart Battery V4 3000 & GridShare Hub
• MEGAREVO - RKL1 Series
• AISWEI - ASW3000/3680/4000/5000H-S
• FSP - PowerManager series 4-15kW Offgrid PMI III / Zero
• Senergy - SE 4K6/5K/6KHB-60/120 & KAC
• Livoltek - Hyper & Retro Series
• OPTI-Solar - SP5000 Brilliant series, SP5000 Regal/Handy Plus, DLX HV series
• GMDE - SolDate 3700TL+BM024

The compatibility list includes inverters that have been tested by the manufacturer in conjunction with the battery storage systemof course, other versions (e.g., models with higher power) from the respective series are also compatible. The list will be gradually expanded to include additional models.
