Pytes 4 AWG Connection Cable, Amphenol-ExConn, 21 mm², 160 mm, for E-Box 48100R/48100 TE+
€21.15*
The Pytes 4AWG Amphenol to ExConn connection cable is the perfect solution for safely and efficiently connecting your E-Box 48100R to the 48100 TE+ battery. This high-quality connection cable was specifically designed to ensure reliable, low-loss power transmission between the two battery units. Its robust construction, high-quality materials, and precision-fit connectors ensure maximum safety and durability—ideal for demanding off-grid energy projects.
The advantages of the connection cable
- Precision-fit connection between the E-Box 48100R and 48100 TE+
- High-quality Amphenol and ExConn connectors for a secure hold
- High-performance 4 AWG copper conductor for high current-carrying capacity
- Short cable length (160 mm) for a tidy and efficient installation
- Flexible PVC insulation tubing with corrugated sleeve for additional protection
- Quick and easy installation

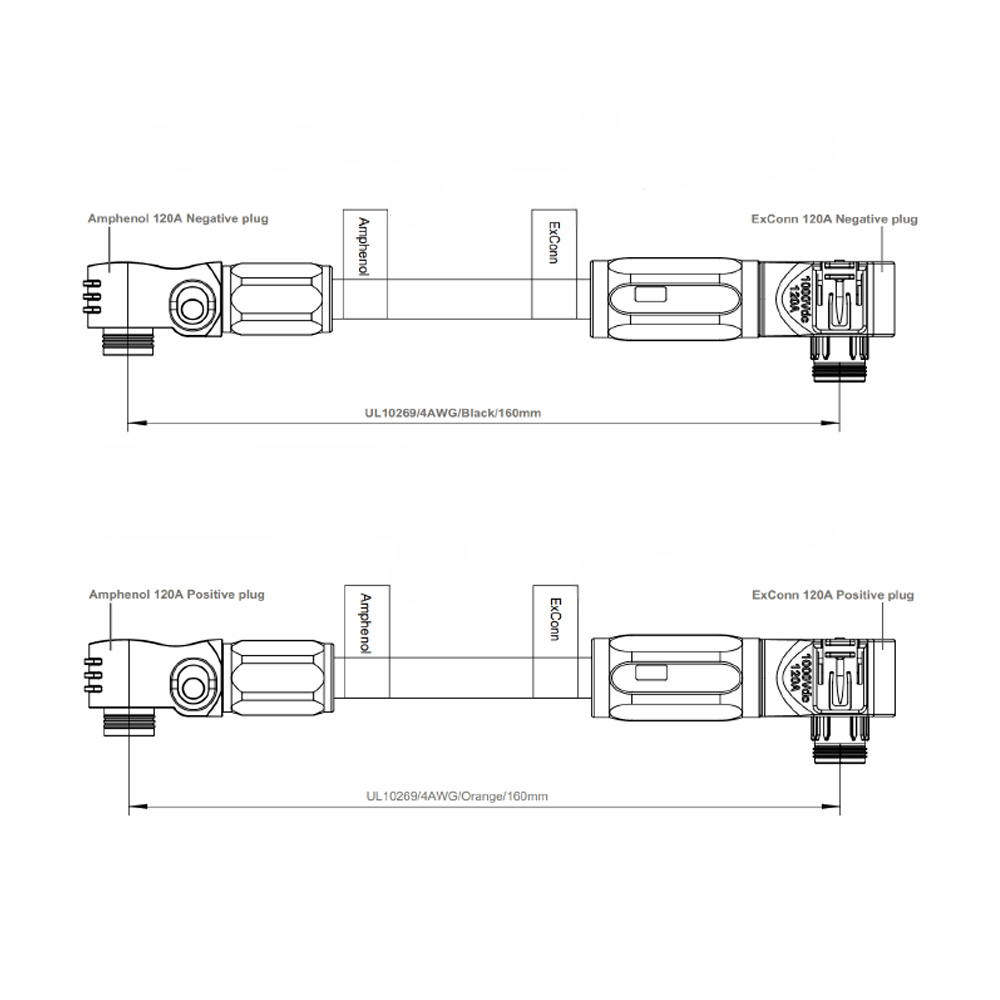

Technical Specifications
- Cable type: UL10269-4AWG, copper, tinned or bare, multi-strand
- Length: 160 mm
- Cable cross-section: 21.15 mm² (4 AWG)
- Connector: Amphenol 5.7 mm / ExConn EESA-120PB25B
- Connector material: Tinned copper
- Rated current: 80 A
- Rated voltage: 1000 V
- Temperature range: up to 105°C
- Insulation: PVC + corrugated tube
- Standards: UL758, UL1581
- Color: Orange (positive terminal) / Black (negative terminal)
Contents
1x Pytes 4AWG Amphenol to ExConn connection cable
