Offgridtec HomePremium UPS solar system 9000Wp E-Box-48100R-TE+ 15.4Wh 3-phase with electricity meter

Extremely versatile complete package—your powerful all-in-one solar solution with high-quality premium components for maximum energy independence

The Offgridtec® HomePremium series (3-phase) is an extremely versatile system offering unbeatable value for money. It is suitable both as a UPS backup solution with the option of choosing between grid and battery priority, and as a self-consumption system for solar energy. The performance of this solar system is virtually unlimited and can be adapted to individual requirements. The set includes high-quality LiFePO4 batteries from Pytes, Victron electronic components, and Full-Black solar modules from Luxen. Extensions are available on request for both the module and battery sides. Additional devices can be connected to the inverter to increase the output power.

All components required for connection, except for the solar module mounts, are included in the scope of delivery. The system is not sent to you preconfigured.

Parts list – what's included

• 20x Luxen Solar 450W Bifacial TopCon N5 Full Black solar modules
• 3x Pytes E-Box 48100R-TE+ 5.12 kWh 51.2V LiFePO4 battery
• 3x Victron MultiPlus-II 48/3000/35-32 230V
• 1x Victron Cerbo GX MK2 communication center system monitoring
• 1x Victron Energy Lynx Power In
• 1x Victron Lynx Distributor
• 1x Victron GX Touch 50 display panel for Cerbo GX MK2
• 1x Victron SmartSolar MPPT RS 450/100 48V charge controller

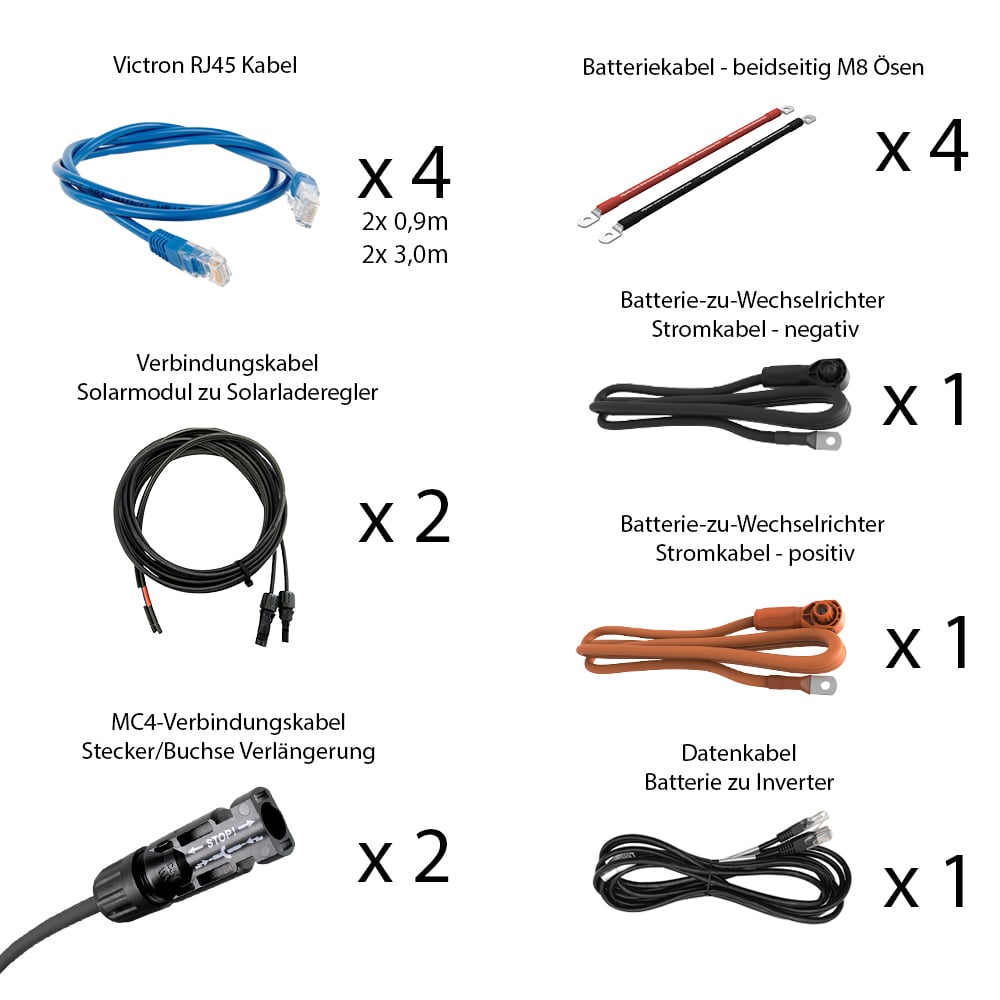

• 4x Offgridtec® 1m battery cable 35mm² M8 eyelets on both sides
• 2x Offgridtec 10m 6mm² professional connection cable solar module to solar charge controller
• 2x Offgridtec 10m 6mm² MC-4 connection cable plug/socket extension
• 2x 0.9m Victron RJ45 UTP cable
• 2x 3m Victron RJ45 UTP cable
• 1x Offgridtec set of 5 MEGA fuses 125A 70V for 48V systems
• 1x Pytes data cable battery to Victron inverter 3.5m MultiPlus 2
• 1x Pytes power cable battery to inverter 2m, positive
• 1x Pytes power cable battery to inverter 2m, negative

When selecting an electricity meter

• 1x Victron VM-3P75CT Energy Meter
• 1x Victron 5m RJ45 UTP cable

Extended use of your HomePremium system

The HomePremium system is available with or without a Victron electricity meter and cable, although an energy meter with connection cable is required to set up an energy storage system.

With this electricity meter, you can set up a grid-parallel installation and then monitor your energy consumption and control your energy coststhanks to phase compensation, you can even use the 3-phase meter for 1-phase systems. This makes seamless integration of decentralized energy sources and consumers into the existing power grid no problem at all.

Luxen Solar 450W Full Black Solar Module

The bifacial 450W Full Black solar module from the Luxneri N5 series by Luxen Solar (MPN LNDX-450ND) sets new standards in solar technology. It combines innovative technologies such as LECO N-TOPCon cell technology and a 96-cell half layout to maximize efficiency. In addition, SMBB half-cut cell technology is used to optimize performance

• LECO N-TOPCon cell technology
• SMBB half-cut cell technology
• Low BOS & LCOE
• Bifacial cell module technology
• Excellent anti-PID and low LID performance
• Reduced hotspot risk
• 3 bypass diodes - minimized power loss in case of shading
• high cell efficiency of over 22.52%

Technical data

• maximum power: 450W
• Module voltage (Vmp): 30.08V
• max. current (Imp): 14.96A
• Open circuit voltage (Voc): 35.21V
• Short-circuit current (Isc): 16.02A
• Module efficiency: 22.52%
• max. operating voltage: 1500V DC
• Operating temperature range: -40°C to +85°C
• Dimensions: 1762 x 1134 x 30 mm
• Cells: 96 (6x16)
• Protection class IP68
• Connection: MC4
• Weight: 24 kg

The Pytes E-Box 48100R-TE+

The Pytes E-BOX 48100R-TE+ (MPN: 110402100202) is a LiFePO4 energy storage system with a capacity of 5.12 kWh and impresses with its high level of safety, well-thought-out design, and consistent performance in continuous operation. The compact, maintenance-free battery can be installed quickly and expanded into larger storage systems using parallel connections. Ideal as a reliable basis for your individual storage project.

• Latest generation LFP storage
• over 6000 cycles at 90% DoD
• Intelligent energy management
• Ideal for emergency power supply
• Extensive compatibility
• Modular expandability
• CAN & RS485 communication

Technical

• Battery chemistry: Lithium iron phosphate (LFP)
• Nominal voltage: 51.2 V
• Voltage range: 47.5-57.6 V
• Nominal capacity: 100 Ah
• Nominal energy: 5.12 kWh
• Max. charging current: 50 A
• Max. discharge: 50 A
• Charging temperature: 0~50°C
• Discharge temperature: -10~50°C
• Efficiency: ≥95%
• Communication protocol: RS-232, RS-485, CAN
• Cycle life: >6000 cycles at 90% DoD
• Dimensions: 440 × 620 × 117 mm
• Weight: 51 kg

The heart of the system – the Victron MultiPlus-II 48/3000

The MultiPlus-II 48/3000/35-32 from Victron Energy is a high-quality device combination (MPN PMP482305010) that combines classic MultiPlus components with an external current sensor and integrated anti-islanding function. Advanced features such as PowerControl and PowerAssist with 50 A make it ideal for ESS applications. With a 3000 W inverter (2400 W at linear load), a 48 V 35 A battery charger, and a 32 A transfer switch, it enables fast switching between AC connections.

• PowerControl and PowerAssist – increase grid or generator power
• built-in anti-islanding function and connection option for external current sensor (optional)
• can be used as a backup device in grid-connected systems for power supply during power failures
• ideally suited for use in both off-grid and on-grid systems
• VE.Bus interface for parallel and three-phase operation, remote monitoring, and system integration
• virtually unlimited power through parallel and three-phase operation
• can be configured on site or remotely using VEConfigure software
• Approved according to VDE-AR-N 4105
• 3000 W power with non-linear load 2400 W continuous load and 6000 W peak power
• for 48 V battery voltage, 32 A transfer switch, and 35 A battery charger
• Output voltage: 230 VAC, frequency: 50 Hz
• max. efficiency is 95%, protection class IP22

Configuration

The MultiPlus-II is delivered unconfigured as standard. You can find the configuration instructions for the system here in the download area. If you would like us to preconfigure the system for you, we can do so for an additional charge. To do this, add the Offgridtec Preconfiguration item to your shopping cart during the ordering process. In this case, shipping may take 3-5 business days longer until the configuration has been completed.

Maximum flexibility thanks to two AC outputs

The main output ensures uninterrupted operation. In the event of a power failure or interruption of the shore/generator power, the MultiPlus-II takes over the supply to the connected consumers. The switchover is so fast (less than 20 milliseconds) that uninterrupted operation of computers and other electronic devices is guaranteed. The second output only supplies power when AC power is available at the input of the MultiPlus-II. Consumers that must not discharge the battery, such as a water heater, can be connected to this output.

Victron Energy Cerbo GX MK2 and GX Touch 50 – the communication center of your system

The latest system monitoring from Victron Energy offers easy control and configuration thanks to the GX Touch 50, a waterproof 5-inch touchscreen. The Cerbo module not only enables optimal performance and monitoring for solar charge controllers and grid-connected inverters, but also maximizes system performance in a way that was previously uncomplicated.

The Bluetooth capability of the GX Touch 50 makes accessing the system even faster and easier. Mounting hardware and connection cables are included in the delivery, while an optional wall mount for the GX Touch 50 is available separately.

The Victron Remote Portal (VRM) is a free Victron Energy service that allows you to read your system data remotely and configure the devices accordingly. This means that even when you are away, you always have full control and an overview of all relevant system parameters. The functionality is available online as a demo version and is ideal for getting a first impression - https://vrm.victronenergy.com/landingpage

Safety note: Only have this complete system installed and commissioned by a qualified electrician.
