Offgridtec® HomePremium S UPS solar system 2250Wp 3.5kWh LiFePo4 storage 1-phase with electricity meter

Extremely versatile complete package—your powerful all-in-one solar solution with high-quality premium components for maximum energy independence

The Offgridtec® HomePremium series is a true all-rounder at an unbeatable price-performance ratio. In addition to its use as a UPS backup solution with a choice between mains and battery priority, this PV system can also be used as a self-consumption system. There are virtually no limits to the performance of this solar system – depending on your personal requirements and on request, extensions are possible on both the module and battery sides. If a higher output power is required at the inverter, additional identical devices can also be connected to increase the power.

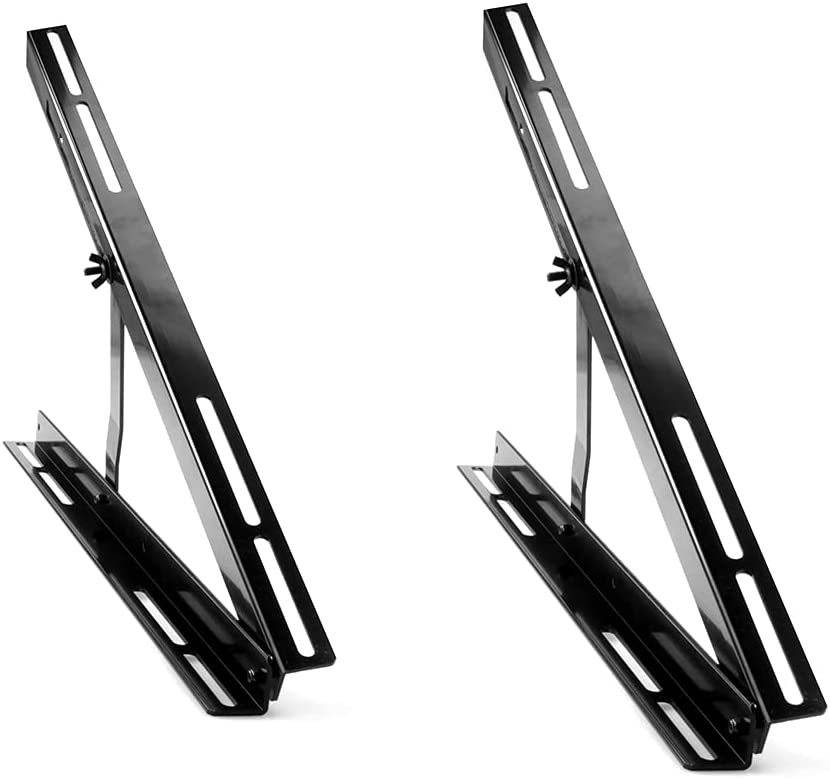

In addition to the power electronics, the storage unit, and the solar modules, all components required for connection are also included in the scope of delivery, with the exception of the solar module holders, which must be ordered separately. Depending on your selection, the system is delivered with or without an electricity meter.

Parts list – what's included

• 5x Luxen Solar 450W Bifacial TopCon N5 Full Black solar modules
• Victron Energy 48/3000 MultiPlus-II inverter
• Victron Energy MPPT SmartSolar charge controller 250/60-Tr
• Victron Energy Lynx Distributor for DC distribution and protection
• 1x 3.5kWh Pylontech US3000C LiFePo4 storage batteries with integrated BMS
• Inverter connection cable for connecting the Pylontech batteries to the MultiPlus 48/5000 (2m)
• VE.Can to CAN-Bus BMS Type A cable 1.8m 1.8m ASS030720018 for connecting the Cerbo GX MK2 to the storage device
• 3 m Victron RJ45 UTP cable for connecting the MultiPlus to the Cerbo GX
• Cerbo GX MK2 + GX Touch 50 from Victron Energy – the communication center of your system
• 1 m battery cable 25 mm² M8 terminal to screw terminal connection for connecting the charge controller to the battery
• 1 m battery cable 50 mm² with M8 eyelets on both sides for connecting the MultiPlus and Lynx Distributor
• 10 m Offgridtec® professional connection cable 6 mm² solar module to charge controller for connecting solar modules to the charge controller
• 5 m 6 mm² MC-4 connection cable plug/socket extension for connecting the two module strings to the MC4 branch sockets
• Victron 3 m VE.Direct cable connection cable for connecting the charge controller to the Cerbo GX
• Victron 125A 58V/48V MEGA-Fuse fuse for Multiplus
• Offgridtec 80A 70V MEGA-Fuse fuse for solar charge controller

When selecting an electricity meter:

• 1x Victron VM-3P75CT Energy Meter
• 1x Victron 5m RJ45 UTP cable

Extended use of your HomePremium system

The HomePremium system is available with or without a Victron electricity meter and cable, although an energy meter with connection cable is required for setting up an energy storage system.

With this electricity meter, you can set up a grid-parallel installation and then monitor your energy consumption and control your energy coststhanks to phase compensation, you can also operate the 3-phase meter for 1-phase systems. This makes seamless integration of decentralized energy sources and consumers into the existing power grid no problem at all.

Luxen Solar 450W Full Black Solar Module

The bifacial 450W Full Black solar module from the Luxneri N5 series by Luxen Solar (MPN LNDX-450ND) sets new standards in solar technology. It combines innovative technologies such as LECO N-TOPCon cell technology and a 96-cell half layout to maximize efficiency. In addition, SMBB half-cut cell technology is used to optimize performance.

Half-cell technology

In half-cell technology ("Half-Cut"), conventional silicon cells are cut in half using a laser. The resulting halves are then connected in parallel at the center, which reduces resistance losses and increases the performance of the solar module.

Bifacial cells

Bifacial modules offer a decisive advantage thanks to their transparent backs and special cell technology—they also utilize reflected light. This leads to a significantly increased energy yield and makes these modules a particularly efficient choice for your solar system.

Technical data

• maximum power: 450W
• Module voltage (Vmp): 30.08V
• max. current (Imp): 14.96A
• Open-circuit voltage (Voc): 35.21V
• Short-circuit current (Isc): 16.02A
• Module efficiency: 22.52%
• max. operating voltage: 1500V DC
• Operating temperature range: -40°C to +85°C
• Dimensions: 1762 x 1134 x 30 mm
• Cells: 96 (6x16)
• Protection class IP68
• Connection: MC4
• Weight: 24 kg

LiFePo4 storage technology from Pylontech – proven, reliable, safe

The US3000C storage battery from Pylontech is a latest-generation lithium iron phosphate battery that offers maximum safety and service life. Each module has a battery management system (BMS) for comprehensive protection against deep discharge, overcharging, and damage from high currents or extreme temperatures. Short circuits and reverse polarity are also prevented.

Features of the Pylontech US3000C storage modules

• Extremely cycle-resistant – over 6000 cycles at 95% DoD (discharge per cycle)
• Absolutely intrinsically safe thanks to integrated protection shutdown (BMS)
• High charging and discharging power of up to 5 kW per module
• High storage density
• Low weight and compact design
• Absolutely maintenance-free and easy to install

The heart of the system – the Victron MultiPlus-II 48/3000

The MultiPlus-II 48/3000/70-50 from Victron Energy (MPN PMP482305010) combines classic MultiPlus components with an external current sensor and integrated anti-islanding function. This extends the PowerControl and PowerAssist functions to 100A and enables use in ESS applications.

With a 3000 W inverter (2400 W with linear load) and a 48 V battery charger of 35 A, this Multiplus-II is optimally dimensioned. A 32 A transfer switch allows quick switching between AC connections for maximum flexibility

Performance features and characteristics of the MultiPlus-II 48/3000

• PowerControl and PowerAssist – increase mains or generator power
• built-in anti-islanding function and connection option for external current sensor (optional)
• Can be used as a backup device in grid-connected systems
• VE.Bus interface for parallel and three-phase operation
• Remote monitoring and system integration
• Approved according to VDE-AR-N 4105

Technical data

• 3000 W power with non-linear load - 2400 W continuous load - 5500 W peak power
• for 48 V battery voltage, 32 A transfer switch, and 35 A battery charger
• Output voltage: 230 VAC, frequency: 50 Hz
• Max. efficiency: 95%
• Protection class IP22

Maximum flexibility thanks to two AC outputs

The MultiPlus-II provides uninterrupted operation by automatically taking over the supply to the consumers in the event of mains failures or interruptions to the shore/generator power. The switchover takes place in less than 20 milliseconds to ensure continuous operation of electronic devices. A second output only supplies power when AC power is available at the MultiPlus-II input. This allows the connection of loads such as a water heater that should not be discharged from the battery.

Delivery is configured and matched to the components supplied

The MultiPlus-II offers a wide range of settings and applications. We have already made the most important settings for you, so the system is ready for immediate use without any further configuration. If you order the option with an electricity meter, we will set up the system directly as an ESS.

Victron Energy Cerbo GX MK2 and GX Touch 50 – the communication hub of your system

The latest development in system monitoring from ermö enables you to control and configure your system with ease. Complemented by the GX Touch 50 – a waterproof 5-inch touchscreen – you can always keep track of your system parameters. The Cerbo's functions allow you to perfectly control and monitor your system on the one hand, and on the other hand, it allows you to maximize system performance in an unprecedentedly simple way.

Victron Energy has developed a new system monitoring system that allows you to easily control and configure your system. The GX Touch 50, a waterproof 5-inch touchscreen, provides a clear overview of your system parameters. With the Cerbo module, you can precisely monitor your system and maximize performance. It is compatible with both solar charge controllers and grid-connected inverters. Mounting hardware and connection cables are included. The Bluetooth function of the GX Touch 50 makes accessing your system even faster and easier. An optional wall mount is available.

Victron Remote Portal

The Victron Remote Portal (VRM) is a free Victron Energy service that allows you to read your system data remotely and configure the devices accordingly. This means that even when you are away, you always have full control and an overview of all relevant system parameters. The functionality is available online as a demo version and is ideal for getting a first impression - https://vrm.victronenergy.com/landingpage

Safety note: Only have this complete system installed and commissioned by a qualified electrician.
