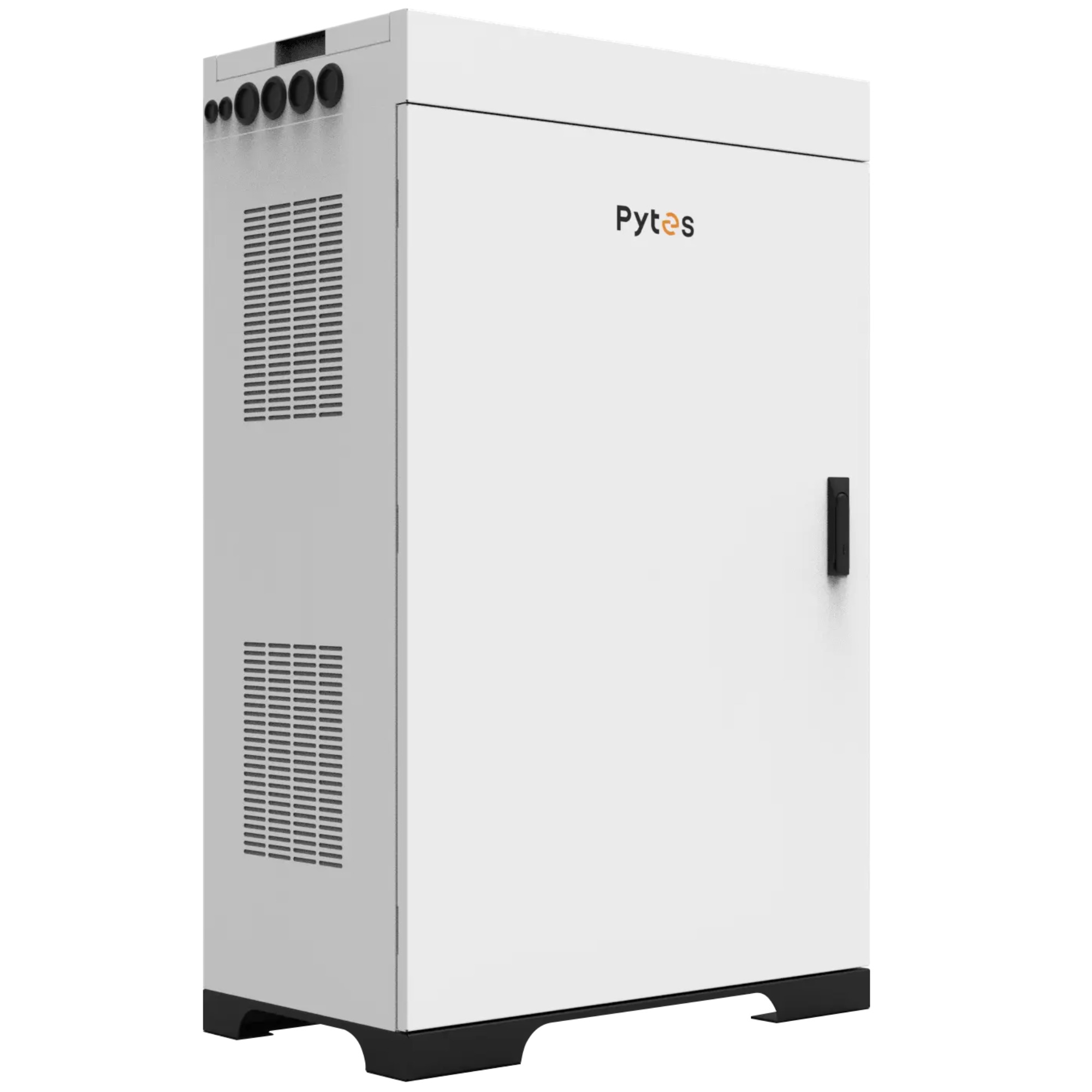

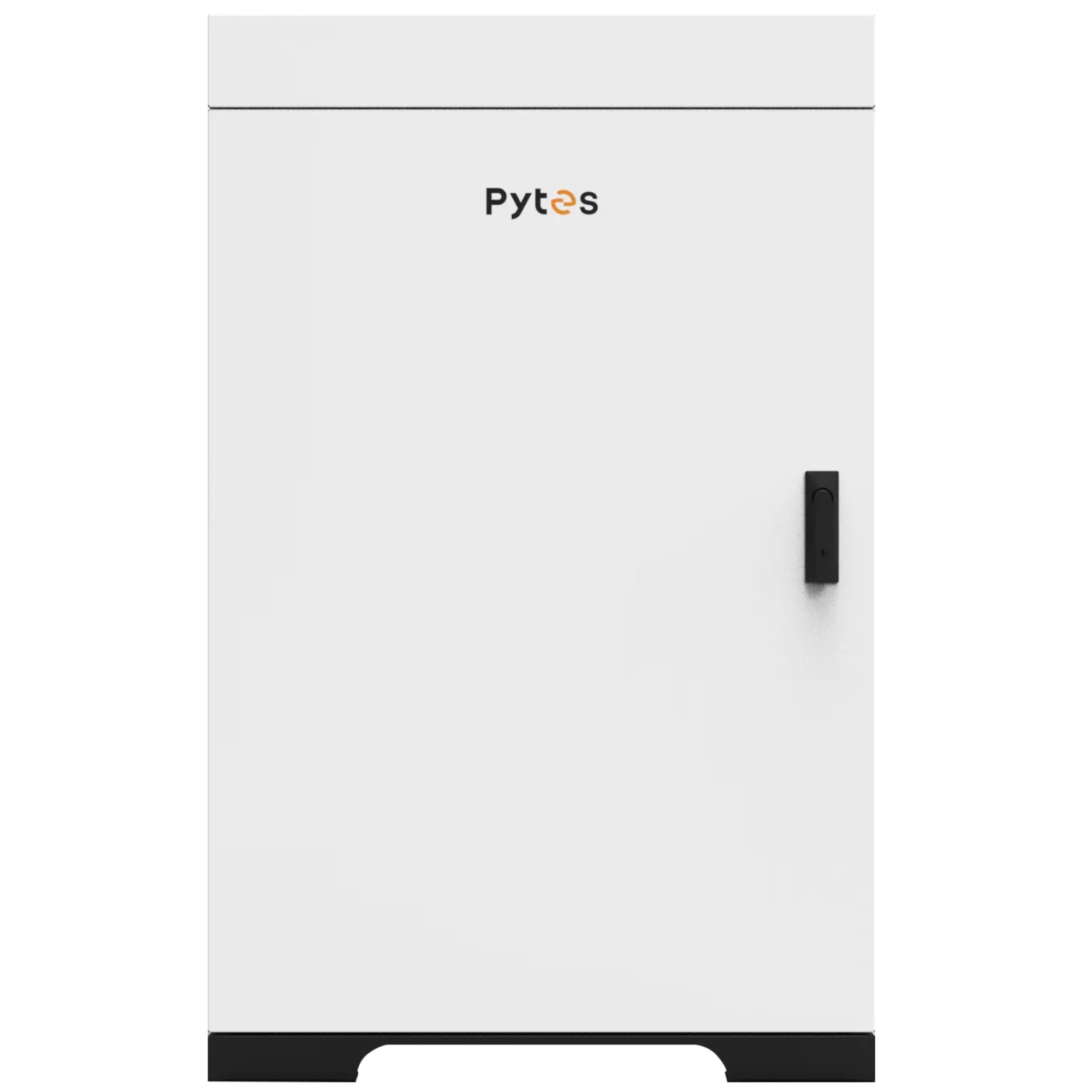

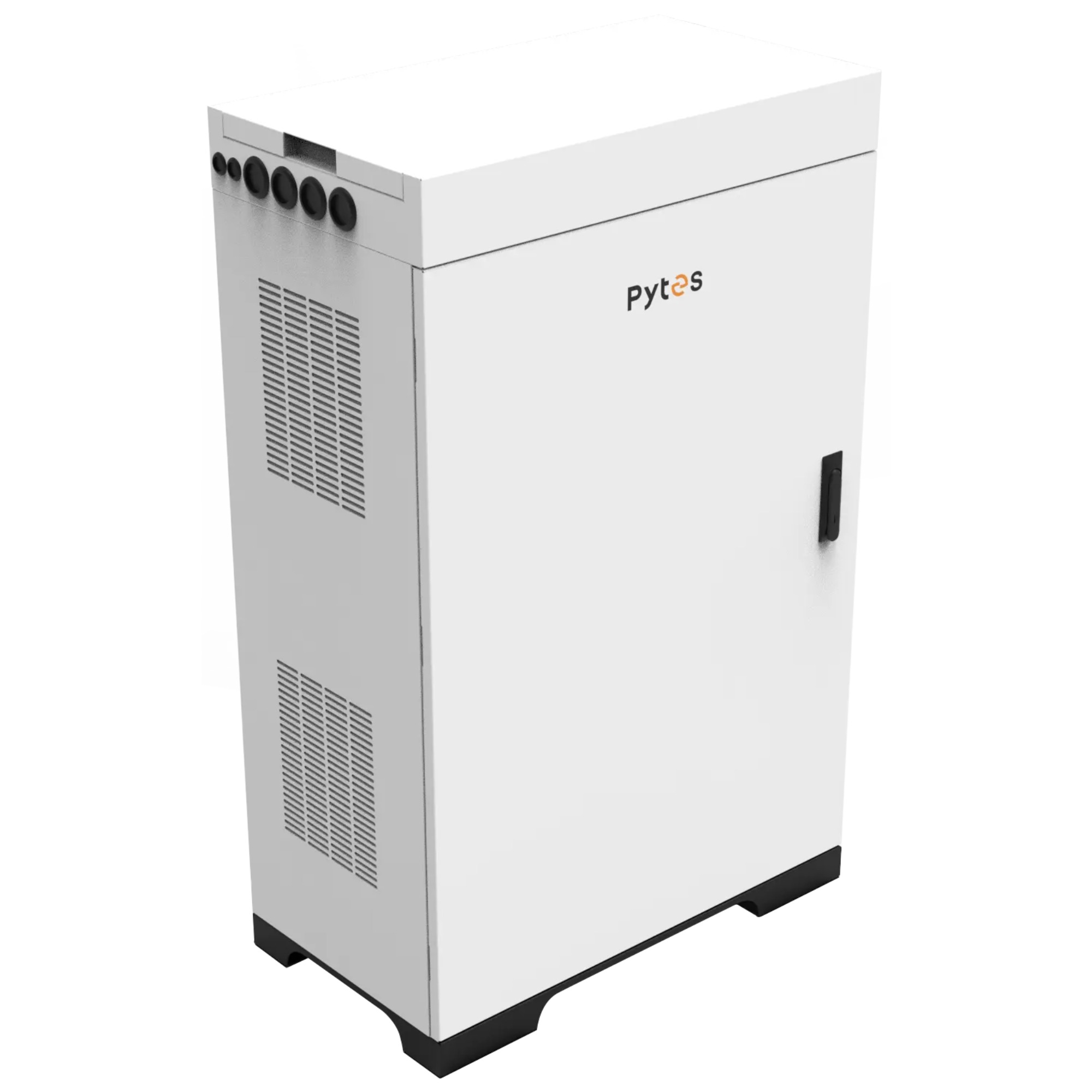

Pytes Forest-RB PLUS Indoor Cabinet for E-Box 48100R Battery Cabinet

The Forest-RB PLUS from Pytes (MPN: 110409100166) is a battery cabinet specifically designed for the Pytes E-Box 48100R to ensure the safe and organized installation of energy storage systems indoors. The freestanding enclosure accommodates up to six battery modules and features an integrated busbar, which reduces cabling effort and enables a structured system configuration.

Space-saving cabinet solution for Pytes E-Box 48100R battery systems

• Designed for up to 6 Pytes E-Box 48100R battery modules
• Integrated busbar for clear system cabling
• Robust freestanding enclosure made of galvanized steel (SGCC)
• Designed for indoor installation (IP20 protection rating)
• Natural convection cooling without additional fans
• Modular design for organized assembly of battery storage systems
• Floor mounting for stable placement and easy installation

Designed for professional battery storage installations

The Forest-RB PLUS serves as a central enclosure for Pytes E-Box 48100R battery storage units. By accommodating up to six batteries, it enables the creation of compact and well-organized storage systems. The enclosed housing protects the installed components while ensuring a tidy installation. The integrated busbar enables the individual modules to be connected centrally. This simplifies internal cabling and facilitates a structured connection to the inverter. The manufacturer’s schematic diagram shows the direct connection of the batteries via the integrated busbar to the connected inverter.

Robust Construction for Indoor Use

The enclosure is made of galvanized SGCC steel and is designed for floor mounting. Natural convection cooling operates without active fans, eliminating additional noise and reducing the need for components that require frequent maintenance. With an IP20 protection rating, it is intended for dry indoor environments. This protection rating means that the enclosure is protected against the ingress of solid foreign objects with a diameter of 12.5 mm or greater, but offers no protection against water. Therefore, the battery cabinet should only be installed in suitable indoor locations.

Technical Specifications

• Maximum capacity: 6 × E-Box 48100R
• Integrated busbar
• Mounting type: Floor mounting
• Enclosure material: SGCC (galvanized steel)
• Cooling: Natural convection
• Protection rating: IP20
• Weight: 68 kg
• Dimensions (L × W × H): 720 × 400 × 1,150 mm

Package Contents

1x Pytes Forest-RB PLUS Indoor Cabinet for E-Box 48100R with integrated busbar
