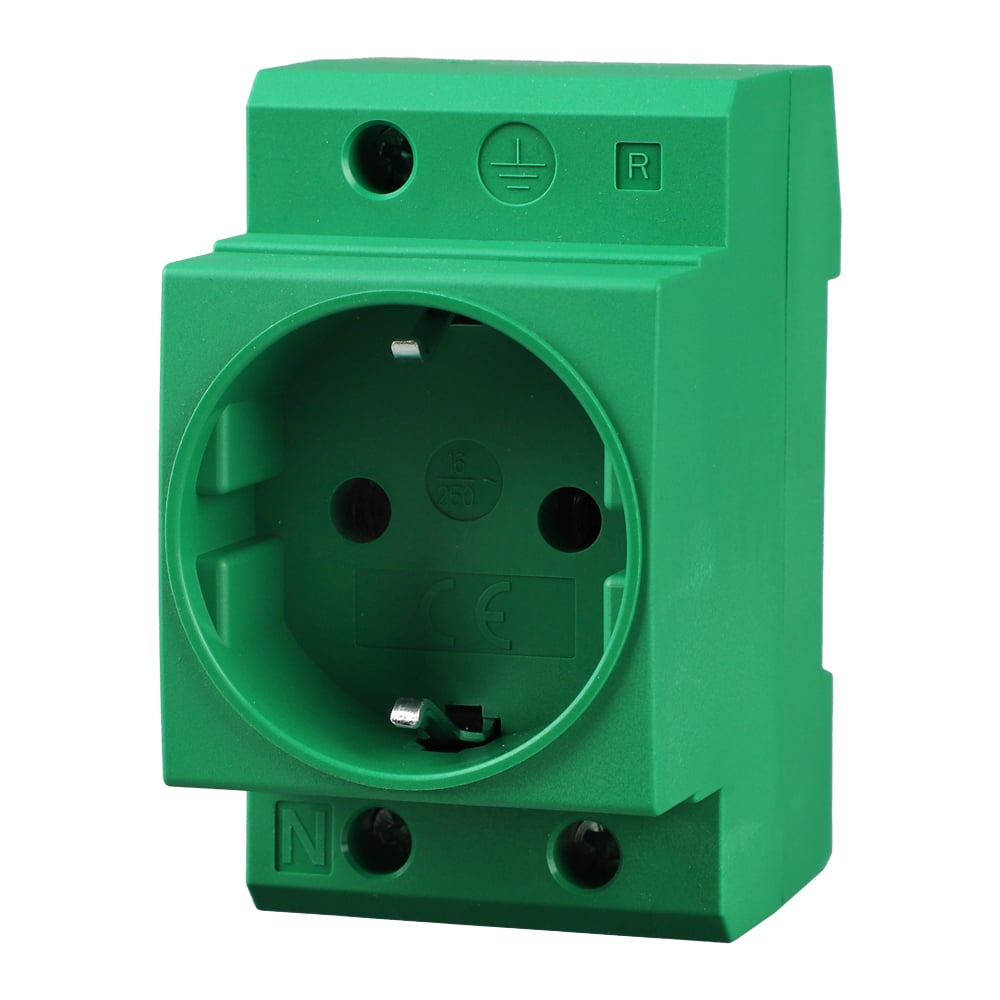

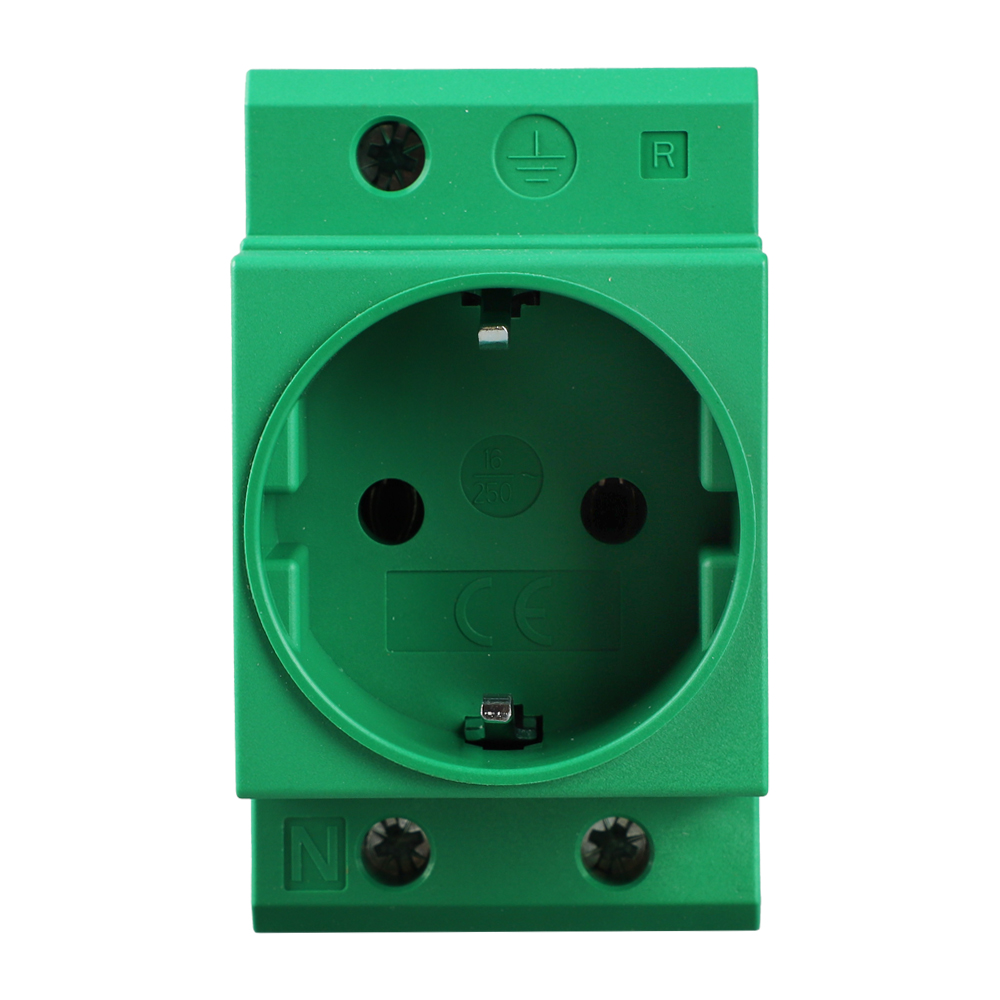

Schuko socket for top-hat rail in green, 16A, 230V, 2P+E, for 35mm DIN rail mounting

With the Schuko socket for DIN rails from Offgridtec (MPN: 021705), you have a quick and direct power supply right at your fuse or distribution box. It is easily mounted on the 35 mm DIN top-hat rail with a 2.5 TE installation width and is ideal for directly operating tools, testing or measuring devices during electrical work, connecting notebooks when programming in the control cabinet, or temporarily supplying power to additional devices such as smart meters, routers, or control accessories. It is also the flexible power connection at the touch of a button in meter cabinets, PV systems, or workshops.

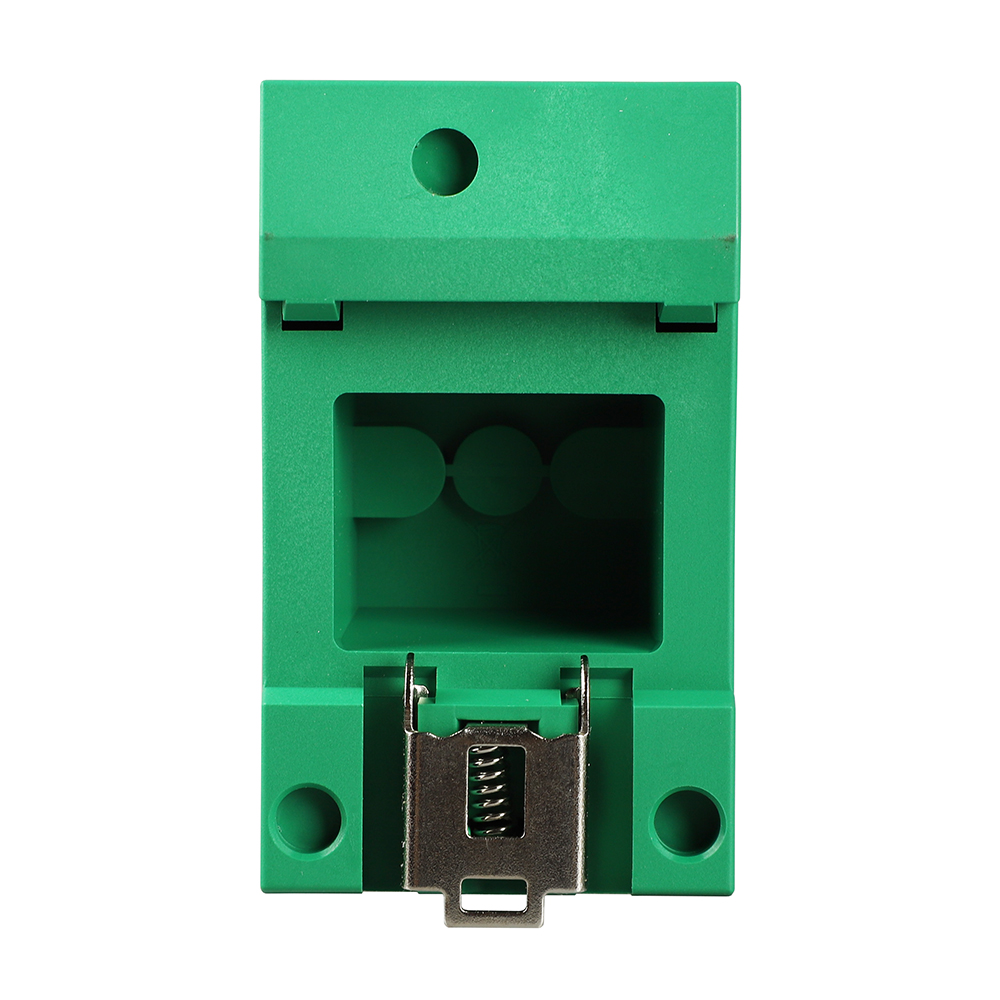

You can rely on proven quality: the socket is CE-certified, has a 2-pole protective contact and offers additional safety thanks to its integrated touch protection – even in child-friendly areas. Thanks to the practical snap-on mounting and the sturdy metal clamps and screw connections, secure fastening and quick, tool-free installation are guaranteed.

Your advantages

• Simple and secure installation – no messy tools required
• Maximum safety – CE certification, integrated touch protection
• Versatile and flexible – for all standard fuse and distribution boxes
• Maximum reliability – high-quality screw connection and robust materials
• Direct power connection – always available immediately where you need power
• Built-in socket for distribution box installation, control cabinet, meter cabinet

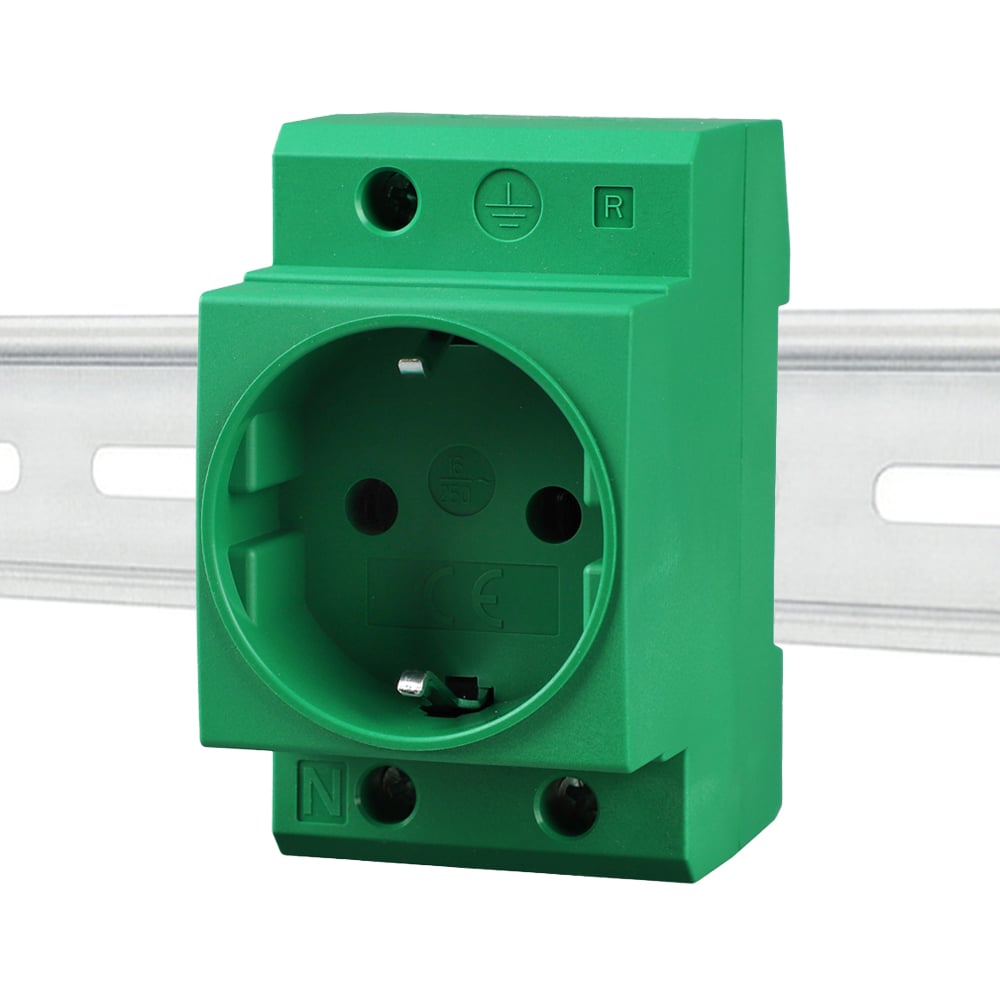

• Protective contact socket for 35 mm DIN rail mounting

Typical areas of application

• Maintenance and service work on the control cabinet
• Operation of tools, measuring and testing devices directly in the distribution box
• Connection of notebooks, tablets, or diagnostic devices during programming work
• Temporary power connection for smart meters, data loggers, routers, control or signal technology
• Permanent installation in meter cabinets, distribution boxes, workshop or house connection rooms
• Photovoltaic distribution or charging technology for wall boxes

Technical data

• Housing material: PA66 plastic
• Color: Green
• Voltage: 230 V
• Frequency: 50 Hz
• Current: 16 A
• Protection class: IP20
• Weight: 112.4 g

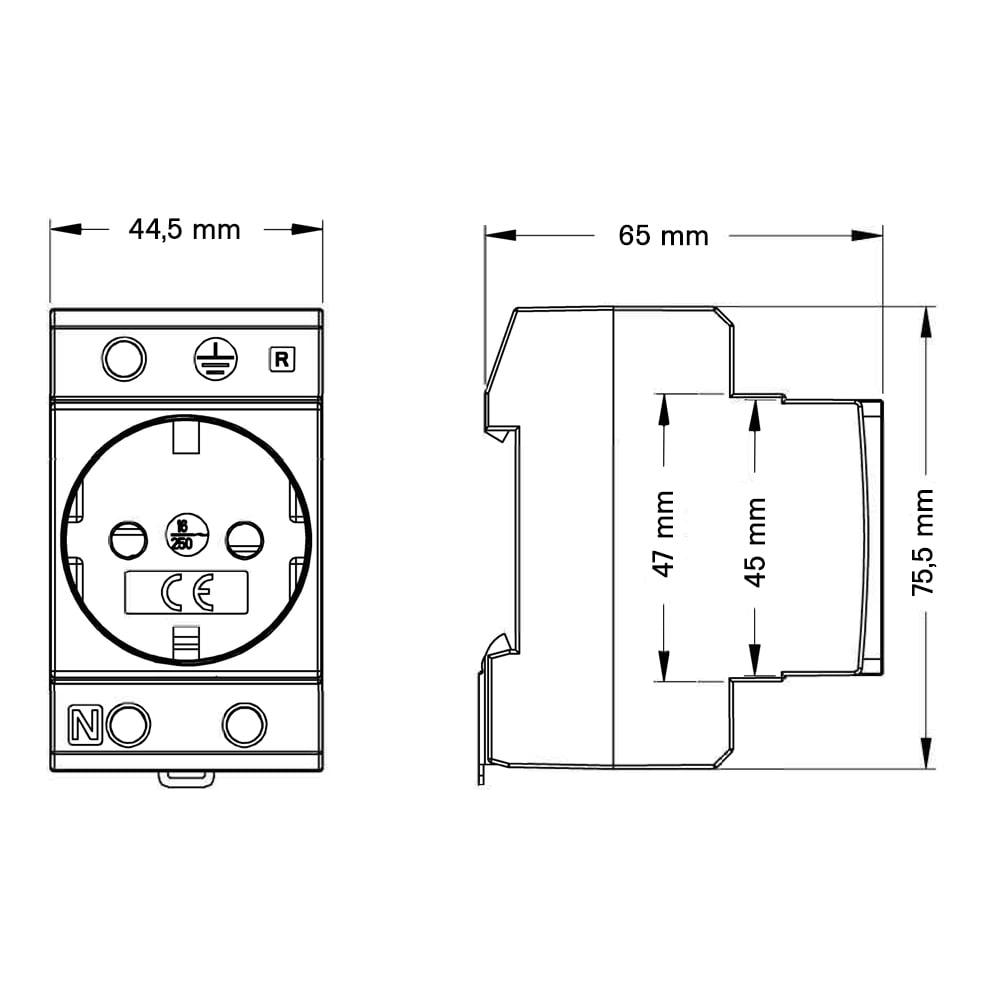

• Dimensions: 75.5 x 44.5 x 65 mm

Scope of delivery

1x Schuko socket, green, for top-hat rail, 16 A, 230 V, 2P+E
