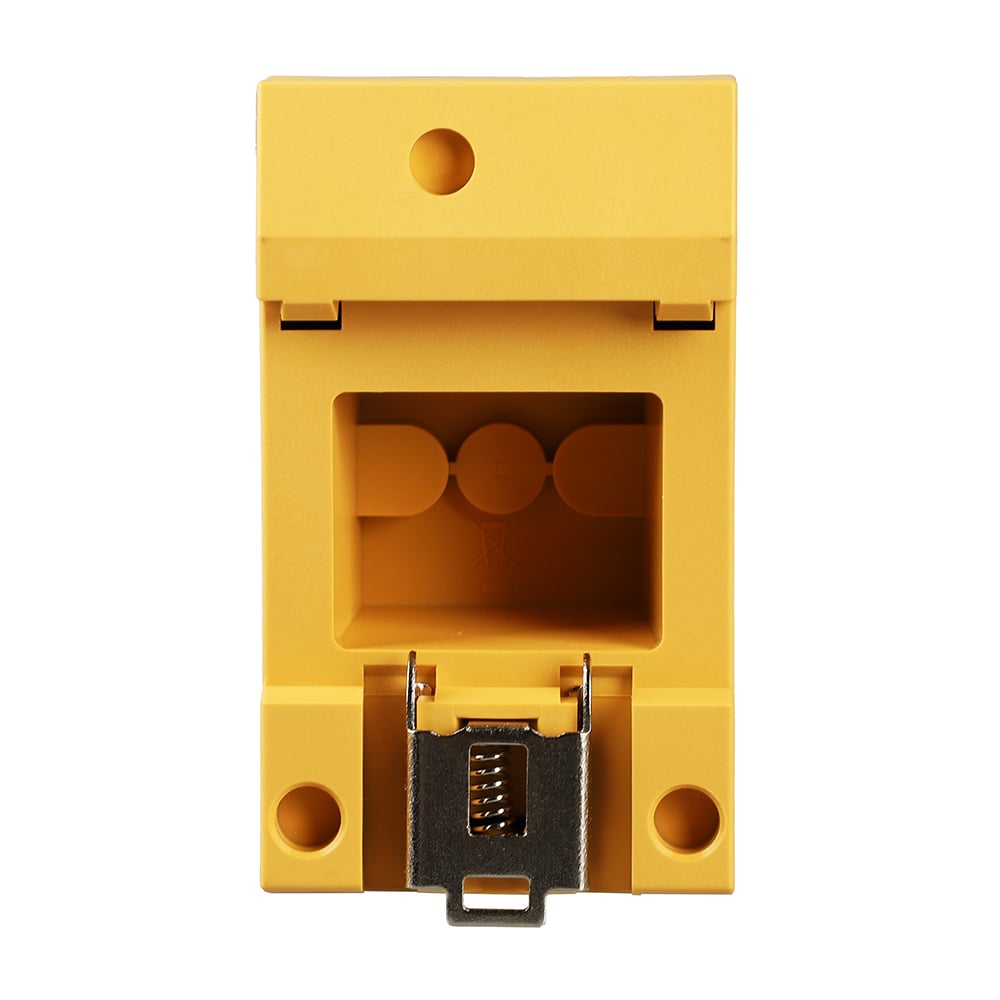

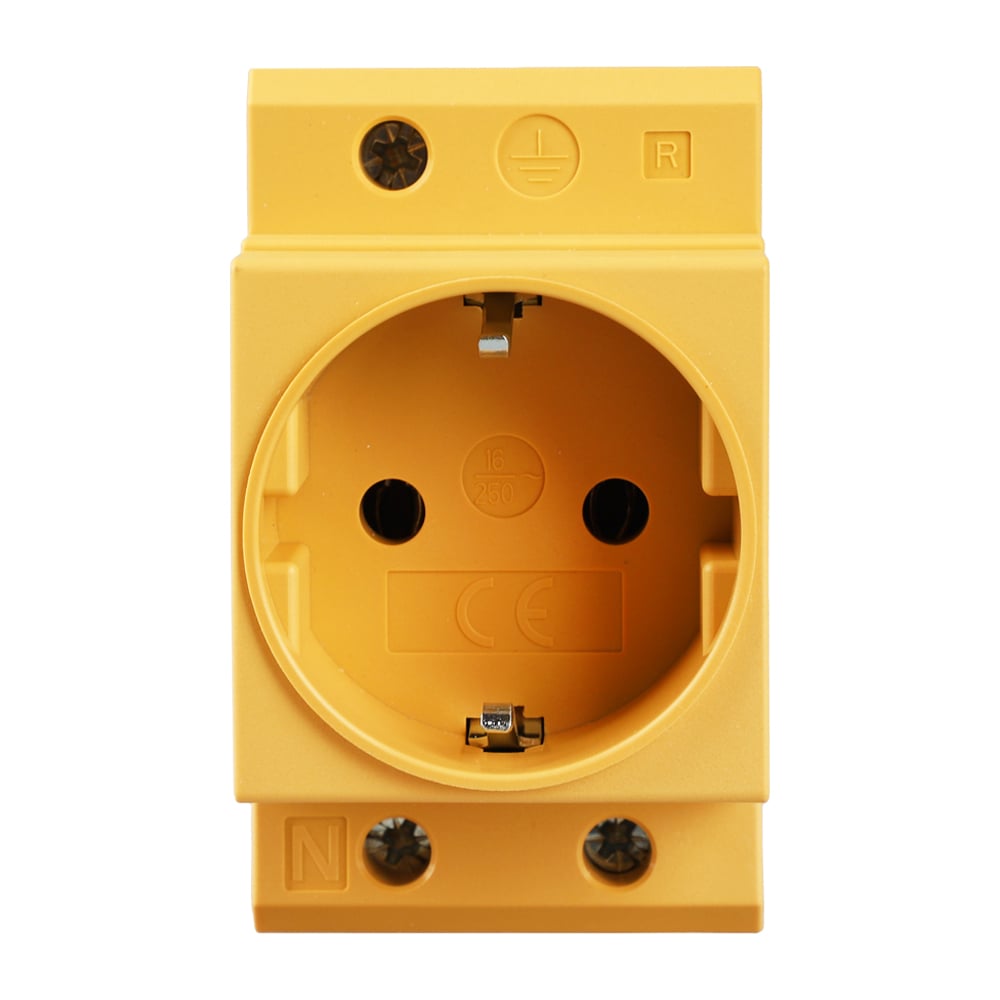

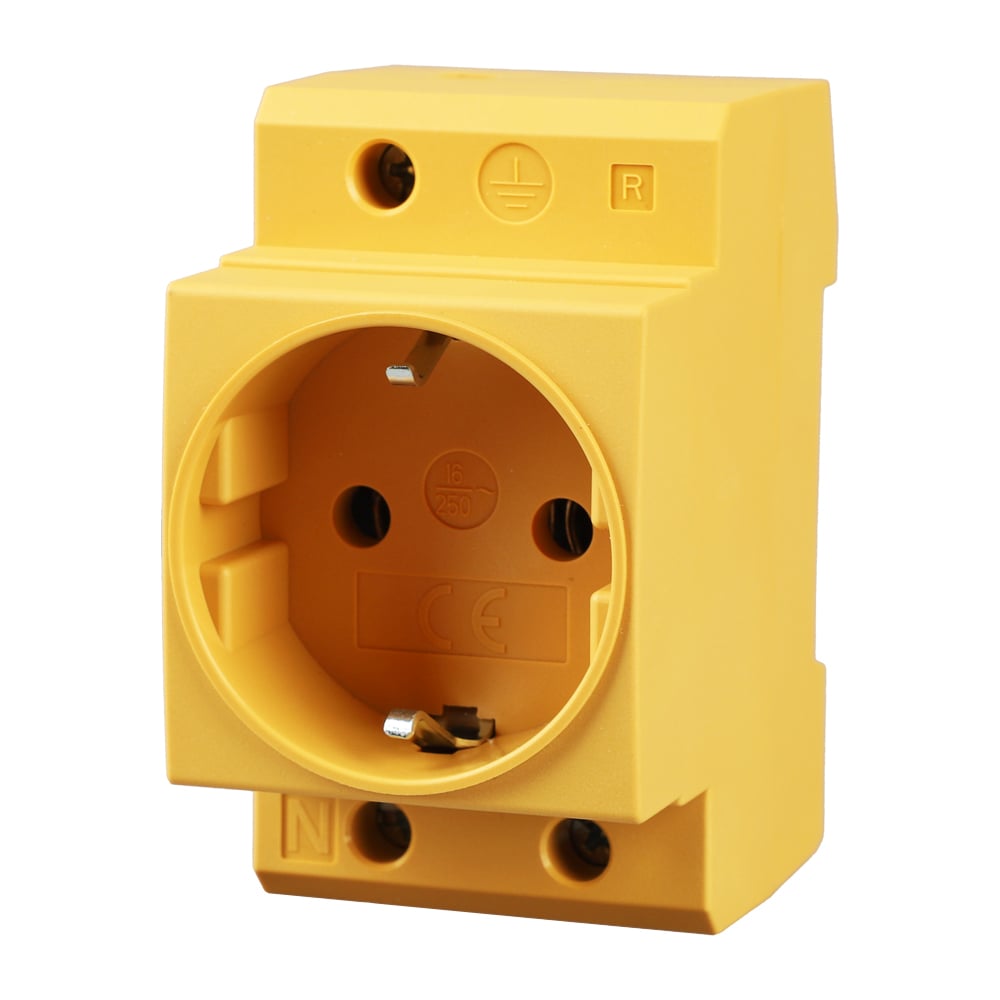

Schuko socket for top-hat rail in yellow 16A 230V 2P+E for 35mm DIN rail mounting

With the Schuko socket for top-hat rails from Offgridtec (MPN: 021710), you have a quick and direct power supply right at your fuse or distribution box. Installation is easy on the 35 mm DIN top-hat rail with an installation width of 2.5 TE. This makes the socket perfect for operating tools, test or measuring devices directly during electrical work, connecting notebooks in the control cabinet during programming, or supplying additional devices such as smart meters, routers, or control accessories with power at short notice. Whether in the meter cabinet, on PV systems, or in the workshop, it offers you a flexible power connection at the touch of a button.
You can rely on tested quality: the socket is CE-certified, has a 2-pole protective contact, and offers extra safety thanks to integrated touch protection – even for environments with children. The practical snap-on mounting, robust metal clamps, and screw connections ensure a secure hold and quick, tool-free installation.

Your advantages

• Simple and secure installation – no messy tools required
• Maximum safety – CE certification, integrated touch protection
• Versatile and flexible – for all common fuse and distribution boxes
• Maximum reliability – high-quality screw connection and robust materials
• Direct power connection – always available immediately where you need power
• Built-in socket for distribution box installation, control cabinet, meter cabinet
• Protective contact socket for 35 mm DIN rail mounting

Typical areas of application

• Maintenance and service work on the control cabinet
• Operation of tools, measuring and testing devices directly in the distribution box
• Connection of notebooks, tablets, or diagnostic devices during programming work
• Temporary power connection for smart meters, data loggers, routers, control or signal technology
• Permanent installation in meter cabinets, distribution boxes, workshop or house connection rooms
• Photovoltaic distribution or charging technology for wall boxes

Technical data

• Housing material: PA66 plastic
• Color: Yellow
• Voltage: 230 V
• Frequency: 50 Hz
• Current: 16 A
• Protection class: IP20
• Weight: 112.4 g
• Dimensions: 75.5 x 44.5 x 65 mm

Scope of delivery

1x yellow Schuko socket for top-hat rail 16A 230V 2P+E
