Victron AGM Deep Cycle Battery 12V 90Ah M6 – High-cycle VRLA Battery

The Victron Energy 12V/90Ah AGM Deep Cycle Battery M6 (MPN: BAT412800085) is a sealed, maintenance-free VRLA battery designed for cyclic applications and high discharge currents. With a nominal voltage of 12 V, a capacity of 90 Ah, and low internal resistance, it is particularly well-suited for battery and power systems with regular charging and discharging cycles as well as increased power demands.

12 V AGM Deep Cycle Battery with 90 Ah

• 12 V nominal voltage
• 90 Ah rated capacity
• Sealed and maintenance-free VRLA-AGM technology
• Low internal resistance for high discharge currents
• Designed for cyclic applications
• Up to 1,500 cycles at a shallow depth of discharge
• Low self-discharge

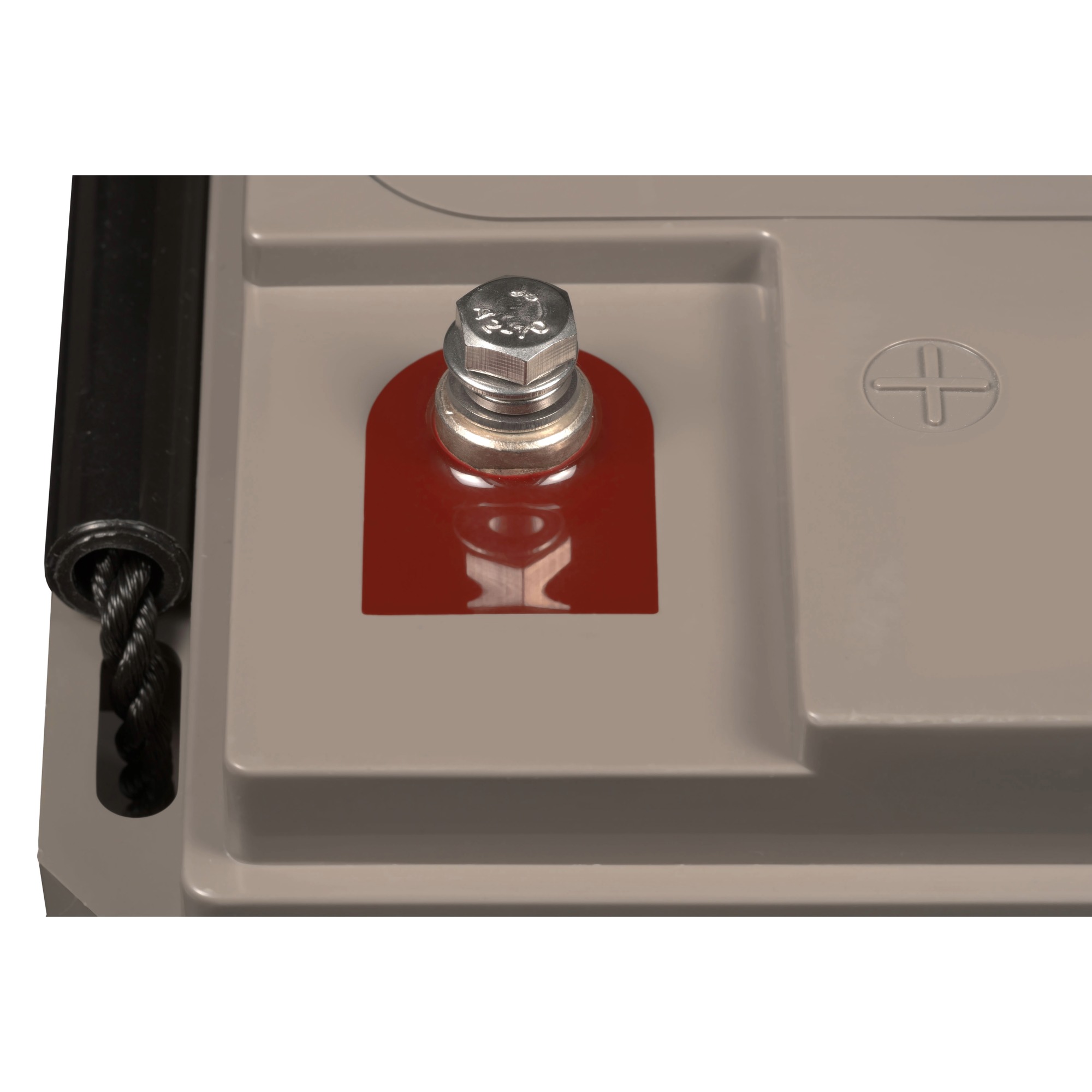

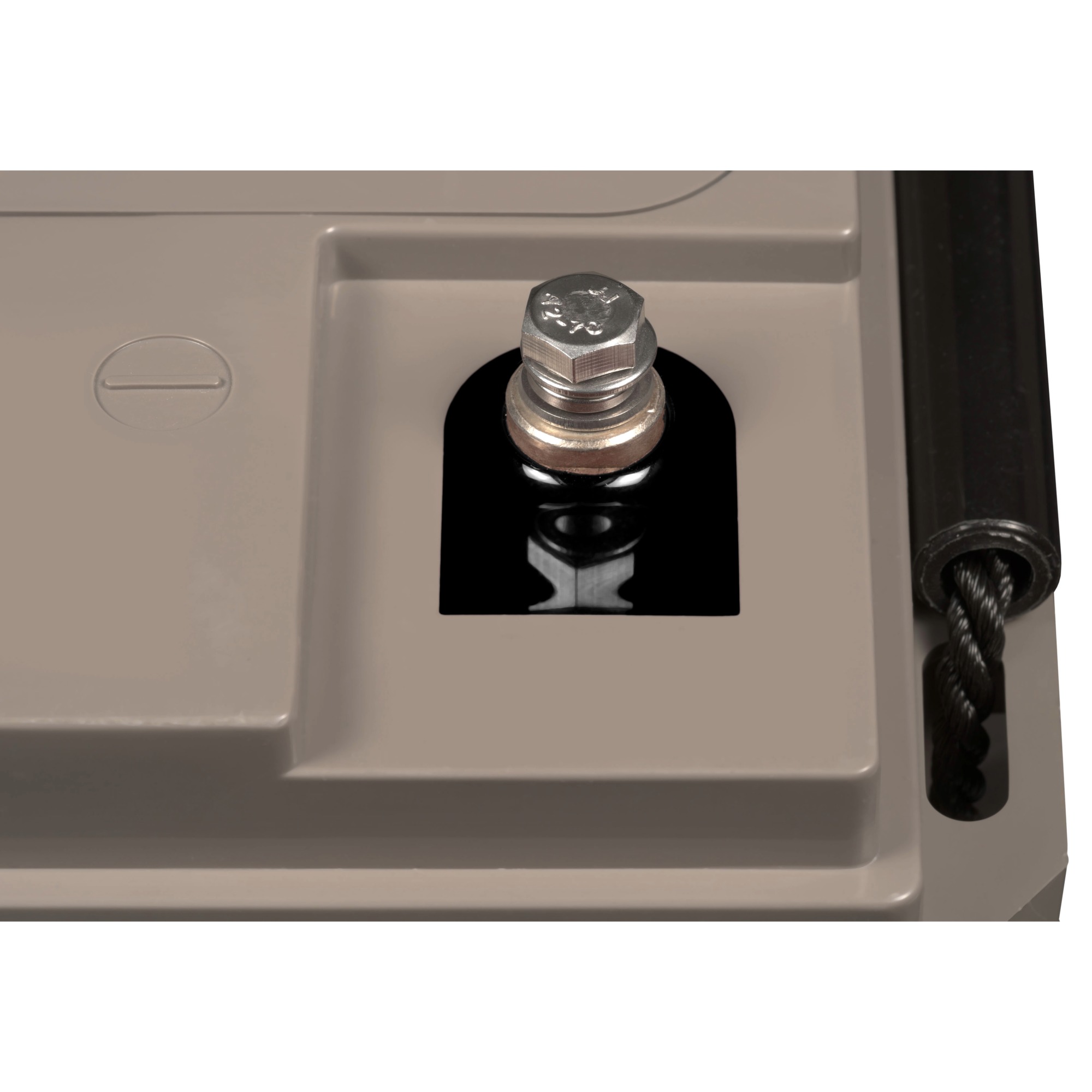

• M6 threaded inserts for electrical connection

AGM technology for cyclic applications

In AGM technology, the electrolyte is bound within a glass fiber mat. This makes the battery sealed, maintenance-free, and suitable for applications with high discharge currents. The low internal resistance is particularly beneficial for operation with inverters and other high-power DC loads. The battery is designed for repeated charging and discharging cycles, with the number of possible cycles increasing as the depth of discharge decreases.

Low self-discharge and compact integration

Due to its low self-discharge rate, the battery is also suitable for systems that are not in use for periods of time. For extended periods of inactivity, appropriate storage and charging conditions should be maintained, as higher temperatures can accelerate self-discharge. M6 threaded inserts allow for electrical connection via appropriately designed cable lugs. With dimensions of 350 × 167 × 183 mm, the battery can be compactly integrated into suitable installation spaces.

Technical Specifications

• Manufacturer: Victron Energy
• Model: 12V/90Ah AGM Deep Cycle Battery (M6)
• MPN: BAT412800085
• Battery Technology: VRLA AGM
• Nominal voltage: 12 V
• Rated Capacity: 90 Ah
• Capacity specification: based on a 20-hour discharge at 25 °C
• Connection: M6 threaded insert
• Cold-crank current at 0 °F: 400 A
• Reserve capacity at 80 °F: 130 min

• Self-discharge: < 2% per month at 20 °C
• Cycle life at 80% discharge: 400
• Cycles at 50% discharge: 600
• Cycles at 30% discharge: 1,500

• Recommended charging voltage, normal cyclic charging: 14.2–14.6 V
• Recommended charging voltage, fast charging: 14.6–14.9 V
• Float voltage: 13.5–13.8 V
• Storage voltage: 13.2–13.5 V
• Recommended charging current: preferably ≤ 0.2 C
• Temperature compensation: -24 mV/°C at 12 V
• Reference point for temperature compensation: 25 °C

• Dimensions (L × W × H): 350 × 167 × 183 mm
• Weight: 27 kg

What’s Included

1 × Victron Energy 12V/90Ah AGM Deep Cycle Battery (M6)
