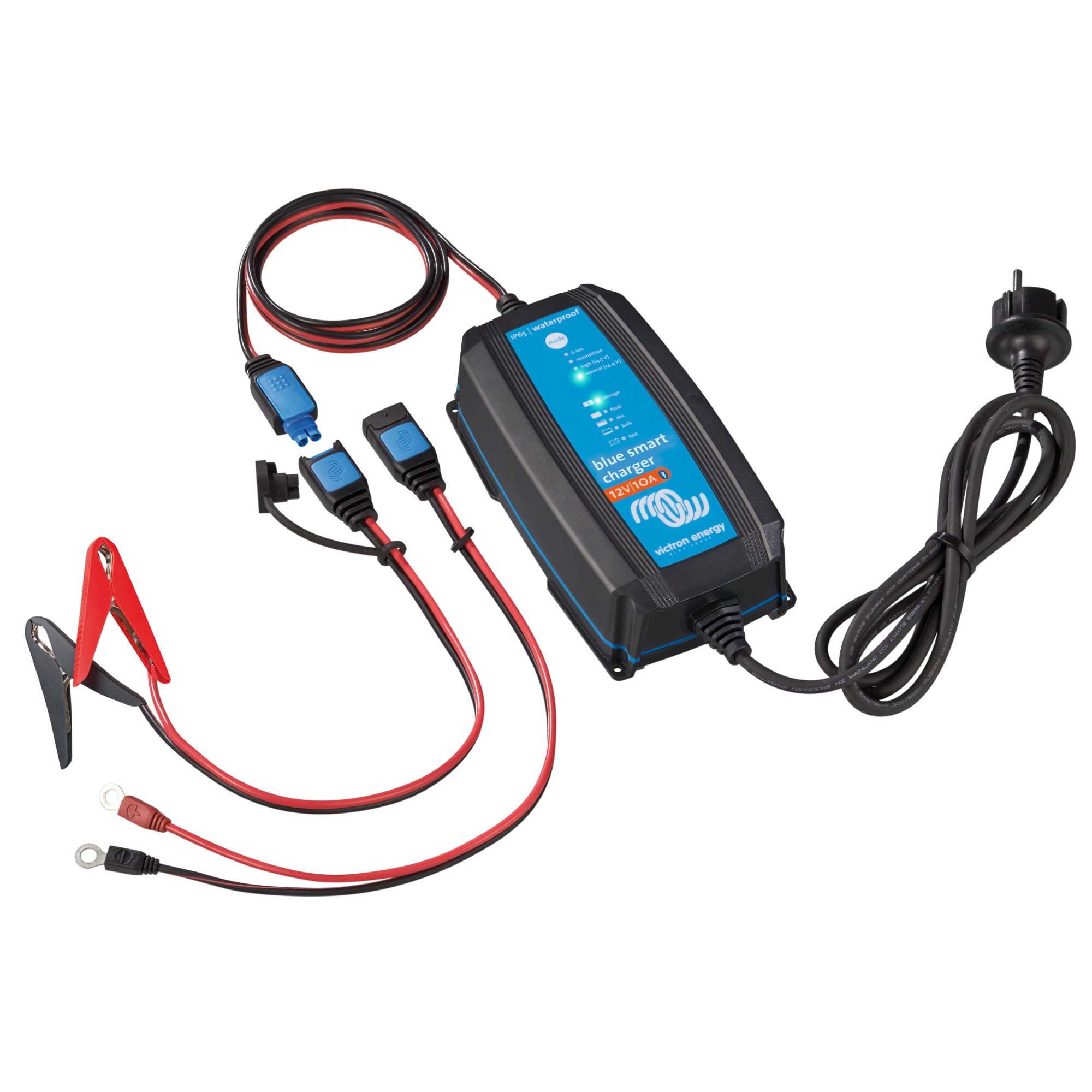

Victron Blue Smart IP65 Charger 12/10(1) 230V CEE 7/16 Battery Charger 12V 10A

The Blue Smart IP65 Charger 12/10(1) 230V CEE 7/16 Retail from Victron (MPN: BPC121031034R) is a smart battery charger for 12V battery systems with a maximum charging current of 10A. The charger combines an adaptive 7-stage charging algorithm with built-in Bluetooth, temperature compensation, and various charging programs. Using the VictronConnect app, you can monitor the state of charge and operating parameters, as well as adjust settings to match the battery being used. The rugged IP65 housing is suitable for both mobile and stationary applications, such as in cars, motorcycles, RVs, and boats.

Smart 12V battery charger with Bluetooth and 10A charging current

• Maximum charging current of 10A for 12V battery systems
• 7-stage adaptive charging algorithm for controlled charging and long-term battery maintenance
• Suitable for lead-acid and lithium batteries
• Built-in Bluetooth for setup and monitoring via the VictronConnect app
• Normal, High, Lithium, and optional Recovery charging modes
• Low-current mode with a reduced charging current of 3A for smaller batteries
• Automatic temperature compensation for lead-acid batteries
• Storage mode for batteries that remain connected to the charger for extended periods
• Recovery function for deeply discharged batteries
• Power supply mode for powering DC loads
• Protection against reverse polarity, output short circuit, and overtemperature
• IP65-rated design for protection against dust and splashing water
• Fanless operation with natural convection cooling
• 230 V AC power connection with CEE 7/16 Euro plug

Adaptive 7-stage charging algorithm

The charger controls the charging process based on the condition of the connected battery. The multi-stage algorithm includes, among other things, test, constant-current, constant-voltage, recovery, trickle, and storage phases. This ensures that the battery is not continuously subjected to an unnecessarily high charging voltage. After the main charge, the device first switches to the trickle charge phase and then to storage mode. During this process, the voltage is further reduced to minimize stress on the battery during extended periods of inactivity. Once a week, the charging voltage is briefly increased to refresh the battery. This operating mode is particularly relevant for seasonally used vehicles, motorcycles, RVs, or boats.

Charging Programs for Different Battery Types

The appropriate charging program can be selected using the MODE button on the unit or via VictronConnect. Profiles available include those for lead-acid batteries and lithium batteries. For lead-acid batteries, Normal and High charging modes—as well as an optional recovery phase—can be used depending on the application. In lithium mode, the charger operates with a specially tuned charging profile. Additionally, the Blue Smart IP65 can attempt to bring a deeply or completely discharged battery back to a voltage level—using a low current—at which the normal charging process can begin.

VictronConnect – Configuration and Monitoring via Bluetooth

The built-in Bluetooth enables a wireless connection to the VictronConnect app. Using a compatible smartphone or tablet, you can view the current state of charge, voltage, and charging current. Additionally, charging history and further information on past charging cycles are available. The app also allows you to select charging profiles and access advanced settings. For specialized applications, experienced users can individually configure charging parameters via the advanced settings or expert mode. This allows the charger to be fine-tuned more precisely to specific battery requirements.

Temperature Compensation and Low-Current Mode

For lead-acid batteries, the charger automatically takes the ambient temperature into account when regulating the charging voltage. The temperature is measured upon startup and again during appropriate charging phases. This allows the charging voltage to be adjusted to different environmental conditions. For batteries with lower capacity, a low-current mode at 3A is also available. The reduced charging current enables more appropriate charging of smaller batteries that are not designed for the full 10A charging current.

For vehicles, marine applications, and seasonal use

With its compact, fanless housing and IP65 protection rating, the Blue Smart is designed for a variety of applications. Typical uses include starter and service batteries in cars, classic cars, motorcycles, RVs, and boats. Victron explicitly lists these mobile applications as areas of use for the series. The integrated storage mode is particularly useful when a vehicle or boat is not in use for an extended period and the battery remains connected to the charger during that time.

Protection Features and Robust Design

It features protection against reverse polarity, output short circuits, and overheating. If the internal temperature rises too high, the output current is reduced. The unit operates without a fan and is cooled by natural convection. The IP65 rating protects the housing against dust and splashing water. This means the device is designed for environments where a conventional charger would require greater protection against moisture and dirt. The permissible operating conditions specified in the user manual must still be observed during installation and use.

Technical Specifications

• Battery system: 12V
• Number of charging outputs: 1
• Maximum charging current: 10A
• Charging current in low-current mode: 3A
• Input: 230V AC
• Mains frequency: 45–65 Hz
• Efficiency: 94%
• Bluetooth: built-in, 2.402–2.480 MHz
• Cooling: natural convection, fanless
• Protection rating: IP65
• Power cord: 1.5 m with CEE-7/16 plug
• DC connection: 1.5 m long black and red cable with DC connector
• DC cable cross-section: 2.5 mm² / 14 AWG
• Weight: approx. 0.9 kg
• Dimensions: 190 × 105 × 60 mm

Package Contents

1x Victron Blue Smart IP65 Charger 12/10(1) 230V CEE 7/16 Retail
1x connection cable with battery terminals
1x connection cable with M8 ring terminals
