Victron PWM-PRO to USB interface cable

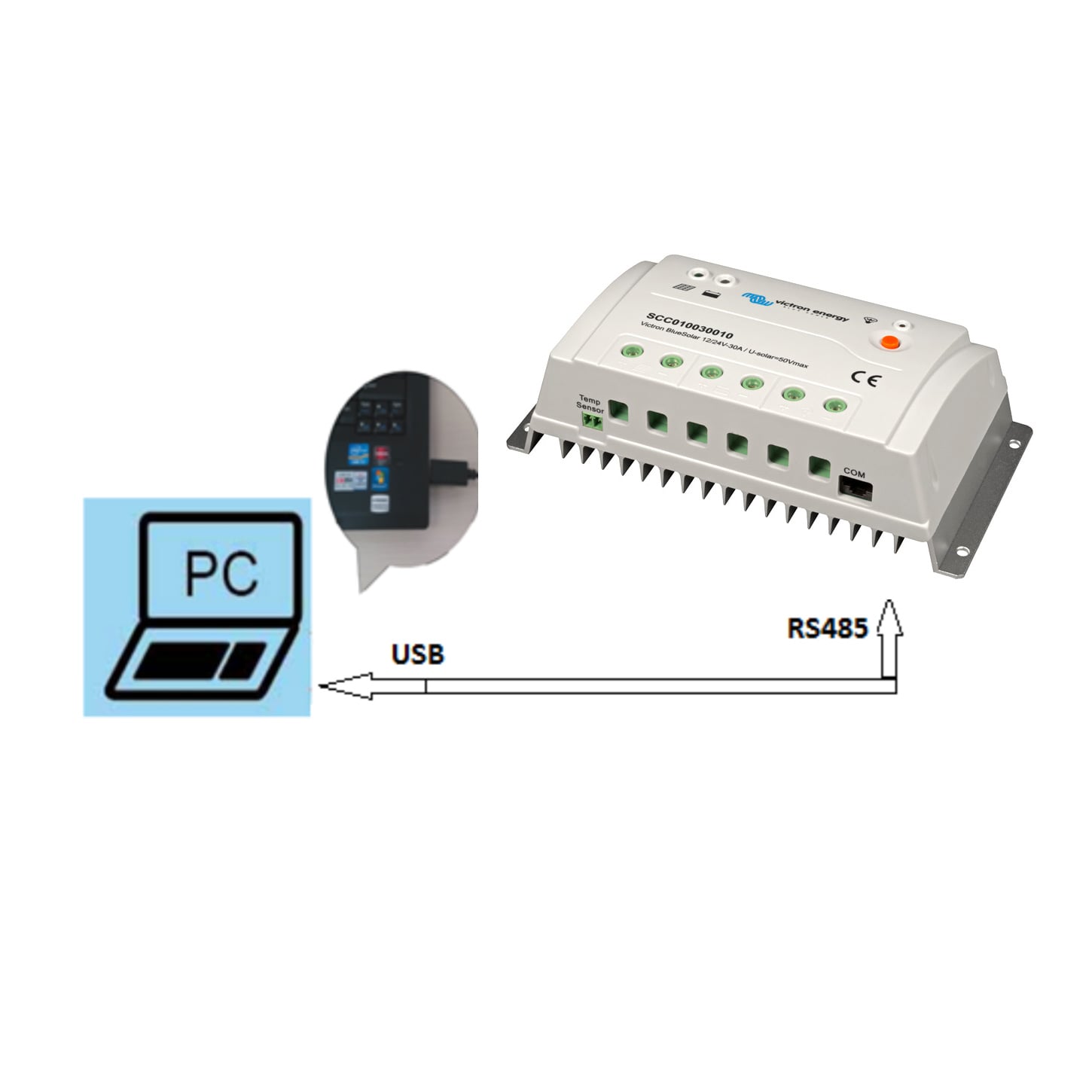

The Victron PWM-Pro USB Interface Cable (MPN SCC940100200) establishes a connection between a PC/notebook and a Victron BlueSolar PWM-Pro charge controller. Together with the free PWM-PRO configuration software, this cable opens up a whole new world of possibilities in terms of control and operation.
almost all relevant settings, such as charging voltage, etc., can be customized (freely) programmed via the computer. This is a feature that is otherwise only found in higher-end models. Specific charging and discharge voltages can be programmed based on three different battery types, as well as switch-off and switch-on thresholds for the load output or complete lighting control. All configuration options can be found in the attached software user manual.

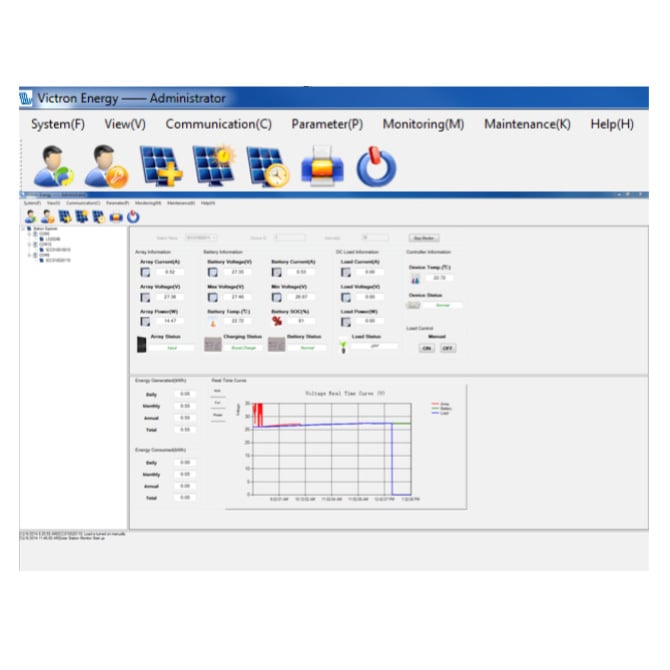

The PWM-PRO software and the latest drivers for Windows operating systems can be found in the product description under product downloads.
The USB link cable and the software mentioned here are compatible with the following Victron controllers:
SCC010010010 Victron BlueSolar PWM-Pro 12V 24V 10A, item no. 1-67-008445
SCC010020110 Victron BlueSolar PWM-Pro 12V 24V 20A, item no. 1-67-008450
SCC010030010 Victron BlueSolar PWM-Pro 12V 24V 30A, item no. 1-67-008455
Scope of delivery

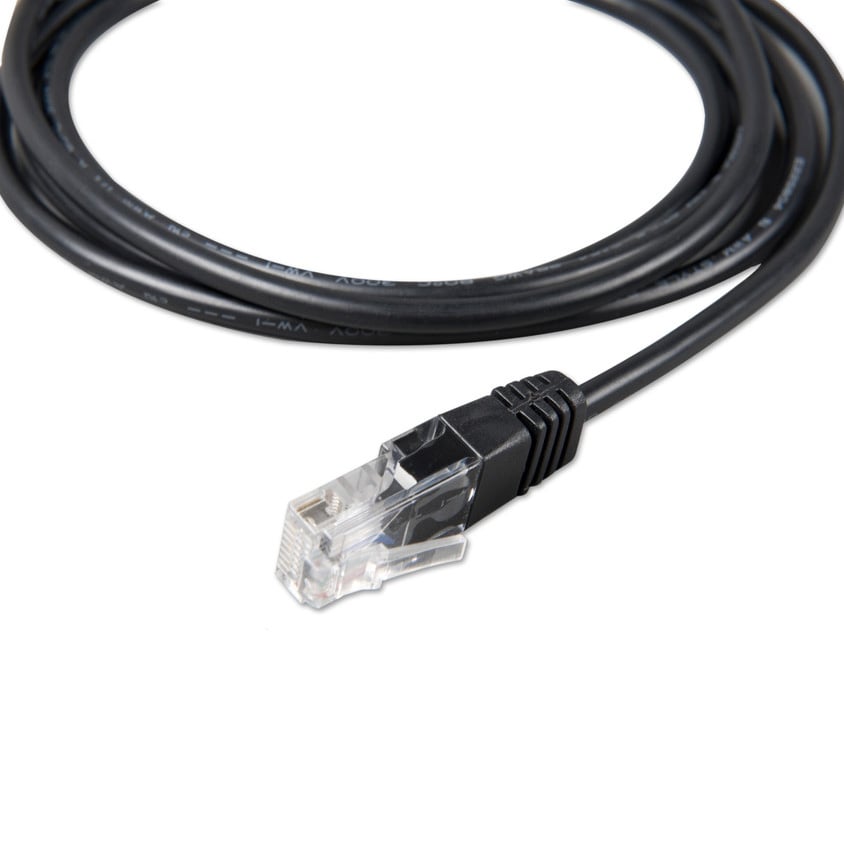

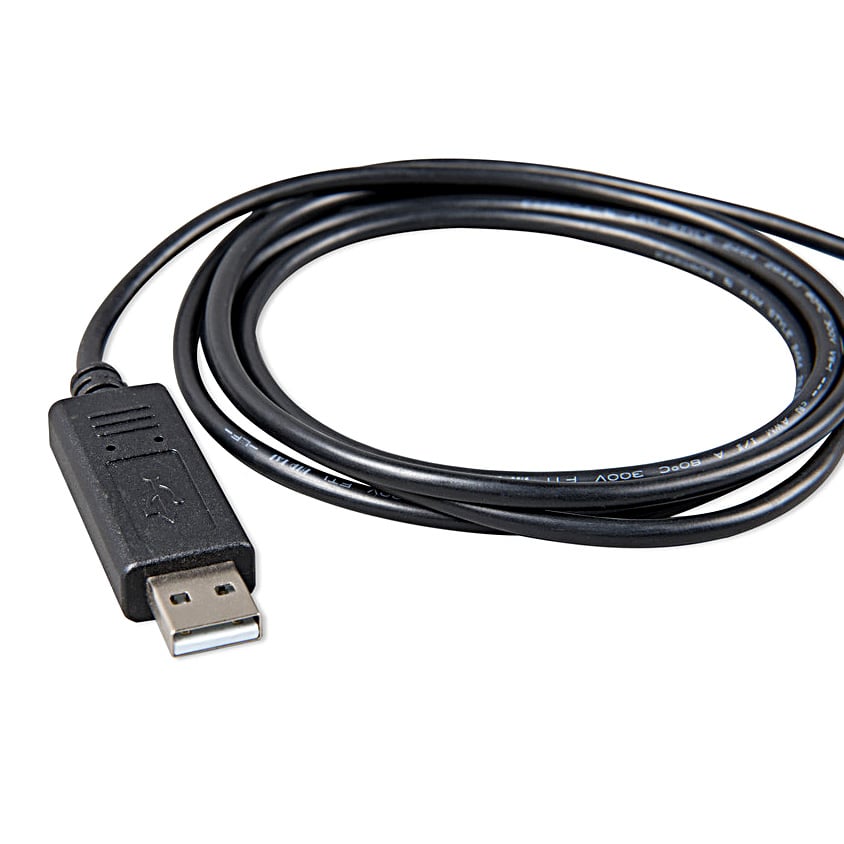

1x Victron SCC940100200 PWM-Pro USB interface cable
Manufactuerer Information
Victron Energy
Victron Energy B.V.
De Paal 35
1351 JG Almere
Netherlands
Mail: sales@victronenergy.com
Tel.: +31 365359700
