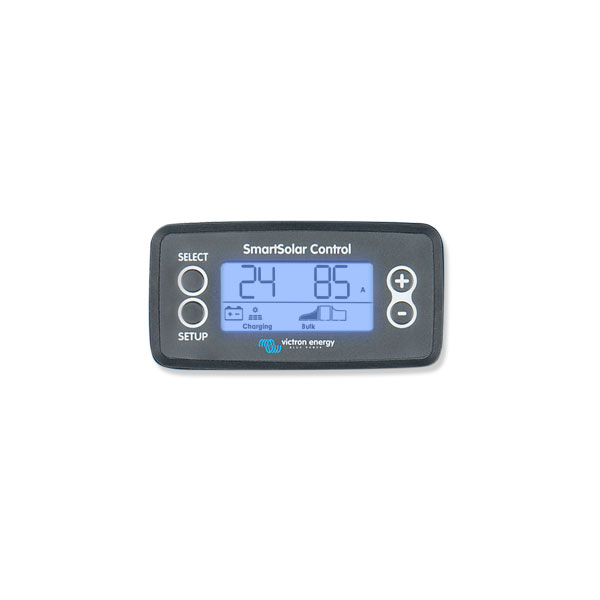

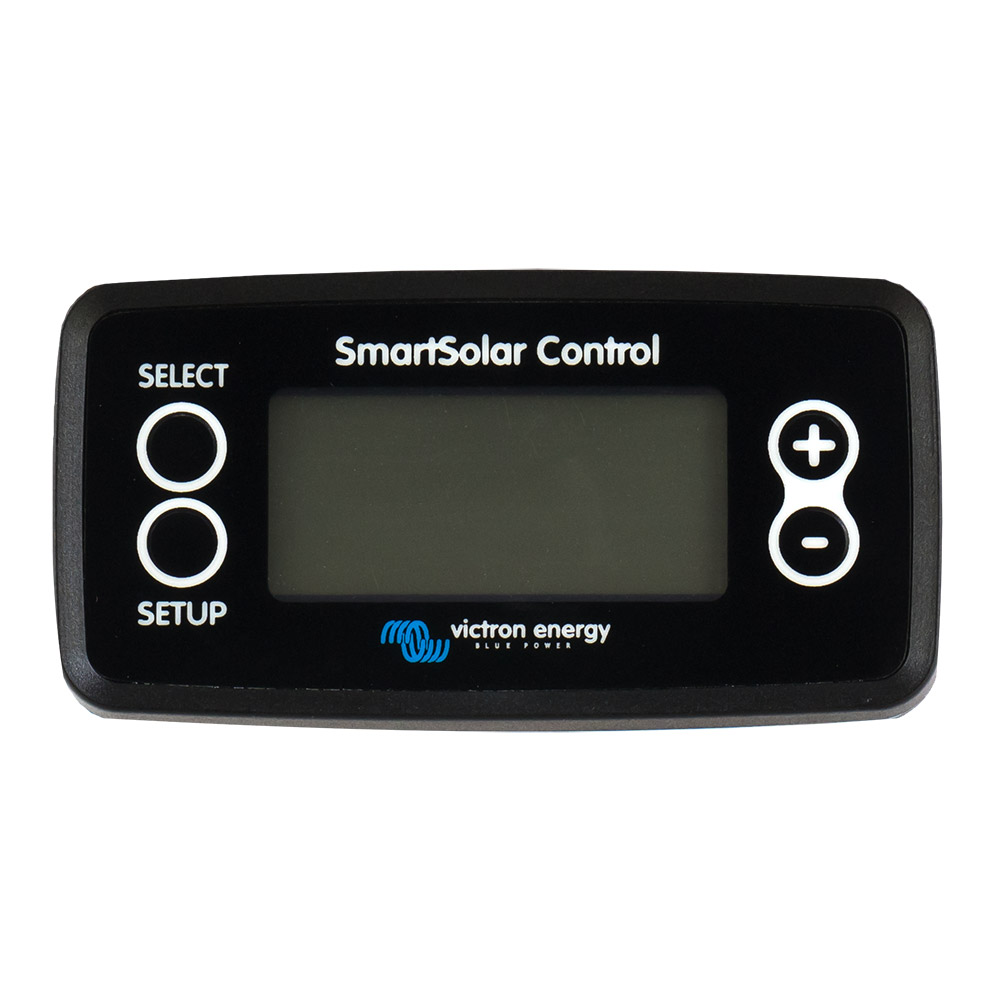

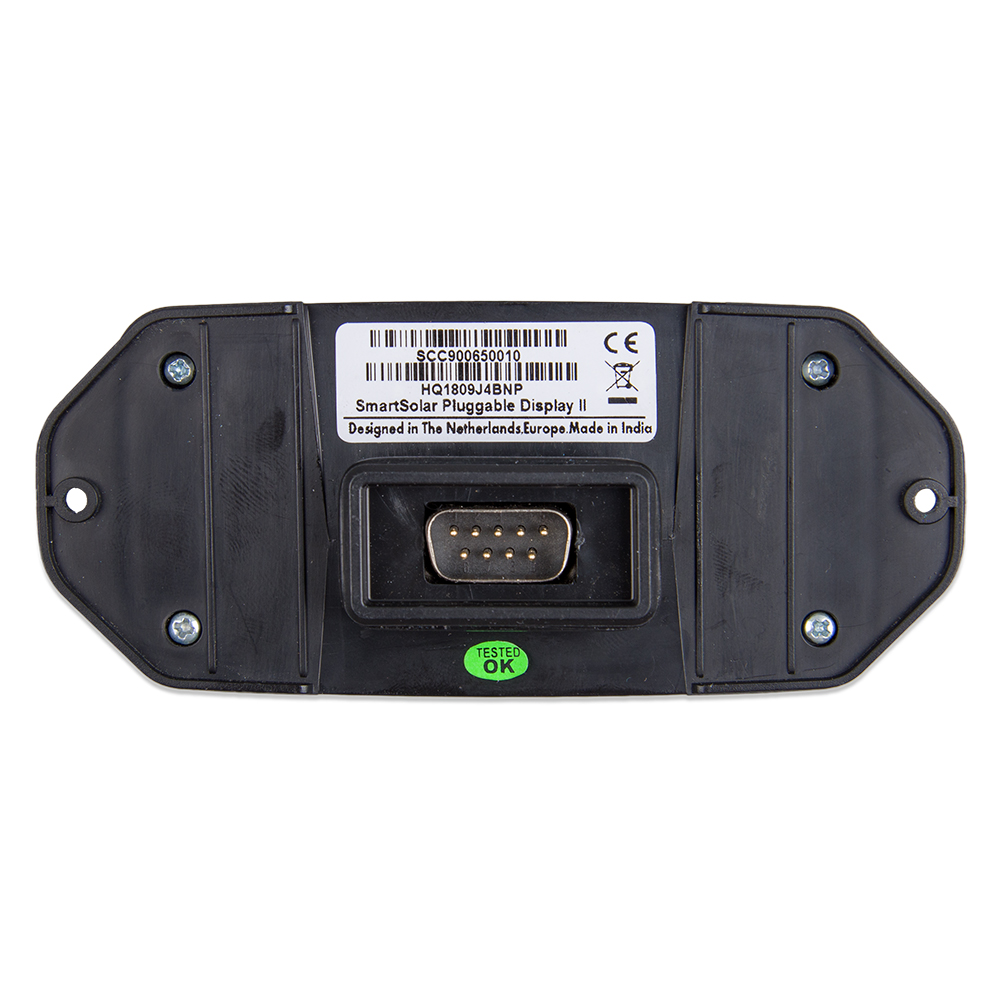

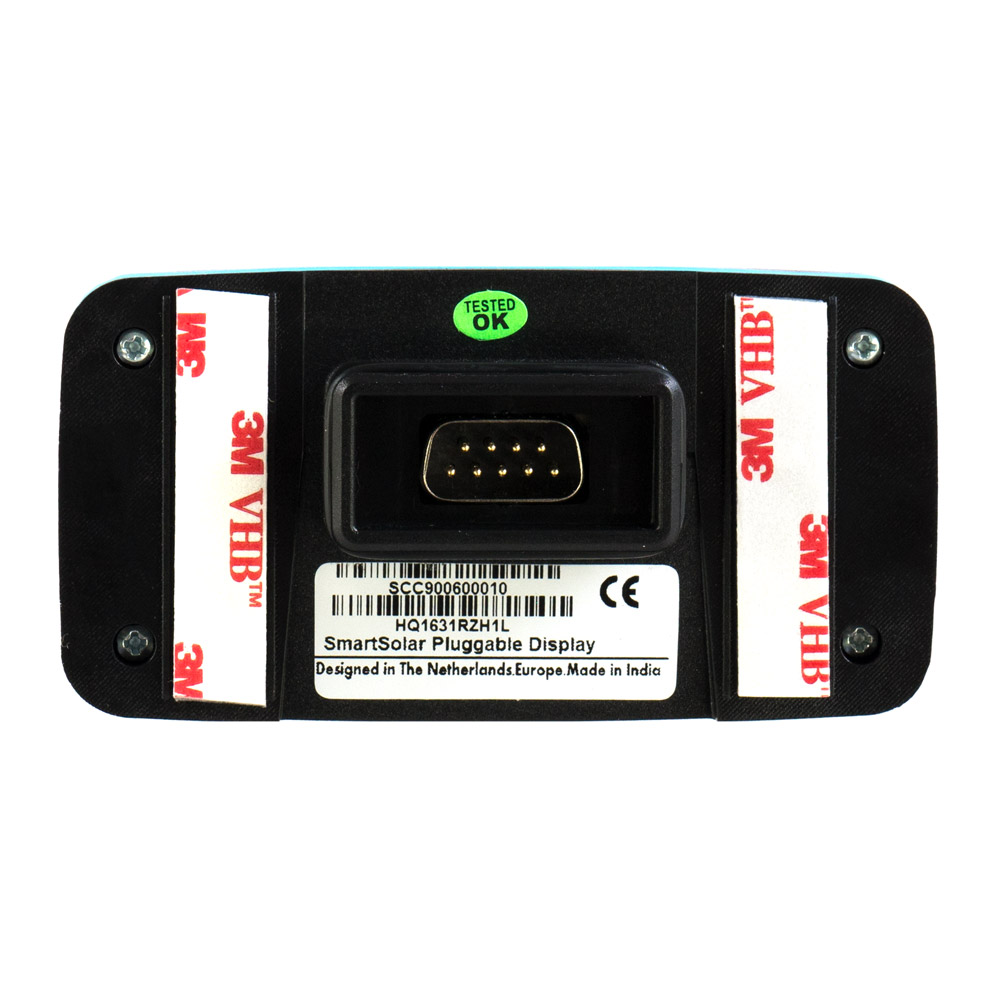

Victron SmartSolar pluggable display for MPPT controllers

Color Control GXThe Color Control (CCGX) provides intuitive control and monitoring for all products connected to it. The list of Victron products that can be connected is endless: Inverters, Multis, Quattros, all our latest MPPT solar chargers, BMV-700, BMV-600, Lynx Ion+ Shuntand more. VRM Online PortalBesides monitoring and controlling products on the CCGX, the information is also forwarded to the free remote monitoring website: the VRM Online Portal. To get an impression of the VRM Online Portal, visit https://vrm.victronenergy.com, and try the demo. See also the screenshots in the datasheet.Future functionalityThe CCGX has endless possibilities. To implement all the ideas and wishes will take years. There are therefore many features that are not yet available. Functions marked with ‘Future function’ will become available later on, as a firmware update. Firmware updates are free of charge, as with all updates of Victron products. Updating the product is easy: the CCGX will update itself automatically, as long as it is connected to the internet. Manual updates can be done with a USB stick and microSD cards.Supported products Multis and Quattros, including split phase and three-phase systems. Monitoring and control (on/off and current limiter). Changing settings is not yet available. BlueSolar MPPT 150/70 and the MPPT 150/85. Current solar output is visible on the overview screen, and all parameters are logged to the VRM online portal. Note that the VRM App has a nice overview showing data of the BlueSolar MPPT 150/70 as well. When multiple BlueSolar MPPTs with VE.Can are used in parallel, the Color Control will show all information as one. BlueSolar MPPT Solar Chargers with a VE.Direct port (70/15, 75/15, 100/15, 100/30, 75/50, 100/50, 150/35) can be connected to the VE.Direct ports on the CCGX. Connecting multiple at the same time is possible. They will all appear as a separate Solar Charger in the device list. BMV-700 family can be connected directly to the VE.Direct ports on the CCGX. Use the VE.Direct Cable for this. BMV-600 family can be connected to the VE.Direct ports on the CCGX. Use the VE.Direct to BMV60xS cable for that. Lynx Ion + Shunt Lynx Shunt VE.Can Skylla-i NMEA2000 tank sensors A USB GPS can be connected to the USB port. Location and speed will be visible on the display, and the data is sent to the VRM Portal for tracking purposes. The map on VRM will show the latest position. WiFi USB.  Note that there are more options for products which use the VE.Direct ports, such as BMVs and small MPPTs. They can also be connected through USB, useful when more than two products need to be connected. Use an off-the-shelf USB-hub and the VE.Direct to USB interface, ASS030530000.Other highlightsWhen connected to the internet, the CCGX will update itself automatically when there is a new software version available.Multiple languages: English, Chinese, German, Italian, Spanish, French, Swedish and Dutch.Use the CCGX as a Modbus-TCP gateway to all connected Victron products.Notes for existing VGR2 and VER usersOpposite to the Victron Global Remote 2 (VGR2) and Victron Ethernet Remote (VER), the CCGX stores all data locally during network interruptions. As soon as the connection to the VRM Online Portal is restored, it will automatically send all backlogged data to the portal. Data can then be analysed on https://vrm.victronenergy.com. The local website, as present on the VER, is not yet supported.The CCGX has no internal GPRS modem: you cannot insert a sim-card into the CCGX. Use an off-the-shelf GPRS or 3G router instead.

The Smartsolar mppt 150/85-tr from Victron Energy (mpn scc010085210), belongs to the latest generation of smart solar controllers from the Dutch premium manufacturer. Ultra-fast power tracking and automatic power point detection in case of partial shading are just 2 of the many highlights of this new class of devices. The devices of the classes 150/45tr to 150/100-tr are also available as a version with MC4 connections on the solar side of the charge controller instead of screw terminals. In addition, this model masters parallel operation with other controllers of the same type Compared to the BlueSolar series, the Bluetooth module is already integrated in the controller of the Smartsolar family, which makes the smart dongle superfluous for this device. Also new is the optionally available lcd display, which can be simply plugged onto the SmartSolar 150/85-tr as required. The display then provides all the important information about the controller. Optional, the MPPT-WireBox-XL Tr from Victron Energy is the ideal complement for your SmartSolar charge controller. It securely covers the cable inputs or connection terminals of the controller, protecting them from external influences and contact. smart data communication via VE.Direct and lightning-fast Bluetooth module Modern Apple and Android smartphones, tablets, Macbooks and other devices can be connected thanks to the permanently integrated Bluetooth module and the free Victron Connect app. The app can then be used to configure many important functions of the SmartSolar controller. Of course, it also provides all important parameters such as the current solar yield in real time Automatic detection of the maximum power point in case of partial shading In the case of partial shading, there may be two or more maximum power points (mppts) on the current-voltage curve. Conventional mppts tend to settle on a local mpp. However, this may not be the optimal mpp. The innovative algorithm of the SmartSolar device will always maximize the energy yield by adjusting to the optimal mpp key product features of the SmartSolar 150/85-Tr 85a 12v 24v 36v 48v mppt latest generation ultra-fast mpp tracker ensures best possible yield even in overcast conditions automatic detection of mpp voltage in case of partial shading provides further yield improvement compared to "simple" mppt charge controller with optional lcd display integrated bluetooth module for app based analysis and configuration of the controller (via free Victron app on compatible devices) optional lcd display available integrated VE.Direct data communication port for connection to additional devices such as the gx Color Control Panel or a Smart bmv battery monitor high maximum efficiency of 98 Parallel operation with other 150/85 controllers possible Adjustable constant charge voltage Adjustable float charge voltage Suitable for all agm, gel, lead-acid calcium-calcium and lithium batteries fully programmable charging algorithms which are later manually activated and toggled via a switch on the case Rated charge current 85a, 150v maximum PV open circuit voltage maximum PV power: 12v 1200w / 24v 2400w / 48v 4900W integrated protection against battery polarity reversal multi-stage and adaptive charging algorithm remote on/off switching possible via 2-pin plug Protection class ip 43 for the electronic components and protection class ip 22 for the connection area of the controller integrated temperature sensor balances maintenance and constant charging voltage according to temperature Day/night time control and light dimming option Latest generation high speed mpp tracker Especially in overcast conditions when light intensity is constantly changing, an extremely fast mppt controller improves energy output by up to 30% compared to PWM charge controllers and by up to 10% compared to slower mppt controllers extensive electronic protection Reverse battery connection protection PV reverse current blocking Protection against overheating of the device Protection against short circuits Protection against reverse polarity PV connection the VE.Direct data communication port VE.Direct in text mode transmits all important parameters to other devices coupled to the charge controller every second, providing the possibility of communication with auxiliary devices system panel gx Color Control. The VE.Direct connection is intended for products where a full Canbus integration (VE-Direct) would be too costly. More information about VE.Direct can be found in our Victron Energy brand store Scope of delivery 1x Victron scc010085210 SmartSolar mppt 150/85-Tr 12v 24v 36v 48v 85a charge controller Instruction manual

The Smartsolar mppt 250/100-tr from Victron Energy (mpn scc125110210), belongs to the latest generation of smart solar controllers from the Dutch premium manufacturer. Ultra-fast power tracking and automatic power point detection in case of partial shading are just 2 of the many highlights of this new class of devices. In addition, this model is capable of parallel operation with other controllers of the same type Compared to the Smartsolar 150/..... Series, the 250/.... Series can handle a maximum PV input voltage of 250v. This is also one of the reasons why the 250 solar controller family has been able to increase efficiency by another 1 percent to a total of 99%, defining new standards in the industry. Among all solar charge controllers we know, this value is currently the best. Compared to the BlueSolar family, the Bluetooth module is already integrated in the controller of the 250 Smartsolar series, which makes the smart dongle superfluous for this device, if you want to analyze and configure the controller via smartphone or tablet Also new is the optionally available lcd display, which can simply be plugged onto the SmartSolar 150/85-tr as required. The display then provides all the important information about the controller. Optional, the MPPT-WireBox-XL Tr from Victron Energy is the ideal complement for your SmartSolar charge controller. It securely covers the cable inputs or connection terminals of the controller, protecting them from external influences and contact. smart configuration and analysis via Victron Connect App Modern Apple and Android smartphones, tablets, Macbooks and other devices can be connected thanks to the permanently integrated Bluetooth module and the free Victron Connect app. The app can then be used to configure many important functions of the SmartSolar controller. Of course, it also provides all important parameters such as the current solar yield in real time automatic detection of the maximum power point in case of partial shading In case of partial shading, there may be two or more maximum power points (mppts) on the current-voltage curve. Conventional mppts tend to settle on a local mpp. However, this may not be the optimal mpp. The SmartSolar controller's innovative algorithm will always maximize energy output by adjusting to the optimal mpp key product features of the SmartSolar 250/100-Tr 100a 12v 24v 36v 48v mppt latest generation ultra-fast mpp tracker ensures best possible yield even in overcast conditions automatic detection of mpp voltage in case of partial shading provides further yield improvement compared to "simple" mppt charge controller with optional lcd display integrated bluetooth module for app based analysis and configuration of the controller (via free Victron app on compatible devices) optional lcd display available max. PV power: 12v 1450w / 24v 2900w / 48v 5800W max rated charge current 100a, 150v max PV open circuit voltage max. PV input current: 250 volts integrated VE.Direct data communication port for connection To communicate with auxiliary devices the gx Color Control Panel or a Smart bmv battery monitor groundbreaking 99% efficiency Parallel operation with other 250/85 controllers possible Adjustable constant charge voltage Adjustable float charge voltage Suitable for all agm, gel, lead-acid calcium-calcium and lithium batteries fully programmable charging algorithms which are later manually activated and toggled via a switch on the case integrated protection against battery polarity reversal multi-stage and adaptive charging algorithm remote on/off switching via 2-pin plug possible Protection class ip 43 for the electronic components and protection class ip 22 for the connection area of the controller integrated temperature sensor balances maintenance and constant charging voltage according to temperature Day/night time control and light dimming option Latest generation high speed mpp tracker Especially in overcast conditions when light intensity is constantly changing, an extremely fast mppt controller improves energy output by up to 30% compared to PWM charge controllers and by up to 10% compared to slower mppt controllers optional lcd display available for retrofitting For those who prefer to operate and configure the Smartsolar mppt 250/100-tr directly, the Smartsolar Control scc900600010 display can be retrofitted. The installation effort is only limited to plugging the display onto the SmartSolar. The display allows easy configuration of the controller via key input, and also provides all important performance data at a glance extensive electronic protection Reverse battery connection protection PV reverse current lockout Protection against overheating of the device Protection against short circuits Protection against reverse polarity PV connection the VE.Direct data communication port VE.Direct in text mode transmits all important parameters to other devices coupled to the charge controller every second, providing the possibility of communication with auxiliary devices system panel gx Color Control. The VE.Direct connection is intended for products where a full Canbus integration (VE-Direct) would be too costly. More information about VE.Direct can be found in our Victron Energy brand store optionally also available as version with MC4 connectors The devices of the classes 250/60-Tr to 250/100-Tr are also available as a version with MC4 connections on the solar side of the charge controller instead of the screw terminals Scope of delivery 1x Victron scc125110210 SmartSolar mppt 250/100-tr 12v 24v 36v 48v 85a charge controller 1x instruction manual

The Victron Energy Venus gx system control module (mpn bpp900400100) provides intuitive operation and monitoring of all power systems based on Victron components. It is particularly suitable as the heart of an ess (Energy Storage System). In terms of functionality, the Venus gx is similar to the Color Control gx from Victron, but without a display and without a built-in modem, but much cheaper. It transmits all system data to the free vrm portal from Victron, from where you can monitor and administer your power system worldwide. In addition to the power electronics, tank levels of up to 3 tanks can be monitored and visualized in the vrm portal. besides remote monitoring of the connected devices, remote configuration is also possible. Remote Console on the vrm Setup and monitoring is done via the remote console. Either via the vrm, via the built-in WiFi access point or via the local LAN/WiFi network. Automatic genset start/stop A highly flexible start/stop system. Use of charge, voltage, load and even more parameters. Specific settings for rest periods and optionally a monthly test run can be set. Internet connection The Venus gx can be connected to the Internet with an Ethernet cable and via Wi-Fi. The Venus gx does not have an internal cellular modem: there is no slot for a sim card. Use a commercially available gprs or 3 g router instead. Tank level indicator inputs The inputs for the tank level indicator are resistive: connect them to a resistive tank transmitter. Such tank transmitters are not offered by Victron. The ports of the tank level indicator can each be configured to work with European tank transmitters (0 - 180 ohms), or with US tank transmitters (240 - 30 ohms). Data logging If the system is connected to the internet, all data is sent to the vrm portal. If no internet connection is available, the Venus gx stores the data internally for up to 48 hours. By inserting a micro SD card or a usb stick, even more data can be stored. These files can be uploaded to the vrm portal or converted offline for analysis using the VictronConnect app. further highlights The Venus gx can automatically update itself via the Internet when a new software version is available. Multiple languages: English, Czech, German, Spanish, French, Italian, Dutch, Russian, Swedish, Turkish, Chinese, Arabic. Use the Venus gx as a Modbus TCP gateway to all connected Victron products. Linux os based operating system supported products Multis and quattros, including split-phase and three-phase systems. monitoring and control (on/off and current limiter). Configuration change is possible (only remotely via internet, not without internet connection). BlueSolar mppt solar chargers with a VE.Direct port. BlueSolar mppt 150/70 and the mppt 150/85 with VE.Can port. When multiple BlueSolar mppts with VE.Can are used in Parallel connection, all information is combined in one. devices of the bmv-700 family can be connected directly to the VE.Direct ports on the Venus gx. Use The VE.Direct cable for this purpose. bmv-600 family devices can be connected to the VE.Direct ports on the Venus gx. An additional cable is required. Lynx Ion + Shunt Lynx Ion BMS Lynx Shunt VE.Can Skylla-i Battery Chargers NMEA2000 tank sensors A usb gPS can be connected to the usb port. The data is sent to the vrm portal for traceability. The map on the vrm then shows the most recent position. Fronius PV inverter Scope of delivery: 1x Victron bpp900400100 Venus gx system control module 1x user manual
