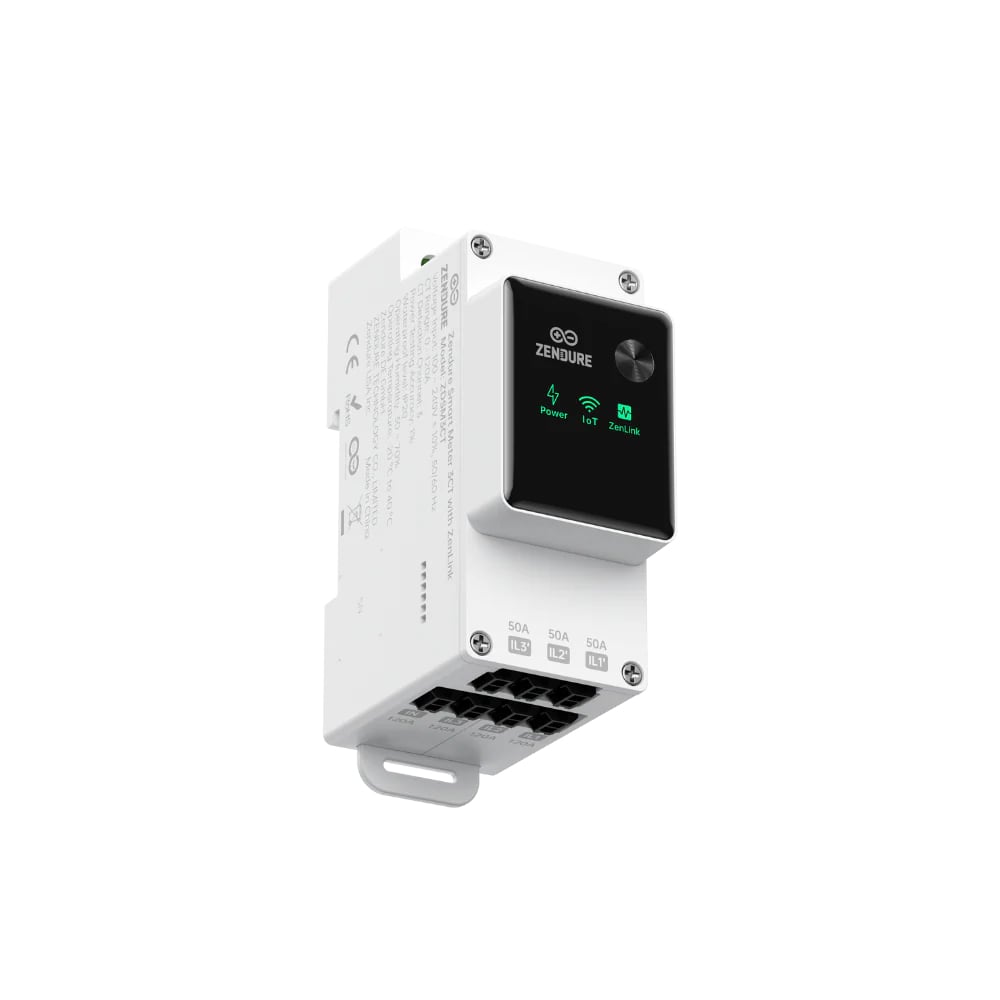

Zendure Smart Meter 3CT 120A

With the 3-phase Zendure Smart Meter 3CT (MPN: ZDSM3CT-wh-eu), you can keep an eye on your energy consumption at all times and specifically improve the efficiency of your photovoltaic system, balcony power plant, or storage system. The 3CT meter is easily installed on a DIN rail and reliably measures all relevant current, voltage, and power data in real time—for complete transparency and control. The meter connects easily to your Zendure home battery and the SolarFlow system via Wi-Fi and Bluetooth. Your measurement data is transmitted directly, so the system automatically recognizes when electricity should be stored, consumed, or fed into the grid—tailored to your individual needs. The result: maximum convenience, optimal energy use, and an important step toward a sustainable, future-proof home.

The advantages of the Zendure 3CT electricity meter

• Response time under 3 seconds
• 1 W precision
• Real-time overview of all 3 phases
• Local communication: works even without an internet connection
• Instantly accessible energy measurement and status display
• No energy waste thanks to automatic control
• Full control and transparency over your energy flows
• Simple plug-and-play installation on the DIN rail
• App function, Bluetooth, and Wi-Fi for flexible operation
• No ongoing annual fees

High compatibility (ZEN+ OS)

• Hyper 2000
• SolarFlow 800
• SolarFlow 800 Pro
• SolarFlow 2400 AC
• AIO 2400
• Hub 2000
• Hub 1200

Ideal for households with:

• Photovoltaic systems
• Balcony power plants
• Energy storage systems

Zendure app – Everything under control, everywhere

With the Zendure app, you can monitor your entire system and change settings. Information is displayed in real time, including weather and green electricity consumption, so you can optimize your system's configuration. Customize settings, optimize self-consumption, and access historical data—all in a clear and intuitive design.

Technical data

• Nominal system voltage: 100 - 240 VAC ± 10%
• Frequency: 50/60 Hz
• Power consumption: <3 W
• Max. power per channel: 120 A
• Relative humidity: 30~70%
• Protection class: IP20
• Operating temperature: -20°C to +40°C
• Weight: 117.57 g
• Dimensions: 91 x 36.5 x 64 mm

Scope of delivery

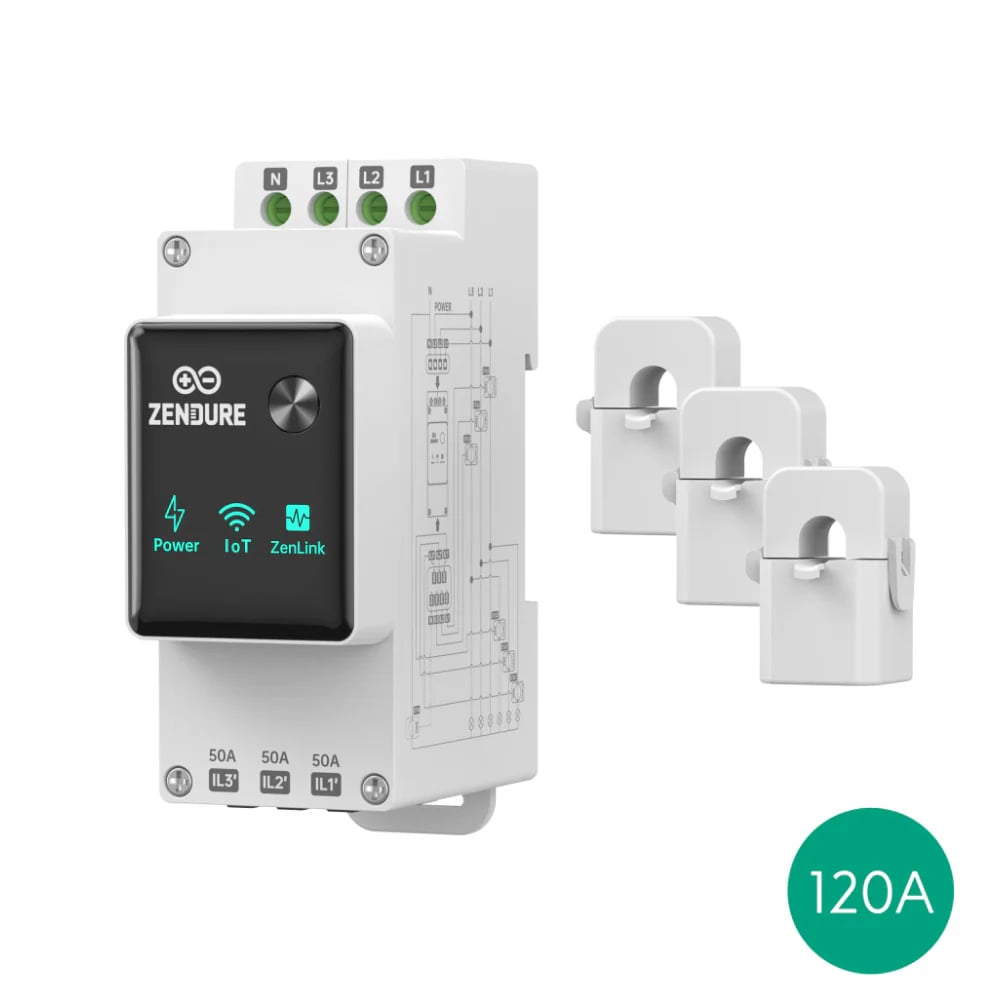

1x Zendure Smart Meter

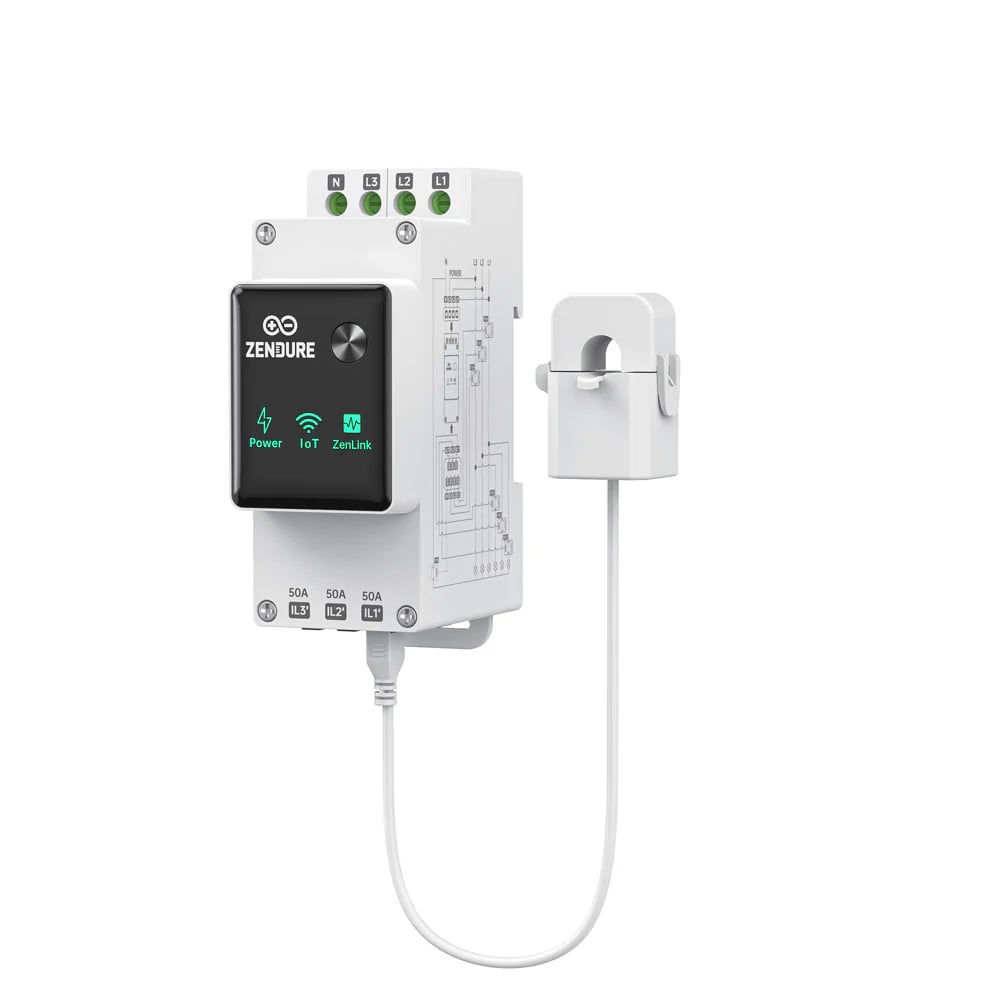

3x 120 A current transformers (CT)
1x user manual
