The us3000c (mpn us3000c) is a lithium storage system of the latest generation. The accumulator was specially developed to fully meet the high demands placed on a solar accumulator today. Maximum safety and a long service life are guaranteed even with regular deep discharge thanks to the latest technology. The latest battery of the market-leading manufacturer with now 3.5 kWh per module has again a battery management system (bms) built into each module and therefore offers a lot of security. Internally, the individual cells are thus monitored and balanced against overvoltage, overtemperature, deep discharge, etc. protected. The battery is compatible and certified with many available inverters. Features Extremely cycle resistant - over 6000 cycles at 95% DoD More usable energy content than the previous model US3000 Lifetime over 10 years Absolutely intrinsically safe lithium technology Compatible with many available inverters Automatic address setting when connected in multi-groups High charging and discharging power possible Integrated BMS Very high storage density - low weight and compact design Easy installation thanks to modular design Absolutely maintenance-free and durable Built-in soft-start function capable of reducing the current surge when the inverter is started from the battery Dual active protection at BMS level Supports WakeUp by 5-12V signal from rj45 port Pre-charge function to protect ESS system from overvoltage function Battery management system in each module The battery management system integrated in each module protects each installed battery cell from harmful influences over the entire life of the module and effectively prevents premature failure. Protection against: Deep discharge and overcharge overvoltage during charging excessive currents during charging and discharging over and under temperature Short circuit and reverse polarity Constant monitoring of the individual cell voltages (cell balance) Modular design The system has a modular design and can be configured precisely to the desired storage capacity by interconnecting several modules. Each storage module consists of a high-performance lithium iron phosphate (LiFePo4) accumulator and an integrated BMS. High cycle life The extremely high cycle life of the installed LiFePo4 cells make Pylontech us3000c modules the optimal storage solution for photovoltaic systems. Regardless of whether the solar system is grid-connected or stand-alone, the Pylontech storage system offers several advantages over typical lead-acid batteries and other lithium technologies. Technical data Battery Type: Lithium Iron Phosphate (LiFePo4) Rated voltage: 48V Rated capacity: 3552 Wh Usable capacity (95% DoD): 3374 Wh Discharge voltage range: 44.5 - 53.5V Charging voltage range: 52.5 - 53.5V Max. Peak (discharge) charging current: 90A Max. (Discharge) charging current: 74A Recommended charge/discharge current: 37A Communication: rs485, CAN Weight: 32 kg Dimensions: 442 x 420 x 132 mm Protection class: IP20 Temperature range charge: 0°C - +50°C Temperature range discharge: -10°C - +50°C Temperature range storage: -20°C - +60°C Service life: over 10 years Cycle life: over 6000 at 95% DoD BMS / monitoring: integrated in each module Warranty: 10 years manufacturer warranty Certification: TÜV, ce, UN38.8 Due to the classification as dangerous goods, this product will be shipped by freight forwarding! Scope of delivery: 1x Pylontech us3000c LiFePO4 3.5 kWh 1x cable set parallel connection incl. grounding 1x rj45 data cable 1x mounting screws 1x user manual
The us3000c (mpn us3000c) is a lithium storage system of the latest generation. The accumulator was specially developed to fully meet the high demands...
The LiFePO4 12/100 Smart Pro from Offgridtec (mpn 2-01-010870) is an intelligent, 12.8 v 100 Ah lithium iron phosphate battery of the latest generation with Bluetooth communication function. Its rated energy is 1280 Wh and it weighs only 13 Kg. Depending on the discharge battery, our LiFePO4 12/100 Smart Pro can manage up to 5000 cycles, surpassing even the best agm and GEL batteries in terms of durability many times over. Together with the free Offgridtec Akkuviewer Smart App for iOS and Android devices the function monitoring of the lithium battery allows. The constitution of the battery is extremely solid in physical terms. This predestines it for use in a particularly wide range of applications. The integrated bms protection ensures a high level of safety for the battery and the user. Recommended areas of use include: Motor homes, boats, stationary solar systems in the private or commercial sector. Features of the Offgridtec LiFePO4 12/100 Smart Pro 100Ah very high energy density at low weight integrated Bluetooth for connection with the free Offgridtec Akkuviewer Smart App integrated bms for with numerous protections 100% of capacity usable when needed 60% lighter than agm batteries up to 3 times as many cycles as conventional lead-acid batteries less than 3% self-discharge, easy to store easy-to-maintain battery design as cell modules are screwed together and not encapsulated wide operating temperature range technical features LiFePO4 12/100 Smart Pro Offgridtec Part number: 2-01-010870 Nominal energy: 1280 Wh Rated voltage: 12.8 v Capacity: 100 Dimensions: 328 x 173 x 220 mm Weight: 13,0 Kg Parallel connection: unlimited Series connection: max. four Mounting position: any Number of cycles at 80% discharge: >2000 cycles Operating temperature range charging: -5°C - 45°C Operating temperature range discharging: -20°C - 60°C Maximum continuous discharge current: 100A Maximum continuous charging current: 100A End of charge voltage: 14.6v Storage temperature: -10°C - 35°C Smart: Retrieve battery status via battery viewer smart app Thanks to the integrated Bluetooth module, you can call up important parameters of the battery on your smartphone or a tablet at any time. The required "Offgridtec Akkuviewer Smart" app from Offgridtec is available free of charge in the Apple app store or for Android devices in the Google play store. The following data can be displayed via Akkuviewer Smart: Current state of charge as a percentage display - SOC Current power consumption Current battery voltage Number of cycles so far Remaining runtime and some more... Due to classification as dangerous goods, this product will be shipped by carrier! Scope of delivery: 1x Offgridtec 2-01-010870, LiFePO4 12/100 Smart-Pro 100Ah 1280Wh 12.8v 1x instruction manual
The LiFePO4 12/100 Smart Pro from Offgridtec (mpn 2-01-010870) is an intelligent, 12.8 v 100 Ah lithium iron phosphate battery of the latest generatio...
Product is expected to be back in stock on 12 May 2023
Product is expected to be back in stock on 12 May 2023
The hm-350 from Hoymiles is the perfect micro inverter for your balcony power plant. The compact lightweight (only 1.98kg including the 1.35m AC cable) is suitable for solar power production with a solar panel up to 440 watts peak. Just like all other microinverters from Hoymiles, it is suitable for long operating hours and wide PV panel application because its startup is very low (only 22v) and the DC input range of the operating voltage (16-60V) is extremely wide.
Minimize the effects of e.g. shading, dust or aging due to mppt
High-quality energy harvesting with high mppt accuracy
Optimal system reliability
Peak efficiency of 96.7%
12-year product warranty
High level of security thanks to integrated protection functions
Long service life
6000V surge protection
Complies with vde-ar-n 4105: 2018 and EN50549-1:2019
Optionally possible: Monitoring via S-Miles App or S-Miles Cloud
A DTU Lite is required for system monitoring.
To have the option of changing settings in addition to monitoring, a DTU Pro is required instead of the DTU Lite.
How it works
The Hoymiles microinverter converts the solar power generated by your photovoltaic system, AC grid compliant and feeds it directly into the utility grid. Each Hoymiles microinverter is individually connected to a PV module of your system for this purpose. This unique configuration means that each PV module is controlled by an individual maximum peak power point tracker (mppt). This ensures that the maximum available power from each individual module is fed into the utility grid, regardless of the output of the other PV modules in the system. Thus, if individual PV modules in the system are affected by shading, soiling, orientation, or mismatch, the hm-350 still ensures peak power for its associated PV module. The result is the maximum possible energy production from your PV system.
Microinverter systems are inherently more reliable than conventional inverters. The decentralized design of a microinverter system ensures that the entire PV system will not fail in the event of a malfunction. Hoymiles microinverters are designed to operate at full power in ambient temperatures up to +65°C (150°F). The microinverter enclosure is designed for outdoor installation and is IP67 rated.
PV systems with Hoymiles microinverters are very easy to design and install. You can install a combination of PV modules of different types, in any orientation and in a desired number (Maximum number of devices in series: 14). You do not need to install cumbersome conventional inverters. Each microinverter can be quickly mounted on the PV mounting rack or directly under the PV module. The PV module is connected to the microinverter directly on site, eliminating the risk of exposing people to dangerously high DC voltage.
Recommended module power: up to 440W
Peak power mppt of voltage range: 33~48V
Starting voltage: 22V
Battery voltage range: 16~60V
Maximum input voltage: 60V
Maximum input current: 11.5A
Maximum input short circuit current: 15A
Rated output power: 350VA
Rated output voltage: 1.52a at 230V
Rated output current: 230V
CEC weighted efficiency: 96.50%
Ambient temperature range: -40~+65°C
Dimensions (WxHxD): 182 x 164 x 29mm
Weight: 1.98kg (including 1.35m AC cable)
Enclosure rating: IP67
Scope of delivery
Hoymiles hm-350 micro inverter
The hm-350 from Hoymiles is the perfect micro inverter for your balcony power plant. The compact lightweight (only 1.98kg including the 1.35m AC cable...
The Offgridtec MPPT Pro-Duo (MPN 1-01-011200) is an innovative high-end solar controller that was essentially designed for mobile applications. A variety of different board battery types can be charged via the primary charging output (BATT-1). The battery spectrum ranges from AGM, GEL and liquid lead acid to state-of-the-art LiFePO4 and Li-NiCoMn battery systems. The secondary battery charge output (BATT-2) is designed for a starter battery that is at the same voltage level as BATT-1. The unit automatically detects the system voltage of the starter battery (BATT-2) and charging of the BATT-2 begins as soon as the preset conditions are met.
The controller uses the advanced MPPT control algorithm that minimises the maximum power point loss rate and loss time, quickly tracks the maximum power point (MPP) of the PV generator, and processes the maximum energy from the PV generator under all conditions. Energy utilisation in a PV system with MPPT controller is increased by 20 to 30% compared to the PWM charging method.
Features Highlights of the MPPT Pro DUO 30 A
Max Power-Point Tracking technology with ultra-fast tracking speed and a guaranteed tracking efficiency of at least 99.5%.
Advanced MPPT control algorithm to minimise MPP loss rate and minimise time loss.
Higher range of MPP operating voltage to improve PV module utilisation.
Possibility of limiting the charging power by user or automatic charging current (BATT-1).
Digital circuit control of adaptive three-stage charging mode to improve BATT-1 lifetime.
The product will enter power saving mode if no manual input has been made for a long time and charging conditions are not met (PV<5v).>
100% charge and discharge in the operating temperature range.
AES control signal for auto-refrigerator to avoid energy waste.
Standard Modbus protocol and RS485 communication port (5V/200mA).
Overview of the most important technical features
Maximum charging current: 30A at a battery voltage of 12V or 24V.
Optional remote display with mounting frame available.
Supports all major battery types.
Active temperature equalisation for optimal charging and ensuring long battery life.
Max. Solar power 390W at 12V system voltage and 780W at 24V system voltage.
100V max. PV input voltage
Dimensions: 24.7cm x 16.5cm x 6.9cm (LxWxH)
Connection terminals Battery 1: 16mm² (AWG6) / Battery 2: 4mm² (AWG12)
Diameter of mounting holes: 5mm
Energy consumption: 26mA at 12V / 15mA at 24V
Max. Efficiency: 98
Intelligent energy saver
If there is no manual operation for an extended period of time and charging conditions are not present, the MPPT-Pro Duo will switch to energy saving mode, reducing the unit's energy consumption to a minimum. This behaviour also reduces wear and tear on the unit, which is reflected in a significantly longer service life. The system parameters are displayed and set directly via the intuitive control panel on the controller or via the MT11 remote control (accessory).
System communication and protection functions
The refrigerator's AES control signal is built into the controller, which delivers excess solar power to the refrigerator to prevent energy waste. The protection class of the MPPT Duo is IP33. It resists splashing water and is dust-tight. Our MPPT Pro DUO has multiple protection functions, including battery overcharge protection, discharge protection and reverse polarity protection of PV and battery, which effectively ensure the safety, stability and service life of the solar system.
Scope of delivery:
1x Offgridtec 1-01-011200 MPPT DUO charge controller.
1x instruction manual
The Offgridtec MPPT Pro-Duo (MPN 1-01-011200) is an innovative high-end solar controller that was essentially designed for mobile applications. A vari...
The solar module 150w mono from Offgridtec (mpn 3-01-001255) works with monocrystalline solar cells with a high efficiency of >22,3% and is ideal for 12v systems thanks to its 20v operating voltage. In Offgridtec mono solar modules only cells of the highest quality grade are installed and guarantee a constant high quality and performance with maximum service life thanks to state-of-the-art manufacturing. Features of Offgridtec 150w 12v mono solar panel proven quality directly from Offgridtec manufactured according to the latest standards monocrystalline solar cells extremely resistant ESG glass makes the module usable even in the most adverse environmental conditions ideal for 12v systems on land or in mobile solar systems 2 bypass diodes - minimized power loss in shaded conditions The mono 150w 12v is one of over 40 proven solar panels from the Offgridtec portfolio and participates in Offgridtecs experience in manufacturing high quality 12v and 24v solar cells. The module can be used in very adverse operating conditions thanks to the extremely resistant solar glass. It can withstand heavy hail and storms or extreme cold and heat without any problems and thanks to the integrated bypass diodes, the module can continue to produce power even in shaded or low light conditions. The most important technical data at a glance Power (Pmax): 150w Working voltage (Vmp): 20 V Open circuit voltage (Voc): 24 V max. current (Imp): 7.5 A Short circuit current (Isc): 8.1 A max. system voltage: 1000 V permissible ambient temperature: -40°C - +85°C Dimensions: 1140 x 680 x 35 mm Weight: 12 kg Universally applicable Offgridtecs 150w 12v Mono is universally applicable for example in 12 Volt Solaranlagen on garden houses, allotments or for the power supply of lighting applications, self-sufficient systems of signal and surveillance technology and many more. But also in mobile systems such as in mobile home solar systems this panel makes a good figure. The connection cables are 80 cm long and equipped with MC4 connectors. Scope of delivery: Offgridtec 3-01-001255 150w mono 12v solar panel
The solar module 150w mono from Offgridtec (mpn 3-01-001255) works with monocrystalline solar cells with a high efficiency of >22,3% and is ideal f...
The Canadian Solar HiKu CS3L (MPN 014555) is a 375w solar module with monocrystalline cells and N-type technology. The solar cells use multi-busbar technology, with this, the loss due to microcracks has been efficiently reduced, the current transmission path has been reduced by 50% and the cell efficiency has been improved.
The Canadian Solar solar module is certified to withstand wind and snow loads up to 3600 Pa and 5400 Pa respectively, as well as its high salt and ammonia resistance. The tempered front glass with high light transmission and low iron content has a thickness of 3.2mm and anti-reflective coating. The frame has an anodized aluminum alloy.
26% more power than conventional modules
High efficiency of 20.5%
Up to 2.7% lower system costs
Better shading tolerance
Manufacturer product warranty: 12 years
Reduces the effects of micro cracks
High snow loads up to 5400 Pa
Increased wind loads up to 3600 Pa
Under the leadership of Dr. Shawn Qu, Canadian Solar was founded in 2001. The goal was to promote sustainable development and create a better and cleaner earth for the future. Canadian Solar is now one of the world's largest suppliers of photovoltaic products and energy solutions worldwide. It has supplied over 160 countries to meet the clean and green energy needs of 15.8 million homes. Canadian Solar's modules are produced to the highest quality standards. To date, more than 14000 dedicated Canadian Solar employees have joined this mission to make our environment a little cleaner.
Innovative PERC technology
The PERC (Passivated Emitter Rear Cell) technology in Offgridtec olp solar modules is a key technology that increases the efficiency of solar cells. A dielectric layer is created on the back of the cell between the conventional aluminum metallization and the silicon wafer layer, which is provided with tiny holes by a laser. This dielectric layer reflects light, which penetrates to the back side without generating charge carriers, into the solar cell. The reflection gives the photons a "second chance" to generate electricity. In addition to higher efficiency at different wavelengths and the increased likelihood that electrons will contribute to power, PERC technology contributes to lower system costs and an increase in area energy yield.
Compared to P-type products, N-type cells used with a different doping technology perform better in power degradation. The significant increase in bifacial factor and optimization of operating temperature also bring higher power gain. When it comes to the LCOE value (cost of electricity), the analysis result has significantly reduced compared to conventional P-type modules.
Power (Pmax): 375wp
Voltage (Vmp): 34,50V
Max. Current (Imp): 11.02A
Open circuit voltage (Voc): 41.2V
Short circuit current (Isc): 11.68A
Cell efficiency: 20.5%
Operating temperature: -40°C - +85°C
Max. System voltage: 1000V/DC
Cell type: N-type monocrystalline
Number of cells: 120 [2x (10x6)]
Weight: 21.1 kg
Dimensions: 1765 x 1048 x 40 mm
Protection class junction box: IP68
Scope of delivery:
1x Canadian Solar HiKu cs3l-375ms 375w solar panel
The Canadian Solar HiKu CS3L (MPN 014555) is a 375w solar module with monocrystalline cells and N-type technology. The solar cells use multi-busbar te...
Product is expected to be back in stock on 31 March 2023
Product is expected to be back in stock on 31 March 2023
Besides a 290ml cartridge this handy Dekalin adhesive-set also includes the Dekalin Dekavator, DEKACLEAN cloths and a sheet of very fine sandpaper for an ideal preparation of the surface.
Dekasyl MS-5 is a polymer-based adhesive with a high degree of adhesion and initial strength which is ideal for elastic connections of various components.Thanks to it's adhesive power the use of clamps is mostly unnecassary. The Dekasyl MS-5 also serves as sealent between similar materials or when mechanical connections are used.
Elastic connections and sealing for trains, caravans, trucks, cars,...
Glueing windows of buses, trains, caravans,...
Glueing of edge profiles (aluminium or polyester) of trailers
Glueing of polyester components with metal frame
Free of solvents, isocyanate and PVC
Very UV- and age-resistant
Very high initial strength. Very high adhesion in general even without priming on various surfaces.
Constantly elastic within a temperature range of -40°C to +120°
Neutral, odorless and quick-setting
After skim-development paintable - normally this does not influence the setting-process
Compatible with most industrial painting systems, alkyd resin paint as well as dispersion paint (because of the many different types of industrial paints a material compatibility test is recommended)
We recommend to mount our spoilers and cable entries only with Dekasyl adhesive together with DEKAvator as this connection had the best outcome in a laboratory test.
Manufacturers of caravans like Fendt, Dethleffs, Burstner, Carthago, Pilote and Hymer use Dekalin-products in many different areas, for example as sealent for roofs, side panels, undercoating, glueing of PMMA-windows, sound-proofing, engine-covering, and many more.As a global partner of the caravan and camping industry Dekalin provides you with a wide range of latest technology and supports sellers in realizing their demands. They offer special solutions for sealing, glueing, damming and repairing.
Details:Glue color: blackDelivery scope: 1x cartridge 290ml Dekalin 6252412 Dekasyl MS-5 adhesive black, 1x sheet of sandpaper, 1x Dekalin Dekavator 6257812 bottle 30ml, DEKACLEAN cleaning cloths
This set contains everything you need to mount three modules of max. 1m width each on a tiled roof. The included roof hooks are specially designed for tiled roofs. High-quality corrosion-free materials made of stainless steel and aluminum ensure a safe and long-lasting installation.Set consists of:2 x 2m solar profile rail 4x4cm aluminum slot stone top2 x 1.25m profile rail 4x4cm (aluminum)4 x end clamp for solar modules (aluminum)10 x m10 nut (stainless steel)10 x stainless steel roof hook 3-way adjustable4 x end cap pa black for aluminum profiles10 x m10x30 screw (stainless steel)20 x M8x100 wood screw (stainless steel)4 x middle clamp for solar modules - solar fastener8 x groove stone for rail profile (aluminum)2 x rail connectors (4x4cm solar profile rail)8 x hexagon drilling screws din 7504 a2 5,5x25 form K8 x hexagon screw M8x30 hexagon socket screw with cylinder head, a2, din 912 NoteOnly for framed modules with 30mm frame thicknessModules are not included in delivery
Variants from €106.94*
This set contains everything you need to mount three modules of max. 1m width each on a tiled roof. The included roof hooks are specially designed for...
The Autark M-Master is the medium sized complete system of the Autark family and delivers an average daily yield of 800 watt hours between March and October. The generated power is stored in the cycle-proof 122Ah agm battery - the high-quality charge controller with integrated display gives you information about the charge status of the battery while your 230v consumers can be operated at the sine wave voltage converter. Of course, the whole thing is delivered including a professional connection cable kit - plug it together and get started. The system is suitable for a wide range of applications - from 12v lighting, charging laptop, cell phone and camera batteries and other small consumers, to 230v household appliances with a maximum continuous power of 1000w (15min)
Features of the Autark M-Master
If required, module side expandable by 2 x 100w with low installation effort
Average daily yield between March and October: approx. 800wh (approx. 66Ah)
Plug & Play ready-to-connect system - plug together and go
Allows operation of 12v and 230v loads, as well as 5v usb consumers
usb charging possibility directly at the charge controller (max. 2,4A)
Easy to read lcd display informs about all operating parameters
Flexible mounting possibility thanks to 8m connection cable from module to controller
Extensive electronic protection functions, such as overload protection, overtemperature protection, undervoltage shutdown, short-circuit protection, reverse polarity protection, etc.
rs485 communication port on the voltage transformer offers extensive configuration possibilities via pc (interface cable rs485 to usb included)
Charge controller enables temperature compensated charging - temperature sensor included in delivery
Configurable 12v load output at the charge controller for loads up to max. 30a - suitable e.g. for lighting control
This complete system can be used in many ways. Whether as a stationary system on the mountain hut or in the allotment garden - the permanent operation of small coolers and refrigerators, as well as the charging of cell phones and laptops succeeds easily with this system. The installation on the motor home is also conceivable - we also have the corresponding brackets and adhesive sets for the attachment.
Extensive connection options
230v ac 50hz 1000w (15min - 1000w / permanent - 800w / short time (starting currents) - 1600w) Schuko socket on the sine wave voltage converter
12v consumer output with 30a power directly at the charge controller
2 x usb charging port at the charge controller with max. 2.4a (total)
1 x usb charging port at the voltage converter with max. 1a power
Parts list - what's inside
2 x 100w monocrystalline solar panel of Offgridtec 1030 x 520 x 35 mm
1 x Pair of solar connector compatible junction boxes for parallel connection of the two solar modules
1 x 30a pwm charge controller with clear lcd display and usb charging possibility - the device also has a 30a load output and is easy to operate - all important parameters can be read on the display
1 x 122Ah agm battery with m8 screw terminal Dimensions: 406 x 174 x 233 mm(+5mm terminal) - the battery is absolutely maintenance free and leak proof and lasts up to 10 years depending on use
1 x 1000w 12v to 230v sine wave voltage converter with a shockproof socket incl. connection cable - the rated power of 1000w can be output by the device for 15 minutes - beyond that the inverter outputs 800w and can handle short time starting currents up to 1600w
1 x 8m 6mm² professional connection cable solar module to charge controller with original Stäubli solar-connectors and high quality Lapp Ölflex 2x6mm² solar cable
1 x 1.5m 10mm² professional battery connection cable with MIDI fuse holder, 40a MIDI fuse and m8 ring terminals for connection between charge controller and battery
1 x Temperature sensor with 3m length for connection of the controller to the batrie
1 x 1m 25mm² connection cable from inverter to battery (included with the voltage converter)
1 x Fuse holder + 125A Mega fuse for installation between voltage transformer and battery positive pole for protection against short circuit
Roof mount for the solar module
Since there are different requirements for the mounting of a module and this varies greatly depending on the type of roof, the systems of the Autark series are not equipped with a roof mount as standard. This can of course be purchased additionally - find suitable suggestions here:
Solar module holder for flat roof or wall mounting
Mounting kit for pitched roof mounting on roof tiles (Frankfurter Pfanne etc.)
Mounting kit for pitched roof mounting on roofing felt, corrugated hernite and sheet metal roofs with wooden substructure
Fastening kit for pitched roof installation on Bieberschwanz tiles
Scope of delivery:
1x Solaranlage Autark M-Master with 2x100w solar panel, 30a pwm charge controller with lcd display and usb ports, 1000w sine wave voltage converter, 122Ah agm battery, user manuals
The Autark M-Master is the medium sized complete system of the Autark family and delivers an average daily yield of 800 watt hours between March and O...
Product is expected to be back in stock on 5 May 2023
Product is expected to be back in stock on 5 May 2023
Extremely versatile complete package
The brand new Offgridtec® HomePremium series is a true all-rounder at an unbeatable price-performance ratio. In addition to being used as an usv backup solution with the choice between mains and battery priority, this pv system can also be used as a self-consumption system. There are hardly any limits to the performance of this Solarasystem - depending on personal requirements and on request, extensions are possible, both on the module and on the battery side. if a higher output power is required at the inverter, further identical devices can also be connected here to increase the performance.
In addition to the power electronics, the storage unit and the solar modules, all components required for the connection are also included in the scope of delivery, with the exception of the solar module holder, which must be ordered separately. all other components are plug and play - this means no troublesome plug assembly or the like - connect and you're done.
Parts list - what's inside
5 pcs. Jinko Tiger 370w solar modules with mono N-type cells or canadian Solar HiKu cs3l 380w (depending on availability)
victron Energy 48/5000 MultiPlus-II inverter mpn PMP482505010
victron Energy mppt SmartSolar charge controller 250/60-Tr
victron Energy Lynx Distributor for dc distribution and fuse protection
2 pcs 3,5kwh Pylontech us3000c LiFePo4 storage batteries with integrated bms
2 pairs Pylontech bracket / brackets for us3000c LifePo4 battery
inverter connection cable for connecting the Pylontech batteries to the MultiPlus 48/5000 (2m)
VE.Can to CAN-Bus BMS Type A cable 1,8m for the connection of the Cerbo gx with the memory
3m victron rj45 utp cable for connecting the MultiPlus to the Cerbo gx
Cerbo gx + gx Touch 50 from victron Energy - the communication center of your system
1m battery cable 25mm² m8 terminal to screw terminal connection for the connection of the charge controller to the battery
1m battery cable 50mm² both sides m8 eyelets for connection of Multiplus and Lynx Distributor
10m Offgridtec® professional connection cable 6mm² solar module to charge controller for connection between solar modules and charge controller
5m 6mm² MC-4-connection cable plug/socket extension to connect the two module strings with the mc4 junction boxes
victron 3m vE.Direct cable connection cable to connect the charge controller to the Cerbo gx
victron 125a 58v/48v MEGa-Fuse fuse for Multiplus
Offgridtec 80a 70v MEGa-Fuse fuse for solar charge controller
Solar module depending on availability Jinko or Canadian Solar
Depending on availability, you will receive the Jinko or Canadian Solar module. both modules are perfectly matched to the set, as well as fully compatible with all supplied components. The Jinko Tiger N-type 60tr (mpn JKM370N-6TL3) with 370w and the Canadian Solar HiKu cs3l (mpn 014555) with 380w are equipped with monocrystalline cells and N-type technology. The solar cells use multi-busbar technology, with which the loss due to microcracks has been efficiently reduced, the current transmission path has been reduced by 50%, and the cell efficiency has been improved. The modules are manufactured with the Tiling Ribbon process and Hot 2.0 technology.
The Jinko Solarmodule is certified to withstand wind and snow loads of up to 2400 Pa and 5400 Pa respectively, as well as high salt and ammonia resistance. for Canadian Solar, the values are 3600 Pa and 5400 Pa respectively. the annealed front glass with high light transmission and low iron content has a thickness of 3.2mm and an anti-reflective coating. The frame has an anodized aluminum alloy.
Data sheets of the respective modules are available via the following links:
Jinko Tiger N-Type 60tr 370w Solar Module Mono Mbb Perc Half Cell Module Tiling Ribbon
Canadian Solar 380w mono solar panel perc HiKu cs3l-380MS
Jinko Tiger N Type 60tr
Canadian Solar HiKu cs3l-380MS
Max. Current (Imp)
Open circuit voltage (voc)
Short circuit current (Isc)
-40°C - +85°C
-40°C - +85°C
Max. System voltage
N type monocrystalline
N type monocrystalline
number of cells
120 (6 x 20)
120 [2x (10x6)]
1692 x 1029 x 30 mm
1765 x 1048 x 35mm
Protection class junction box
LiFePo4 storage technology from Pylontech - proven, reliable, safe
the us3000c storage battery from Pylontech is a lithium iron phosphate battery of the latest generation. This modular system guarantees the longest possible service life with maximum safety. In each module there is a battery management system (bms) which provides comprehensive protection against deep discharge and overcharge, as well as against damage due to high currents or too high or too low temperature. Also excluded is a defect of the battery by short circuit or polarity reversal.
Features of the Pylontech us3000c memory modules
Extremely cycle resistant - over 6000 cycles at 95% DoD (discharge per cycle)
absolutely intrinsically safe due to integrated protective shutdown (bms)
High charge and discharge power of up to 5kw per module
High storage density
Low weight and compact design
absolutely maintenance-free and easy to install
Pylontech grants 10 years warranty on the us3000c
The heart of the plant - the victron MultiPlus-II 48/3000
The Multiplus-II 48/3000/70-50 is a high-end device combination from victron Energy (mpn pmp482305010) that combines classic Multiplus components with an external current sensor and integrated anti-islanding function. This extends the PowerControl and Powerassist functions to 100 a and the potential range of use to ess applications, making this device virtually predestined for use in this system. The inverter delivers a whopping 3000 W at non-linear load, or 2400 W at linear continuous load. the 48 V battery charger is also very well proportioned, with 35 A of charging power, and is complemented by a 32 A transfer switch that allows lightning-fast switching between aC connections.
Features and characteristics of the MultiPlus-II 48/3000
PowerControl and Powerassist -Increase mains or generator power
built-in anti-islanding function and connection possibility for external current sensor (optional)
can be used as backup device in grid-connected systems for power supply in case of grid failures
can be used in various ess (Energy Storage System) applications
best suited for use in both Offgridtec and ongrid systems
vE.bus interface for parallel and three-phase operation, remote monitoring and system integration
virtually unlimited power through parallel and three-phase operation
can be configured on-site or remotely using vEConfigure software*
Approved according to vDE-aR-N 4105
3000 w power at non-linear load 2400 w continuous load and 5500 w peak power
for 48 v battery voltage, 32a transfer switch and 35a battery charger
output voltage: 230 vaC, frequency: 50 Hz
max. efficiency is 95%, protection class IP22
delivery is configured and adjusted to the supplied components
The adjustment possibilities of the MultiPlus-II are extremely diverse, as are its application possibilities. So that the system, as it is delivered, lives up to the description "Plug and Play", we have already made the most necessary settings for you - the system is therefore immediately ready for use without further configuration.
Maximum flexibility thanks to two AC outputs
The main output ensures uninterrupted operation. In the event of a mains failure or an interruption in the shore/generator power, the MultiPlus-II takes over the supply of the connected consumers. Switching is so fast (less than 20 milliseconds) that uninterrupted operation of computers and other electronic equipment is guaranteed. The second output supplies power only when AC power is available at the input of the MultiPlus-II. loads that must not discharge the battery, such as a water heater, can be connected to this output.
victron Energy Cerbo gx and gx Touch 50 - the communication center of your system
The latest development in system monitoring from vctron Energy makes it easy for you to control and configure your system. rounded off by the gxC Touch 50 - a waterproof 5 inch touch screen - you always have an overview of your system parameters. The Cerbo's features allow you to perfectly control and monitor the system, while maximizing system performance in an unprecedented and simple way.
The corresponding module can be used with both solar charge controllers and grid-tied inverters. The mounting material and the necessary connection cables are of course included in the delivery. With the help of the bluetooth capability of the gx Touch 50, access to your system is ensured even faster and easier. Only optional is a wall mount for the gx Touch 50, which must be ordered separately if required.
The victron Remote Portal (vRM) is a free victron Energy service that allows you to remotely read the data of your system and configure the devices accordingly. This way you always have full control and overview of all relevant system parameters even when you are not present. The functionality is available online as a demo version and is ideally suited to give you a first impression - https://vrm.victronenergy.com/landingpage
Extremely versatile complete package
The brand new Offgridtec® HomePremium series is a true all-rounder at an unbeatable price-performance ratio....
Product is expected to be back in stock on 28 April 2023
Product is expected to be back in stock on 28 April 2023

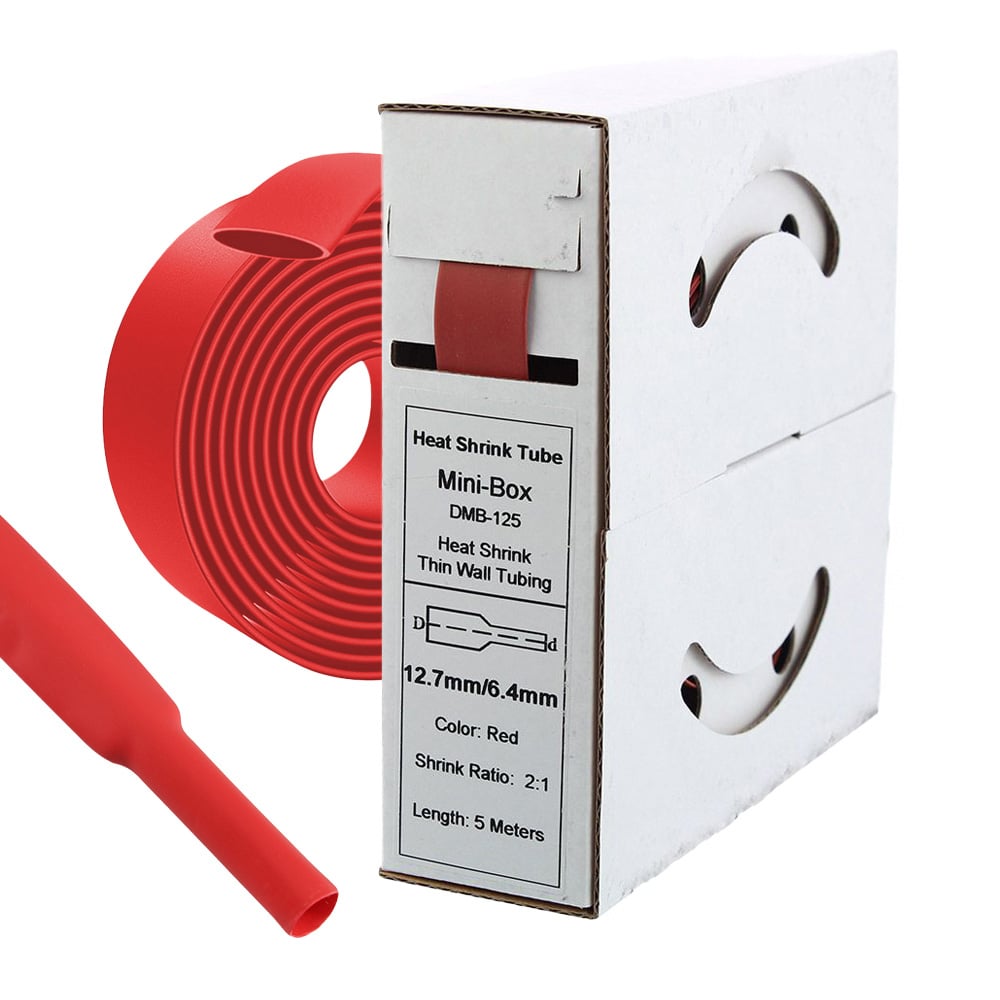

Ideal to isolate or protect open parts of a cable. If heated this tube contracts and forms a closed isolation which protects the cable from external influences (water, UV-radiation, corrosion, etc.)
The tube comes in a handy box which allows you to unroll the needed length.
Simply cut the tube into the needed length and put it in the designated place. Now you heat up the tube until it encloses the cable completely and you see resin come out of its ends. To heat up the tube you can use a heat gun or another suitable heat source.
Make sure you do not heat up a single spot for too long but evenly until the tube has shrinked to the needed size.
Details: Color: red Size: 12,7mm to 6,4mm Length: 5m
Product Type:Heat shrink tubing
No questions have been asked about this article yet.
Subscribe to the newsletter
Subscribe to the free newsletter and never miss another news or promotion from Offgridtec.
