800W balcony power station with ultra-light solar modules with HMS-800W-2T WiFi integrated

Discover the possibility of generating your own electricity and actively reducing your energy costs with the Offgridtec balcony power plant (MPN: 022215). With ultra-light 200W solar modules and a state-of-the-art 800W inverter with integrated WiFi, you benefit from efficient energy conversion and monitoring. Thanks to high MPPT accuracy, energy generation is optimized while you can conveniently monitor performance via the app. Installation is child's play thanks to the extensive range of accessories and the practical plug-and-play function – just plug it in and save money! Turn your balcony into an environmentally friendly and sustainable energy source, and thanks to the low investment costs, the system will quickly pay for itself.

Highlights of the system

• Ultra-light modules, each with 200W
• 800W inverter with integrated WiFi
• High-quality energy generation with high MPPT accuracy
• monitoring and control via app
• Extensive mounting accessories incl.
• Plug-and-play – plug in and save money
• Make your lifestyle more environmentally friendly
• Quickly amortized investment
• Energy management via app

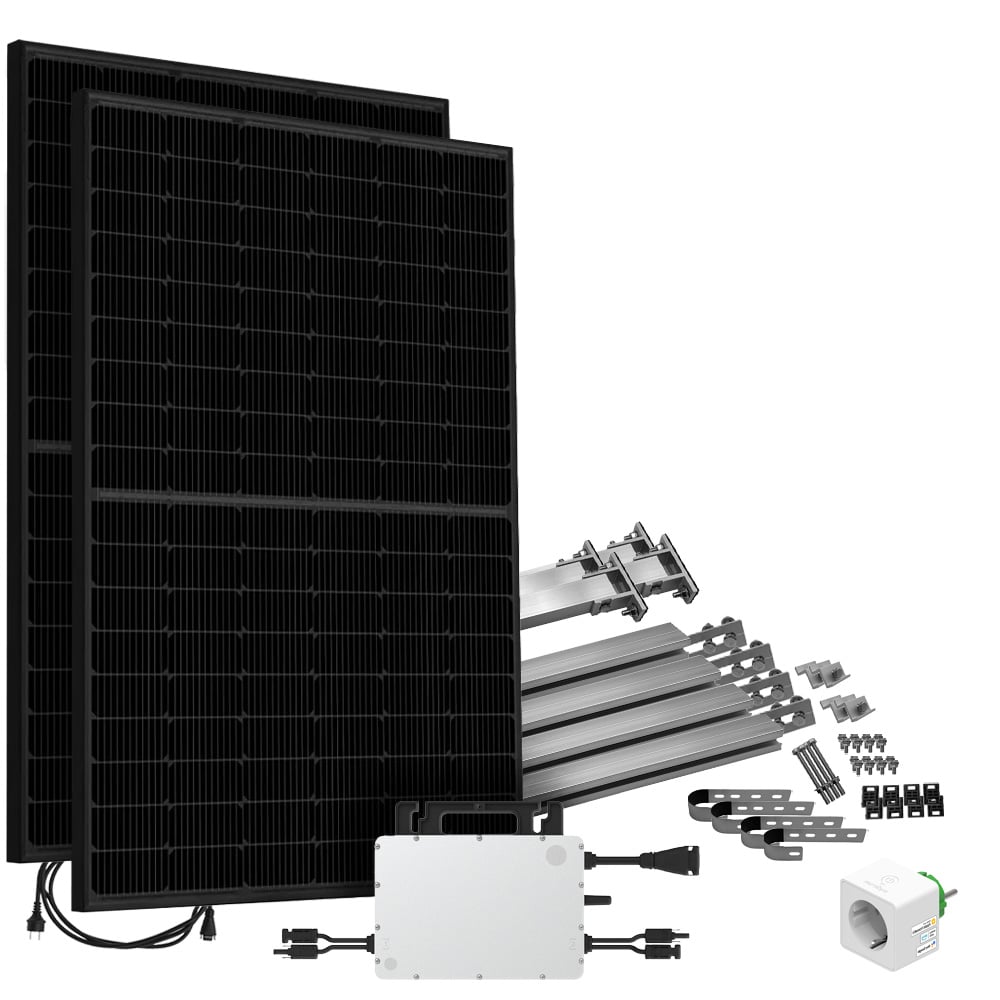

The complete balcony power plant set includes

• 2x Offgridtec® balcony solar module set 12V 2x 200W with thin aluminum frame and metal cable ties
• 1x Hoymiles HMS-800W-2T micro inverter with integrated WiFi
• 2x Offgridtec 1m 6mm² MC-4 connection cable plug/socket extension
• 1x Hoymiles Disconnect Tool for AC Box HMS Microinverter
• 1x 5m 3x1.5mm² connection cable for Hoymiles HMS microinverter

How does a balcony power plant work?

Our balcony power plant offers a simple and efficient solution for generating your own electricity. It consists of four ultra-light solar modules, each with 200W, and a Hoymiles 800W 2T micro inverter with integrated WiFi. Installation is quick and easy: the inverter is attached to the solar modules, connected using solar connectors, and then the AC cable is plugged in. Your household grid primarily uses the solar power generated. If necessary, additional power is drawn from the public grid. You also have the option of adding a battery system to store excess energy and avoid wasting any.

Ultra-light solar module set – 4x 200W

The Offgridtec Balcony Solar Module Set consists of two 200W solar modules, each of which operates with monocrystalline solar cells and a remarkable efficiency of 22.7%. These modules offer an operating voltage of 24.2V each and combine outstanding energy efficiency, aesthetic design, and easy installation. With the 12 metal cable ties included, the set is ideal for mounting on balconies and makes it easy to integrate photovoltaic technology for generating green energy on site.

• 8 mm thin aluminum frame
• High operating voltage of 24.2V
• Cell efficiency of 22.7%

Technical data

• Power (Pmax): 200W
• Operating voltage (Vmp): 24.2 V
• Open circuit voltage (Voc): 28.3 V
• max. current (Imp): 8.27 A
• Short-circuit current (Isc): 8.68 A
• Dimensions: 1175 x 970 x 8 mm
• Weight: 9.8 kg

HMS-800W-2T micro inverter

The inverter from Hoymiles is the perfect solution for a balcony power plant. In addition to the integrated industrial-grade WiFi module mentioned here, the compact lightweight device (only 3.2 kg) is ideal for solar power production with an output of 320 to 540+W per connection. As with all other micro inverters from Hoymiles, it is suitable for long operating hours and a wide range of PV module applications, as its start voltage is very low (only 22V) and the DC input range of the operating voltage (16-60V) is extremely wide.

• Minimization of the effects of, for example, shading, dust, or aging through MPPT
• Number of MPPTs: 2
• Peak efficiency of 96.7%

Technical data

• Recommended module power: up to 320W - 540+W (per module)
• Switch-on voltage: 22V
• Nominal output voltage/range: 230V / 180-275V
• Storage temperature range: -40°C - +85°C
• Dimensions: 261 x 180 x 35.1 mm
• Weight: 3.2 kg
• Housing rating: IP67

Balcony power plants in Germany

There is currently no law or regulation in Germany governing the generation of solar power for purely personal use. The maximum limit of 800W AC PV power is a reserve value which, according to the current VDE standard, can be fed into an existing power outlet circuit in a house without overloading it. There are no specifications for independent circuits without additional load.
All electrical installations should be carried out in accordance with VDE standards. However, the operation of a balcony power plant via a standard Schuko socket is not prohibited in principle. Registration with the Federal Network Agency is mandatory. However, there are no known cases of fines for failure to register balcony power plants, nor are there any insurmountable problems with grid operators. Compliance with and implementation of standards and obligations is the responsibility of the plant operator. A wealth of technical and legal information on this subject can be found on relevant websites.

Do you have any further questions about balcony power plants and how they work? Get in touch with us, we will be happy to help you.
