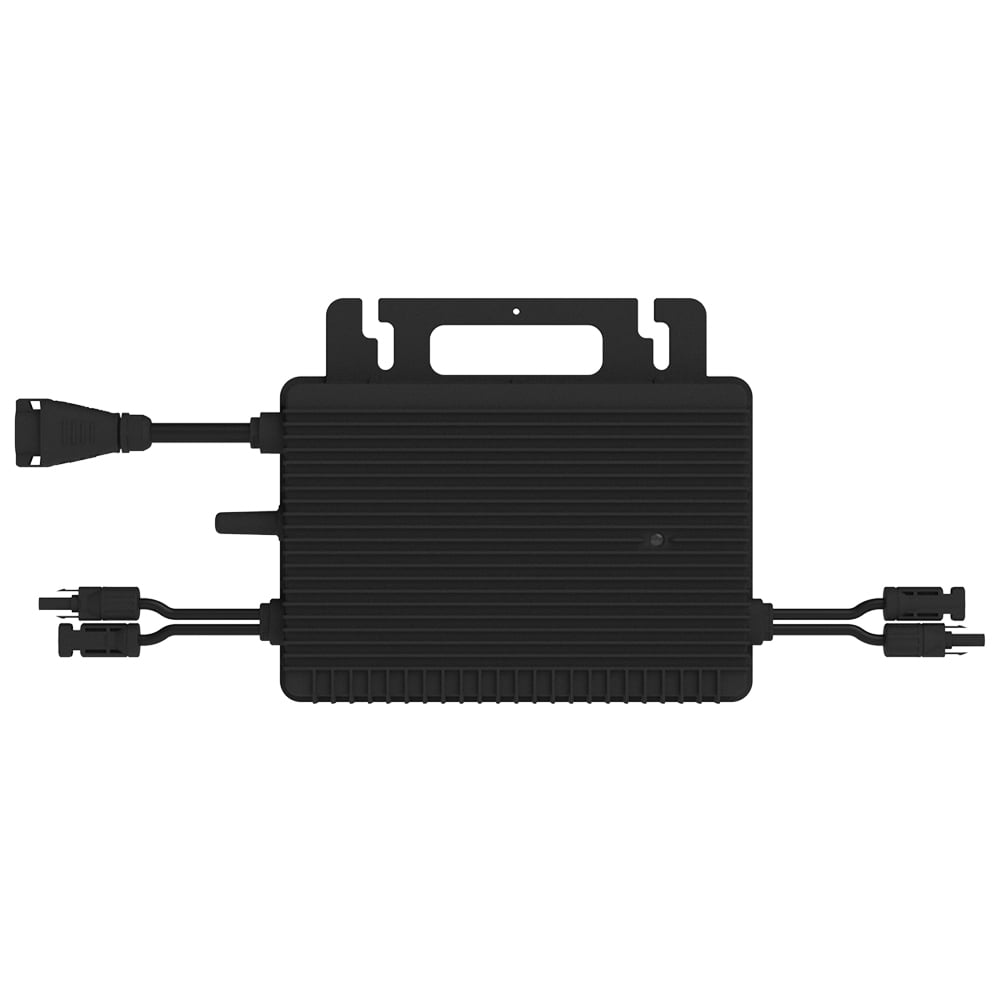

Hoymiles hm-1500 microinverter module inverter

The hm-350 from Hoymiles is the perfect micro inverter for your balcony power plant. The compact lightweight (only 1.98kg including the 1.35m AC cable) is suitable for solar power production with a solar panel up to 440 watts peak. Just like all other microinverters from Hoymiles, it is suitable for long operating hours and wide PV panel application because its startup is very low (only 22v) and the DC input range of the operating voltage (16-60V) is extremely wide. Features Minimize the effects of e.g. shading, dust or aging due to mppt High-quality energy harvesting with high mppt accuracy Optimal system reliability Peak efficiency of 96.7% 12-year product warranty High level of security thanks to integrated protection functions Easy installation Long service life 6000V surge protection Complies with vde-ar-n 4105: 2018 and EN50549-1:2019 Optionally possible: Monitoring via S-Miles App or S-Miles Cloud A DTU Lite is required for system monitoring. To have the option of changing settings in addition to monitoring, a DTU Pro is required instead of the DTU Lite. How it works The Hoymiles microinverter converts the solar power generated by your photovoltaic system, AC grid compliant and feeds it directly into the utility grid. Each Hoymiles microinverter is individually connected to a PV module of your system for this purpose. This unique configuration means that each PV module is controlled by an individual maximum peak power point tracker (mppt). This ensures that the maximum available power from each individual module is fed into the utility grid, regardless of the output of the other PV modules in the system. Thus, if individual PV modules in the system are affected by shading, soiling, orientation, or mismatch, the hm-350 still ensures peak power for its associated PV module. The result is the maximum possible energy production from your PV system. Optimal reliability Microinverter systems are inherently more reliable than conventional inverters. The decentralized design of a microinverter system ensures that the entire PV system will not fail in the event of a malfunction. Hoymiles microinverters are designed to operate at full power in ambient temperatures up to +65°C (150°F). The microinverter enclosure is designed for outdoor installation and is IP67 rated. Simple design PV systems with Hoymiles microinverters are very easy to design and install. You can install a combination of PV modules of different types, in any orientation and in a desired number (Maximum number of devices in series: 14). You do not need to install cumbersome conventional inverters. Each microinverter can be quickly mounted on the PV mounting rack or directly under the PV module. The PV module is connected to the microinverter directly on site, eliminating the risk of exposing people to dangerously high DC voltage. Technical data Recommended module power: up to 440W Peak power mppt of voltage range: 33~48V Starting voltage: 22V Battery voltage range: 16~60V Maximum input voltage: 60V Maximum input current: 11.5A Maximum input short circuit current: 15A Rated output power: 350VA Rated output voltage: 1.52a at 230V Rated output current: 230V CEC weighted efficiency: 96.50% Ambient temperature range: -40~+65°C Dimensions (WxHxD): 182 x 164 x 29mm Weight: 1.98kg (including 1.35m AC cable) Enclosure rating: IP67 Scope of delivery Hoymiles hm-350 micro inverter

The hm-350 from Hoymiles is the perfect micro inverter for your balcony power plant. The compact lightweight (only 1.98kg including the 1.35m AC cable) is suitable for solar power production with a solar panel up to 440 watts peak. Just like all other microinverters from Hoymiles, it is suitable for long operating hours and wide PV panel application because its startup is very low (only 22v) and the DC input range of the operating voltage (16-60V) is extremely wide. Features Minimize the effects of e.g. shading, dust or aging due to mppt High-quality energy harvesting with high mppt accuracy Optimal system reliability Peak efficiency of 96.7% 12-year product warranty High level of security thanks to integrated protection functions Easy installation Long service life 6000V surge protection Complies with vde-ar-n 4105: 2018 and EN50549-1:2019 Optionally possible: Monitoring via S-Miles App or S-Miles Cloud A DTU Lite is required for system monitoring. To have the option of changing settings in addition to monitoring, a DTU Pro is required instead of the DTU Lite. How it works The Hoymiles microinverter converts the solar power generated by your photovoltaic system, AC grid compliant and feeds it directly into the utility grid. Each Hoymiles microinverter is individually connected to a PV module of your system for this purpose. This unique configuration means that each PV module is controlled by an individual maximum peak power point tracker (mppt). This ensures that the maximum available power from each individual module is fed into the utility grid, regardless of the output of the other PV modules in the system. Thus, if individual PV modules in the system are affected by shading, soiling, orientation, or mismatch, the hm-350 still ensures peak power for its associated PV module. The result is the maximum possible energy production from your PV system. Optimal reliability Microinverter systems are inherently more reliable than conventional inverters. The decentralized design of a microinverter system ensures that the entire PV system will not fail in the event of a malfunction. Hoymiles microinverters are designed to operate at full power in ambient temperatures up to +65°C (150°F). The microinverter enclosure is designed for outdoor installation and is IP67 rated. Simple design PV systems with Hoymiles microinverters are very easy to design and install. You can install a combination of PV modules of different types, in any orientation and in a desired number (Maximum number of devices in series: 14). You do not need to install cumbersome conventional inverters. Each microinverter can be quickly mounted on the PV mounting rack or directly under the PV module. The PV module is connected to the microinverter directly on site, eliminating the risk of exposing people to dangerously high DC voltage. Technical data Recommended module power: up to 440W Peak power mppt of voltage range: 33~48V Starting voltage: 22V Battery voltage range: 16~60V Maximum input voltage: 60V Maximum input current: 11.5A Maximum input short circuit current: 15A Rated output power: 350VA Rated output voltage: 1.52a at 230V Rated output current: 230V CEC weighted efficiency: 96.50% Ambient temperature range: -40~+65°C Dimensions (WxHxD): 182 x 164 x 29mm Weight: 1.98kg (including 1.35m AC cable) Enclosure rating: IP67 Scope of delivery Hoymiles hm-350 micro inverter

The HMT-1800-6T from Hoymiles is the perfect three-phase micro inverter for your balcony power plant. The compact lightweight (only 5.5kg) is suitable for solar power production with up to 6 solar panels with an output of 405W each. Just like all other micro inverters from Hoymiles, it is suitable for long operating hours and wide PV panel application, as its start-up is very low (only 22V) and the DC input range of the operating voltage (16-60V) is extremely wide. Information on required and optional accessories can be found at the end of the description. Note: The HMT Inverter may only be connected to the mains by an electrician. Properties Minimisation of the effects of e.g. shading, dust or ageing due to MPPT. High-quality energy generation with high MPPT accuracy Optional: system monitoring via the smartphone app S-Miles Enduser or the S-Miles Cloud (data transmission unit DTU-PRO-S is required) Optimum system reliability Peak efficiency of 96.5 12-year product guarantee High level of safety due to integrated protection functions Easy installation Long service life Complies with VDE-R-N 4105: 2018 & EN50549-1:2019 Optimum reliability Micro-inverter systems are inherently more reliable than conventional inverters. The decentralised design of a microinverter system ensures that the entire PV system will not fail in the event of a malfunction. Hoymiles microinverters are designed to operate at full power in ambient temperatures up to +65°C (150°F). The micro-inverter housing is designed for outdoor installation and complies with protection class IP67. Simple structure PV systems with Hoymiles microinverters are very easy to plan and install. Up to 6 solar modules can be connected per model. You do not need to install cumbersome conventional inverters. Each microinverter can be quickly mounted on the PV mounting rack or directly under the PV module. The PV module is connected to the microinverter directly on site, eliminating the risk of people being exposed to dangerously high DC voltage. Technical data Recommended module power: up to 405W (per module) Maximum input voltage: 60V MPPT voltage range: 16-60V Switch-on voltage: 22V Maximum input current: 6x11.5A Mains connection: Three-phase Rated output power (VA): 1800 Rated output current: 2.61 x 3 Rated output voltage / range: 230 V/AC/400 V/AC, 3W+N+PE Rated frequency / range (Hz): 50/45-55 or 60/55-65 Power factor (adjustable): >0.99 standard 0.8 leading ... 0.8 lagging Distortion factor: <3 Maximum units per 10 AWG strand2: 11 Maximum units per 12 AWG strand2: 7 CEC peak efficiency: 96.5 MPPT rated efficiency: 99.8 Power consumption at night (mW): <50 Ambient temperature range: -40~+65°C Dimensions (WxHxD): 330 x 250 x 35 mm Weight: 5.5 kg (including 0.6 m AC cable)Housing rating: IP67 Required HMT accessories You need a T-node with cable for each HMT microinverter.For each HMT microinverter system (one inverter or more), an end cap and an unlocking aid are required at least once.Optionally, a disconnection aid can also be ordered. Scope of delivery 1x Hoymiles HMT-1800-6T micro inverter r

The HMT-2250-6T from Hoymiles is the perfect microinverter for your balcony power plant. The compact lightweight (only 6kg) is suitable for solar power production with up to six solar panels up to 505W each. Just like all other micro inverters from Hoymiles, it is suitable for long operating hours and wide PV panel application, as its start-up is very low (only 22V) and the DC input range of the operating voltage (16-60V) is extremely wide. Information on required and optional accessories can be found at the end of the description. Note: The HMT Inverter may only be connected to the mains by an electrician. Characteristics Minimisation of the effects of e.g. shading, dust or ageing due to MPPT. High-quality energy generation with high MPPT accuracy Optional: system monitoring via the smartphone app S-Miles Enduser or the S-Miles Cloud (data transmission unit DTU-PRO-S is required) Optimum system reliability Peak efficiency of 96.5 12-year product guarantee High level of safety due to integrated protection functions Easy installation Long service life Complies with VDE-R-N 4105: 2018 & EN50549-1:2019 Optimum reliability Micro-inverter systems are inherently more reliable than conventional inverters. The decentralised design of a microinverter system ensures that the entire PV system will not fail in the event of a malfunction. Hoymiles microinverters are designed to operate at full power in ambient temperatures up to +65°C (150°F). The micro-inverter housing is designed for outdoor installation and complies with protection class IP67. Simple structure PV systems with Hoymiles microinverters are very easy to plan and install. Up to 6 solar modules can be connected per model. You do not need to install cumbersome conventional inverters. Each microinverter can be quickly mounted on the PV mounting rack or directly under the PV module. The PV module is connected to the microinverter directly on site, eliminating the risk of people being exposed to dangerously high DC voltage. Technical data Recommended module power: up to 505W (per module) Maximum input voltage: 60VMPPT voltage range: 16-60VSwitch-on voltage: 22V Maximum input current: 6x11.5A Mains connection: Three-phase Rated output power (VA): 2250 Rated output current: 3.26 x 3 Rated output voltage / range: 230 V/AC/400 V/AC, 3W+N+PE Rated frequency / range (Hz): 50/45-55 or 60/55-65 Power factor (adjustable): >0.99 standard 0.8 leading ... 0.8 lagging Distortion factor: <3Maximum units per 10 AWG strand2: 9 Maximum units per 12 AWG strand2: 6 CEC peak efficiency: 96.5 MPPT rated efficiency: 99.8 Power consumption at night (mW): <50 Ambient temperature range: -40~+65°CDimensions (WxHxD): 330 x 250 x 37 mmWeight: 6 kg (including 0.6 m AC cable)Housing rating: IP67 Required HMT accessories You need a T-node with cable for each HMT microinverter.For each HMT microinverter system (one inverter or more), an end cap and an unlocking aid are required at least once.Optionally, a disconnection aid can also be ordered. Scope of delivery: 1x Hoymiles HMT-2250-6T micro inverter

The complete solar systems from Offgridtec (MPN 014535) are an ideal way to produce a portion of your required household electricity yourself and significantly reduce your overall expenditure on electricity. In addition to a solar module and matching micro inverter, the systems contain everything you need to connect to the household power grid and, if required, to mount on the balcony railing or roof. The set is designed for mounting the modules side by side. Our support team is on hand to provide advice and assistance for customised module installation options. How does a solar system work? The compact Offgridtec solar system consists of a solar module and the matching Hoymiles micro inverter for feeding into the household power grid. Ideally, the inverter is attached directly to the substructure of the solar module and connected to the solar module using the solar plug connector. The AC cable is connected via the Betteri connection of the inverter and routed directly to the appropriate socket. Here you can choose between connection to the standard Schuko socket or to a Wieland feed-in socket, which is included in the scope of delivery when selected. No special settings are required to utilise the solar power generated in the domestic power grid. If electricity is already available from local sources, the appliances in the household use this first and then supplement with mains power as required. The complete solar system includes: 4x Luxen Solar 430W Full Black Solar module Luxneri Series 5 1x Hoymiles HM-1500 Microinverter 1x Connection cable Betteri BC01 socket to Schuko socket (length selectable 5m - 10m - 15m) 4x 3m 6mm² MC-4 connection cable plug/socket extension Or 1x Connection cable micro inverter with Betteri BC01 socket to earthed socket (length selectable 5m - 10m - 15m) Optionally selectable: Installation package for balcony railings - flat roof - plain tile roof - tiled roof - corrugated hernite and sheet metal roof (the respective sets contain 1.25 m long profile rails suitable for the solar system) Luxen 430W Luxneri Series 5 (Full Black) - Efficiency of 22% The monocrystalline and bifacial 430W Series N5 solar module from Luxen Solar impresses with a combination of different technologies, such as N-TOPCon cell technology and a 108 half-cell layout. SMBB half-cut cell technology was also used during production to increase performance. The state-of-the-art solar module represents the pinnacle of solar technology, offering impressive power output and low LCOE. The elegant full-black design makes it a good choice when it comes to finding a solar cell for rooftop installations on residential buildings or for balcony power plants and many other applications. Properties Glass-glass module N-TOPCon cell technology SMBB Half-Cut cell technology Low BOS & LCOE Bifacial cell module technology Excellent anti-PID and low LID performance 3 bypass diodes 30-year performance guarantee and 15-year product guarantee High cell efficiency of over 22% Half-cell technology In half-cell technology ("half-cut"), conventional silicon cells are cut in half using a laser. The resulting halves are then connected centrally in parallel, which leads to increased output of the solar module by reducing resistance losses. Bifacial cells Bifacial means two-faced. And the name says it all: the Luxen Solar 430W N5 module is also equipped with solar cells on the back, which means it can absorb sunlight even better and increases the efficiency of the overall module. Technical data Maximum power: 430W Module voltage (Vmp): 32.04V max. current (Imp): 13.42A open circuit voltage (Voc): 38.96V short-circuit current (Isc): 14.13A Module efficiency: 22.02% Dimensions: 1722 x 1134 x 30 mm Operating temperature range: -40°C to +85°C Cells: 108 (6x18) Max. operating voltage: 1500V DC Weight: 23.5kg Hoymiles HM-1500 Microinverter Module inverter The HM-1500 from Hoymiles is the perfect microinverter for your solar system and is suitable for solar power production with a solar panel up to 470 watts peak power. As with all other Hoymiles microinverters, it is suitable for long operating hours and wide PV module applications, as its start-up is very low (only 22V) and the DC input range of the operating voltage (16-60V) is extremely wide. The Hoymiles micro inverter converts the solar power generated by your photovoltaic system in line with the AC grid and feeds it directly into the utility grid. Recommended module power: up to 470W Maximum input voltage: 60V Maximum input current: 4*11.5A Rated output power: 1500VA Battery voltage range: 16~60V Dimensions (WxHxD): 280 x 176 x 33mm Weight: 3.75kg (including 2.06m AC cable) Optional monitoring of your system is only possible with a data transmission unit (DTU). Here you have the choice between the DTU Lite and the DTU Pro (available soon in the shop). Connection set For the connection cable, you have the option of choosing between a connection for a normal earthed socket or a Wieland feed-in socket. If you choose the latter, the complete system includes an AC extension cable (length selectable) with a Betteri BC01 plug, suitable for the HM-1500 inverter, at one end and an angled Schuko plug at the other end of the cable. This enables quick and uncomplicated connection to the Schuko sockets (plug type F) commonly used in Germany. If the Wieland variant is selected, the AC cable has an angled Wieland RST20I3S plug at the end of the cable for installation in accordance with current technical regulations (e.g. VDE standard AR-N-4105). The appropriate feed socket is then included in the scope of delivery. With the Wieland plug, the pins are not completely exposed, as with the Schuko plug, which minimises the risk of arcing between pin and socket and therefore the risk of overheating and fire. Optional mounting systems Offgridtec solar systems are available with or without mounting sets. Mounting sets are available for: Balcony railing: with matching C-hooks Flat roof: pitch angle 10° - 60° Plain tile roof: with plain tile roof hooks Tiled roof: with 3-way adjustable roof hooks Corrugated hernite and sheet metal roof: with stainless steel hanger bolts Solar installations in Germany There is currently no law or ordinance in Germany that regulates the generation of solar power for purely domestic use. The maximum limit of 600W AC PV power is a reserve value which, according to the current VDE standard, can be fed into an existing socket circuit in a house without overloading it. Nothing is described for independent circuits without additional load. Every electrical installation should be VDE-compliant. However, the operation of such a solar system via the standard earthed socket is not prohibited. Registration with the Federal Network Agency is mandatory. However, there are as yet no known cases of fines for failure to register such solar systems, nor any insurmountable problems with grid operators. Compliance with and implementation of standards and obligations is the responsibility of the system operator. A great deal of technical and legal information can already be found on relevant websites. Do you have further questions about solar energy systems and how they work? Contact us, we will be happy to help you.
