Offgridtec FSP-2 180W Ultra KIT MPPT 15A

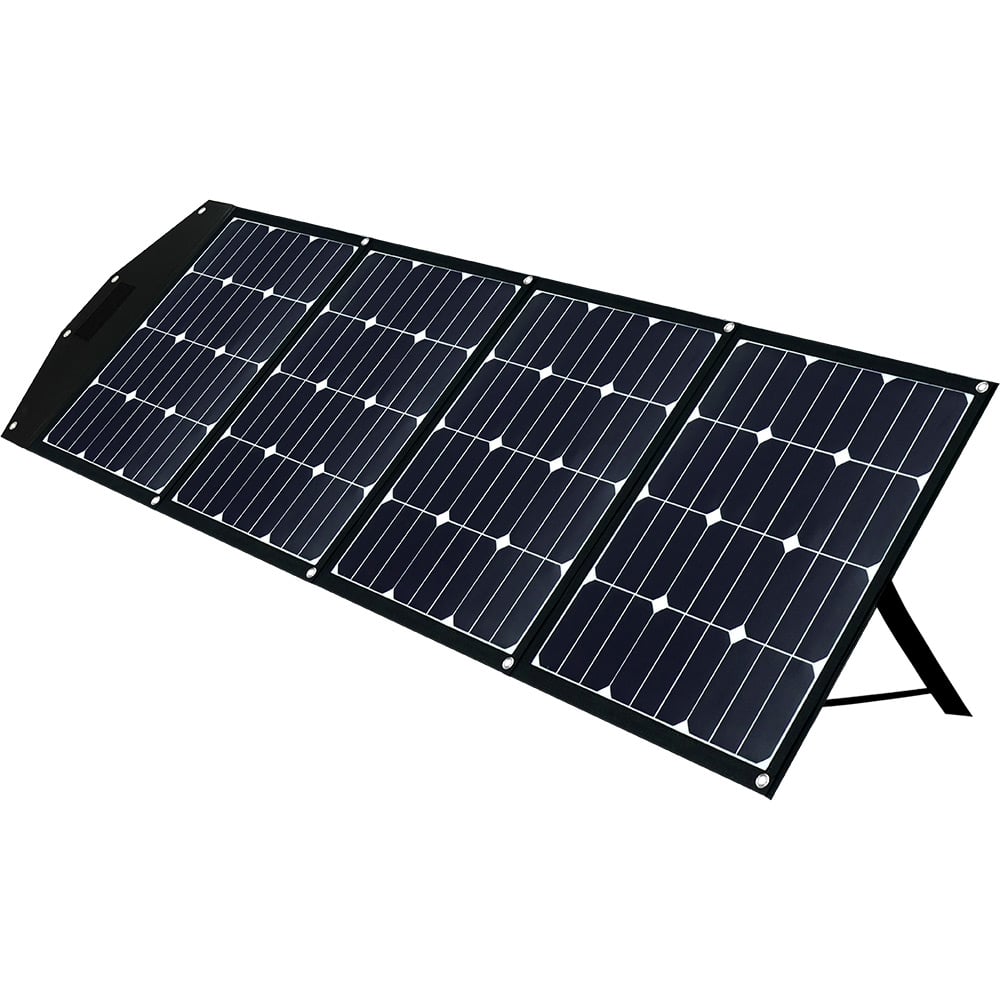

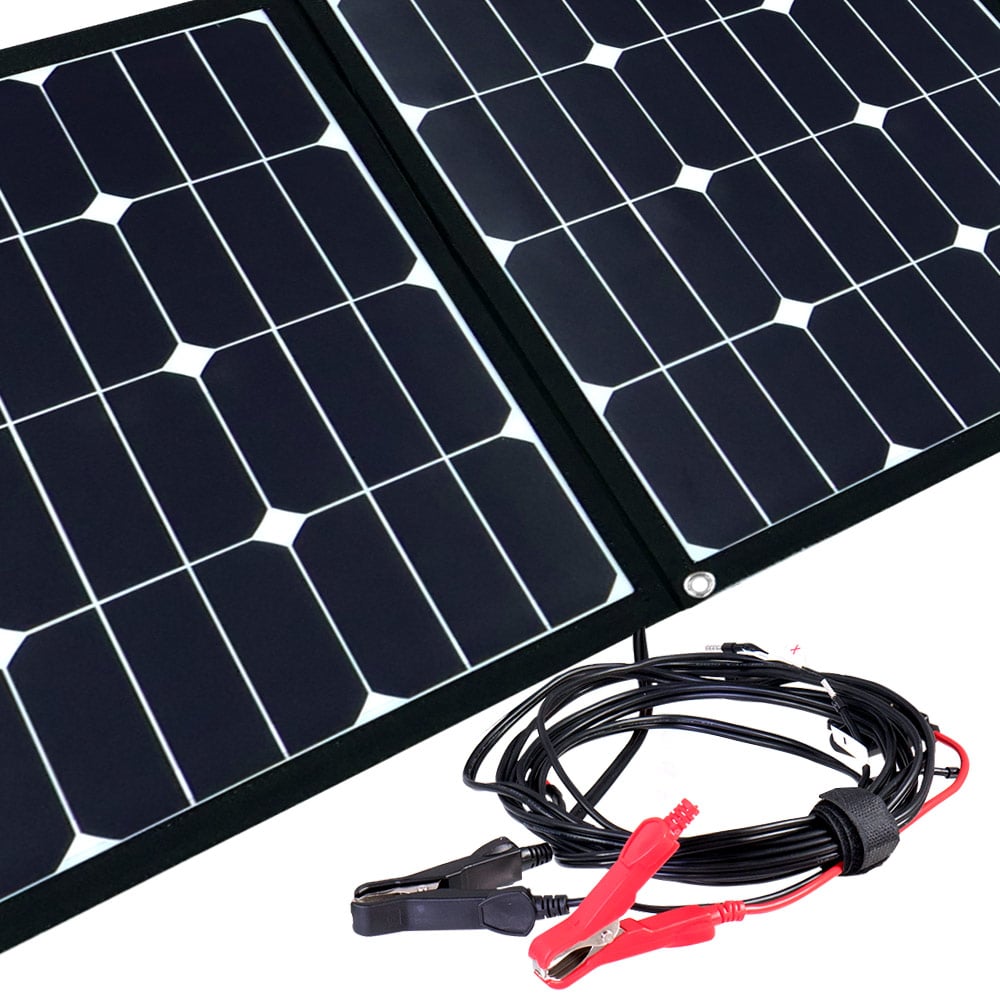

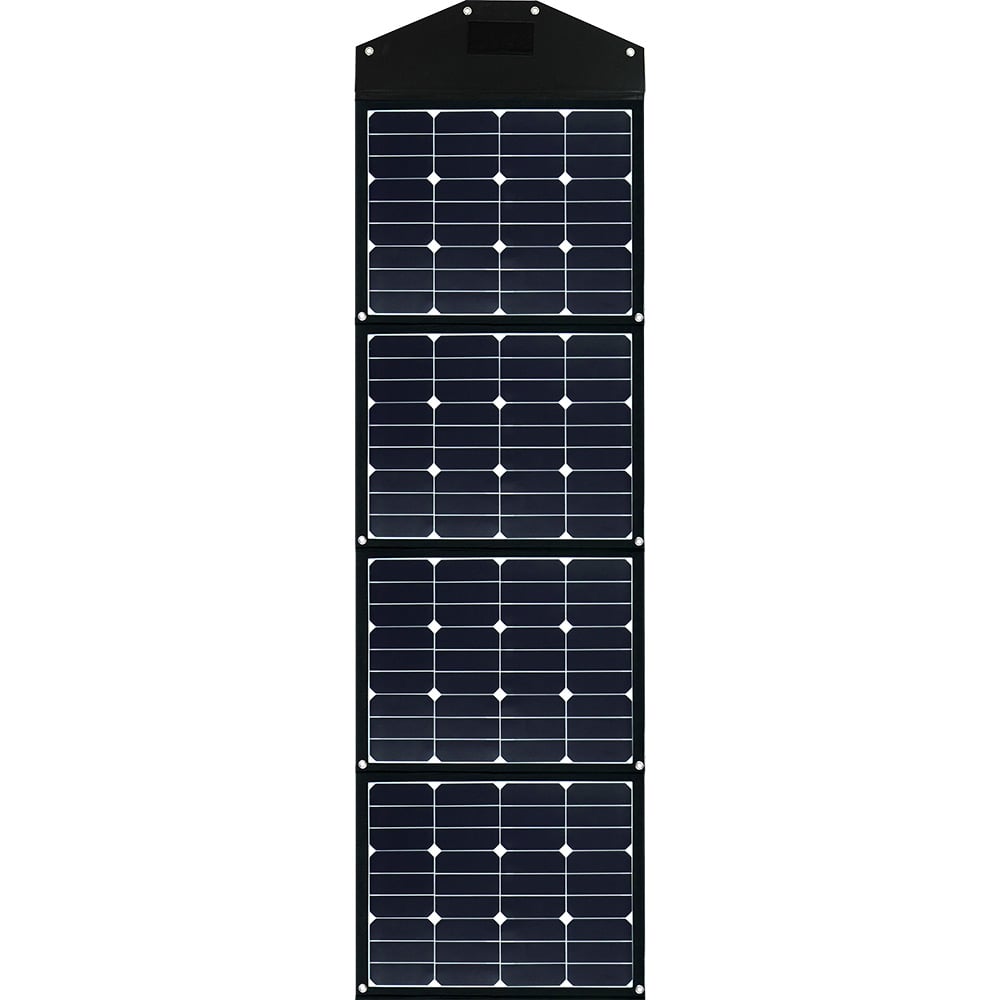

The FSP-2 180W ULTRA KIT 12V combines the foldable 180W FSP-2 solar panel with a latest-generation smart MPPT controller. The FSP-2 180W is one of the newest models in the family and also one of the most powerful foldable solar panels currently available. It features a 4-sided design and comes with a matching connection kit, allowing you to quickly and easily connect it to the charge controller of your choice and the battery you want to charge.

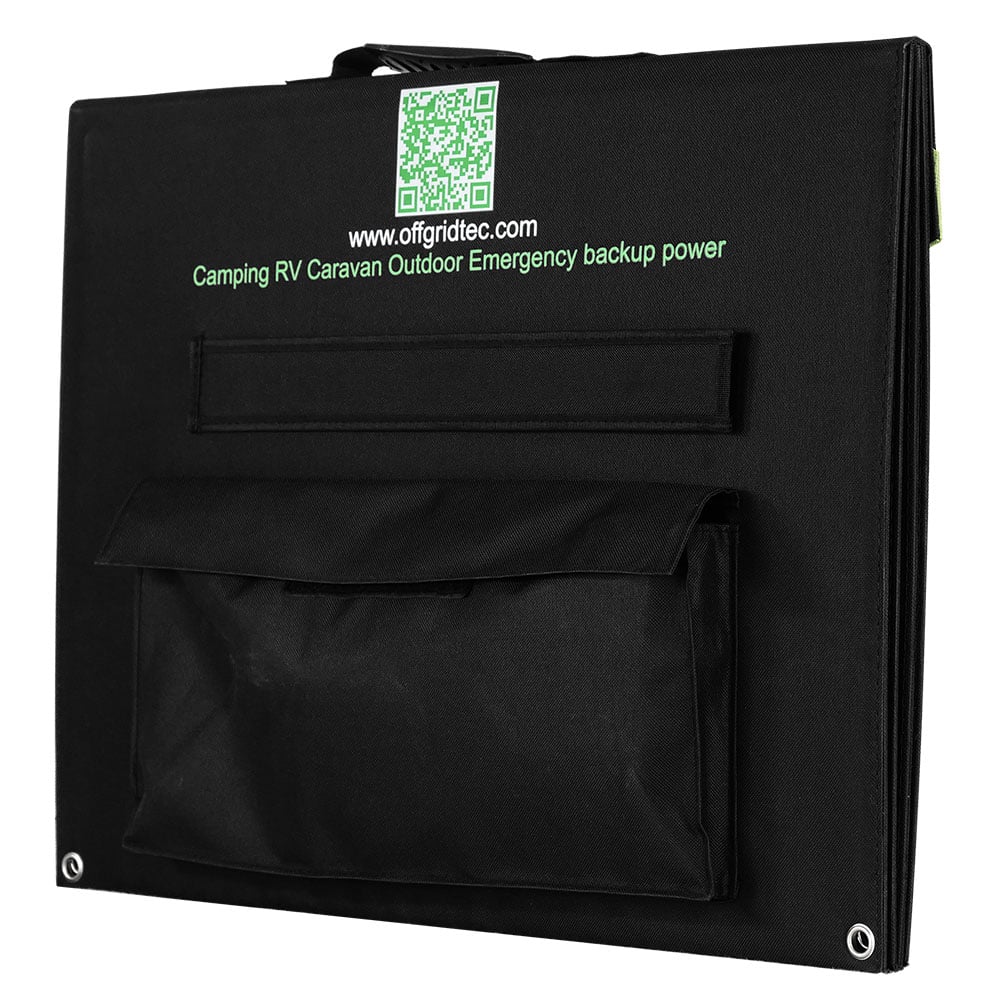

When it comes to charging technology, the FSP-2 180W KIT MPPT relies on the high-quality Victron Smart-Solar 75/15 charge controller. A high-quality device that can be conveniently controlled via Bluetooth and a free app, and is also equipped with a 15A load output for DC loads. The connection kit is housed in a lockable pouch attached directly to the module. This way, you always have a small, ready-to-use power plant at your side.

Performance That Sets the Standard

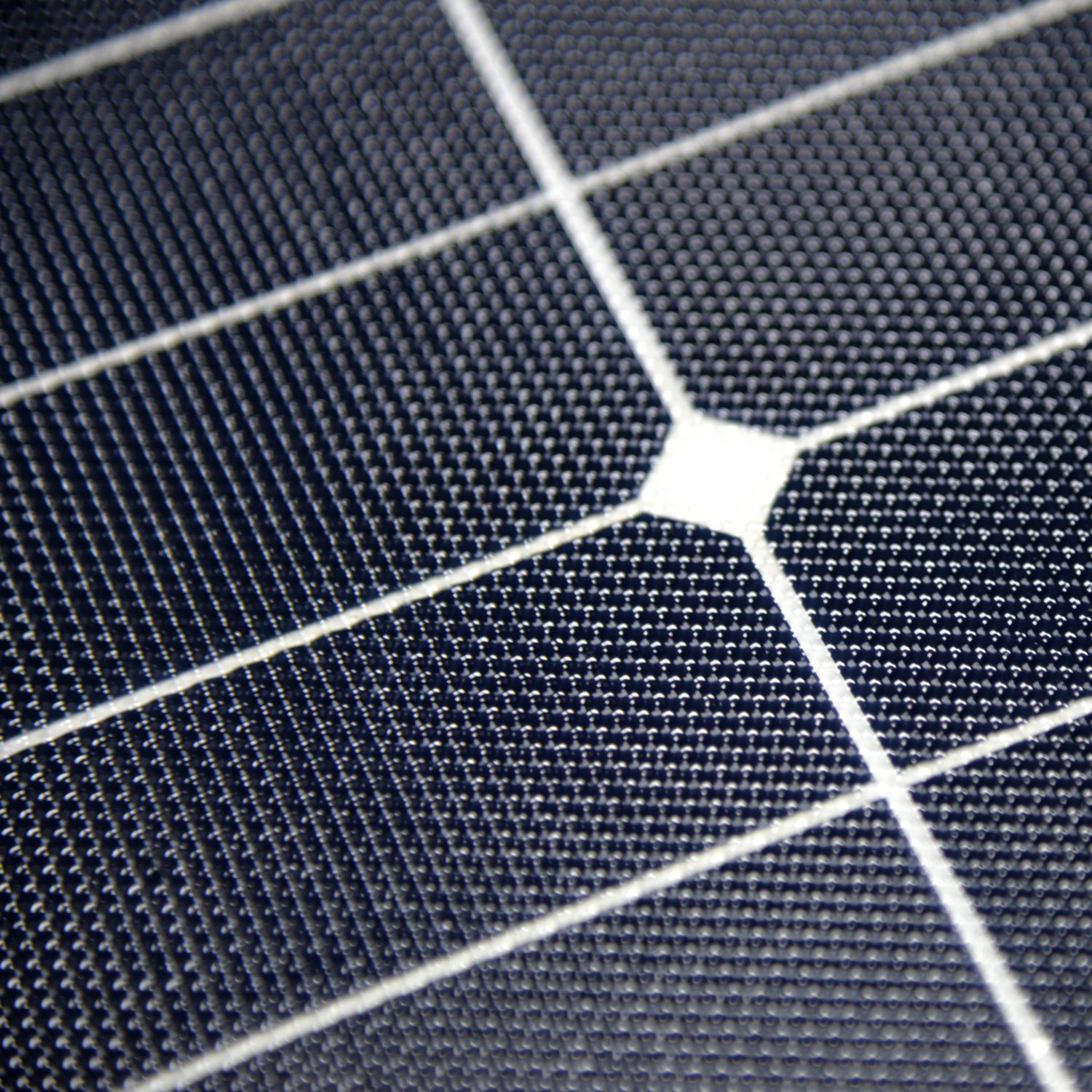

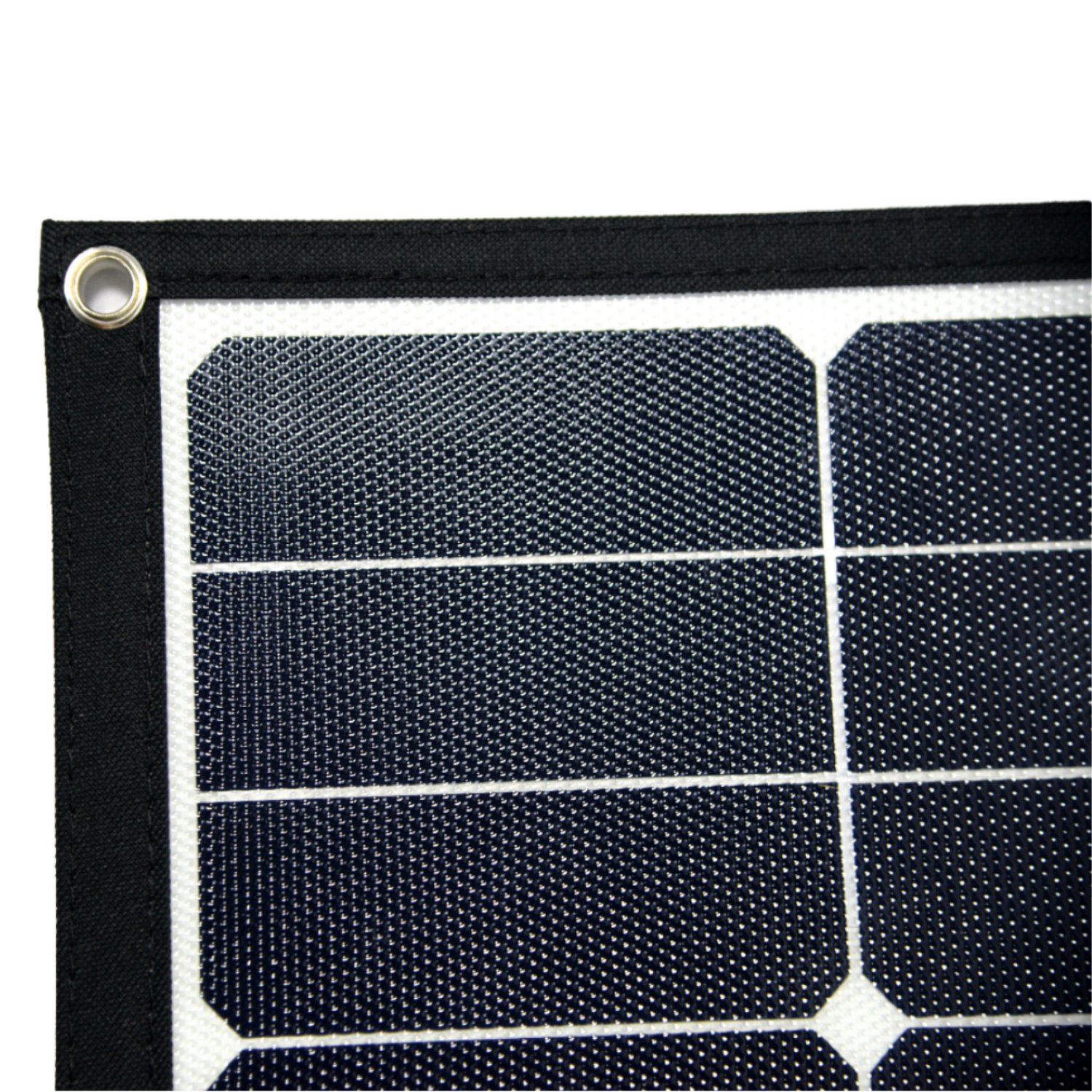

The FSP-2 180W Ultra is equipped with American SPR back-contact cells from a renowned American manufacturer. The cells feature an all-black design, giving the FSP-2 180W an exceptionally modern, high-quality look. The SPR cells ensure very high panel efficiency and, combined with the FSP-2 panel’s light weight and compact dimensions, set new standards in this power class.

Wide range of applications:

• ideal for camping
• or on expeditions, climbing trips, and much more...
• for vehicles and boats without a permanent solar installation...
• and numerous other applications across a wide range of fields...

Technical Highlights: FSP 2 180W Ultra Foldable Solar Panel

• Rated power: 180Wp, Number of panels: 4 x 45 Wp
• Max. system voltage: 75 VDC

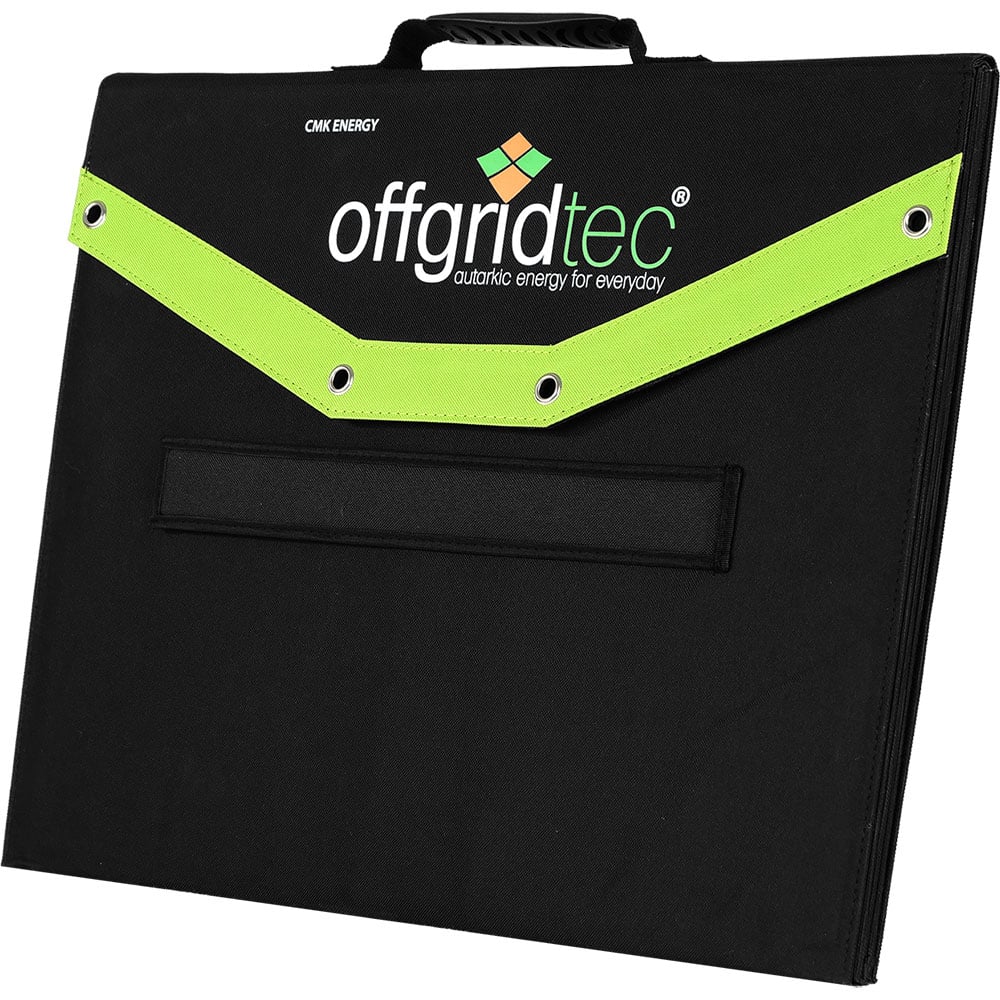

• Dimensions (folded): 560 x 440 x 30 mm; (unfolded): 560 x 1970 x 6 mm
• Lightweight: weighs only 5.4 kg
• Includes MPPT charge controller 75/15 15A and Bluetooth for configuration via a free app
• 15A load output for 12V DC power consumers
• Equipped with high-end solar cells, made in the USA
• Module voltage (Vmp): 39.6 V, max. charge current (Imp): 4.55 A
• Open-circuit voltage (Voc): 46.6 V, short-circuit current (Isc): 4.81 A
• 6.0 m 2x6 mm² connection cable from the FSP-2 to the solar charge controller with an Anderson SB50 connector on the solar side
• 0.5 m 5 mm² connection cable with Anderson plug to wire end ferrule (for permanent screw connection to the charge controller)
• 1 m battery connection cable from the solar charge controller to the battery with pre-installed terminal clamps on the battery side
• Short-circuit-proof connection to the battery thanks to an integrated flat fuse holder with a 15A ATO fuse
• 2-year warranty—you can find information on warranty terms here

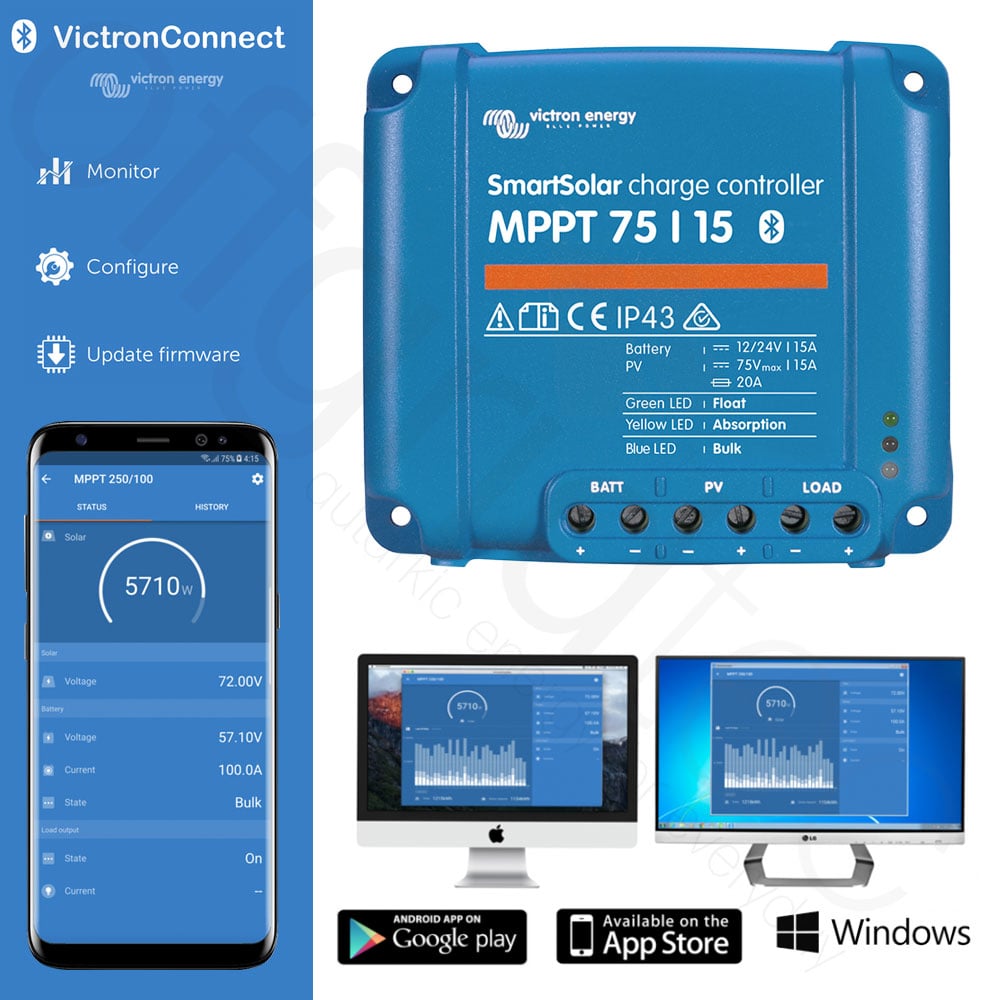

Includes Victron SmartSolar 75/15 charge controller

The SmartSolar 75/15 from Victron Energy (MPN SCC075015060R) is an MPPT solar charge controller with a maximum charging current of 15A for charging 12V and 24V batteries. Unlike the BlueSolar 75/15, the Smart version features built-in Bluetooth, eliminating the need to purchase a Bluetooth dongle. In addition, a VE.Direct connection is still available for communication with other Victron devices, such as the Color Control GX or the MPPT Control.

The built-in Bluetooth in the SmartSolar series is the wireless solution for setting up, monitoring, and updating the controller using Apple and Android smartphones, tablets, or other devices.

Key technical specifications at a glance

• 15A load output
• High peak efficiency of 98%
• Freely programmable battery charging algorithm (via the free Victron Connect app)
• Programmable lighting dimming functions (via the free Victron Connect app)
• Ultra-fast Maximum Power Point Tracking
• Max. PV open-circuit voltage: 75V
• Charging algorithm: multi-stage, adaptive
• Integrated Bluetooth module
• Dimensions: 100 x 113 x 40 mm
• Weight: 0.5 kg

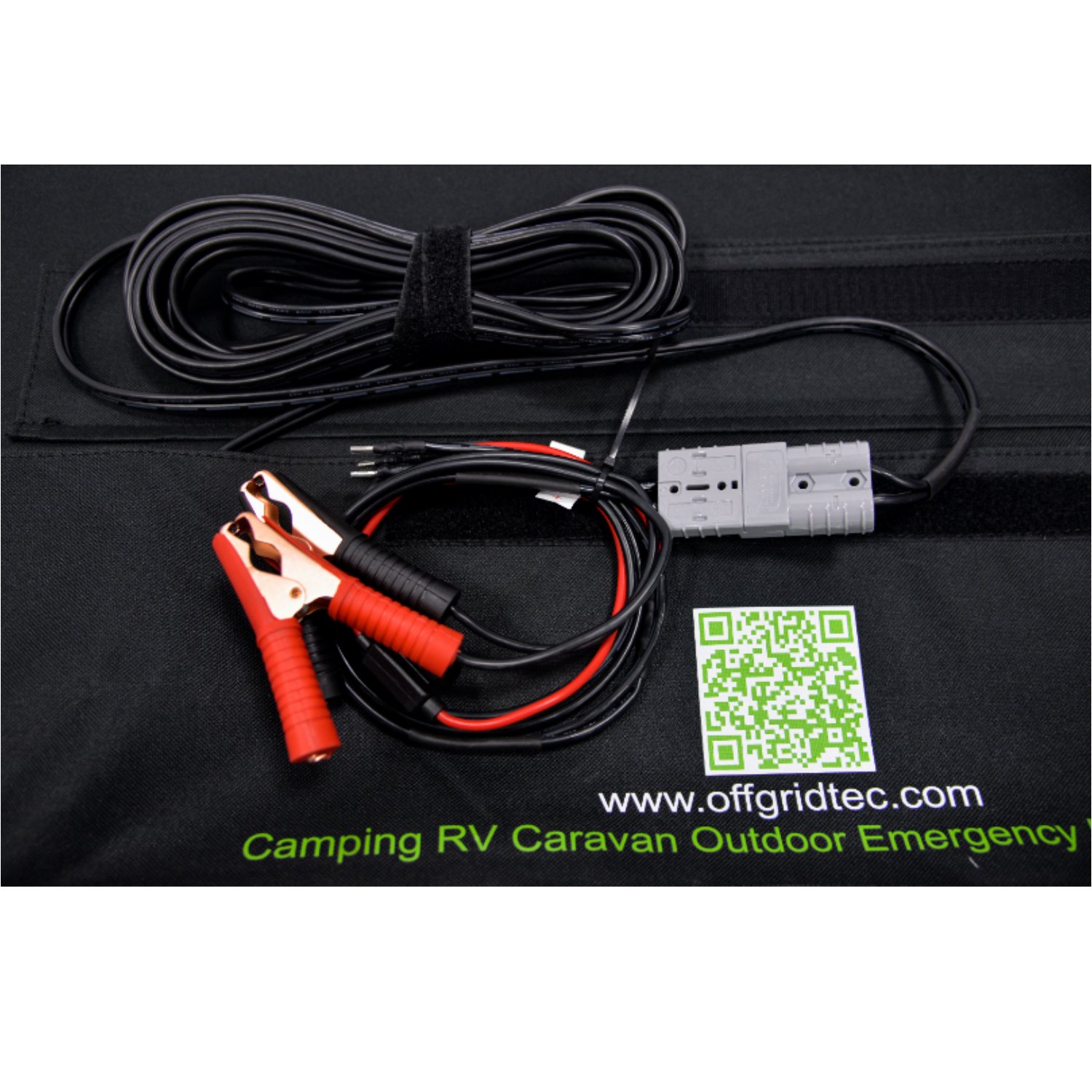

The included Professional Connection Kit

The included Connection Kit provides everything needed for quick setup of the mobile solar kit. Each FSP-2 features a 6.0 m connection cable terminated with a high-quality Anderson connector. A second 0.5-meter connection cable is also included; it screws directly into the solar input of the charge controller and is equipped with an Anderson connector on the other end. This allows you to quickly connect or disconnect the controller via the Anderson connectors at any time without having to unscrew the cables from the charge controller.

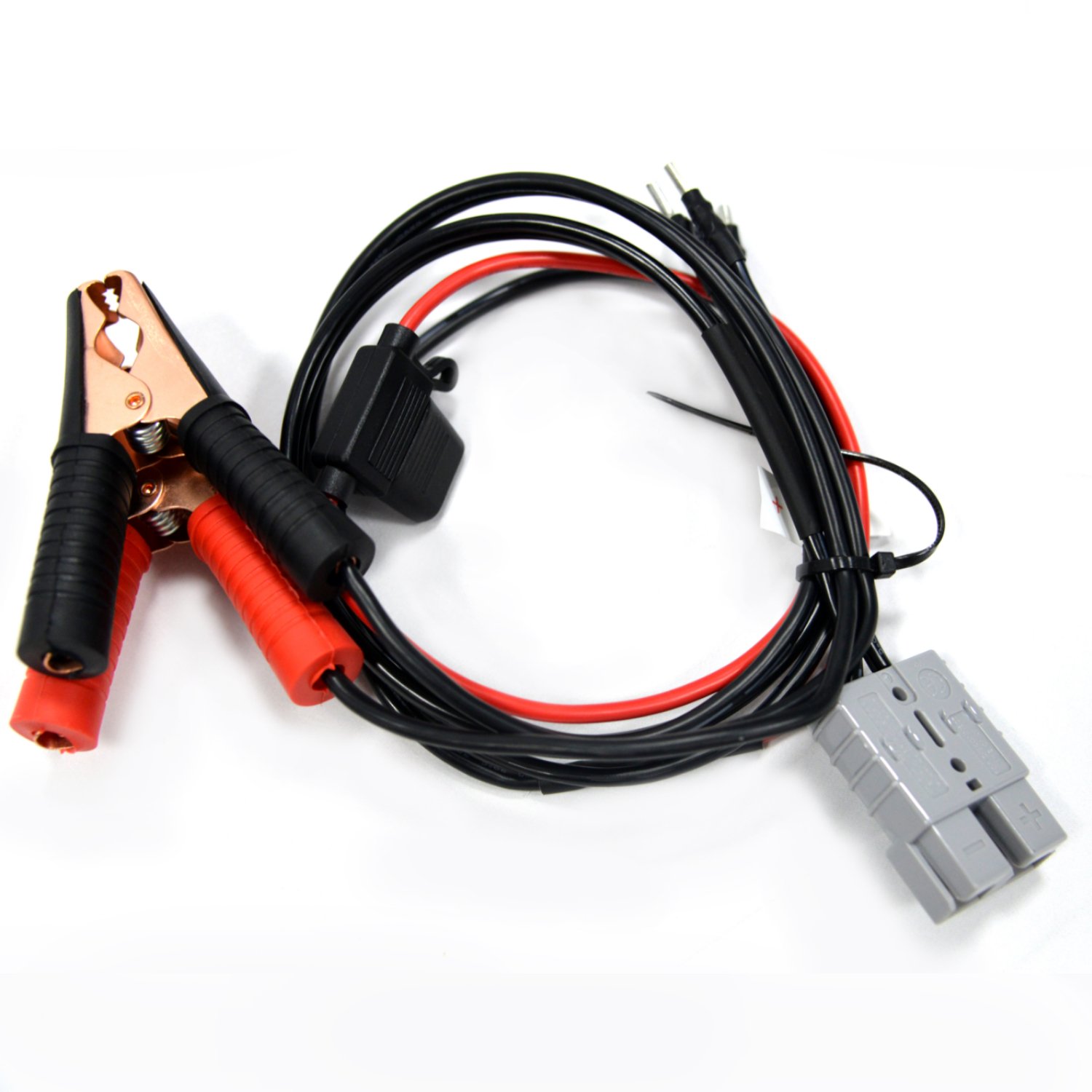

A 1-meter-long plug-and-play connection cable is also included to connect the charge controller to your battery. This cable is screwed into the controller’s battery input and features universal alligator clips on the battery side that can be conveniently clipped onto all standard battery terminals. In addition, the battery cable features a flat fuse holder with a corresponding ATO fuse.

About the FSP-2 Series

As with all Offgridtec solar module series, the FSP series was also designed with a strong emphasis on high quality and durability. The FSP 2 180W Ultra uses back-contact solar cells, the same type found in our SP high-performance series. These cells achieve efficiency ratings of over 24% and are currently the best available on the market. In addition, we manufacture our solar modules in accordance with current norms and standards, which—combined with high-quality materials—makes our modules high-end products that deliver peak technical performance even under the most adverse conditions.

Package Contents:

1x Offgridtec FSP-2 180W 12V, 3-01-010760
1x Victron Energy SCC075015060R Smartsolar MPPT 75/15 15A 12V 24V Solar Charge Controller
1x 6m 2x6mm² module connection cable with Anderson SB50 connector
1x Offgridtec FSP-2 Connection Kit
