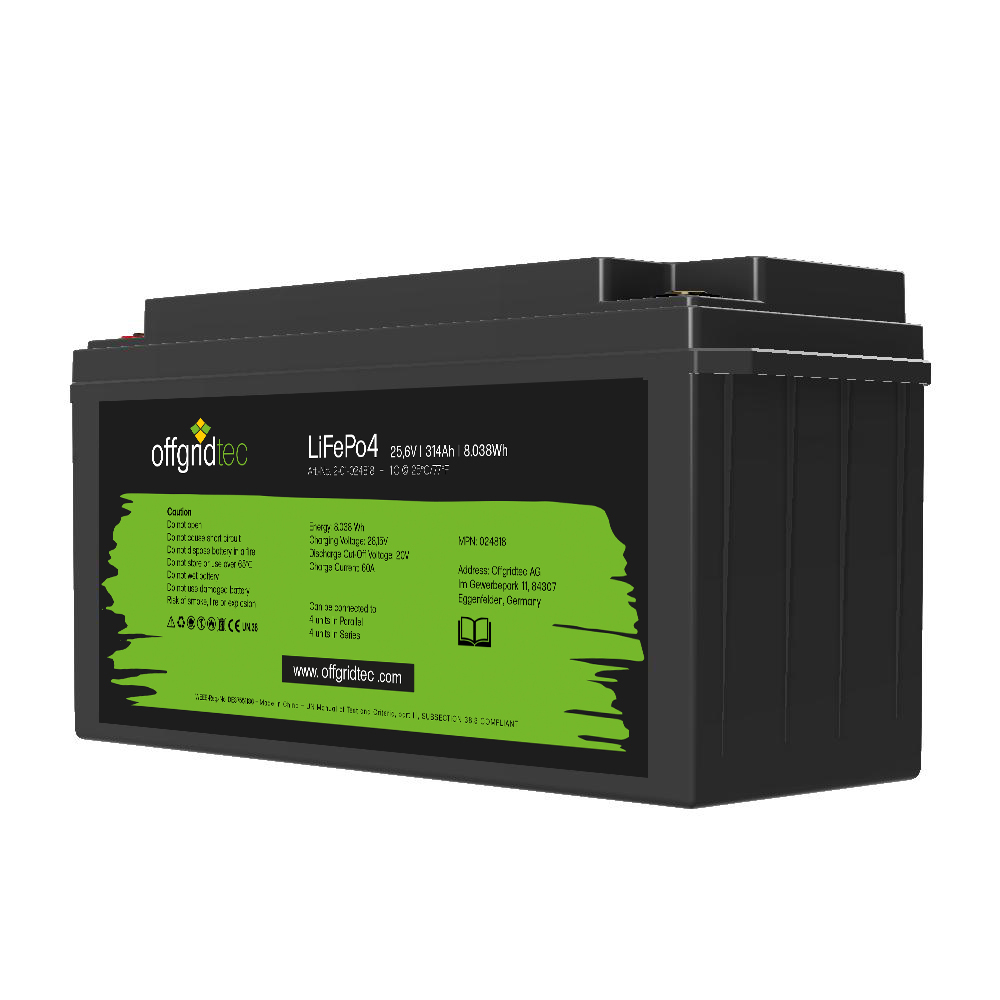

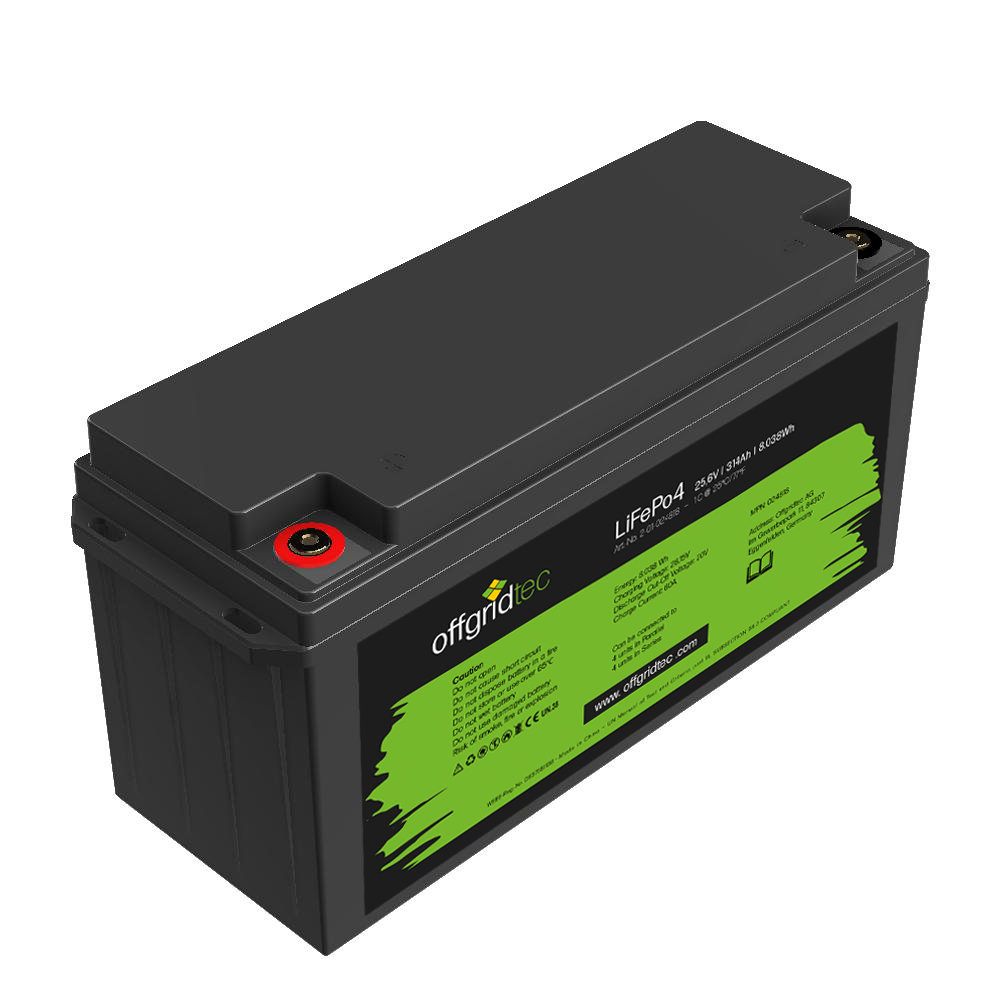

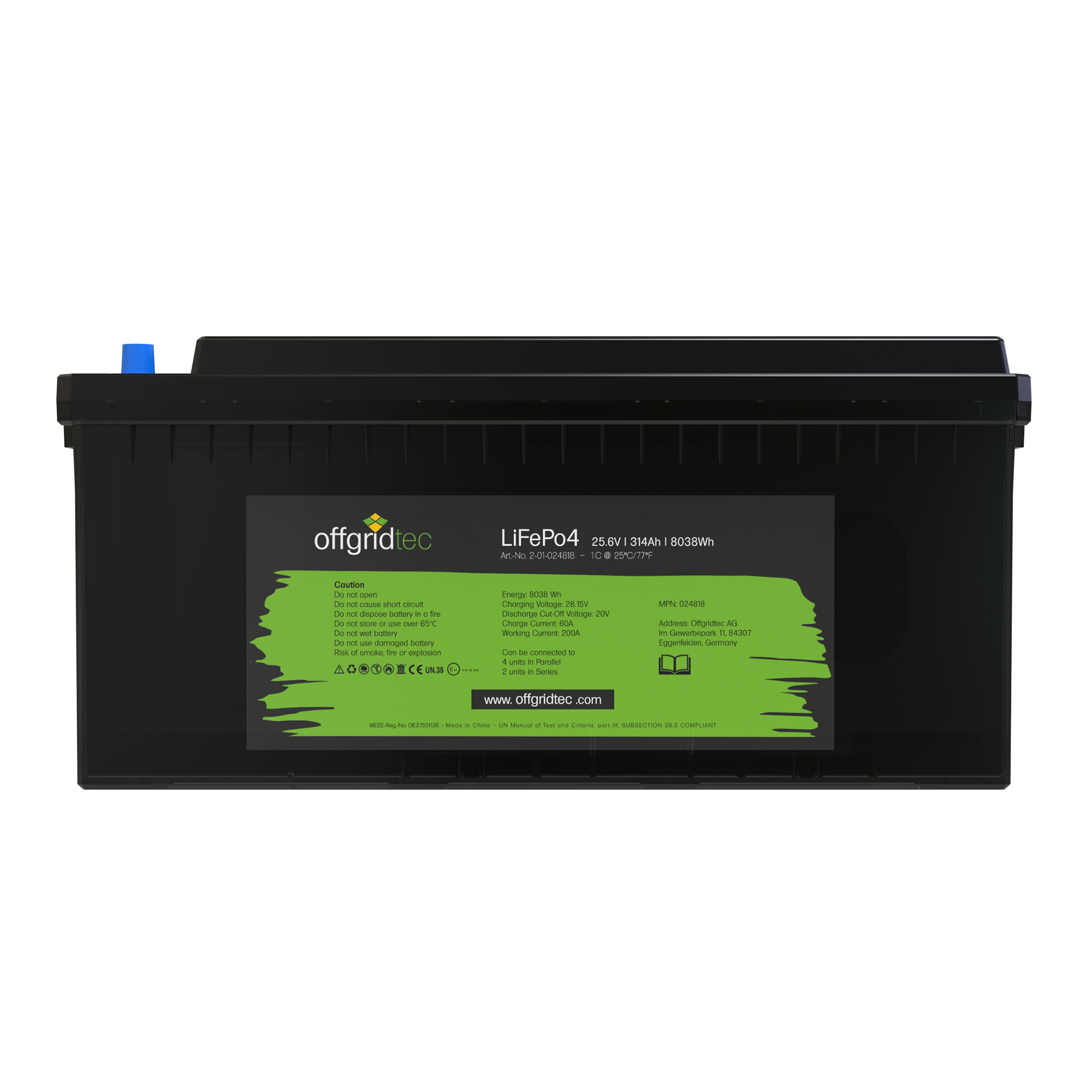

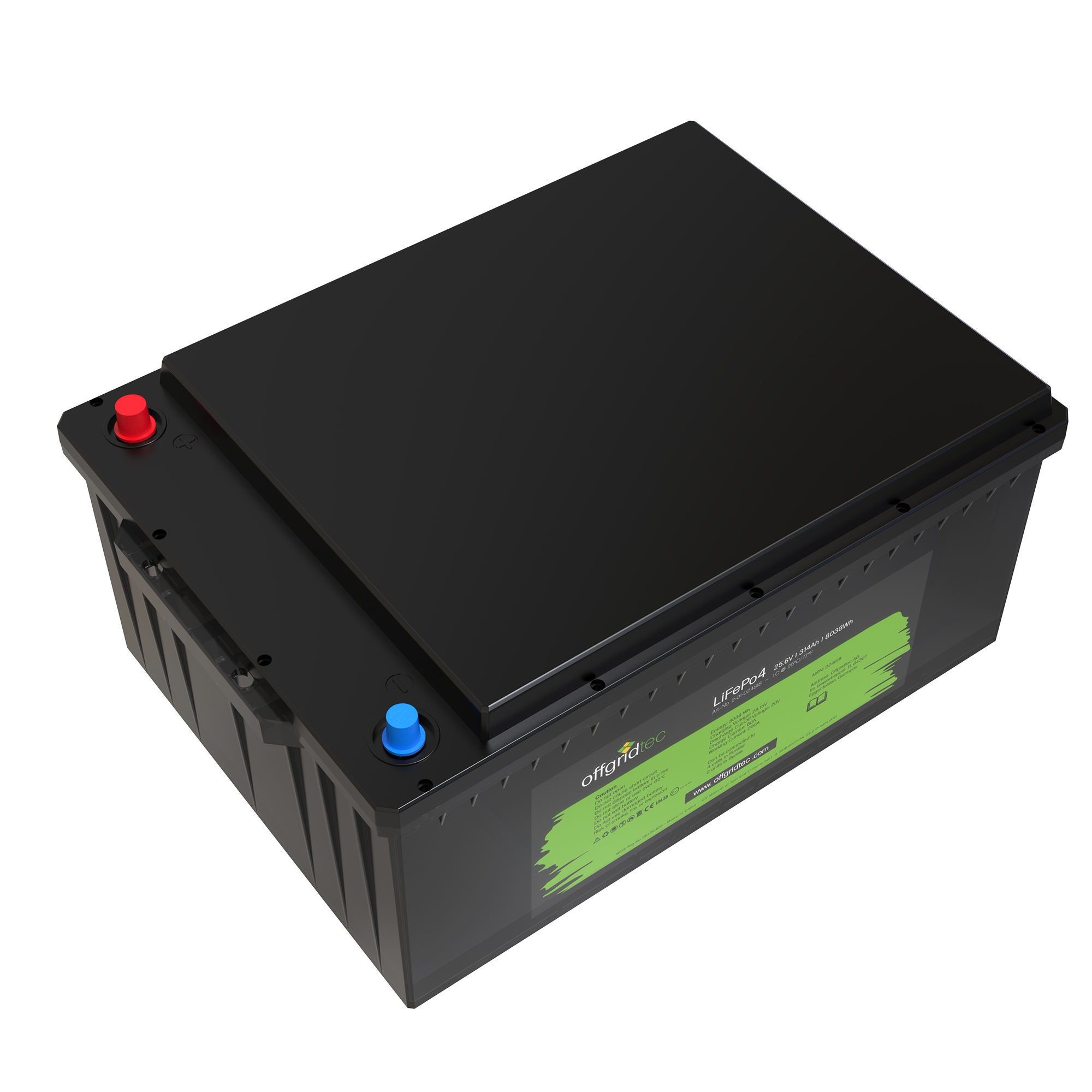

Offgridtec LifePo4 battery 25.6/300 25.6V 314Ah BMS integrated 8038Wh

The LiFePO4 battery 25.6/314 from Offgridtec (MPN 024818) is a state-of-the-art and efficient energy storage solution. With a capacity of 314Ah and a nominal voltage of 25.6V, it guarantees both safety and outstanding performance. Thanks to its compact and maintenance-free design, the battery is easy to install and can be flexibly integrated into individual energy storage systems through parallel connection. Equipped with an integrated battery management system (BMS), the battery is protected against overcharging, deep discharge, short circuits, and overheating. This not only extends its service life, but also increases safety during operation. The powerful battery impresses with a service life of up to 8000 charging cycles, so you can benefit from a reliable power supply for a long time.

The LiFePO4 25.6/314 battery at a glance

• Integrated BMS with numerous protective devices
• Long service life: 8000 cycles
• UPS, emergency power supply
• Low weight
• Higher performance
• Superior safety
• Increased flexibility
• Up to 4 in parallel connection
• Fast charging, 98% high power density
• Manufacturer product warranty: 3 years, information can be found here

Versatile – flexible with lithium technology from Offgridtec

Despite their higher purchase price compared to AGM or gel batteries, Offgridtec's LiFePO4 batteries offer excellent value for money. With a service life of up to 5000 charging cycles, they generally significantly exceed the maximum service life of the best lead-acid batteries. The energy extraction efficiency is an impressive 92%, which is significantly higher than the 80% achieved by lead-acid batteries. This aspect can be particularly important in off-grid systems, especially in grid-independent solar or wind power systems.

Integrated BMS

LiFePO4 offers automatic protection through its internal battery management system. The lithium iron phosphate chemistry eliminates the risk of explosion or combustion due to strong impacts, overcharging, or short circuits. By precisely controlling these parameters, the BMS ensures optimal battery utilization and extends battery life.

• Overvoltage protection
• Undervoltage protection
• Overload protection
• Short circuit protection
• Protection of cells against excessive or low temperatures

Areas of application

• Renewable energy systems, such as photovoltaic and solar systems
• Vehicles, such as motorhomes, caravans, and campers
• Marine applications, such as fishing boats and electric boats
• Uninterruptible power supply (UPS) for emergencies

Parallel connection

The parallel connection of our LiFePO4 batteries offers you increased flexibility. With the modular design, you can use up to two batteries in series and four in parallel for the 25.6V versions. This allows you to easily adjust the capacity and performance of your system.

LiFePO4 technology

A LiFePO4 battery stands for "lithium iron phosphate battery" and is a type of lithium-ion battery. It is characterized by a specific chemical composition in which lithium iron phosphate is used as the cathode material. The batteries can undergo thousands of charging cycles, resulting in a longer overall service life compared to other battery types. They are considered safer than some other lithium-ion batteries because they are less prone to overheating or thermal instability. They also offer constant voltage and power throughout most of their discharge cycle, a high discharge rate, and low weight.

Advantages of Offgridtec LiFePO4 over conventional batteries

• Longer cycle life: Up to 20 times longer in cycle and 5 times longer in standby compared to lead-acid batteries
• Low weight: Up to 40% lighter than comparable lead-acid batteries
• Higher performance: Twice the power of a lead-acid battery at high discharge
• Low self-discharge: Delivers twice the power of a lead-acid battery, even at high discharge rates
• Highly efficient: 92% energy utilization compared to 80% for lead-acid batteries
• Improved safety features: Integrated BMS protects against overcharging, deep discharge, and short circuits

Technical data

• Nominal voltage: 25.6V
• Nominal capacity: 314Ah
• Max. charging voltage: 28.15V
• Discharge voltage: 20V
• Charging current: 60A
• Max. charging current: 150A
• Max. discharge current: 200A
• Nominal battery energy: 8038 Wh
• Connection: M8
• Operating temperature charging: 0°C - +55°C
• Operating temperature discharging: -20°C to +65°C
• Protection class: IP68
• Weight: 48 kg
• Dimensions: 522 x 232 x 365 mm
• Service life: 8000 cycles

Scope of delivery

1x Offgridtec LifePo4 battery 25.6/314 25.6V 314Ah BMS integrated 8038Wh
