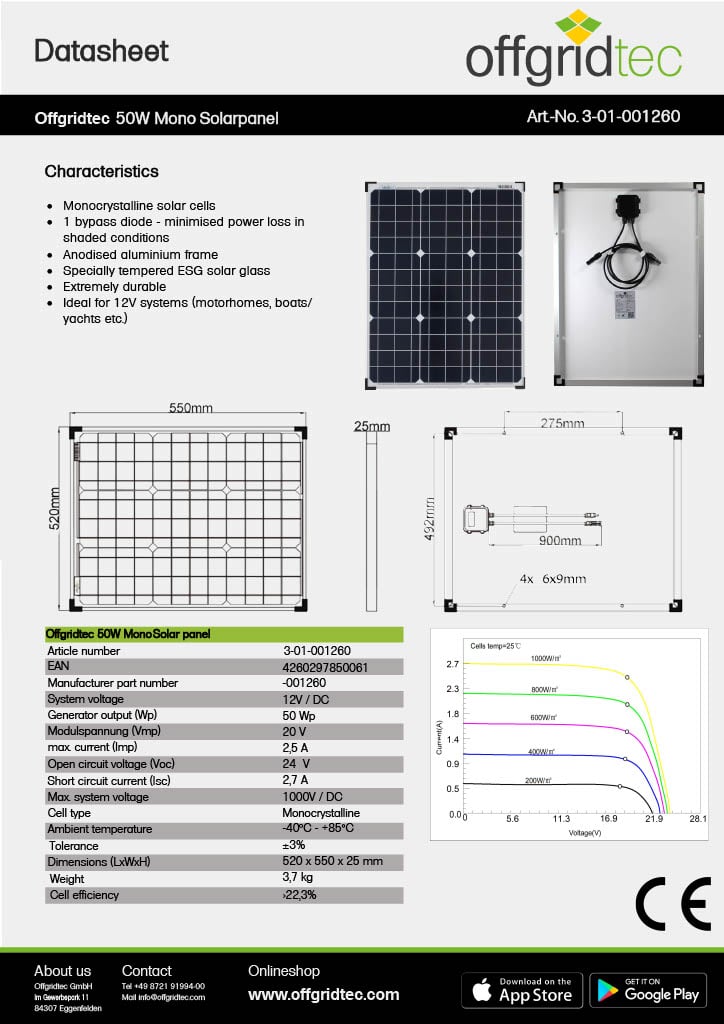

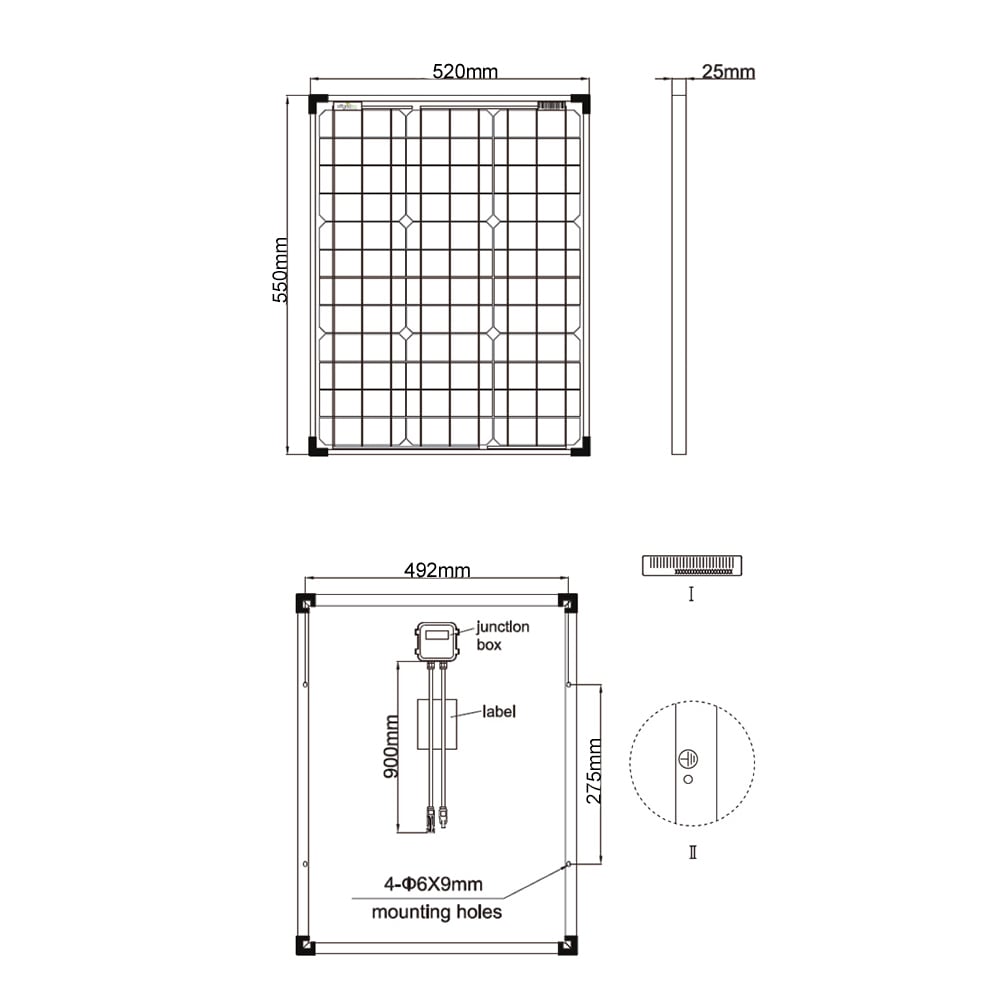

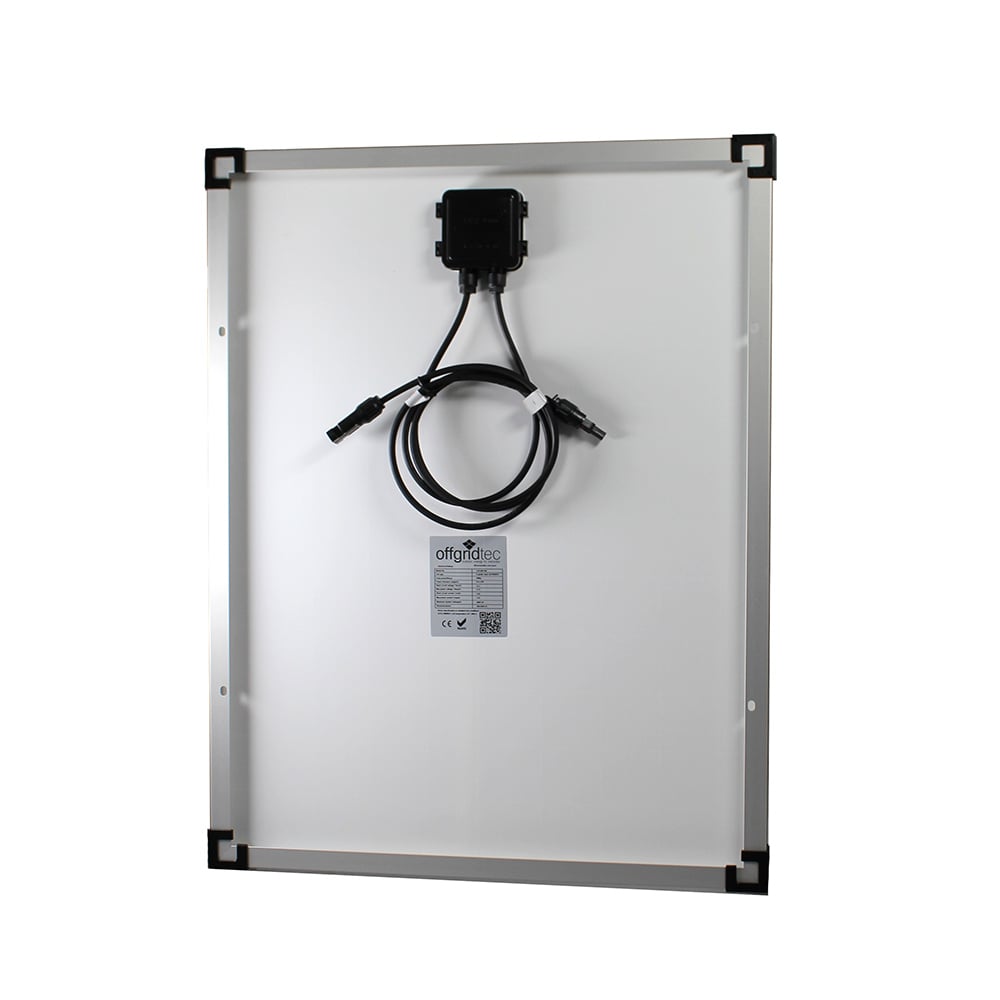

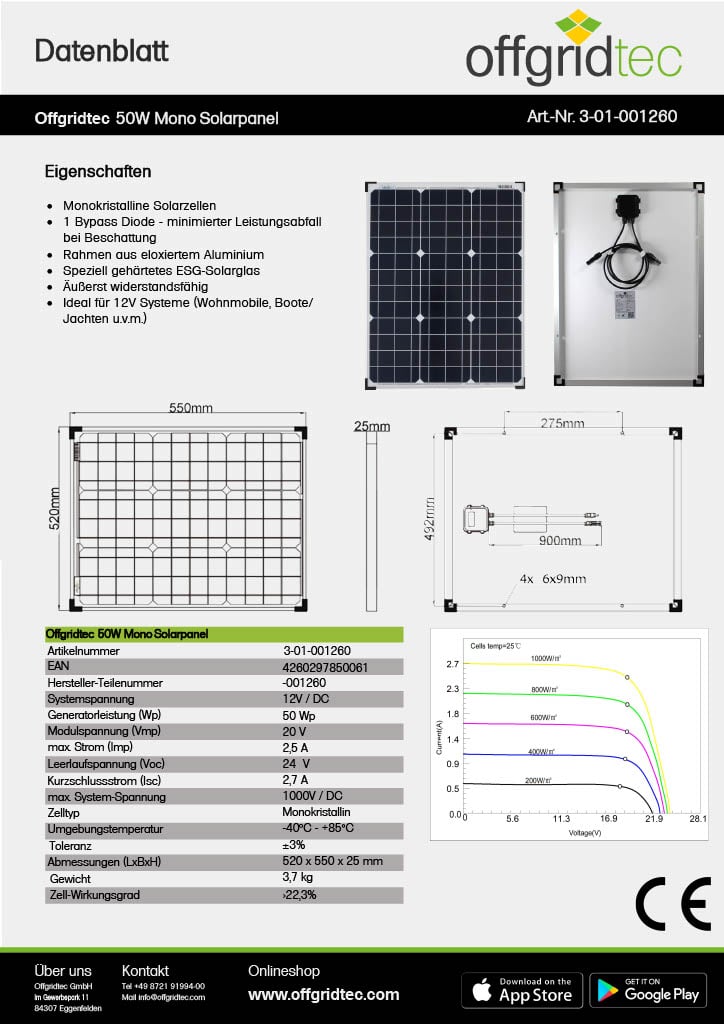

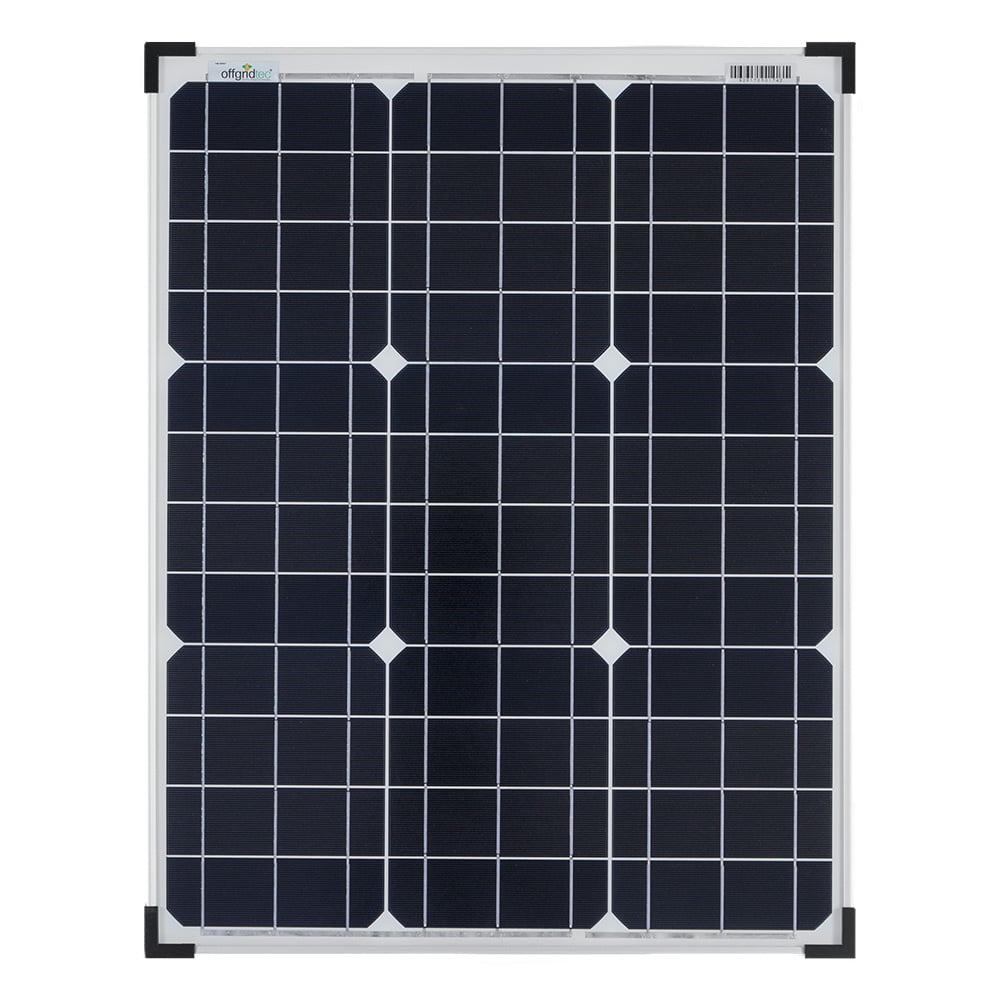

Offgridtec® 50w mono 12v solar panel

All BIG-M systems are dimensioned for our 80W mono solar cells. The BIG-M 12V / 50W / 50Ah produces about 200Wh clean energy during summer. On sunny days in summer the system can even produce up to 400Wh and more. The included AGM battery stores about 600Wh. With a discharge of 50% you can use about 300Wh daily and ensure a higher battery life-span of 5 to 10 years at the same time. All components and cables are perfectly matched together - there is nothing you have to care about. If this set is not exactly what meets your requirements please let us know. We gladly provide you with an individual offer with other specifications according to your needs. Components:1 x Offgridtec 50W Mono solar panel1 x Offgridtec 51Ah AGM battery1 x Steca PR 1010 charge controller with LCD-display1 x 8m professional module to charge controller connection cable (2x6mm²)1 x 1,5m professional battery cable with 10A-fuse

The basicPremium-S 50W solar system 12V 24V from Offgridtec (MPN 4-01-002620), is based on a high-quality, monocrystalline 50 Wp solar module and the convenient PWM-10/24 10A charge controller with LCD display. The basicPremium series also comes with a matching 8m solar connection cable (solar module to charge controller) and 1.5m battery connection cable - each from the Pro-Connect series. The average daily yield in the period from March to October is about 200 Wh*. The solar output of the system can also be easily increased at a later date should your needs increase. The system offers all the basic components needed to charge your battery with self-produced solar power. This combination makes it the perfect basis for a variety of possible solar applications. High-quality basic set for a wide range of applications Offgridtec solar sets of the basicPremium series consist of basic components that every self-sufficient solar power system needs, regardless of whether the system is to be used on a garden shed, garage or in the mobile sector. We constantly focus on the high quality of all delivered components to ensure reliability and a long life expectancy of the system. Our 50W solar module is equipped with the best monocrystalline cells and is produced and tested using the latest manufacturing technology. The remaining components of the set also follow this quality standard: The Plug & Play connection cables "made in Germany" are designed to keep the installation effort as low as possible without compromising on the connection quality. With its convenient display and up-to-date charging algorithms, the PWM-10/24 10A Pro charge controller ensures that the system is easy to operate and your batteries are perfectly charged. The basicPremium family is a mature product that has proven itself thousands of times in practice and offers the ideal starting point for a wide range of applications. Applications solar system 12V or 24V DC power supply in garden sheds, allotments and similar objects self-sufficient systems for outdoor lighting applications self-sufficient monitoring and communication systems or weather stations charging smartphones, tablets or other devices with 12V / 5V DC power supply Performance parameters at a glance Average daily yield: 200 Wh Solar output can be extended to max. 100 Wp (at 24V = 250 Wp) if the same panel is used Available power outputs: 5V DC and 12V DC at the charge controller (230V only with optional voltage converter) Components of the basicPremium-S 50W solar system 12V 24V 1 x Offgridtec monocrystalline 12V 50 Wp solar module Rated power: 50 Wp, part number: 3-01-001260 Operating voltage (Vmp) 17.8 V, operating current (Imp) 2.81 A equipped with 'high-quality monocrystalline cells minimised power loss during shading due to integrated bypass diode solid: frame made of anodised aluminium + specially hardened ESG solar glass MC4 connector, dimensions (WxLxH): 650 x 505 x 30 mm, weight: 3.8 Kg 1 x PWM-10/24 10 Pro solar controller 12V/24V max. charging current 10 A, max. PV power with 12V / 24V system: 130 W / 260 W Modern, 3-stage PWM charge control for gentle and efficient charging of your battery(ies) 3 battery types adjustable: AGM, GEL, and liquid lead acid Intuitive operation via 2 buttons directly on the unit Large LCD display with numerous display options, including kWh meter 2 USB ports with a maximum output of 2.4A Load output with numerous configuration options, e.g. for light control Temperature-compensated battery charging (optional temperature sensor required) 1x 8m 2x6mm² solar connection cable controller/solar module TWIN cable, Plug & Play - ready for immediate use MC4 connectors on the solar module side, wire end ferrules on the charge controller side High-quality solar cable: TWIN cable Wire cross-section: 2x6mm², length: 8m 1x 1,5 2x6mm² 30 A battery connection cable controller/battery (Offgridtec) Plug & Play - immediately ready for use wire cross-section: 2x6mm², length: 1.5m Including flat fuse holder with built-in 30 A ATO fuse Wire end ferrules on charge controller side, M8 ring terminals on battery side incl. battery pole terminals for connection to round pole terminals Flexible and very easy to install The system is very easy to install, even for people who have little experience with solar technology. The cables are all supplied plug & play, i.e. ready for connection. You only need to connect the components and the electricity production can begin. Expandable, customisable Wie jedes System von Offgridtec, kann auch die basicPremium-S an Ihre Anforderungen individuell angepasst und modifiziert werden. Unser technischer Vertrieb freut sich auf Ihre Anfrage. Eventuell anfallende Kosten sind beim Kundenservice zu erfragen. Scope of delivery: 1x Offgridtec 4-01-002620 basicPremium-S 50W 12V 24V solar system 1x instruction manual including all components listed above

The solar module 30w mono from Offgridtec (mpn 3-01-001530) works with monocrystalline solar cells with a high efficiency of >18% and is ideal for 12v systems thanks to its 20v operating voltage. In Offgridtec mono solar modules only cells of the highest quality grade are used and guarantee thanks to modern manufacturing a constant high quality and performance with maximum lifetime. Features of Offgridtec 30w 12v mono solar panel proven quality directly from Offgridtec manufactured according to the latest standards monocrystalline solar cells extremely resistant ESG glass makes the module usable even in the most adverse environmental conditions ideal for 12v systems on land or in mobile solar systems Frame in anodized aluminum The mono 30w 12v is one of over 40 proven solar panels from the Offgridtec portfolio and participates in Offgridtecs experience in manufacturing high quality 12v and 24v solar cells. The module can be used in very adverse operating conditions thanks to the extremely resistant solar glass. It can withstand heavy hail and storms or extreme cold and heat without any problems and thanks to the integrated bypass diodes, the module can continue to produce power even in shaded or low light conditions. The most important technical data at a glance Power (Pmax): 30w Working voltage (Vmp): 20 V Open circuit voltage (Voc): 24 V max. current (Imp): 1.5 A Short circuit current (Isc): 1.62 A max. system voltage: 600 V permissible ambient temperature: -40°C - +85°C Dimensions: 560 x 360 x 25 mm Weight: 2,5 kg Universally applicable Offgridtecs 30w 12v Mono is universally applicable for example in 12 volt Solaranlagen on garden houses, allotments or for the power supply of lighting applications, self-sufficient systems of signal and surveillance technology and many more. But also in mobile systems such as in mobile home solar systems this panel makes a good figure. Scope of delivery: Offgridtec 3-01-001530 30w mono 12v solar panel

The solar module 150w mono from Offgridtec (mpn 3-01-001255) works with monocrystalline solar cells with a high efficiency of >22,3% and is ideal for 12v systems thanks to its 20v operating voltage. In Offgridtec mono solar modules only cells of the highest quality grade are installed and guarantee a constant high quality and performance with maximum service life thanks to state-of-the-art manufacturing. Features of Offgridtec 150w 12v mono solar panel proven quality directly from Offgridtec manufactured according to the latest standards monocrystalline solar cells extremely resistant ESG glass makes the module usable even in the most adverse environmental conditions ideal for 12v systems on land or in mobile solar systems 2 bypass diodes - minimized power loss in shaded conditions The mono 150w 12v is one of over 40 proven solar panels from the Offgridtec portfolio and participates in Offgridtecs experience in manufacturing high quality 12v and 24v solar cells. The module can be used in very adverse operating conditions thanks to the extremely resistant solar glass. It can withstand heavy hail and storms or extreme cold and heat without any problems and thanks to the integrated bypass diodes, the module can continue to produce power even in shaded or low light conditions. The most important technical data at a glance Power (Pmax): 150w Working voltage (Vmp): 20 V Open circuit voltage (Voc): 24 V max. current (Imp): 7.5 A Short circuit current (Isc): 8.1 A max. system voltage: 1000 V permissible ambient temperature: -40°C - +85°C Dimensions: 1140 x 680 x 35 mm Weight: 12 kg Universally applicable Offgridtecs 150w 12v Mono is universally applicable for example in 12 Volt Solaranlagen on garden houses, allotments or for the power supply of lighting applications, self-sufficient systems of signal and surveillance technology and many more. But also in mobile systems such as in mobile home solar systems this panel makes a good figure. The connection cables are 80 cm long and equipped with MC4 connectors. Scope of delivery: Offgridtec 3-01-001255 150w mono 12v solar panel
