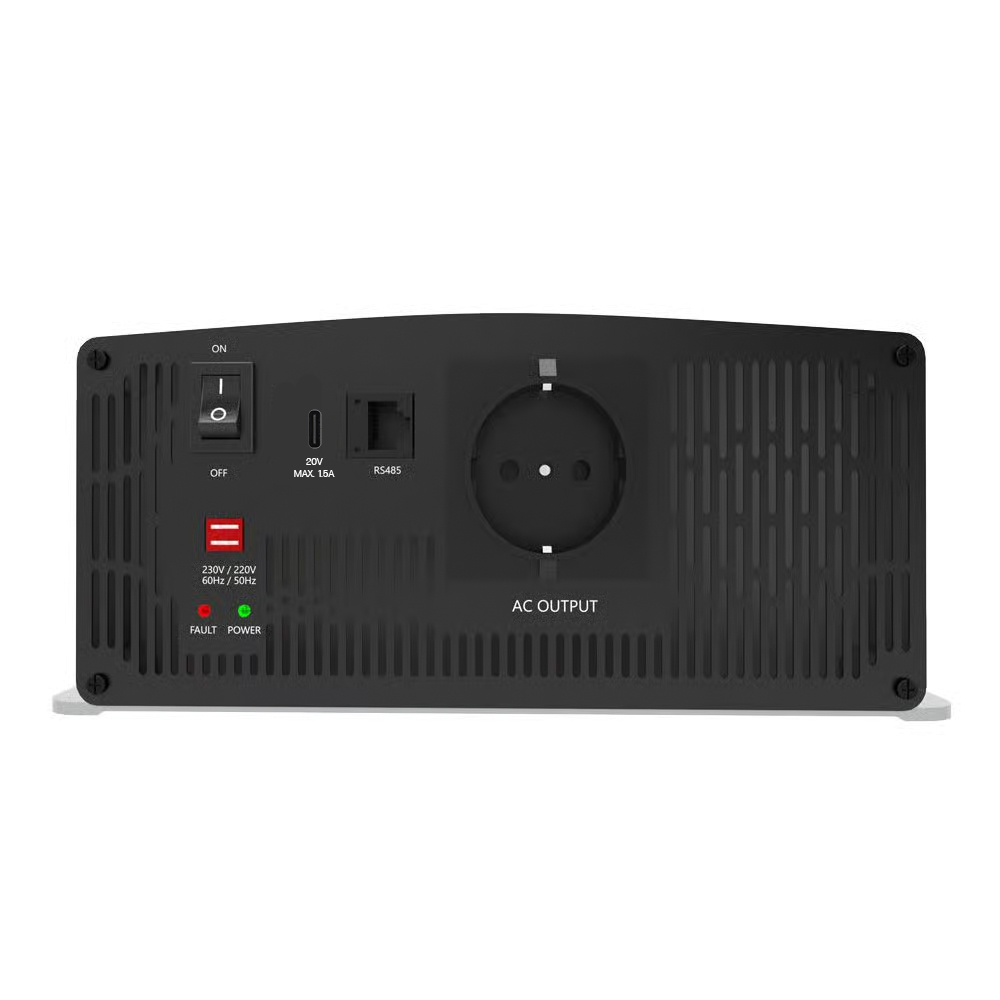

Offgridtec® PSI Sine Wave Voltage Converter RS485 1000W 1600W 12V 230V

The Offgridtec PSI 12-1000 Smart (MPN 011085) is an advanced 12V 230V sine wave voltage converter with a continuous output of 800W and 1000W for a maximum of 15 minutes. The unit features a 16Bit SPWM chipset, numerous protection mechanisms and galvanically isolated inputs and outputs. The input voltage range is 10.6 and 16Vdc. The converter can supply 1000W for 15 minutes or 800W continuously. For short inrush currents, the PSI 12-1000 delivers 1600W. Thanks to its advanced constitution, even sensitive electrical appliances can be supplied with power reliably and permanently

Advanced development of the HP voltage transformer family

The PSI series is the further development of the HP voltage transformers and comes up trumps with numerous innovations and optimisations: Input and output of the PSI are galvanically isolated and the housing has an earth connection. Mains frequency (50Hz/60Hz) and output voltage (220V / 230V) can be set via a dip switch. The brand-new SPWM 16-bit chipset delivers power of the highest quality and allows even very sensitive electronics to be reliably supplied with power. Compared to older chipsets, it is much more solid and durable.

Configuration

The Offgridtec 12-1000 PSI converter is equipped with an RS485 data output, providing you with options for external communication and configuration:

• RS485 to USB interface connection cable Part no.:
• The interface cable, included as standard, allows you to monitor various performance parameters on a notebook or PC. In addition, the PSI 12-1000 can be conveniently configured via the free PSI-Control PC software.

Performance features of the PSI 12-1000 at a glance

• Modern, safe design with galvanic isolation of input and output
• RS485 communication module for configuration via PC / notebook with free configuration software from Offgridtec
• Very low self-consumption in idle / stand-by, max. efficiency <>
• Introduction of advanced SPWM technology, output of a perfect sine wave
• New thermal design for optimal heat dissipation and reduced noise levels
• DIP switch adjustable output voltage 220 / 230VAC and mains frequency 50Hz or 60 Hz
• LED indicators for error status and working status
• Input protection: overvoltage protection, low-voltage protection
• Output protection: overload protection, short-circuit protection
• Overtemperature protection: temperature-controlled cooling and automatic shutdown in case of overtemperature
• 1m 25mm² connection cable with M8 ring lugs
• Already included: High-quality battery connection cable with 1m length, RS485 to USB interface cable

Performance parameters at a glance

• Nominal power (continuous power / 15min power / peak power): 800W / 1000W / 1600W
• Input voltage range: 10.6 to 16 Vdc
• Output voltage waveform: pure sine wave
• Communication module: RS485
• USB output 5VDC / 1A, RS485 communication port
• Significantly more efficiency thanks to the latest SPWM Technology
• Weight and dimensions (LxWxH): 3.9 kg at 296.3 × 231.5 × 98.5mm
• All other technical data can be found in the data sheet

Note

The PSI series are high-frequency voltage transformers. This type of voltage transformer may malfunction during operation of sensitive equipment, such as laptops or medical equipment. If this is the case, the problem can be counteracted by earthing the housing and installing an interference suppression filter (EMI filter) at the output.

Scope of delivery:

1x Offgridtec 1-01-011085 PSI 12-1000 Sine wave voltage converter 12V 230V 1000W / 1600W
1x Set battery connection cable 1m 25mm² Red / Black
1x RS485 to USB interface cable 1x Fuse for battery connection cable
1x Instruction manual
