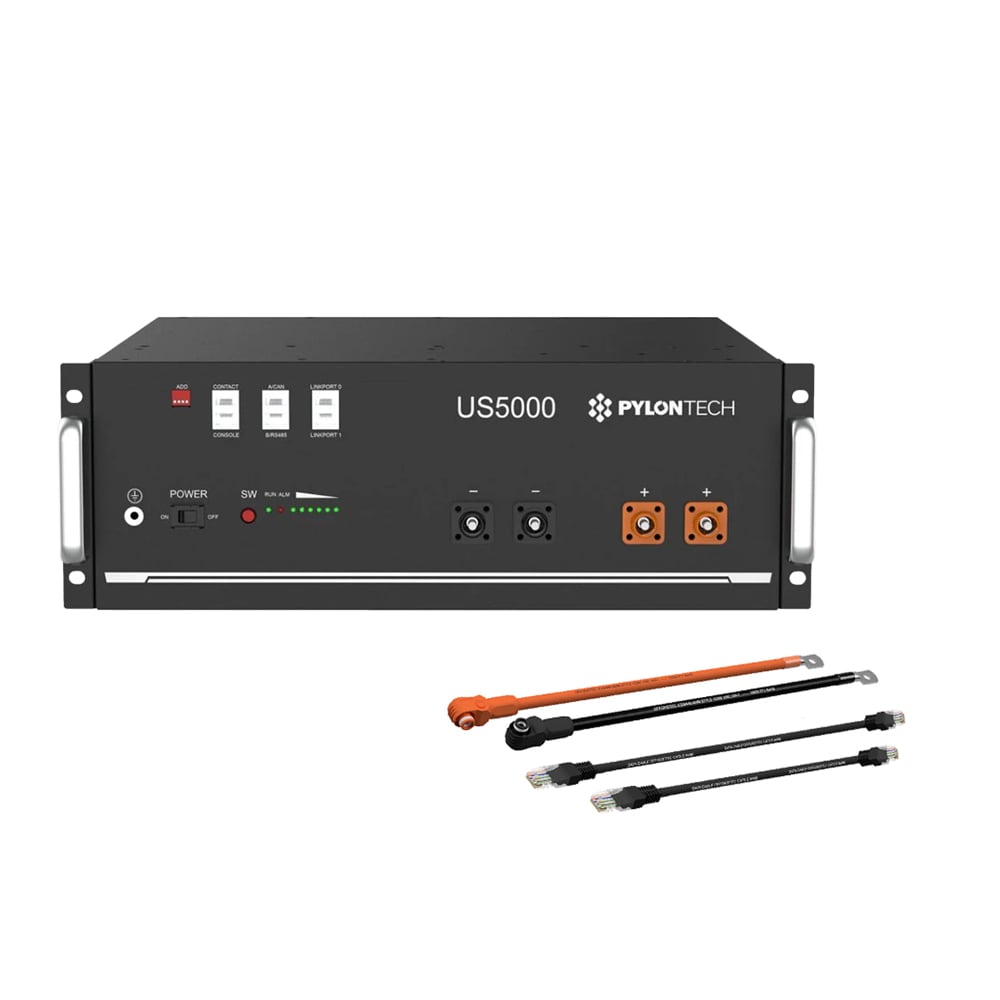

Pylontech 1x US5000 LiFePO4 battery 4.8kWh with inverter connection cable set

The US5000 from Pylontech is a state-of-the-art lithium battery. It was specifically designed to fully meet the high standards demanded of solar storage systems today. Thanks to the latest technology, maximum safety and a long service life are guaranteed, even with regular deep discharges.

The latest battery from the market-leading manufacturer, now with 4.8 kWh per module, once again features a Battery Management System (BMS) built into each module, thereby offering a high level of safety. Internally, the individual cells are monitored and balanced to protect against overvoltage, overtemperature, and other issues. The battery is compatible with and certified for use with many available inverters.

Features

• Extremely cycle-resistant – over 6,000 cycles at 95% DoD
• Lifespan of over 10 years
• Absolutely intrinsically safe lithium technology
• Compatible with many available inverters
• Automatic address configuration when connected in multi-group configurations
• High charging and discharging power possible
• Integrated BMS
• Very high energy density – lightweight and compact design
• Easy installation thanks to modular design
• Completely maintenance-free and durable
• Built-in soft-start function capable of reducing inrush current when the inverter is started from the battery
• Dual active protection at the BMS level
• Supports WakeUp via a 5–12 V signal from the RJ45 port
• Pre-charge function to protect the ESS system from overvoltage
• 7-year manufacturer’s warranty—you can find information on the warranty terms here

Battery management system in every module

Thanks to the battery management system integrated into each module, every installed battery cell is protected from harmful influences throughout the module’s entire service life, effectively preventing premature failure.

Protection against:

• Overcharging
• Overvoltage during charging
• Excessive currents during charging and discharging
• Over- and under-temperature
• Short circuits and reverse polarity

Continuous monitoring of individual cell voltages (cell balancing)

Modular design

The system has a modular design and can be configured to precisely match the desired storage capacity by connecting multiple modules together. Each storage module consists of a high-performance lithium iron phosphate (LiFePo4) battery and an integrated BMS.

High cycle life

The extremely high cycle life of the built-in LiFePo4 cells makes Pylontech US5000 modules the optimal storage solution for photovoltaic systems. Regardless of whether the solar system is grid-connected or off-grid, the Pylontech storage system offers several advantages over typical lead-acid batteries and other lithium technologies.

Customize your Pylontech set to your needs

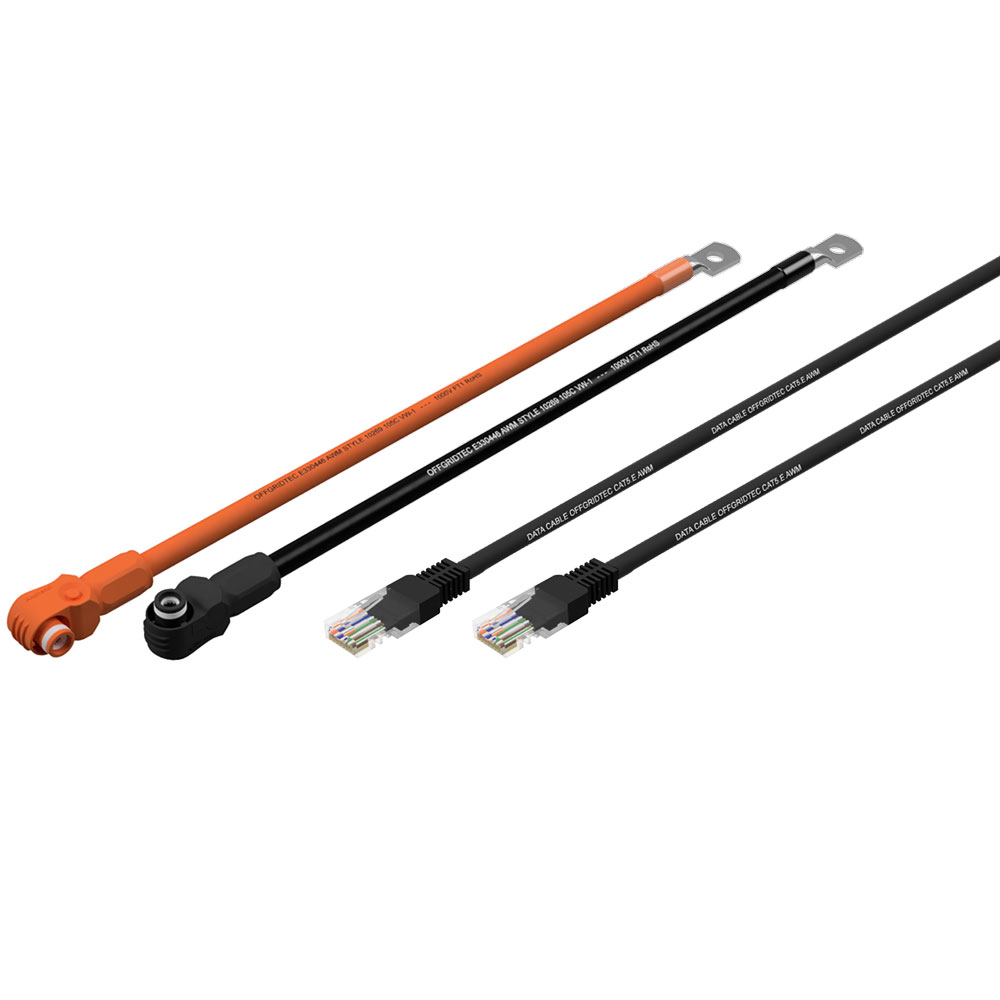

Depending on your selection , youwill receive between 1 and 4 Pylontech US5000 units (4.8–19.2 kWh). Depending on the selected number of US5000 units, you will receive a battery cabinet as an option. The set includes a battery connection cable set (Pylontech to inverter). The Pylontech battery connection cable set (MPN BW0US3000BAL0002) includes 2 x 2-meter cables (positive/negative), each with a cross-section of 25 mm², and a CAN data cable with RJ45 connectors on both ends. The set is required to connect the Pylontech batteries to an inverter.

Technical Specifications

• Battery type: Lithium iron phosphate (LiFePo4)
• Nominal voltage: 48 V
• Rated capacity: 4800 Wh
• Usable capacity (95% DoD): 4560 Wh
• Discharge voltage range: 43.5 – 53.5 V
• Charging voltage range: 52.5 – 53.5 V
• Max. peak (discharge) current: 121–200 A (15 sec)
• Max. (discharge) current: 101–120 A (15 min)
• Recommended charge/discharge current: 80 A
• Max. continuous charge/discharge current: 100 A
• Communication: RS485/CAN
• Weight: 39.7 kg
• Dimensions: 442 x 420 x 161 mm
• Protection class: IP20
• Charging temperature range: 0°C - +55°C
• Discharge temperature range: -10°C to +55°C
• Storage temperature range: -20°C to +45°C
• Service life: over 15 years
• Cycle life: over 6000 at 95% DoD
• BMS / Monitoring: integrated into each module
• Certification: TÜV, CE, UN38.8

Due to its classification as hazardous material, this product is shipped via freight carrier!

Scope of delivery (depending on selection):

1–4 x Pylontech US5000 LiFePO4, 4.8 kWh per battery (quantity depending on selection)
0 - 1 x Pylontech battery cabinet
1 x Pylontech battery connection cable set to inverter
