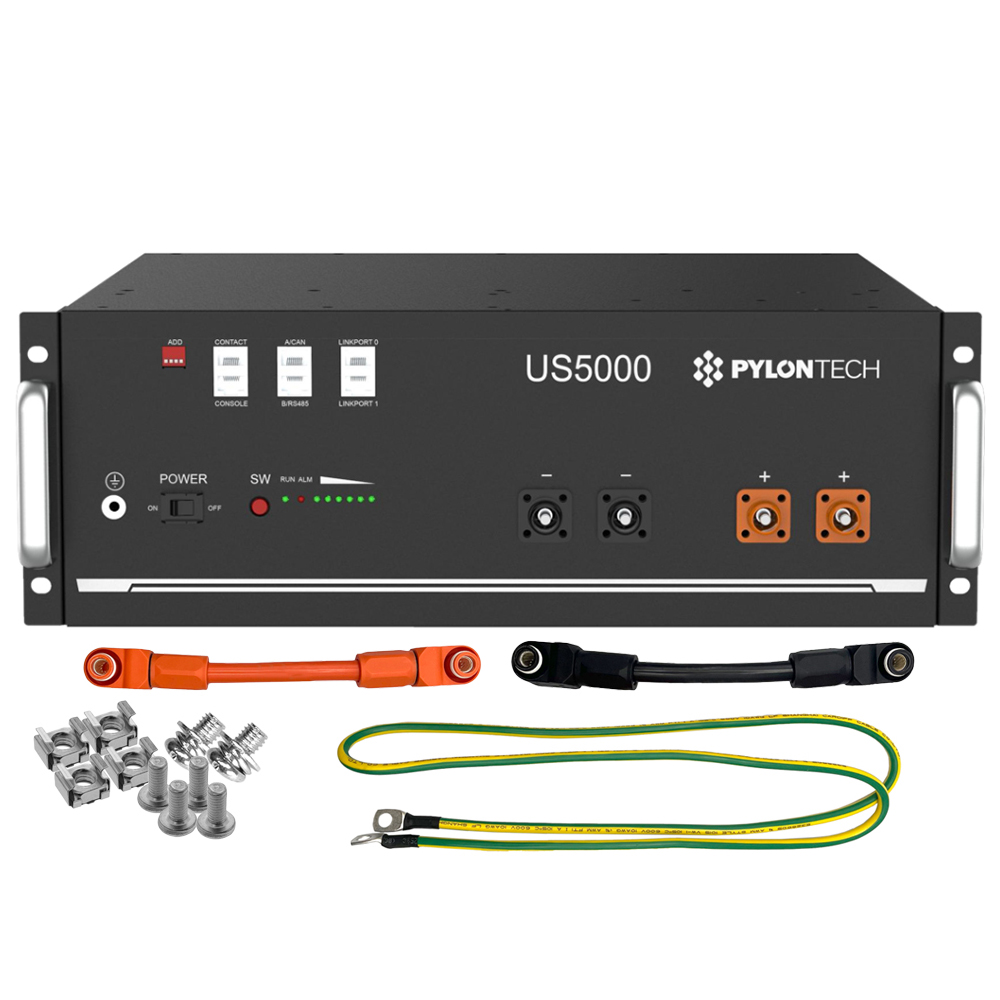

Pylontech 4x US5000 LiFePO4 battery 19.2kWh with inverter connection cable set and battery cabinet

The US5000 from Pylontech is a latest-generation lithium storage system. The storage system has been specially developed to fully meet the high demands placed on solar storage systems today. Maximum safety and a long service life are guaranteed even with regular deep discharges thanks to the latest technology.

The latest battery from the market-leading manufacturer, now with 4.8 kWh per module, has a battery management system (BMS) built into each module, offering a high level of safety. Internally, the individual cells are monitored and balanced to protect them from overvoltage, overtemperature, etc. The battery is compatible with and certified for use with many available inverters.

Features

• Extremely cycle-stable – over 6000 cycles at 95% DoD
• Service life over 10 years
• Absolutely intrinsically safe lithium technology
• Compatible with many available inverters
• Automatic address setting when connected in multi-groups
• High charging and discharging power possible
• Integrated BMS
• Very high storage density – low weight and compact design
• Easy installation thanks to modular design
• Absolutely maintenance-free and durable
• Built-in soft-start function capable of reducing the current surge when the inverter is started from the battery
• Dual active protection at BMS level
• Supports WakeUp via 5-12V signal from the RJ45 port
• Pre-charge function to protect the ESS system from overvoltage

Battery management system in each module

The battery management system integrated in each module protects every battery cell installed from harmful influences throughout the entire service life of the module and effectively prevents premature failure.

Protection against:

• Overcharging
• Overvoltage during charging
• Excessive currents during charging and discharging
• Over- and under-temperature
• Short circuit and reverse polarity

Continuous monitoring of individual cell voltages (cell balance)

Modular design

The system has a modular design and can be tailored precisely to the desired storage capacity by connecting several modules together. Each storage module consists of a high-performance lithium iron phosphate (LiFePo4) battery and an integrated BMS.

High cycle life

The extremely high cycle life of the built-in LiFePo4 cells makes Pylontech US5000 modules the optimal storage solution for photovoltaic systems. Regardless of whether the solar system is grid-connected or stand-alone, Pylontech storage offers several advantages over typical lead-acid batteries and other lithium technologies.

Combine your Pylontech set according to your requirements

You can choose between 1 and 4 Pylontech US5000 units (4.8 - 19.2 kWh). Depending on the selected number of US5000 units, you can also choose a battery cabinet. The set includes a battery connection cable set (Pylontech to inverter). The Pylontech battery connection cable set (MPN BW0US3000BAL0002) includes 2 x 2 meter cables (positive/negative) with a cross-section of 25mm² each and a CAN data cable with RJ45 connectors on both sides. The set is required to connect Pylontech batteries to an inverter.

Technical data

• Battery type: Lithium iron phosphate (LiFePo4)
• Nominal voltage: 48V
• Nominal capacity: 4800 Wh
• Usable capacity (95% DoD): 4560 Wh
• Discharge voltage range: 44.5–53.5V
• Charge voltage range: 52.5 - 53.5V
• Max. peak (discharging) current: 200A (15 sec)
• Max. (discharging) charging current: 120A (15min)
• Recommended charging/discharging current: 75A
• Communication: RS485, CAN
• Weight: 38 kg
• Dimensions: 442 x 420 x 161 mm
• Protection class: IP20
• Charging temperature range: 0°C - +55°C
• Temperature range for discharging: -10°C to +55°C
• Storage temperature range: -20°C to +60°C
• Service life: over 15 years
• Cycle life: over 6000 at 95% DoD
• BMS / monitoring: integrated in each module
• Certification: TÜV, CE, UN38.8

Due to its classification as dangerous goods, this product is shipped by freight forwarder!

Scope of delivery (depending on selection):

1–4 x Pylontech US5000 LiFePO4, 4.8 kWh per battery (number depending on selection)

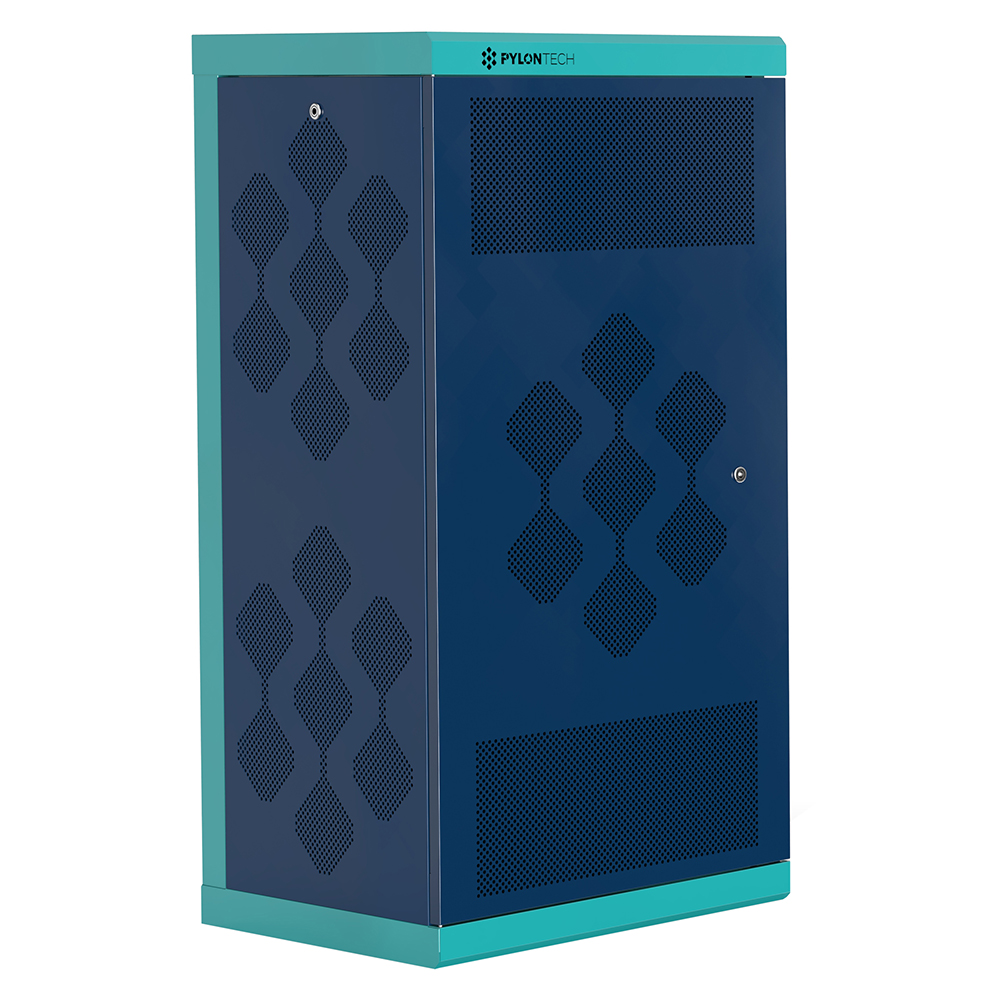

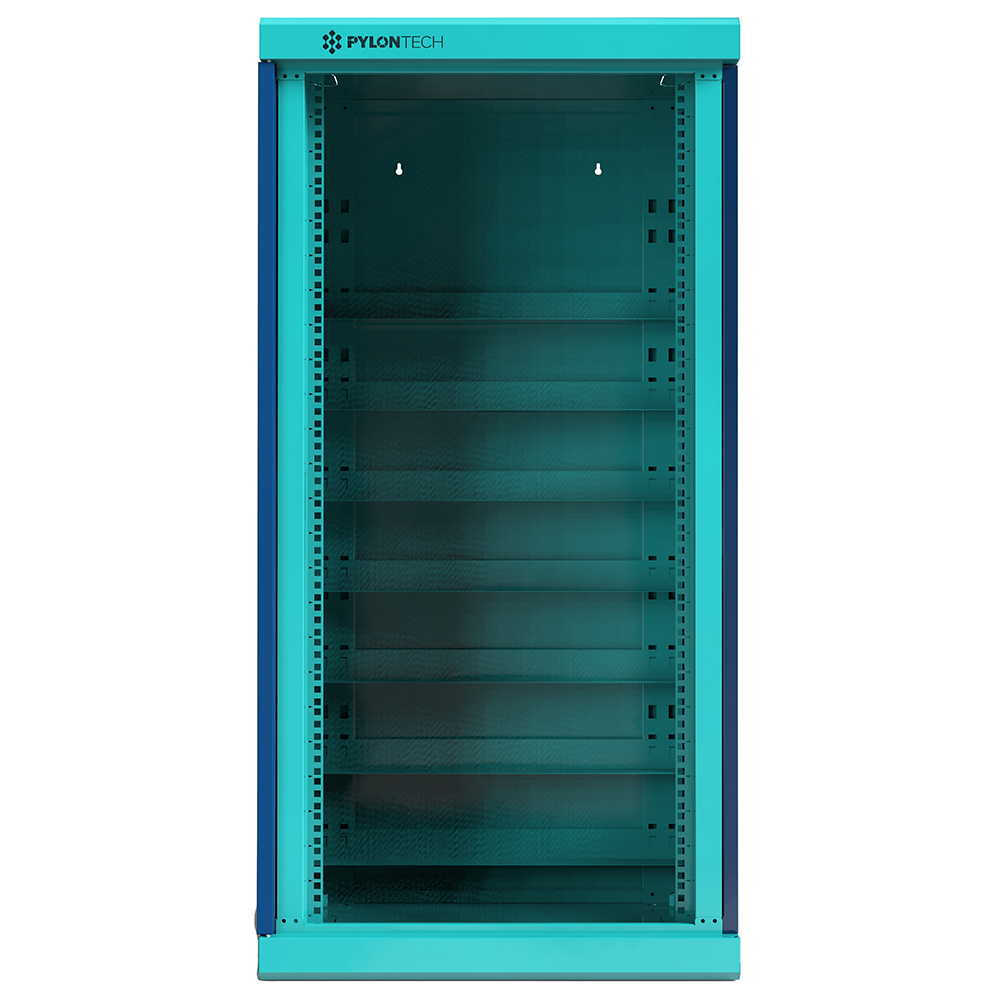

0 - 1 x Pylontech battery cabinet
1 x Pylontech battery connection cable set to inverter
