Pylontech US2000C 2.4kWh LiFePO4 48V storage unit incl. BMS

The Pylontech US2000C (MPN US2000NB02V00201) is a state-of-the-art lithium battery. It was specifically designed to fully meet the high standards demanded of solar storage systems today. Thanks to the latest technology, maximum safety and a long service life are guaranteed even with regular deep discharges.

The latest battery from the market-leading manufacturer, now with 2.4 kWh per module, once again features a Battery Management System (BMS) built into each module, thereby offering a high level of safety. Internally, the individual cells are monitored and balanced to protect against overvoltage, overtemperature, and other issues. The battery is compatible with many available inverters and is certified

Features

• Extremely cycle-resistant – over 6,000 cycles at 95% DoD
• More usable energy capacity than the predecessor model US2000
• Lifespan of over 10 years
• Absolutely intrinsically safe lithium technology
• Compatible with many available inverters
• Automatic address setting when connected in multi-group configurations
• High charge and discharge rates possible
• Integrated BMS
• Very high energy density – lightweight and compact design
• Easy installation thanks to modular design
• Completely maintenance-free and durable
• Built-in soft-start function capable of reducing inrush current when the inverter is started from the battery
• Dual active protection at the BMS level
• Supports WakeUp via a 5–12 V signal from the RJ45 port
• Pre-charge function to protect the ESS system from overvoltage
• 7-year manufacturer’s warranty—you can find information on the warranty terms here

Battery management system in every module

Thanks to the battery management system integrated into each module, every installed battery cell is protected from harmful influences throughout the module’s entire service life, effectively preventing premature failure.

Protection against:

• Overcharging
• Overvoltage during charging
• Excessive currents during charging and discharging
• Over- and under-temperature
• Short circuits and reverse polarity

Continuous monitoring of individual cell voltages (cell balancing)

Modular design

The system has a modular design and can be configured to precisely match the desired storage capacity by connecting multiple modules together. Each storage module consists of a high-performance lithium iron phosphate (LiFePo4) battery and an integrated BMS.

High cycle life

The extremely high cycle life of the built-in LiFePo4 cells makes Pylontech US2000C modules the optimal storage solution for photovoltaic systems. Regardless of whether the solar system is grid-connected or off-grid, the Pylontech storage system offers several advantages over typical lead-acid batteries and other lithium technologies.

Technical Specifications

• Battery type: Lithium iron phosphate (LiFePo4)
• Nominal voltage: 48 V
• Rated capacity: 50 Ah / 2.4 kWh
• Usable capacity (95% DoD): 47.5 Ah / 2.28 kWh
• Discharge voltage range: 44.5 – 53.5 V
• Charging voltage range: 52.5 – 53.5 V
• Max. peak (discharge) current: 90–200 A (15 sec)
• Max. (discharge) current: 50–89 A (60 sec)
• Recommended charge/discharge current: 25 A
• Communication: RS485, CAN
• Weight: 22.5 kg

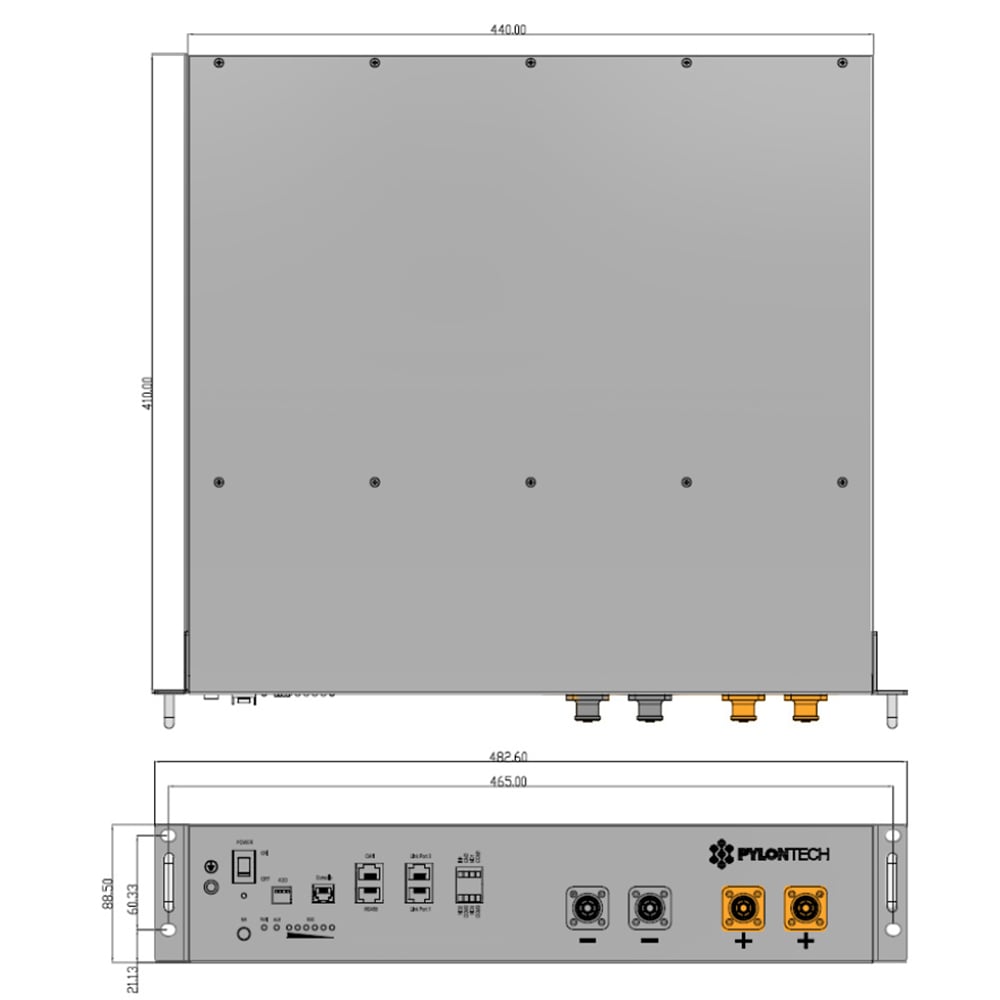

• Dimensions: 442 x 410 x 89 mm
• Protection class: IP20
• Charging temperature range: 0°C - +50°C
• Discharge temperature range: -10°C to +50°C
• Storage temperature range: -20°C to +45°C
• Service life: over 10 years
• Cycle life: over 6000 at 95% DoD
• BMS / Monitoring: integrated into each module
• Certification: IEC62619, CE, UN38.3

Due to its classification as hazardous material, this product is shipped via freight carrier!

Package contents:

1x Pylontech US2000C LiFePO4 2.4 kWh
1x Parallel connection cable set incl. grounding
1x RJ45 data cable
1x mounting screws
1x User Manual

Compatibility list:

• SolarEdge StoreEdge SE10 SE8 SE7 SE5 RWS
• SolarEdge Home Hub SE10 SE8 SE5 RWB
• Victron Energy - Cerbo Multiplus Quattro GX I+II, etc.
• SMA Solar - Sunny Island SI 4.4M/6.0H/8.0H Series
• Schneider Electric - Conext XW Pro Series
• SolaX Power - SK-SU SK-TL DLX HV Series
• Goodwe - GW-BP, SBP, GW-ES, EM
• Imeon Energy - IMEON 3.6 9.12
• Studer Innotec - Xtender 48V, VarioString, VarioTrack 48V Series
• Selectronic SPMC 480, 481, 482
• Voltronic - Infinisolar & Axpert series 48V**
• Sofar - ME3000SP & HYD HYD3000/6000-EP 48V Series
• Sermatec - SMT-5K-TL-LV
• Zucchetti - Centro Sistemi Azzurro 3000SP HYD3000/6000-ES
• Solis - RHI & RAI Series
• Redback - DLX HV Series
• Deye (Sunsynk) - SUN-SG01LP1 & SUN-SG03LP1 Series
• Alpha & Outback Energy - SPCIII-5000-7200-48 SPCIIIS-5000-48
• Lux Power - LXP Hybrid & ACS Series
• Sungrow - SH5K Series
• Morningstar TriStar MPPT in 48V, 600V in 48V, PWM TS-45 in 48V
• Delios s.r.l. DLS/C & DLS AC Series
• Ingeteam Power Technology - ISS 1Play TL M Series
• MLT - Oasis 448, Oasis 648
• Steca - Solarix PLI 5000-48
• SAJ - Sunfree series & H1 Series
• SolarMax - ES & AC Series
• Growatt - SPH3000-6000, SPF2000-5000 HVM-48/LVM-48P*** M2000H/3000H/5000H - 48***
• AXIOMA energy - DLX HV Series, ISMPPT BF 3000-5000, ISGRID (BF) 3000-5000
• Phocos - Any-grid PSW-H-5kW-230/48V AlexDataManual
• Western CO. - LEONARDO PRO 3000/48 Li (via Western LK3)
• EFFEKTA - AX-M1 M2 3000/4000/5000-48(1) AX-K1 4000/5000-48(2)
• Kehua - SPH5000-BL INVT BD Series
• INVT - BD Series
• TBB - Kinergier Pro Series: CK-II 2.0S-3.0S & CK4.0S-8.0S Series
• MUST - PV1800 VHM 3KW - 5.5KW
• Moixa - Smart Battery V4 3000 & GridShare Hub
• MEGAREVO - RKL1 Series
• AISWEI - ASW3000/3680/4000/5000H-S
• FSP - PowerManager series 4-15kW Offgrid PMI III / Zero
• Senergy - SE 4K6/5K/6KHB-60/120 & KAC
• Livoltek - Hyper & Retro Series
• OPTI-Solar - SP5000 Brilliant series, SP5000 Regal/Handy Plus, DLX HV series
• GMDE - SolDate 3700TL+BM024

The compatibility list includes inverters that have been tested by the manufacturer in conjunction with the battery storage system. Of course, other versions (e.g., models with higher power ratings) from the respective series are also compatible. The list will be gradually expanded to include additional models.
