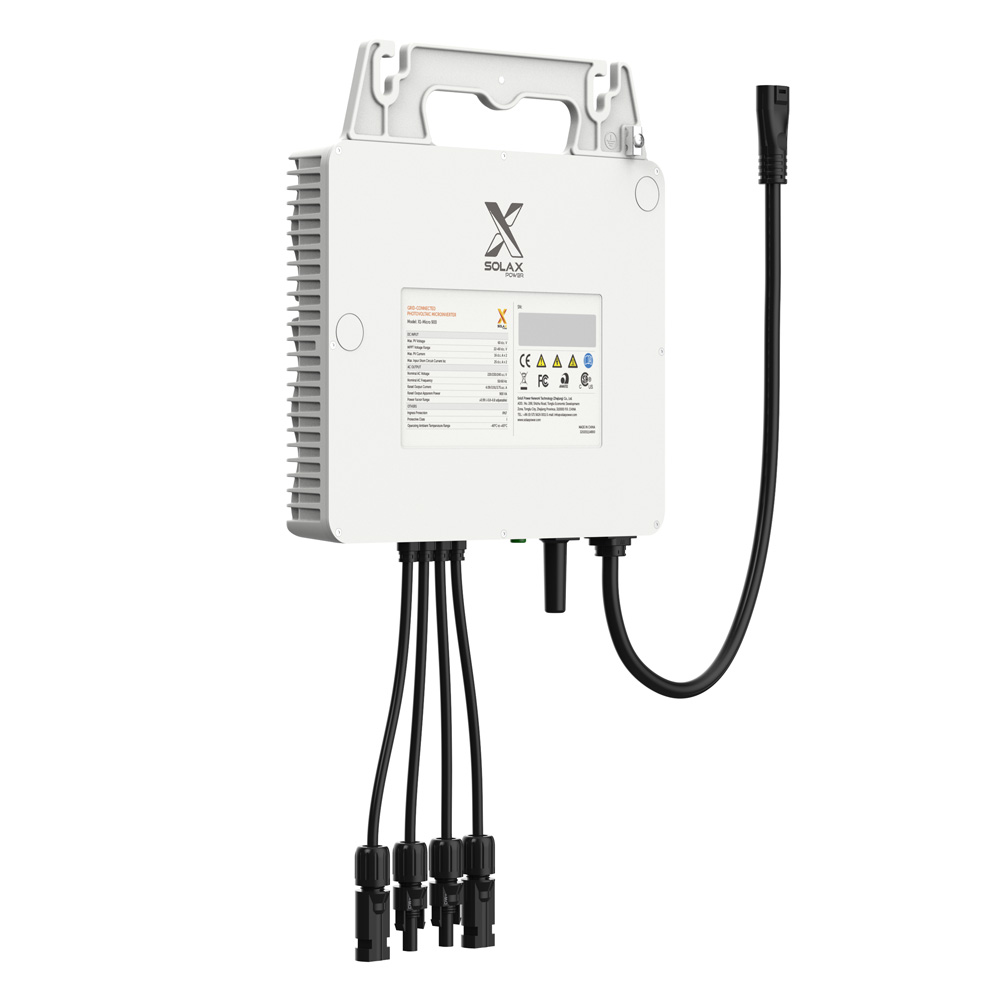

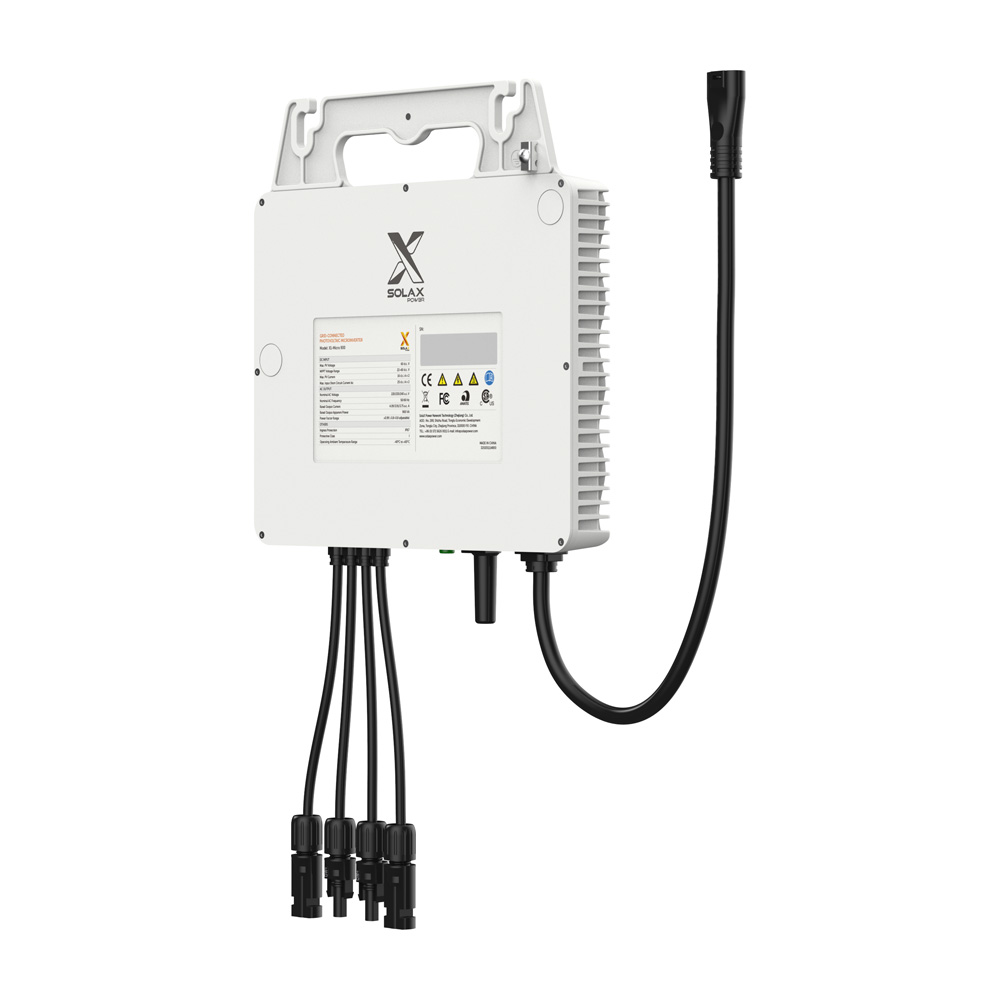

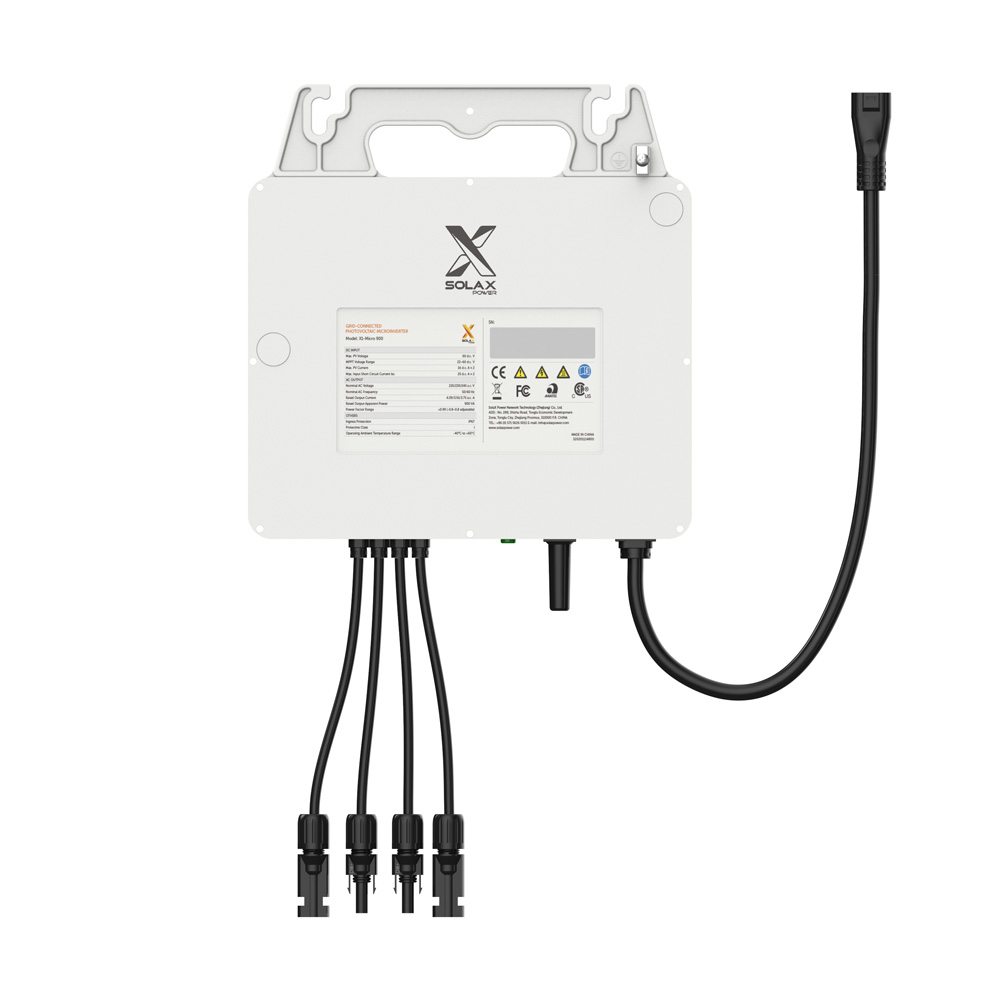

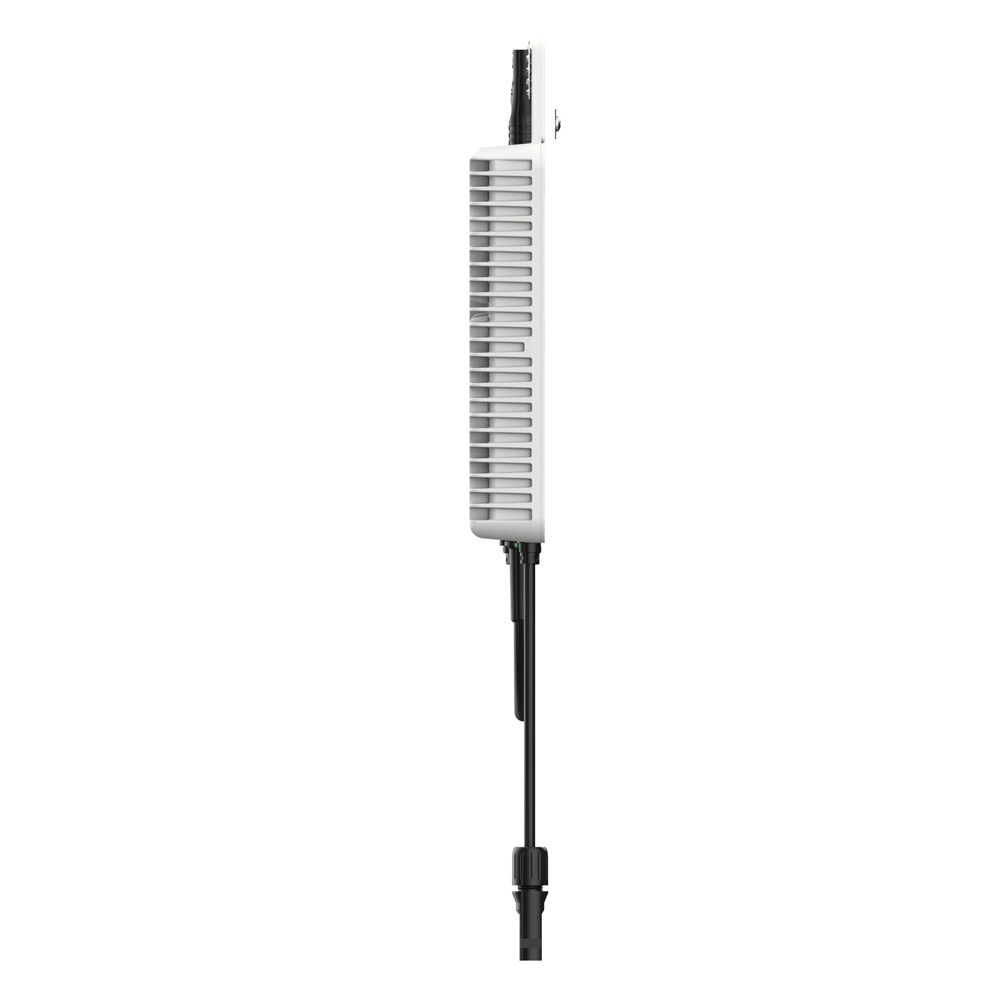

SolaX X1-Micro 800W 2-in-1 micro inverter, single-phase micro inverter

The SolaX X1-Micro 800 (MPN: 103022012600) is a compact, single-phase micro inverter with 800 W output power and two independent MPPT inputs. It converts the direct current generated by the PV modules into grid-compatible alternating current, utilizing the full potential of each module—even in cases of partial shading or different orientations. Thanks to its 2-in-1 design, several modules can be connected directly to one device, reducing system complexity and increasing efficiency. Modern grid technology makes it suitable for both single-phase and three-phase grids in corresponding systems. In addition, it supports AC coupling for microgrids in existing storage systems, which optimizes self-consumption and offers flexibility for system expansion.

Whether balcony power plant, carport, or small commercial system, the Micro 2-in-1 adapts flexibly to a wide range of system requirements.

Highlights of the X1-Micro 800

• 800VA max. continuous power
• Two independent MPPT inputs
• Max. 20A DC input current – ideal for high-performance modules
• Integrated industrial-grade WiFi module
• Reactive power control
• Supports AC coupling solution
• Flexible integration into single-phase and three-phase grids
• Flexible expansion of system capacity
• Integrated safety relay
• IP67 protection class
• Reactive power control
• Rapid shutdown
• Compact, lightweight, and easy to install and maintain
• Manufacturer's product warranty: 7 years, information can be found here

Intelligent 2-in-1 technology

As a 2-in-1 micro inverter, the X1-Micro 800 can operate two PV module strings independently of each other – each input has its own MPPT. This minimizes power losses due to shading or different orientations. This allows for flexible module configuration and saves costs, as only one device is required.

Reactive Power Control

Reactive power control enables the inverter to feed not only active power (the actual power generation) but also reactive power into or from the grid. Reactive power is necessary to improve voltage stability and grid quality, especially in complex distribution grids or when there is a high feed-in from photovoltaic systems. By controlling reactive power, the SolaX X1-Micro 800 can help to compensate for grid fluctuations and increase the efficiency of the power grid.

Rapid shutdown

Rapid shutdown is a safety feature that quickly and safely interrupts the power supply to the PV modules and the inverter in an emergency or during maintenance work. This significantly reduces the risk of electric shock and fire. This feature is mandatory, especially in densely built-up residential areas or when working on roofs, and ensures maximum safety for people and equipment.

Greater safety during operation

The X1-Micro 800 operates at low DC voltage, which significantly reduces the risk of electric shock. An integrated protection relay, reactive power control, and the rapid shutdown function ensure maximum safety during operation and maintenance work.

Protection class IP67

Thanks to protection class IP67, the SolaX X1-Micro 800 is fully protected against dust ingress and temporary immersion in water. This means that the micro inverter is ideal for outdoor use, even in extreme weather conditions such as heavy rain, snow, or dust. The robust design ensures a long service life and reliable operation, regardless of where the device is installed.

SolaXCloud

All operating data such as voltage, current, and power are automatically transferred to the SolaXCloud. This intelligent monitoring platform gives you access to real-time and historical data at any time, whether via PC, iOS, or Android device – and you can even make settings remotely if necessary.

Technical data

PV input

• Recommended module power per input: 320 - 540W
• Max. PV input voltage: 60V
• MPPT voltage range: 22-60V
• Start voltage: 22V
• Max. PV input current: 2 x 15A
• Max. input short-circuit current: 2 x 20A
• MPP trackers: 2
• Strings per MPP tracker: 1

AC output

• Nominal AC power: 800 VA
• Max. continuous power: 800 VA
• Nominal mains voltage: 220 / 230 / 240V
• AC voltage range: 180 - 264V
• Rated frequency: 50Hz / 60Hz
• Max. continuous output current:
  3.64A at 220V
  3.48A at 230V
  3.34A at 240V

General:

• Max. efficiency: 96.5%
• MPPT efficiency: 99.9%
• Dimensions: 260 x 212 x 40 mm
• Weight: 4.1 kg
• Communication: Integrated WiFi

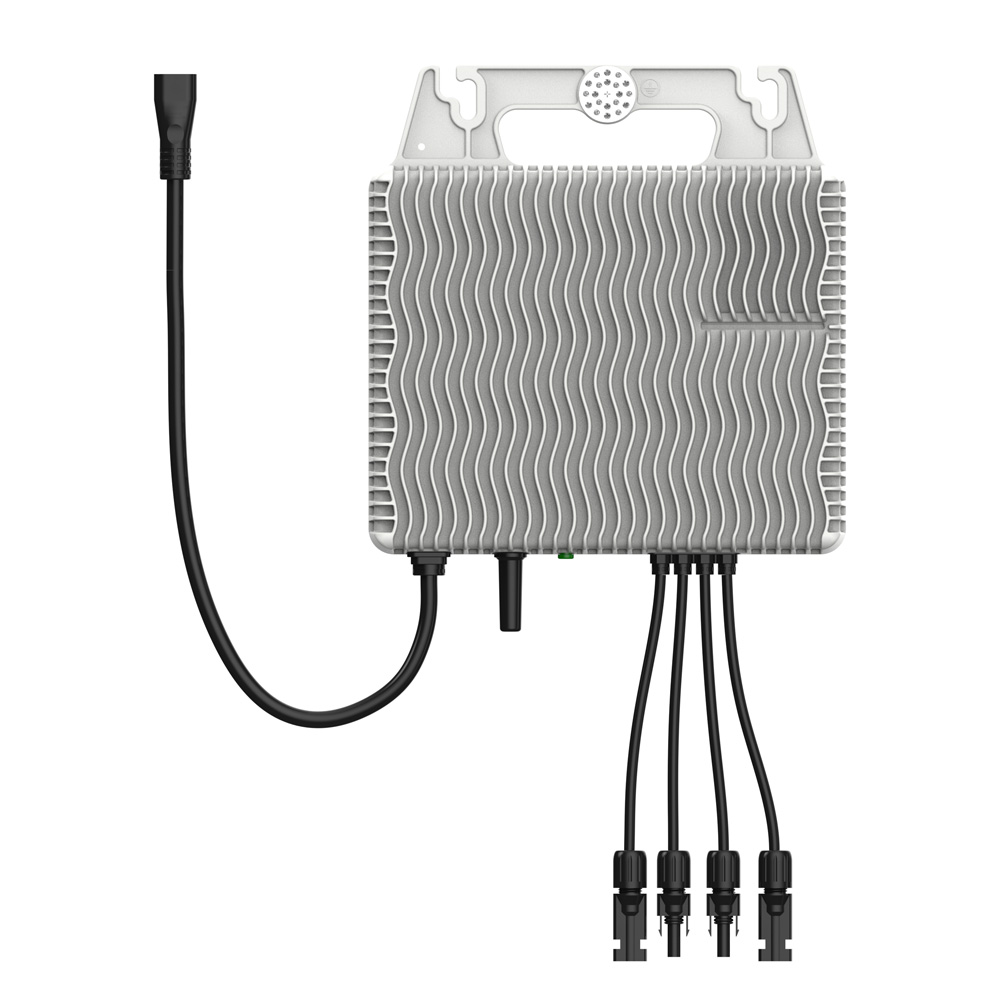

• Cooling concept: Natural cooling
• Protection class: IP67
• Operating temperature: -40°C to +65°C
• Humidity: 0-100% (non-condensing)

Scope of delivery:

1x Solax X1-Micro 800W 2-in-1 micro inverter 1-phase micro inverter
