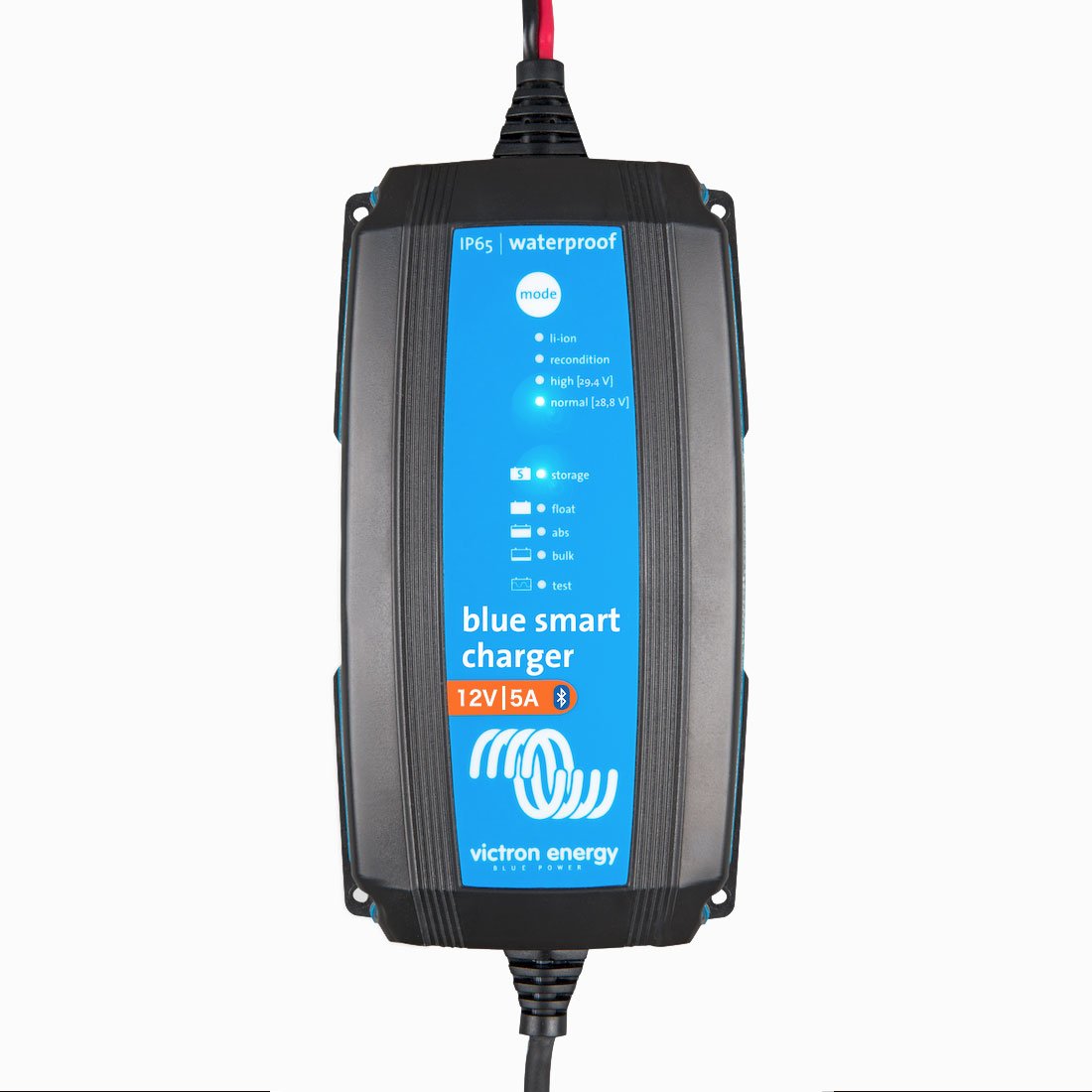

Victron Blue Smart IP65 12/5 12V 230V battery charger

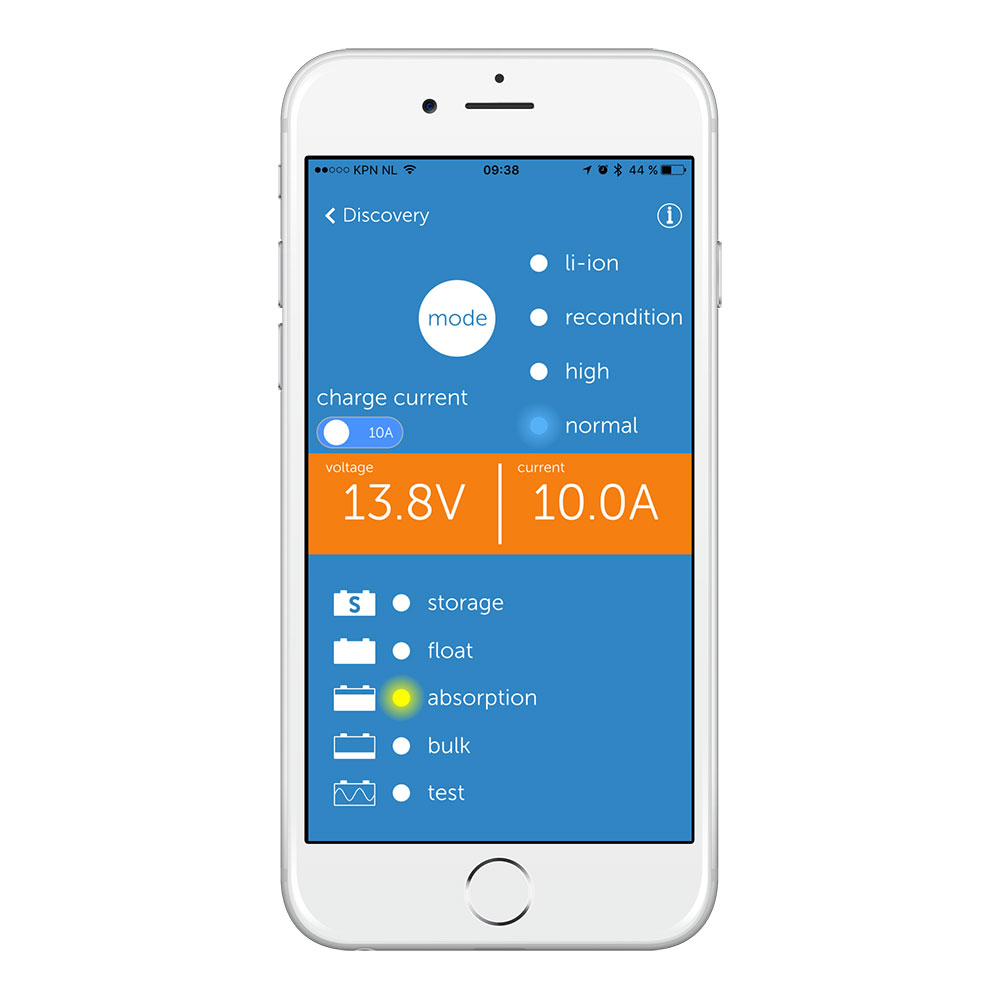

Victron Energy Blue Smart series battery charger (MPN BPC120533064R) with built-in Bluetooth. It is designed to charge 12V batteries of various types and delivers a maximum charging current of 5A. Together with the free VictronConnect app, you can easily and smartly monitor the activity of your battery charger via your smartphone, tablet, or computer and even configure it to a certain extent.

technical highlights of the Blue Smart IP65 12/5 battery charger

• easy configuration and setup of the Blue Smart IP65 12/5 via Bluetooth interface
• suitable for all 12V battery types
• max. 5A charging current
• solid protection against splashing water, dust, and chemicals thanks to IP65 protection rating
• features several functions to extend battery life
• automatic temperature compensation at low or high temperatures
• automatic power supply function
• 7-stage intelligent charging algorithm
• can restore completely discharged batteries ("dead batteries")
• features a low-energy mode for charging small batteries
• Victron item number: BPC120531064R
• Lithium-ion battery mode

• low heat load on electronic components
• protected against the ingress of dust, water, and chemicals.
• Protection against overheating: The output current is reduced linearly when the temperature rises to 60 °C, so the charger does not fail even at extreme temperatures
• the chargers are completely silent thanks to passive cooling: no fan or other moving parts

Reconditioning

A lead-acid battery that has not been sufficiently charged or has been left in a discharged state for days or weeks will deteriorate in performance due to sulfation. If the process is stopped in time, the sulfation can be partially reversed by charging the battery with low current until a higher voltage is reached.

Function for restoring completely discharged batteries

Most chargers with reverse polarity protection do not recognize a battery that has been discharged to zero volts or almost zero volts and therefore do not recharge it. However, the Blue Power charger attempts to recharge a completely discharged battery with low current and resumes normal charging once sufficient voltage has been built up across the battery terminals.

optional accessories

• 12 V cigarette lighter plug with fuse
• 2-meter extension cable
• Connection terminals with fuses
• M6 cable lug connector with fuse

1x Victron BPC120531064R Blue Smart IP65 12/5 12V 230V battery charger
1x user manual
1x Connection terminals
1x M8 cable lug connector
