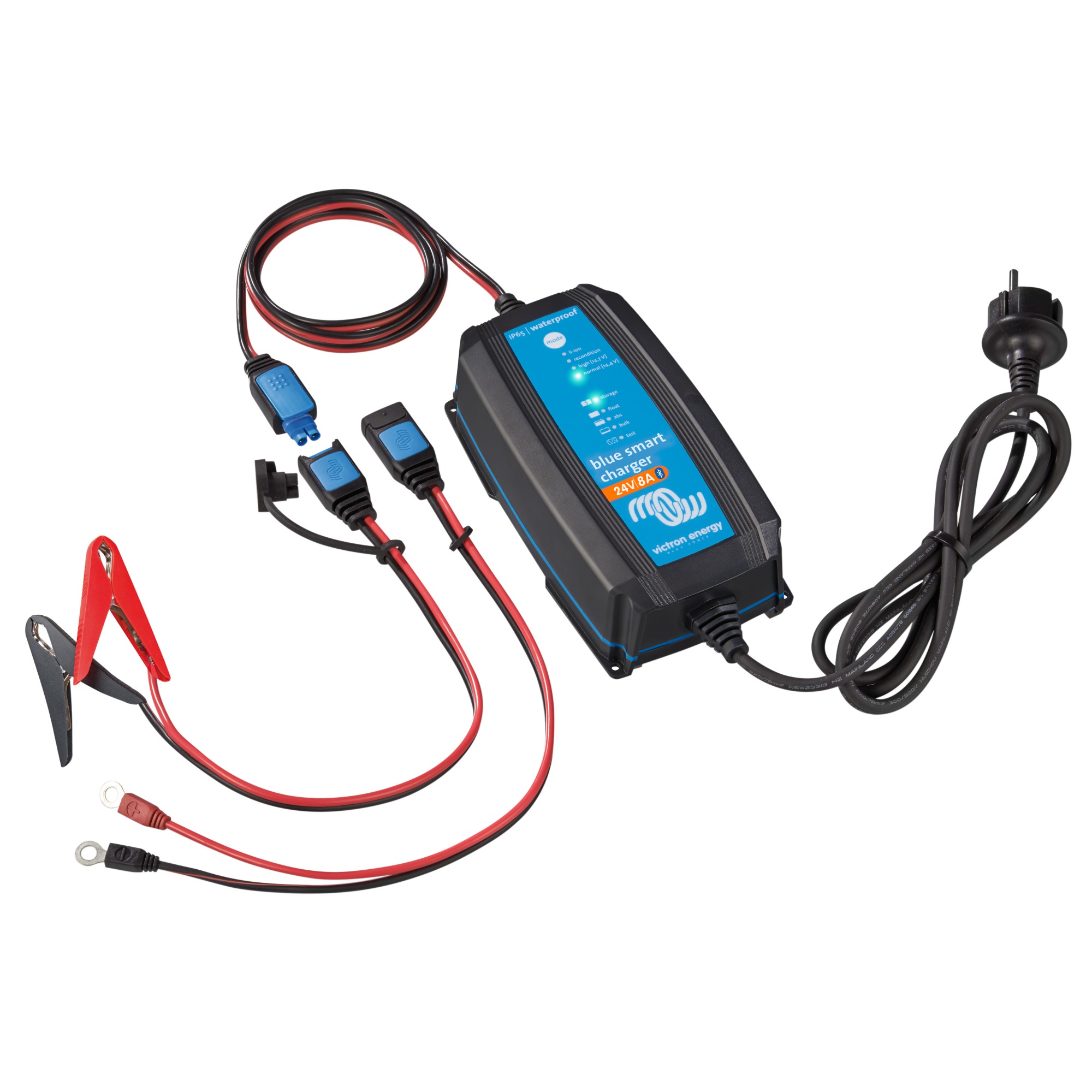

Victron Blue Smart IP65 Charger 24/8(1) 230V CEE 7/17 Retail Battery Charger 24V 8A

The Victron Blue Smart IP65 Charger 24/8(1) 230V CEE 7/17 Retail (MPN: BPC240832064R) is a smart battery charger for 24V battery systems with a maximum charging current of 8A. With built-in Bluetooth, an adaptive 7-step charging algorithm, and various charging programs, it is suitable for the reliable charging and long-term maintenance of different battery types. The VictronConnect app allows you to configure the charging profile and charging current, as well as monitor operating data. Low-current mode, automatic temperature compensation, and a special storage mode further expand its range of applications. The rugged IP65 housing makes the charger particularly well-suited for vehicles, RVs, boats, and other mobile applications.

Intelligent 24V Charging with Bluetooth, 8A, and High Protection Rating

• For 24V battery systems
• Maximum charging current of 8A
• Low-current mode at 3A
• Adaptive 7-stage charging algorithm
• Built-in Bluetooth
• Configuration and monitoring via VictronConnect
• Charging programs for lead-acid and lithium batteries
• Normal, High, and Lithium modes
• Optional recovery mode for lead-acid batteries
• Automatic temperature compensation
• Storage mode for long-term battery maintenance
• Recovery function for fully discharged batteries
• Can be used as a DC power supply
• Silent operation without a fan
• 230 V AC connection with CEE 7/17

Adaptive 7-stage charging algorithm

The charger uses an intelligent, multi-stage charging algorithm designed for efficient charging and long-term battery maintenance. The seven operating phases are: testing, constant current, constant voltage, recovery, trickle charging, storage, and repeat. The duration of each phase is adjusted based on the condition of the connected battery. The battery is first charged rapidly to approximately 80%, and the remaining 20% is then charged in a controlled manner according to the selected charging profile.

Suitable Charging Profiles for Different Battery Types

Several built-in charging modes are available to meet different battery requirements. The 24V version supports the following voltages, among others:

• Normal: Constant voltage 28.8V
• Normal + Recovery: Constant voltage 28.8V
• High: Constant voltage 29.4V
• High + Recovery: Constant voltage 29.4 V
• Lithium: Constant voltage 28.4 V
• Trickle Charge Normal/High: 27.6 V
• Lithium Trickle Charge: 27.0 V
• Storage Normal/High: 26.4 V
• Lithium Storage: 27.0 V

The recovery mode is intended for lead-acid batteries and is not designed for regular charging cycles. In addition, there are pre-programmed profiles for lithium, lead-acid, AGM, gel, and wet batteries, as well as the option to configure your own charging profile.

Bluetooth and VictronConnect

The built-in Bluetooth enables a wireless connection to the VictronConnect app. Users can configure and monitor the charger via a smartphone or tablet. This includes, among other things:

• Selecting the charging profile
• Setting the charging current
• Displaying voltage and current
• Monitoring the current state of charge
• Graphical representation of the charging history
• Viewing the charging history and historical data
• Advanced configuration of charging parameters

Temperature-compensated charging

When charging lead-acid batteries, it automatically adjusts the charging voltage to the ambient temperature. The temperature is measured upon startup and taken into account again during the charging process. This allows the charging voltage to be adapted to different environmental conditions. For the 24V models, temperature compensation is 32 mV/°C. In lithium mode, there is no automatic temperature compensation.

Storage Mode for Extended Storage Periods

For batteries that remain connected to the charger for extended periods, the charger features a special storage mode. Once the charging phases are complete, the voltage is reduced compared to the normal trickle charge. This is intended to reduce the strain on the battery during extended periods of inactivity. A brief top-off charge is performed at regular intervals. This feature is particularly useful, for example, for seasonally used RVs, vehicles, or boats. Storage mode is specifically designed for batteries that remain connected for months at a time while inactive.

Recovery of Fully Discharged Batteries

Another special feature is the recovery function for fully discharged batteries. The charger can attempt to recharge a battery starting at 0V, initially using a low current. As soon as sufficient voltage has built up at the battery terminals, the normal charging cycle resumes. For suitable lead-acid batteries, an optional recovery phase is also available, which can be used, for example, after deep discharge or prolonged insufficient charging.

Rugged, protected, and silent

The housing has an IP65 rating and is therefore designed for more demanding environmental conditions. Victron specifies resistance to water, dust, and chemicals, as well as protective measures against:

• reverse polarity
• Output short circuit
• Overtemperature

The charger also operates silently, as cooling is achieved without a fan or other moving parts.

Technical Specifications

• Battery voltage: 24V
• Number of charging outputs: 1
• Mains voltage: 220–240 V AC
• Mains frequency: 50–60 Hz
• Charging current: max. 8 A
• Low-current mode: 3 A
• Power factor: >0.6
• Efficiency: 95%
• Bluetooth frequency: 2.402–2.480 MHz
• Protection: Reverse polarity, output short circuit, and overtemperature
• Cooling: natural convection, fanless
• Operating temperature: -40°C to +50°C
• Maximum relative humidity: 95%, non-condensing
• DC connection cable: 1.5 m
• DC cable cross-section: 1.5 mm² / 16 AWG
• Power connection: 1.5 m power cord with CEE 7/17 plug
• Protection rating: IP65
• Weight: 0.9 kg
• Dimensions (H × W × D): 190 × 105 × 60 mm

Package Contents

1x Victron Blue Smart IP65 Charger 24/8(1) 230V CEE 7/17 Retail
1x connection cable with battery terminals
1x connection cable with M8 ring terminals
