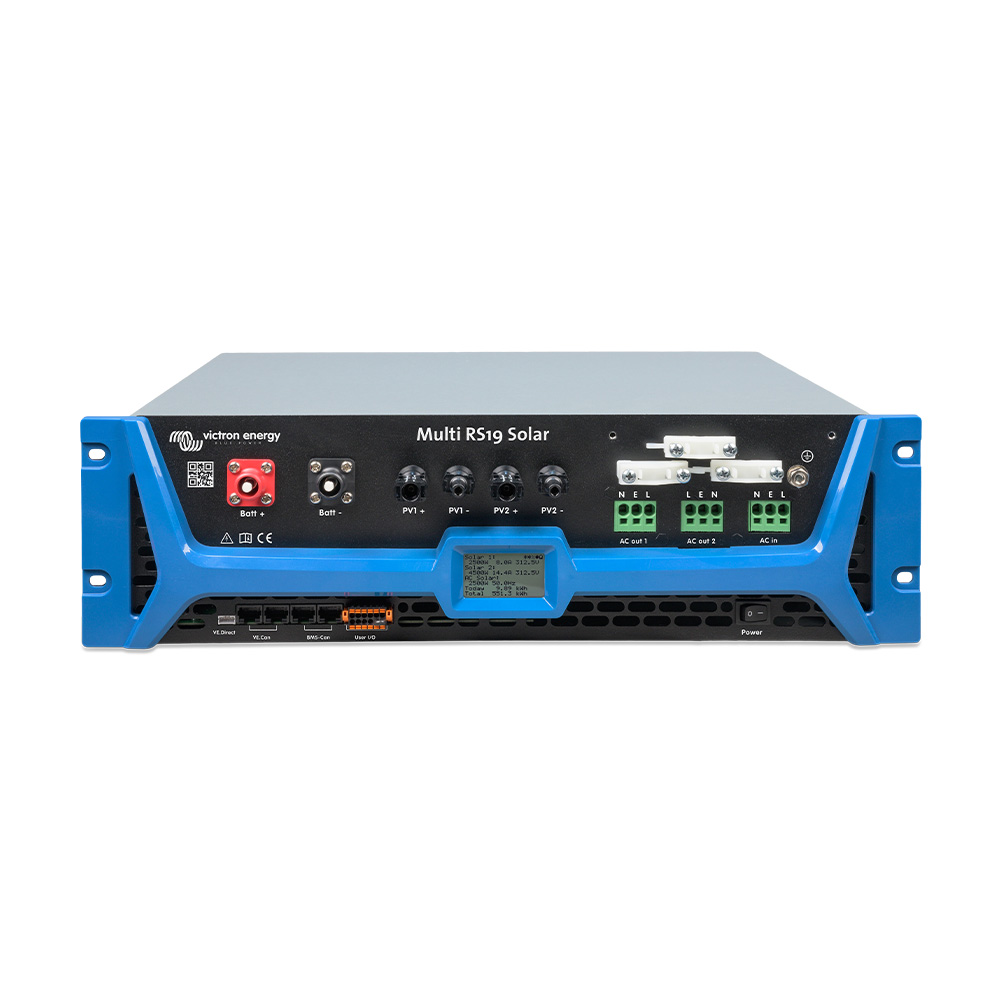

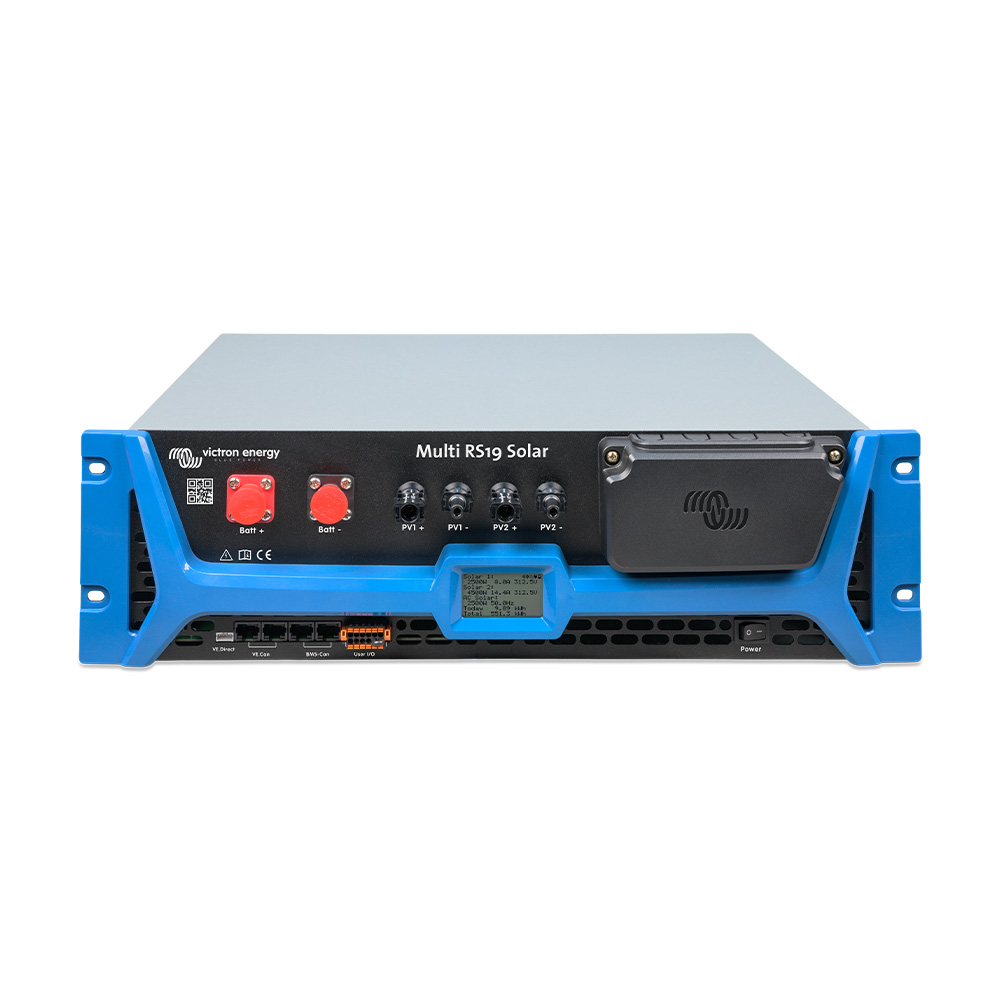

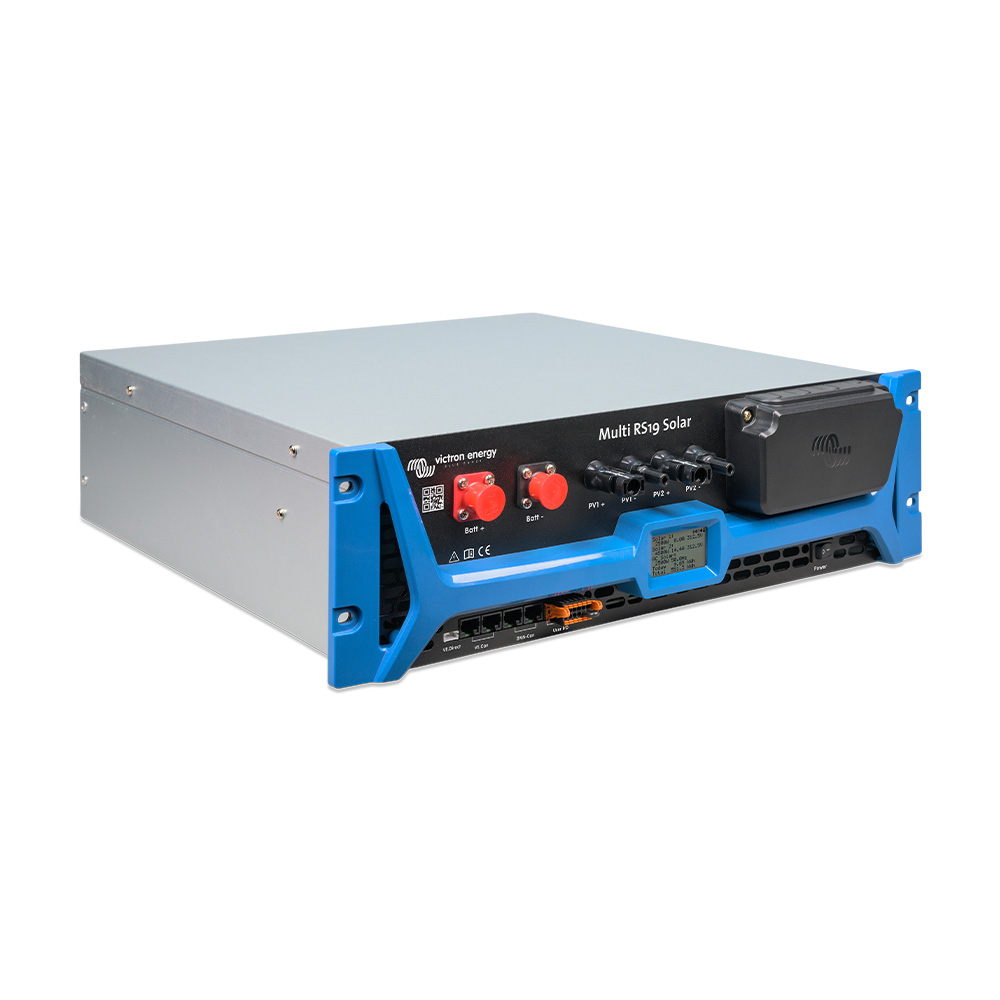

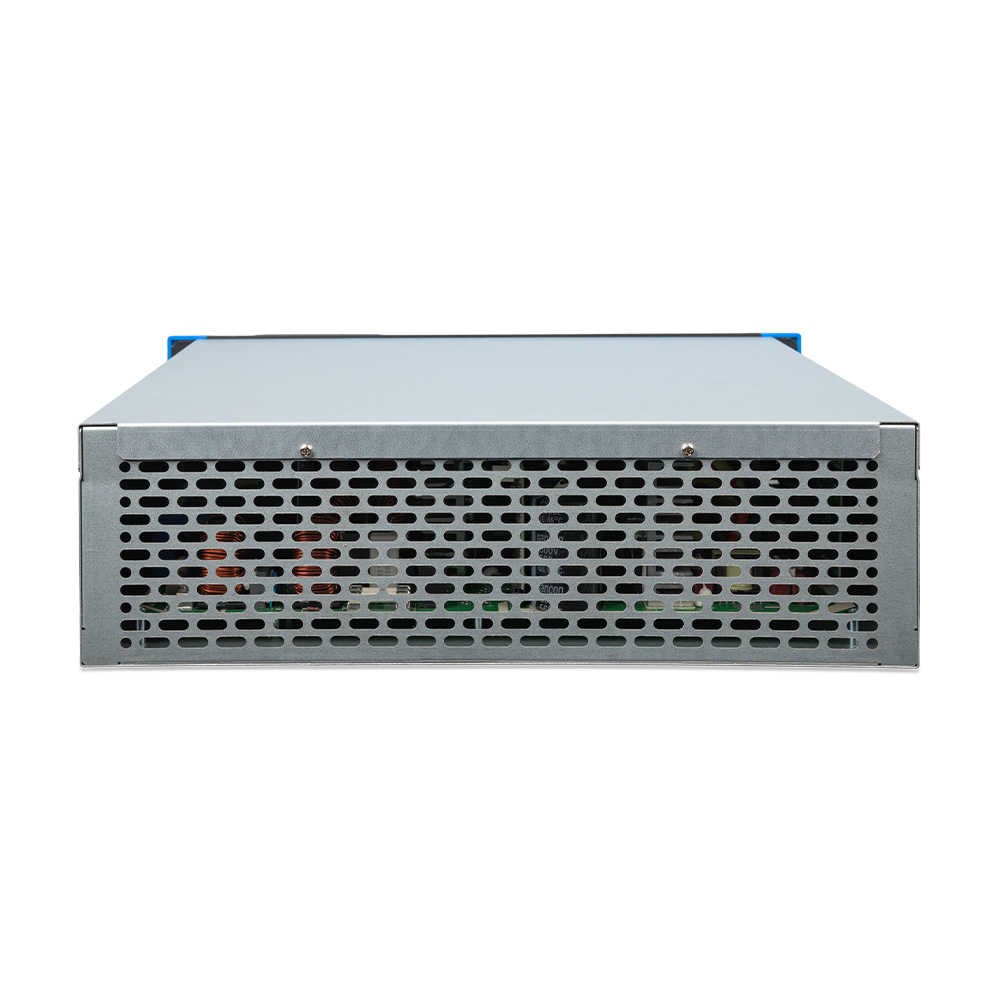

Victron Multi RS19 Solar 48/6000/100-450/100 Unit Combination

The Multi RS19 Solar from Victron Energy (MPN: PMR482602030) is a lightweight 48V/6kVA inverter and charge controller in a 19-inch format. With two independent PV MPPT trackers, it handles up to 6 kWp of solar power and can be installed in a standard 19-inch battery rack to save space. This combination unit is suitable for both grid-tied and off-grid applications. In grid-connected mode, it supports dynamic ESS functions and can be flexibly combined with various solar inverters. Operation without batteries is also possible, making future expansion easy. In off-grid mode, the Multi ensures reliably charged batteries and provides additional energy when needed. Modern high-frequency technology enables efficient, quiet operation with low power consumption.

Product Benefits

• Multiple operating modes— hybrid mode, reserve mode, off-grid mode, and generator mode
• PowerControl and PowerAssist— intelligent support for the grid and generator
• Flexibly expand PV capacity— with both AC and DC connections
• I/O connections— programmable relay, temperature sensor, and voltage sensor connections
• Information via display, Bluetooth, and the VictronConnect app

Operating Modes

Hybrid Mode – Excess solar energy is stored in a battery. This ensures you have power available even at night or during periods of high demand. If more energy is needed than the grid can supply, the battery steps in to provide support.
Standby mode— In the event of a power outage, the system automatically takes over the power supply and ensures a reliable source of electricity.
Off-Grid Mode – The system operates completely without a connection to the public power grid, making it perfect for an independent power supply.
Generator Mode – Thegenerator is used efficiently to minimize runtime. If the output is insufficient, the battery supplements the power demand.

PowerControl and PowerAssist – Smart Support for the Grid and Generator

With PowerControl , you can specify how much power may be drawn from the grid or the generator. The Multi RS takes other connected devices into account and charges the battery only with the excess power that is available. This reliably protects the grid connection or generator from overload. PowerAssist expands on this function: If more power is needed for a short time than the grid or generator can supply, the battery automatically provides the missing energy. As soon as demand drops again, the system uses the available capacity to efficiently recharge the battery.

Capacity Expansion

The existing PV capacity of 6 kWp can be easily expanded as needed, either with additional solar chargers or by adding more PV inverters. The system automatically regulates the inverters’ output, allowing your solar system to be flexibly adapted to growing demands at any time.

Protection Functions

• Output short circuit
• Overload
• Battery voltage too high
• Battery voltage too low
• Overtemperature

Display, Bluetooth, and VictronConnect App

All system data can be conveniently viewed on the integrated display or via the VictronConnect app. The app also allows you to track history and trends. If needed, the system can be expanded with a GX device such as the Cerbo GX. This provides additional features, such as the ability to limit grid feed-in or a backup mode that continues to power essential devices even during power outages.

Technical Specifications

Inverter

• DC input voltage range: 38–62 V
• Output voltage: 230 VAC ± 2%
• Frequency: 50 Hz ± 0.1%
• Maximum continuous current of the inverter: 25 AAC
• Continuous output power at 25 °C: Increases linearly from 4800 W at 46 VDC to 5300 W at 52 VDC
• Continuous output power at 40 °C: 4,500 W
• Continuous output power at 65 °C: 3,000 W
• Peak power: 9 kW for 3 seconds / 7 kW for 4 minutes
• Short-circuit output current: 45 A
• Max. overcurrent protection for AC output: 30 A
• Efficiency: 96.5% at 1 kW load / 94% at 5 kW load
• No-load power consumption: 20 W

Solar

• Maximum PV open-circuit voltage: 450 V
• Start-up voltage: 120 V
• MPPT operating voltage range: 65–450 V
• Maximum operating PV input current limit: 12 A
• Maximum PV conversion power: 6 kW total – 3 kW per tracker
• Maximum PV short-circuit current: 16 A

Charger

• Rated voltage: 230 VAC
• Input voltage range: 187–265 VAC
• Rated frequency: 50 Hz
• Input frequency: 45–65 Hz
• Programmable charging voltage range: 36–60 V
• Maximum charging current from AC: 88 A at 57.6 VDC
• Maximum total charging current (AC + PV): 100 A DC

General

• Operating temperature range: -40°C – +65 °C (forced-air cooling)
• Data communication ports: VE.Direct, VE.Can, BMS-Can, and Bluetooth
• Protection class: IP20
• Weight: 12.2 kg
• Dimensions: 133 x 483 x 430 mm

Package Contents

1x Victron Multi RS19 Solar 48/6000/100-450/100 unit combination
